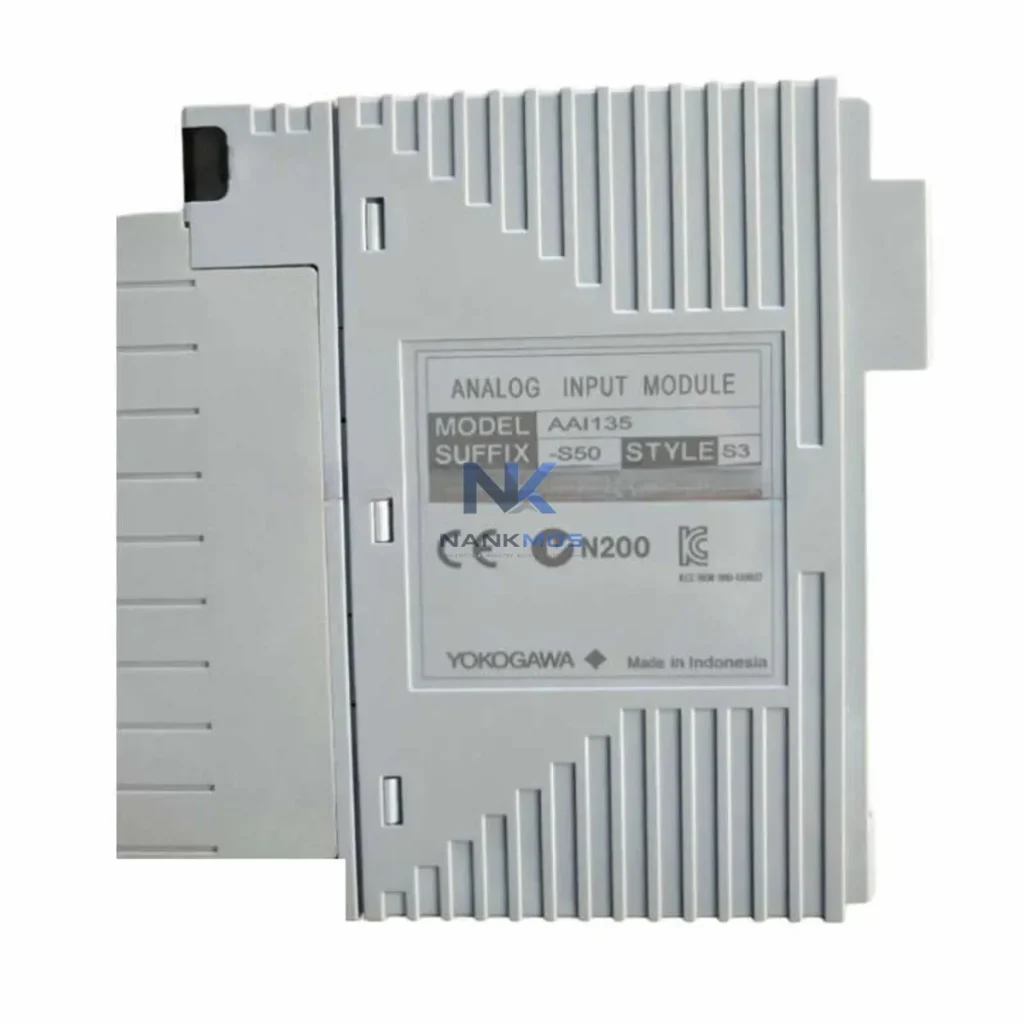

Yokogawa AAI135-S50 S3 Analog Input Module

Product Details

AAI135-S50 S3 Product Description

In modern smart factory environments, the integrity of the data chain between field instruments and supervisory control systems is the foundation of operational excellence. The Yokogawa AAI135-S50/S3 is a 16-channel analog input module engineered for the CENTUM VP and CS 3000 distributed control systems, delivering high-density signal acquisition, native HART protocol communication, and seamless integration into plant-wide data architectures. From the first milliamp signal at the transmitter to the real-time trend on the SCADA dashboard, the AAI135-S50/S3 anchors every step of the industrial data flow.

The AAI135-S50/S3 sits at the critical junction between physical process signals and the digital intelligence layer of a smart factory. In a typical deployment, field-mounted pressure transmitters, temperature sensors, and flow meters output 4–20 mA signals with superimposed HART data. The AAI135-S50/S3 receives all 16 channels simultaneously, digitizes the analog values with high resolution, and forwards both the primary process variable and the HART secondary variables — device status, diagnostics, and configuration parameters — upstream to the CENTUM VP Field Control Station (FCS).

Within the FCS, the digitized data is processed by the control logic and distributed across the Vnet/IP control network — Yokogawa's high-speed, fault-tolerant Ethernet-based backbone. From Vnet/IP, real-time process values flow to the CENTUM VP Human Interface Station (HIS), where operators monitor trends, configure alarms, and execute control commands. Simultaneously, the Exaopc OPC server bridges the CENTUM VP domain to third-party SCADA platforms and MES systems, enabling plant-wide data visibility without protocol barriers.

For facilities running hybrid architectures, the AAI135-S50/S3 coexists with Yokogawa AMM12D analog output modules and ADM12D digital I/O modules within the same I/O nest, sharing the same field terminal bus and reducing wiring complexity. Where remote I/O expansion is required, Yokogawa KFCS field control stations extend the I/O reach across geographically distributed process units while maintaining synchronization over Vnet/IP.

At the field device level, HART-enabled instruments such as the Yokogawa EJX series differential pressure transmitters and YTA series temperature transmitters communicate secondary diagnostics through the AAI135-S50/S3 without interrupting the primary 4–20 mA control loop. This dual-layer communication enables predictive maintenance workflows: device health data is extracted via the Yokogawa PRM (Plant Resource Manager) asset management platform, which correlates instrument diagnostics with process performance trends and generates maintenance alerts before failures occur.

For edge connectivity and IIoT integration, the AAI135-S50/S3 data stream can be routed through Yokogawa OpreX Field Device Advisor or third-party edge gateways supporting OPC-UA and MQTT, pushing real-time analog values and HART diagnostics to cloud-based data lakes and digital twin platforms. Industrial Ethernet switches with managed VLAN segmentation ensure that control traffic on Vnet/IP remains isolated from IT network traffic, preserving deterministic response times across the automation layer.

Power integrity for the I/O nest is maintained by dedicated Yokogawa UPS and redundant power supply modules, ensuring that the AAI135-S50/S3 continues to acquire and transmit field data without interruption during grid disturbances — a critical requirement for continuous process industries including refining, petrochemicals, and power generation.

Protocol fragmentation is one of the most persistent challenges in brownfield automation upgrades. Legacy 4–20 mA loops carry only the primary process variable, leaving device health and secondary parameters invisible to the control system. The AAI135-S50/S3 resolves this by natively decoding HART communication on all 16 channels, surfacing device diagnostics, loop integrity data, and configuration parameters directly within the CENTUM VP environment — no separate HART multiplexer or protocol converter required.

Data silos between the DCS and enterprise systems are eliminated through the Exaopc OPC-DA/UA interface, which exposes all AAI135-S50/S3 channel values and HART secondary variables as standard OPC tags consumable by any SCADA, historian, or MES platform. This single integration point replaces point-to-point data extraction scripts and ensures consistent, timestamped data across all enterprise layers.

Remote monitoring and alarm management are enhanced by the HART diagnostic channel: abnormal loop resistance, sensor drift, and device failures generate structured alerts within PRM, which can be forwarded to mobile maintenance terminals or integrated into the plant alarm management system. Maintenance teams can remotely reconfigure HART instruments, perform loop tests, and verify calibration status without dispatching field personnel — reducing both response time and operational risk.

Production line transparency is achieved by mapping all 16 analog channels to CENTUM VP trend groups and alarm summary displays, giving shift operators a consolidated view of process health. Historical data archived in the Exaquantum plant information management system enables post-event analysis, regulatory reporting, and continuous improvement initiatives based on actual process data rather than manual logs.

System scalability is built into the CENTUM VP architecture: additional AAI135-S50/S3 modules can be added to existing I/O nests without system shutdown, and the Vnet/IP backbone supports expansion to thousands of I/O points across multiple FCS units — making the AAI135-S50/S3 a long-term investment that grows with the facility's automation roadmap.

Q1: Does the AAI135-S50/S3 support simultaneous HART communication on all 16 channels? Yes. The AAI135-S50/S3 supports HART communication on all 16 analog input channels concurrently. Both primary process variables (4–20 mA) and HART secondary variables (device status, diagnostics, configuration) are acquired and forwarded to the CENTUM VP FCS without channel multiplexing delays, ensuring real-time data integrity across the full I/O complement.

Q2: What is the network latency between field signal acquisition and SCADA display? Within the CENTUM VP architecture, the AAI135-S50/S3 scan cycle is configurable down to 100 ms. Data propagation from the field terminal to the HIS operator display via Vnet/IP typically adds less than 50 ms of network latency under normal load conditions, making the system suitable for fast-loop monitoring and alarm response in continuous process applications.

Q3: Can the AAI135-S50/S3 be integrated with third-party SCADA or MES systems? Yes. Integration is achieved through the Exaopc OPC-DA/UA server, which exposes all CENTUM VP process data — including AAI135-S50/S3 channel values and HART diagnostics — as standard OPC tags. This enables seamless connectivity to Wonderware, iFIX, Ignition, PI System, and other SCADA/historian platforms without custom protocol adapters.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the AAI135-S50/S3? Every AAI135-S50/S3 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures. Prior to shipment, each module undergoes functional verification testing to confirm channel integrity, HART communication, and bus interface operation. In-stock units are available for immediate dispatch with full documentation. Contact [email protected] or +86 18359268345 for availability and RFQ.
