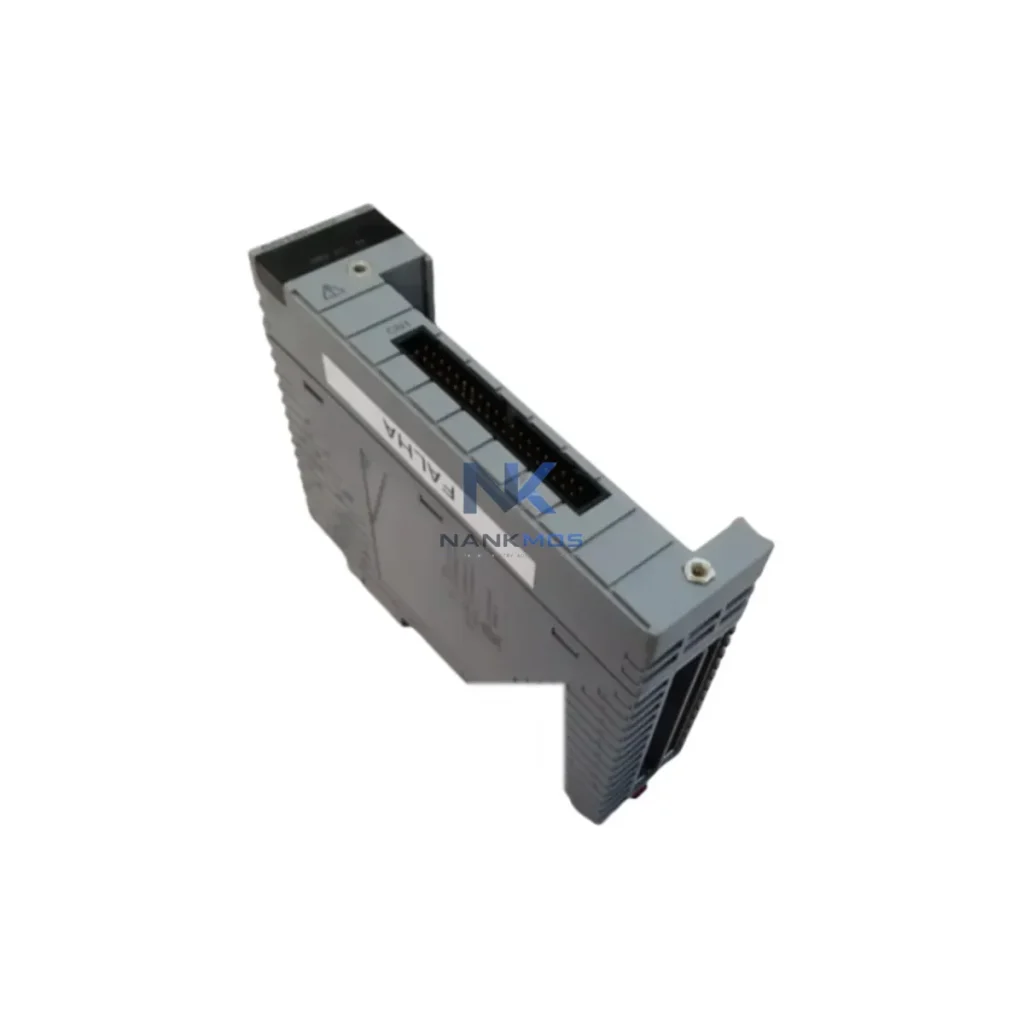

Yokogawa AAI135-H50 S3 Analog Input Module

Product Details

AAI135-H50 S3 Product Description

The Yokogawa AAI135-H50/S3 is a high-precision analog input module engineered for the CENTUM CS 3000 and CENTUM VP distributed control systems. Designed to meet the rigorous demands of energy-intensive industries — including power generation, petrochemicals, oil & gas, water treatment, and marine propulsion — this module delivers accurate, low-latency signal acquisition that forms the backbone of intelligent energy management and load optimization strategies on modern production lines.

By converting field-level analog signals (4–20 mA, 1–5 V) into digital process values with high resolution and minimal drift, the AAI135-H50/S3 enables control engineers to monitor real-time energy consumption, thermal load distribution, and equipment operating states across the entire plant floor. When integrated with Yokogawa's CENTUM VP engineering station and paired with the Yokogawa ACM12 Communication Module for Modbus/TCP or FOUNDATION Fieldbus connectivity, the module supports seamless data exchange with SCADA platforms and energy management systems (EMS), enabling operators to identify and eliminate sources of inefficient energy use before they escalate into costly downtime.

Effective energy control in industrial environments requires a tightly coordinated ecosystem of field devices, controllers, and communication infrastructure. The AAI135-H50/S3 sits at the critical junction between field instrumentation and the control layer, collecting analog signals from pressure transmitters, flow meters, temperature sensors, and current transducers — then feeding that data upstream to the CENTUM VP controller for real-time decision-making.

In a typical power plant or chemical process facility, the module works in concert with the Yokogawa AAI141 Analog Input Module to expand channel capacity across multiple node units, while the Yokogawa AO810 Analog Output Module closes the control loop by issuing corrective signals to variable frequency drives (VFDs) and control valves. When motor-driven loads such as pumps, compressors, and fans are regulated by Yokogawa UD33 or UD51 inverter drives, the analog feedback routed through the AAI135-H50/S3 allows the DCS to dynamically adjust motor speed in response to actual process demand — directly reducing unnecessary energy consumption during low-load periods.

For power monitoring applications, the module integrates with Yokogawa WT series power analyzers and third-party power quality meters via 4–20 mA outputs, enabling the CENTUM VP to log active power, reactive power, and power factor data in real time. This data feeds into the plant's energy management system (EMS) or SCADA platform — such as those built on OPC-UA or Modbus/TCP protocols — where energy KPIs are tracked, benchmarked, and reported. The Yokogawa ACM12 Communication Module facilitates this data bridge, ensuring that the AAI135-H50/S3's acquired values are available to higher-level systems without latency or data loss.

On the I/O and HMI side, the module pairs naturally with the Yokogawa ADM51 Digital Input Module for discrete status signals and with Yokogawa's FAST/TOOLS SCADA or third-party HMI panels for operator visualization. Together, these components give plant operators a unified view of energy flows, equipment states, and process efficiency — all from a single control room interface.

Production line energy optimization begins with accurate, continuous measurement — and the AAI135-H50/S3 delivers exactly that. By providing 16 channels of high-resolution analog input with a 125 ms scan cycle, the module ensures that no transient energy event goes undetected. Sudden load spikes from motor startups, thermal runaway in heat exchangers, or pressure fluctuations in compressed air systems are captured immediately and relayed to the CENTUM VP controller for corrective action.

This rapid feedback loop is essential for maintaining stable production line throughput (takt time) without over-energizing equipment. For example, in a water treatment facility, the AAI135-H50/S3 can monitor the current draw of multiple pump motors simultaneously. When the DCS detects that a pump is operating above its optimal efficiency curve — indicated by rising current at constant flow — it can command the associated VFD to reduce speed, cutting energy consumption by 20–40% without disrupting process continuity.

In predictive maintenance workflows, the module's continuous analog data stream feeds condition monitoring algorithms that track vibration proxy signals, motor current signatures, and thermal trends. Early detection of bearing wear, winding degradation, or valve leakage allows maintenance teams to schedule interventions during planned shutdowns rather than responding to unplanned failures — reducing both energy waste from degraded equipment and the production losses associated with emergency stops.

All units are pre-shipment tested against Yokogawa factory specifications and covered by a 12-month warranty, ensuring that your production line receives a verified, reliable component ready for immediate commissioning. In-stock availability supports fast deployment for both new installations and emergency replacements, minimizing the risk of extended downtime in critical process environments.

Q1: How does the AAI135-H50/S3 contribute to measurable energy savings on a production line? The module enables real-time monitoring of analog process variables — including current, pressure, flow, and temperature — that directly reflect energy consumption patterns. By feeding this data to the CENTUM VP DCS, operators can implement demand-response control strategies, optimize VFD setpoints, and eliminate idle-state energy waste. Facilities typically report 10–30% reductions in auxiliary energy consumption after implementing closed-loop control strategies based on accurate analog input data.

Q2: Is the AAI135-H50/S3 compatible with both CENTUM CS 3000 and CENTUM VP systems? Yes. The AAI135-H50/S3 is designed for use in both the CENTUM CS 3000 and CENTUM VP node unit racks. It is fully compatible with Yokogawa's standard I/O bus architecture and can be installed alongside other AAI/AAO series modules without hardware modification. For system migration projects from CS 3000 to VP, the module can be retained in the existing rack, reducing upgrade costs.

Q3: What is the recommended replacement or equivalent module if the AAI135-H50/S3 is unavailable? The closest functional equivalent within the Yokogawa CENTUM platform is the AAI141-S03, which offers similar channel count and input range compatibility. For applications requiring higher channel density, the AAI835-H50 (32-channel variant) may be considered. Always verify firmware and rack compatibility with your system integrator before substitution.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted? Every AAI135-H50/S3 unit supplied by NANKMOS undergoes pre-shipment functional testing that verifies channel accuracy, isolation integrity, bus communication, and power consumption within Yokogawa-specified tolerances. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch, supporting both planned procurement and urgent replacement scenarios.
