Yokogawa ASF9553EA-02 F9553ET-02 Communication Gateway

Product Details

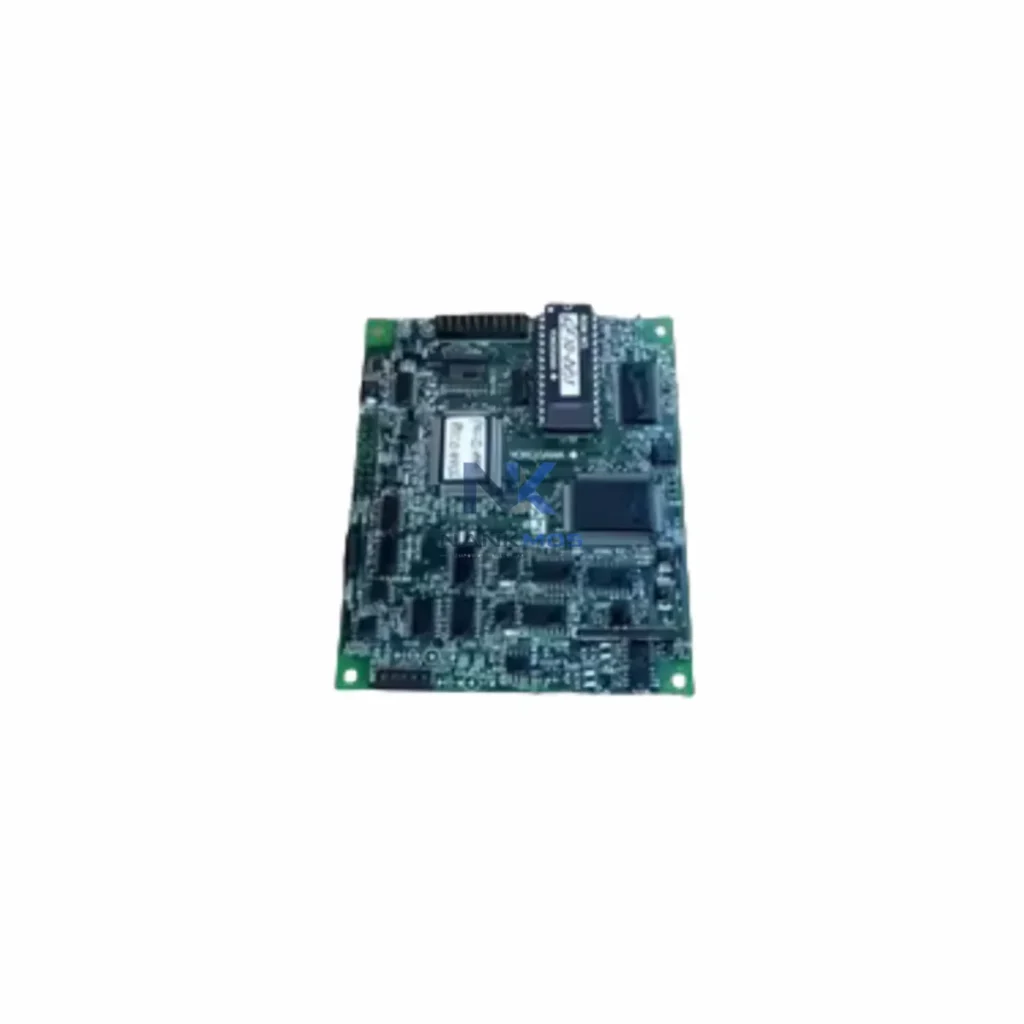

ASF9553EA-02 F9553ET-02 Product Description

The Yokogawa ASF9553EA-02 is a high-performance industrial network interface module engineered for the Yokogawa CS3000 Distributed Control System (DCS). Designed to serve as the critical data bridge between field instrumentation, process controllers, and upper-level supervisory systems, this communication gateway enables seamless, real-time data exchange across the full automation data chain — from signal acquisition at the sensor level to visualization on SCADA and HMI platforms. In smart factory environments where data continuity, protocol interoperability, and network stability are non-negotiable, the ASF9553EA-02 delivers the connectivity backbone that modern industrial operations demand.

In a fully connected smart factory, the ASF9553EA-02 operates at the heart of the industrial data chain. At the field level, process sensors — including Yokogawa EJA-series differential pressure transmitters and YTA-series temperature transmitters — communicate via FOUNDATION Fieldbus H1 or HART protocol. The ASF9553EA-02 aggregates these field signals and translates them into structured data packets compatible with the CS3000 DCS controller bus (Vnet/IP), ensuring that every process variable — flow, pressure, temperature, and level — is accurately represented in the control layer without signal degradation or latency spikes.

Within the CS3000 architecture, the ASF9553EA-02 works alongside the ACF11 field control station and the PFCS process field control station to coordinate multi-loop control strategies. Data from remote I/O modules such as the AAI141 analog input module and the ADV151 digital output module is routed through the network interface, enabling the DCS to execute PID control, cascade loops, and interlock logic with full process visibility. The module's deterministic communication architecture ensures that control cycle times remain consistent even under high-load network conditions.

At the supervisory layer, the ASF9553EA-02 feeds real-time process data to Yokogawa CENTUM VP HMI workstations and Exaquantum plant information management system (PIMS) via OPC DA/UA. Operators gain live trend visualization, alarm management, and historical data logging without requiring additional protocol converters. For sites integrating third-party SCADA platforms — such as Wonderware System Platform or Ignition by Inductive Automation — the module's Modbus TCP output provides a standardized data pathway, eliminating the need for custom middleware and reducing integration risk.

Edge connectivity is further extended through compatibility with Yokogawa's FA-M3 range-free multi-controller and industrial Ethernet switches such as the Hirschmann RS20 series, which provide managed Layer 2 switching with PROFINET and Modbus TCP support. This allows the ASF9553EA-02 to participate in ring-topology networks with redundancy failover, ensuring that a single cable fault does not interrupt process data flow. For remote sites or geographically distributed plants, the module's data output can be tunneled through industrial VPN gateways or edge computing nodes running IIoT middleware, enabling cloud-based remote diagnostics and predictive maintenance analytics.

Every ASF9553EA-02 unit shipped by NANKMOS undergoes full functional testing, including protocol handshake verification, cyclic data transmission checks, and network segment isolation tests. Stock is maintained on-hand for immediate dispatch, supporting both planned system expansions and urgent replacement scenarios.

Many industrial facilities operating legacy DCS platforms face persistent challenges: protocol fragmentation between field devices and control systems, data silos that prevent cross-system visibility, and the inability to perform remote diagnostics without physical site access. The ASF9553EA-02 directly addresses these pain points within the CS3000 ecosystem.

Protocol unification is achieved by supporting simultaneous FOUNDATION Fieldbus H1, Modbus RTU/TCP, and OPC UA communication on a single module, eliminating the need for standalone protocol converters that introduce additional failure points. Data island isolation is resolved by providing a unified data pathway from field instruments through the DCS to SCADA and PIMS layers, ensuring that every process variable is accessible from a single supervisory interface. For remote monitoring, the module's OPC UA server capability allows authorized remote clients to subscribe to live process data and alarm states without VPN tunneling to the DCS engineering station, reducing both cybersecurity exposure and remote access complexity.

Production line transparency is enhanced through integration with Yokogawa's Exaquantum PIMS, which aggregates ASF9553EA-02 data streams into KPI dashboards covering OEE, energy consumption, and batch yield metrics. Alarm tracking is supported by the module's event logging capability, which timestamps every alarm transition with millisecond resolution, enabling root-cause analysis and regulatory compliance reporting. System expansion is straightforward: additional ASF9553EA-02 modules can be added to the CS3000 cabinet without system shutdown, supporting phased capacity growth aligned with production scale-up plans.

Q1: What communication protocols does the ASF9553EA-02 support, and is it compatible with third-party SCADA systems?The ASF9553EA-02 supports FOUNDATION Fieldbus H1, Modbus RTU/TCP, OPC DA/UA, and HART pass-through. It is compatible with any SCADA platform that supports OPC DA/UA or Modbus TCP client connections, including Wonderware, Ignition, and iFIX, without requiring proprietary drivers.

Q2: How does the module ensure network stability in high-noise industrial environments?The ASF9553EA-02 is designed to operate within the CS3000 Vnet/IP redundant network architecture. It supports dual-port Ethernet with automatic failover, ensuring that a single network path failure does not interrupt data transmission. The module also incorporates electrical isolation on all fieldbus ports to suppress common-mode noise from variable frequency drives and high-current switching equipment.

Q3: Can the ASF9553EA-02 support remote diagnostics without on-site access?Yes. Via OPC UA, authorized remote clients can access live process data, device health parameters, and alarm logs from the ASF9553EA-02 without requiring a direct connection to the CS3000 engineering station. Combined with an industrial VPN gateway or edge computing node, full remote diagnostic capability is achievable for geographically distributed plant networks.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?Every ASF9553EA-02 unit supplied by NANKMOS carries a 12-month warranty covering hardware defects and communication failures under normal operating conditions. Pre-shipment testing includes protocol handshake verification, cyclic data transmission load testing, network segment isolation checks, and visual inspection of all connectors and PCB components. A test report is available upon request.
