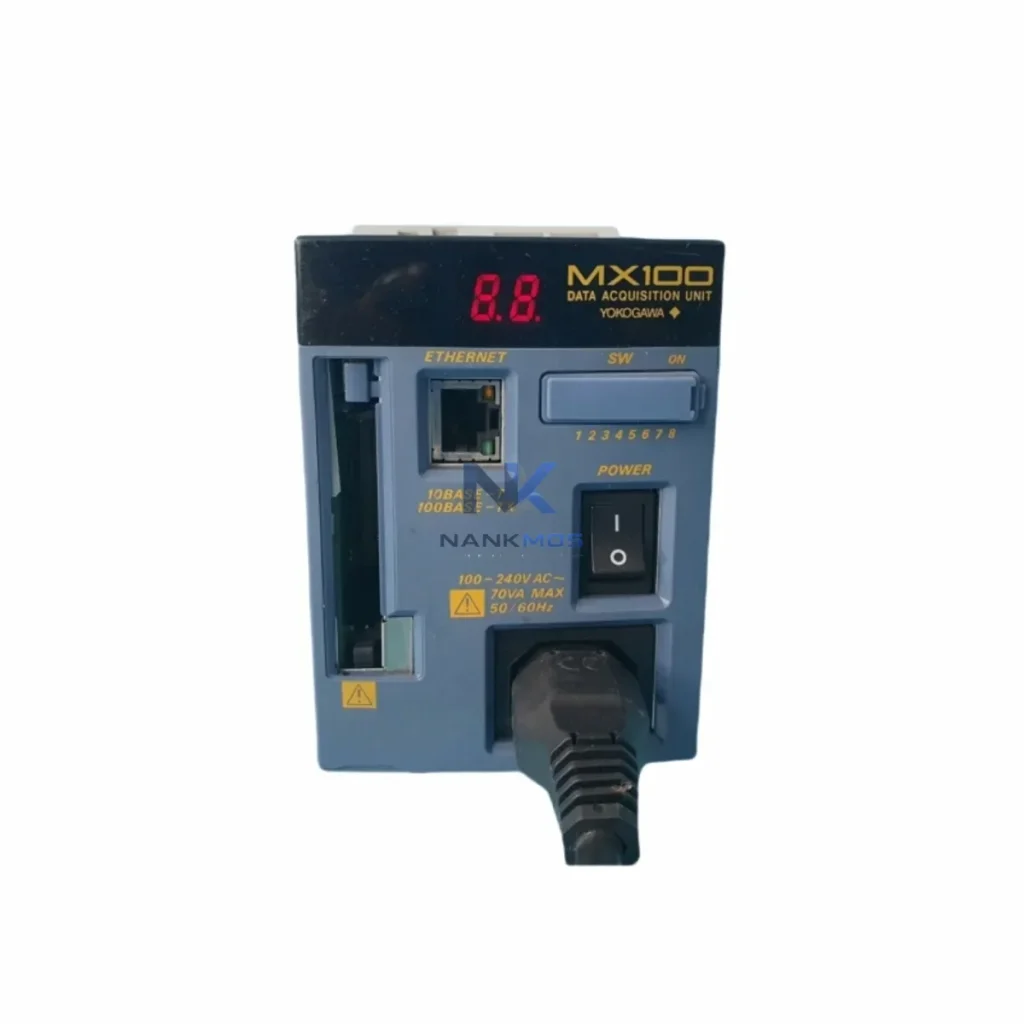

Yokogawa MX100-E-1F Data Acquisition Module

Product Details

MX100-E-1F Product Description

The Yokogawa MX100-E-1F is a high-precision energy-control data acquisition module engineered for demanding industrial environments where real-time energy visibility and production line efficiency are non-negotiable. As part of the Yokogawa MX100 modular data acquisition platform, the MX100-E-1F captures multi-channel analog input signals with exceptional accuracy, enabling plant engineers to monitor power consumption, thermal load, motor current draw, and process variables simultaneously — all from a single, compact module that integrates seamlessly into existing automation architectures.

In modern smart factories, energy waste is rarely caused by a single point of failure. It accumulates invisibly across drive systems, motor loads, compressed air circuits, and idle equipment. The MX100-E-1F addresses this challenge by providing continuous, high-resolution data streams that feed directly into energy management systems (EMS) and SCADA platforms, giving operations teams the granular insight needed to identify inefficiencies, schedule predictive maintenance, and optimize production line throughput without increasing energy expenditure.

Whether deployed in a discrete manufacturing cell, a process plant, or a utility substation, the MX100-E-1F delivers the measurement integrity and system compatibility that industrial energy optimization demands.

The MX100-E-1F is designed to operate as a core sensing node within a layered power-aware automation architecture. In a typical smart production line, it works alongside a Yokogawa DAQMASTER MW100 data acquisition controller, which aggregates multi-module inputs and transmits consolidated energy data to the plant's SCADA system over Ethernet. This combination allows engineers to correlate energy consumption data with production output in real time, identifying which machines are drawing excess current relative to their productive contribution.

On the drive side, the MX100-E-1F complements variable frequency drives (VFDs) such as the Yaskawa A1000 or Siemens SINAMICS G120 by providing independent current and voltage measurement that validates drive efficiency claims and detects harmonic distortion before it propagates into the power distribution network. When paired with a Siemens SIMATIC S7-1500 PLC, the module's analog outputs can trigger demand-response logic — automatically ramping down non-critical loads during peak tariff windows.

For motor control applications, the MX100-E-1F monitors winding temperature and current signature patterns that indicate bearing wear or rotor imbalance in motors controlled by ABB ACS880 drives. This data feeds predictive maintenance algorithms running on an OSIsoft PI System or equivalent historian, reducing unplanned downtime and the energy spikes associated with cold-start restarts after failures.

The module also integrates with Yokogawa EJX series pressure transmitters and Omron E5CC temperature controllers to build a complete process energy profile. When combined with a Phoenix Contact QUINT power supply and a Moxa NPort serial device server for legacy instrument bridging, the MX100-E-1F becomes the measurement backbone of a fully connected, energy-aware production cell. HMI visualization via Schneider Electric Magelis panels or Weintek cMT series displays real-time energy KPIs directly on the shop floor, closing the feedback loop between operators and energy management systems.

Factory energy waste follows predictable patterns: motors running at full load during low-demand periods, compressed air leaks undetected between shifts, heating elements cycling inefficiently due to poor thermal feedback, and drives operating outside their optimal efficiency curves. The MX100-E-1F attacks each of these patterns by providing the continuous, high-resolution measurement data that energy management systems need to act — not just report.

By installing the MX100-E-1F at key measurement points across a production line — motor control centers, drive panels, utility distribution boards, and process equipment — plant engineers gain a granular energy map that reveals where kilowatt-hours are being consumed relative to production output. This load profiling capability enables the identification of energy-intensive bottlenecks that would otherwise remain invisible in aggregate utility billing data.

Thermal load management is another critical application. The module's high-accuracy analog inputs capture temperature data from thermocouples and RTDs mounted on motors, drives, and transformers, enabling early detection of thermal stress before it causes insulation degradation or drive trips. Reducing thermal load not only extends equipment life but also decreases cooling energy consumption in enclosed electrical rooms and control cabinets.

Production line rhythm — the consistent, predictable cadence of machine cycles — is directly tied to energy efficiency. Machines that stall, overshoot, or idle consume energy without contributing to output. The MX100-E-1F's real-time data streams allow SCADA and MES systems to detect rhythm disruptions immediately, triggering corrective actions that restore optimal cycle times and minimize the energy cost per unit produced.

For facilities pursuing ISO 50001 energy management certification or internal carbon reduction targets, the MX100-E-1F provides the metering-grade data foundation required for energy baseline establishment, performance indicator tracking, and audit-ready reporting. Every unit shipped by NANKMOS undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring that your energy measurement infrastructure performs reliably from day one.

Q1: What energy savings can I expect by integrating the MX100-E-1F into my production line? Actual savings depend on your baseline energy profile, but facilities using high-resolution DAQ modules for load profiling and idle detection typically identify 8–15% in recoverable energy waste within the first three months of deployment. The MX100-E-1F provides the measurement resolution needed to pinpoint specific machines, shifts, or process steps where consumption is disproportionate to output.

Q2: Is the MX100-E-1F compatible with my existing PLC and SCADA infrastructure? Yes. The MX100-E-1F communicates via Ethernet and supports Modbus TCP, making it compatible with major PLC platforms including Siemens SIMATIC, Mitsubishi MELSEC, Omron NX/NJ, and Rockwell ControlLogix, as well as SCADA systems such as Wonderware, Ignition, and Yokogawa CENTUM VP. For legacy systems using serial protocols, a Modbus RTU gateway can bridge the connection without requiring infrastructure changes.

Q3: Can the MX100-E-1F replace an older Yokogawa data acquisition module in an existing MX100 system? In most cases, yes. The MX100-E-1F is designed for modular compatibility within the MX100 platform. Before replacement, verify the channel configuration, input type (voltage, thermocouple, or universal), and firmware version of your existing DAQMASTER controller. NANKMOS provides pre-shipment testing on all units to confirm functional integrity, and our technical team can assist with compatibility verification prior to order.

Q4: What does the 12-month warranty cover, and how quickly can replacement units be shipped? The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. All units are pre-shipment tested at NANKMOS before dispatch. In the event of a warranty claim, replacement units are processed promptly from in-stock inventory. For urgent production line requirements, expedited shipping is available. Contact us at [email protected] or +86 18359268345 to confirm current stock levels and lead times.
