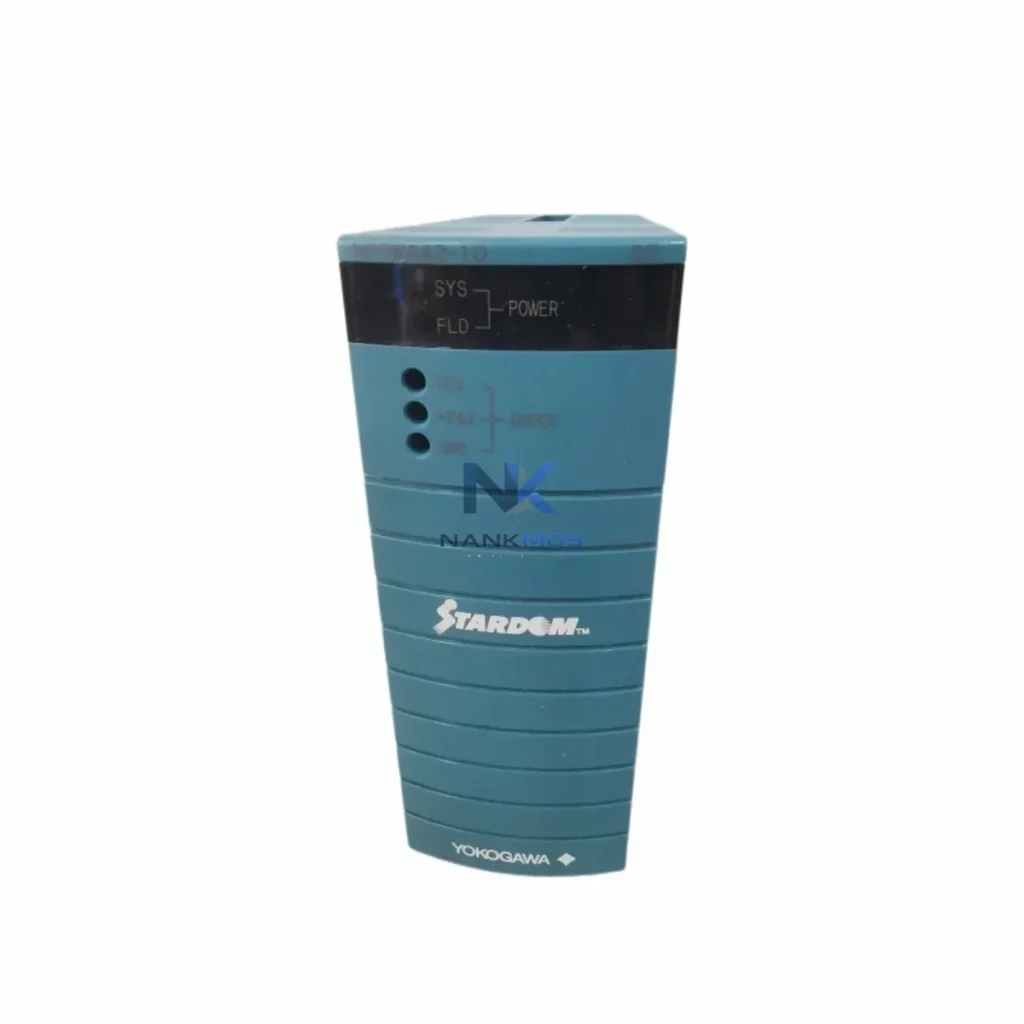

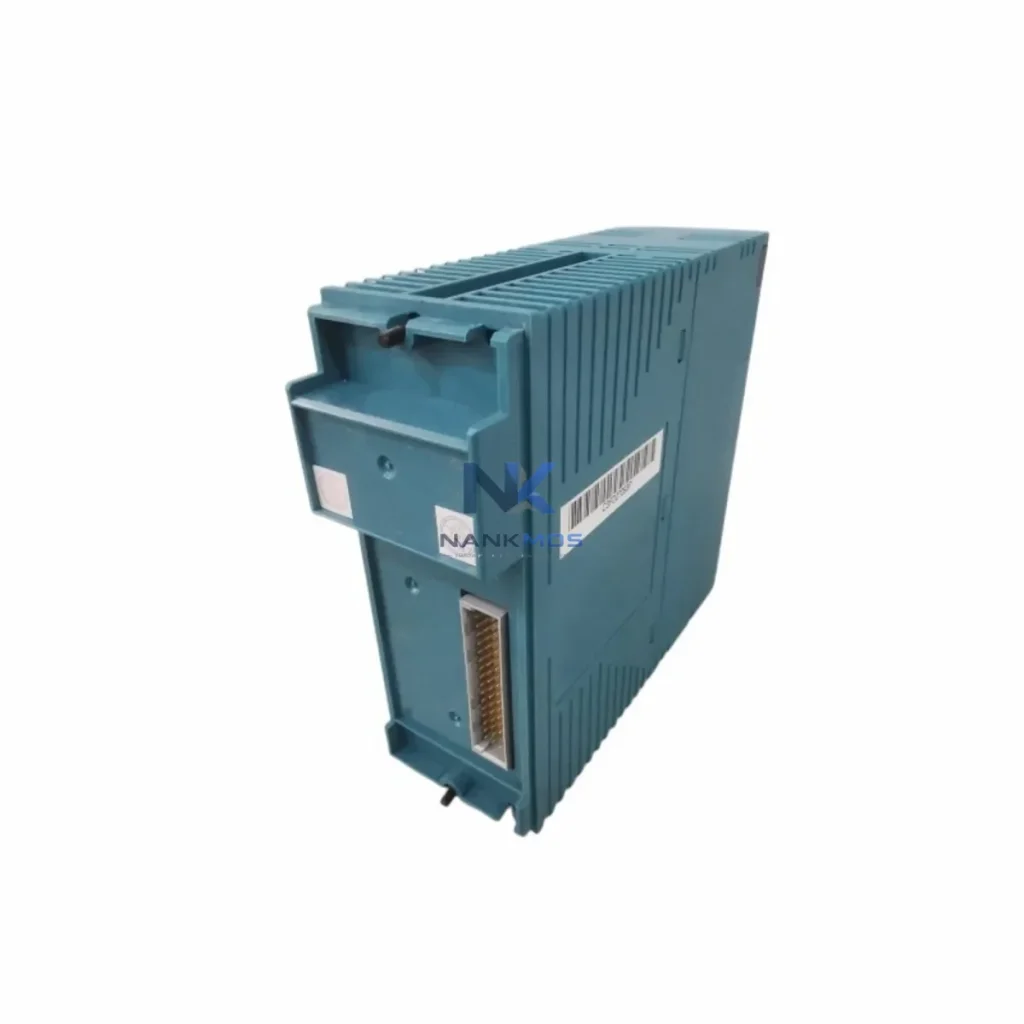

Yokogawa NFPW442-11 Power Supply Module

Product Details

NFPW442-11 Product Description

The Yokogawa NFPW442-11 is a dedicated power supply module engineered for deployment within the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. Designed to deliver stable, regulated DC power to field control stations (FCS), I/O modules, and communication buses, the NFPW442-11 occupies a foundational role in the power layer of any Yokogawa-based control architecture. Its robust design ensures continuous, uninterrupted power delivery across demanding industrial environments including oil and gas processing, chemical manufacturing, power generation, and water treatment facilities.

In a layered industrial control architecture, the power layer is the silent backbone that determines system availability. The NFPW442-11 integrates directly into Yokogawa's modular FCS cabinet structure, supplying conditioned power to the control layer (including the FFCS-V and PFCS processor modules), the I/O layer (including NFAI141, NFAO141, NFDI141, and NFDO141 I/O modules), and the communication layer (including ESB bus couplers and Vnet/IP network interface cards). By maintaining tight voltage regulation and providing built-in redundancy support, the NFPW442-11 ensures that signal integrity across all connected layers remains uncompromised even during grid fluctuations or partial load changes.

System architects deploying the NFPW442-11 benefit from its compatibility with Yokogawa's dual-redundant power supply configuration. When paired with a second NFPW442-11 unit in a 1+1 redundant arrangement, the system achieves continuous power availability without single points of failure — a critical requirement for SIL-rated safety instrumented systems and high-availability process control loops. The module's hot-swap capability further supports zero-downtime maintenance, allowing field engineers to replace a degraded unit without interrupting the control system's operational state.

From a signal flow perspective, the NFPW442-11 feeds regulated power to every node in the FCS cabinet: processor cards execute scan cycles, I/O modules sample field transmitters and actuate final control elements, and communication modules maintain real-time data exchange with the HMI layer running CENTUM VP's Human Interface Station (HIS). Any instability in the power layer propagates immediately into scan jitter, communication timeouts, and false diagnostics — making the NFPW442-11's voltage stability specification a direct determinant of overall system diagnostic efficiency and control loop performance.

For engineering teams managing modular expansion, the NFPW442-11 supports incremental cabinet growth. As additional I/O nest units (such as the ANB10D or ANB11D nest assemblies) are added to extend the I/O count, the power budget must be recalculated and additional NFPW442-11 units provisioned accordingly. This modular power scaling approach aligns with Yokogawa's philosophy of incremental, non-disruptive system expansion — allowing plants to grow their control architecture without full cabinet replacements or extended shutdown windows.

Long-term maintenance efficiency is another key advantage of the NFPW442-11. Its front-panel LED status indicators provide immediate visual diagnostics for power output status, fault conditions, and redundancy switchover events. Integrated with CENTUM VP's Plant Resource Manager (PRM), maintenance teams can monitor power module health remotely, schedule predictive replacements based on runtime hours, and generate maintenance records without physical cabinet access. This capability directly reduces mean time to repair (MTTR) and supports the plant's overall reliability-centered maintenance (RCM) strategy.

All NFPW442-11 units supplied by NANKMOS are sourced from verified industrial channels, subjected to pre-shipment functional testing under load conditions, and covered by a 12-Month Warranty. Each unit is inspected for firmware compatibility, connector integrity, and output voltage accuracy before dispatch. Contextual Integration support is available for engineering teams requiring assistance with cabinet layout planning, redundancy configuration, or FCS power budget calculations.

The NFPW442-11 operates as the power foundation for a complete Yokogawa CENTUM VP automation platform. In a typical FCS cabinet deployment, the NFPW442-11 supplies regulated power to the FFCS-V field control station processor, which executes the plant's control strategies across thousands of I/O points. Connected I/O modules — including the NFAI141 analog input module, NFAO141 analog output module, NFDI141 digital input module, and NFDO141 digital output module — rely on the NFPW442-11's stable output to maintain accurate signal sampling and actuation without drift or noise injection.

At the communication layer, the ESB bus coupler and Vnet/IP network interface card depend on the NFPW442-11 for uninterrupted network participation. Any power interruption at this layer causes the FCS to drop off the Vnet/IP ring, triggering system-wide alarms and potentially forcing the plant into a safe-state shutdown. The NFPW442-11's redundant configuration eliminates this risk by ensuring seamless switchover in under 20 milliseconds — transparent to the control loop and invisible to the HMI operator station.

At the HMI layer, Yokogawa's Human Interface Station (HIS) running CENTUM VP's graphics environment receives real-time process data from the FCS via the Vnet/IP network. The NFPW442-11's role in maintaining FCS uptime directly determines the quality and continuity of HMI data presentation. For plants using Yokogawa's Exaquantum historian or PRM asset management system, continuous FCS availability — enabled by the NFPW442-11 — is a prerequisite for uninterrupted data logging and predictive maintenance workflows.

In redundant architecture designs, the NFPW442-11 pairs with a second unit in the same cabinet, with automatic load sharing and fault detection managed by the FCS's internal power monitoring circuit. This arrangement supports the ANB10D and ANB11D I/O nest expansions without requiring additional power infrastructure, as the dual NFPW442-11 configuration provides sufficient headroom for full I/O nest population. Terminal modules such as the NTBP01 and NTBP02 field terminal boards connect field wiring to the I/O modules, completing the signal chain from field instrument to control processor.

In oil and gas upstream and midstream facilities, the NFPW442-11 powers FCS cabinets controlling wellhead pressure regulation, pipeline flow metering, and compressor station automation. The module's redundant power architecture meets the availability requirements of API 670 machinery protection systems and ISA-84 safety instrumented function (SIF) loops, where power interruption is classified as a dangerous failure mode.

In chemical and petrochemical plants, the NFPW442-11 supports continuous process control for reactor temperature management, distillation column pressure control, and batch sequencing operations. Its compatibility with CENTUM VP's batch management module (BM) ensures that power stability at the FCS level translates directly into batch record integrity and regulatory compliance for FDA 21 CFR Part 11 and NAMUR NE 107 diagnostic standards.

In power generation facilities — including thermal, hydro, and combined-cycle gas turbine plants — the NFPW442-11 powers FCS cabinets managing turbine governor control, boiler combustion management, and grid synchronization sequences. The module's operating temperature range and vibration tolerance make it suitable for installation in turbine hall control rooms where ambient conditions exceed standard office-grade equipment specifications.

In water and wastewater treatment plants, the NFPW442-11 supports FCS cabinets controlling pump station automation, chemical dosing systems, and SCADA integration points. Its long operational lifespan and predictive maintenance compatibility via PRM reduce the total cost of ownership for municipal utilities operating under tight maintenance budgets and extended asset lifecycle requirements.

In mining and metallurgical processing facilities, the NFPW442-11 powers control systems for ore crushing circuits, flotation cell automation, and smelter process control. The module's robust design handles the high-vibration, high-dust environments typical of mineral processing plants, where standard industrial equipment often requires derating or additional environmental protection.

Q1: Can the NFPW442-11 be used in a 1+1 redundant power configuration within a CENTUM VP FCS cabinet, and what is the switchover behavior?Yes. The NFPW442-11 is designed for 1+1 redundant deployment within Yokogawa CENTUM VP and CS 3000 FCS cabinets. Both units operate in active load-sharing mode, and upon detection of a fault in one unit, the remaining unit assumes full load within milliseconds — a switchover that is transparent to the control loop and does not trigger any FCS restart or I/O scan interruption. The failed unit can then be hot-swapped without system shutdown, supporting zero-downtime maintenance strategies.

Q2: How do I calculate the power budget when expanding an FCS cabinet with additional I/O nests using the NFPW442-11?Power budget calculation for CENTUM VP FCS cabinets requires summing the power consumption of all installed modules: the FFCS-V or PFCS processor, each I/O module (NFAI141, NFAO141, NFDI141, NFDO141), ESB bus couplers, and communication cards. Yokogawa's FCS hardware manual provides per-module power consumption figures. A single NFPW442-11 unit provides sufficient capacity for standard cabinet configurations; for fully populated cabinets with multiple I/O nests (ANB10D/ANB11D), a dual NFPW442-11 redundant configuration is recommended. NANKMOS Contextual Integration support can assist with detailed power budget calculations for your specific cabinet layout.

Q3: What warranty and supply assurance does NANKMOS provide for the NFPW442-11, and how is long-term inventory availability managed?All NFPW442-11 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing under load, connector integrity inspection, and output voltage verification before dispatch. NANKMOS maintains strategic inventory of Yokogawa CENTUM VP power supply modules to support both immediate replacement requirements and planned maintenance schedules. For long-term supply agreements or project-based procurement, contact NANKMOS to discuss dedicated stock reservation and lead-time commitments.
