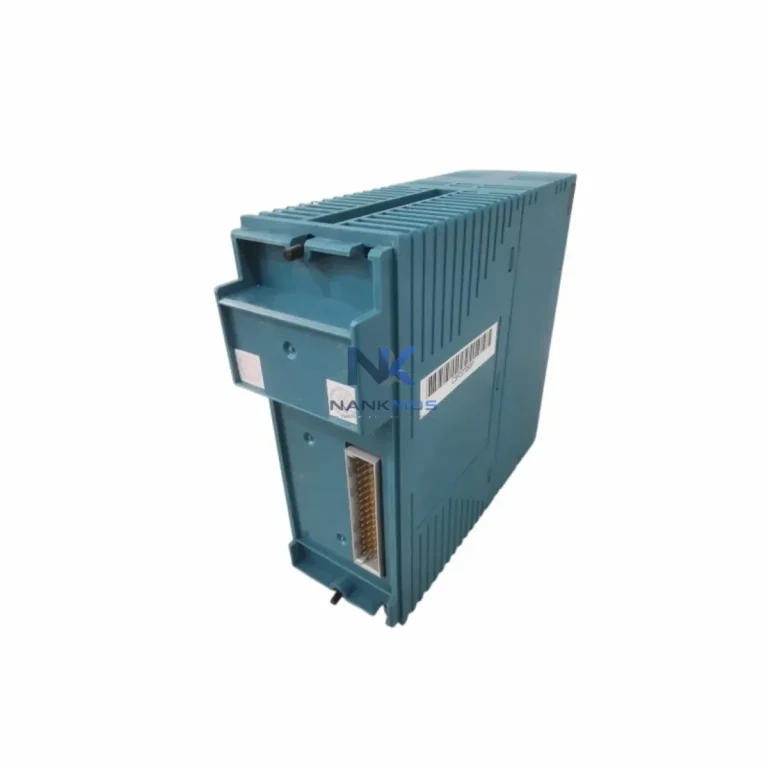

Yokogawa SPW482-E3 S1 Power Supply Module

Product Details

SPW482-E3 S1 Product Description

The Yokogawa SPW482-E3 S1 is a dedicated redundant power supply module engineered for seamless integration within the CENTUM VP Distributed Control System (DCS) architecture. Designed to deliver stable, uninterrupted DC power to field control stations (FCS), I/O modules, and communication backplanes, this unit plays a foundational role in sustaining the operational continuity of mission-critical industrial automation environments. Its modular form factor, hot-swap capability, and dual-redundant power path design make it an indispensable component for engineers prioritizing system reliability, uptime assurance, and long-term maintainability across complex process control installations.

Within the CENTUM VP control hierarchy, the SPW482-E3 S1 operates at the power layer — the backbone that enables every other system tier to function with confidence. From the control layer housing the FCU (Field Control Unit) processors, through the I/O layer populated with AAI143, AAI841, ADV151, and ADV551 analog and digital I/O modules, to the communication layer managing FOUNDATION Fieldbus, HART, and Vnet/IP traffic, every subsystem depends on the stable voltage rails this power supply delivers. A compromised power layer cascades failures upward through every architectural tier; the SPW482-E3 S1 eliminates that risk through its redundant design and automatic failover capability.

The SPW482-E3 S1 is not a standalone component — it is a system-level enabler. In a fully deployed CENTUM VP architecture, this power supply module works in concert with a carefully coordinated stack of hardware. At the control layer, the FCU (Field Control Unit) processor cards — such as the CP451 or CP461 — rely on the SPW482-E3 S1 to maintain uninterrupted logic execution and real-time process control. Any voltage instability at this layer directly impacts scan cycle integrity and PID loop performance.

At the I/O layer, modules including the AAI143 (4-channel analog input), AAI841 (8-channel analog input), ADV151 (16-channel digital input), and ADV551 (16-channel digital output) are powered through the FCS backplane, which in turn draws from the SPW482-E3 S1. Signal fidelity across 4–20 mA loops, thermocouple inputs, and discrete I/O channels is directly contingent on the quality and stability of the power supply rail. The SPW482-E3 S1's regulated output ensures that signal drift caused by power fluctuation is eliminated at the source.

At the communication layer, Vnet/IP interface cards and FOUNDATION Fieldbus H1 segment couplers — such as the ALF111 — require stable power to maintain deterministic network timing and fieldbus segment integrity. Interruptions at the power layer can cause Vnet/IP node dropouts or fieldbus segment resets, both of which trigger process alarms and may require manual operator intervention. The SPW482-E3 S1's redundant architecture prevents these scenarios by ensuring continuous power delivery even during a primary supply fault.

For HMI and supervisory layers, the CENTUM VP Human Interface Station (HIS) communicates with the FCS over Vnet/IP. While the HIS has its own power supply, the FCS-side stability provided by the SPW482-E3 S1 ensures that the data highway between the HIS and FCS remains uninterrupted, supporting real-time trend displays, alarm management, and operator command execution without latency or data loss.

In redundant FCS configurations — common in safety-critical applications such as oil refinery distillation columns, power plant boiler control, and chemical reactor management — a pair of SPW482-E3 S1 modules are deployed in parallel. The secondary unit remains in hot-standby, continuously synchronized, and assumes full load within milliseconds of a primary failure. This architecture is complemented by the use of ESB (Enhanced Signal Bus) backplanes and RIO (Remote I/O) nodes, which extend the I/O footprint while maintaining centralized power management through the FCS cabinet.

Oil & Gas / Petrochemical: In upstream and downstream oil and gas facilities, the SPW482-E3 S1 supports continuous operation of CENTUM VP FCS nodes controlling compressor anti-surge loops, separator level control, and fired heater fuel gas management. Redundant power architecture is a standard engineering requirement in these environments, where an unplanned shutdown carries significant safety and financial consequences.

Power Generation: Thermal and combined-cycle power plants deploy CENTUM VP systems for boiler drum level control, turbine speed governing, and flue gas desulfurization (FGD) management. The SPW482-E3 S1 ensures that the FCS nodes governing these loops remain energized through grid disturbances, maintenance windows, and load-following transients.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent plants use CENTUM VP for dosing control, filtration sequencing, and pump station management. The SPW482-E3 S1 supports 24/7 unattended operation by eliminating single points of failure at the power layer, reducing the need for on-site maintenance interventions.

Metallurgy & Mining: Smelting furnaces, flotation circuits, and conveyor drive systems in mining and metallurgical plants require robust DCS power infrastructure. The SPW482-E3 S1's tolerance for industrial electrical environments — including voltage sags and harmonic distortion common near large motor drives — makes it well-suited for these demanding applications.

Pharmaceutical & Fine Chemical: GMP-regulated manufacturing environments require validated control systems with documented redundancy. The SPW482-E3 S1 supports validation requirements by providing a deterministic, auditable power architecture that aligns with 21 CFR Part 11 and GAMP 5 engineering standards.

Marine & Offshore: Offshore platform process control and vessel automation systems increasingly adopt CENTUM VP for its reliability profile. The SPW482-E3 S1's compact form factor and wide operating temperature range support installation in space-constrained, vibration-prone marine control cabinets.

Q1: Is the SPW482-E3 S1 compatible with both CENTUM VP R5 and R6 system revisions? The SPW482-E3 S1 is designed for the CENTUM VP platform and is compatible across multiple system revisions, including R5 and R6 FCS configurations. It interfaces with standard CENTUM VP FCS backplanes and power distribution buses. For specific revision-level compatibility confirmation, cross-reference the Yokogawa CENTUM VP hardware compatibility matrix or consult your system integrator. NANKMOS provides pre-shipment functional testing and can assist with revision-specific verification prior to dispatch.

Q2: Can the SPW482-E3 S1 be replaced online without shutting down the FCS node? Yes. The SPW482-E3 S1 supports hot-swap replacement in redundant configurations. When a second SPW482-E3 S1 is installed in the paired slot and carrying the load, the faulty unit can be removed and replaced without interrupting FCS operation or triggering a process shutdown. This capability is a core design feature of the CENTUM VP power architecture and is essential for achieving the high availability targets required in continuous process industries. NANKMOS recommends maintaining a spare unit on-site to minimize mean time to repair (MTTR).

Q3: What does the 12-Month Warranty cover, and what is the supply lead time? All SPW482-E3 S1 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. Each unit undergoes pre-shipment functional testing to verify output voltage regulation, redundancy switchover response, and thermal performance. Units are held in stock and are available for immediate dispatch, with standard international shipping lead times of 3–7 business days depending on destination. For urgent requirements, expedited shipping options are available upon request.
