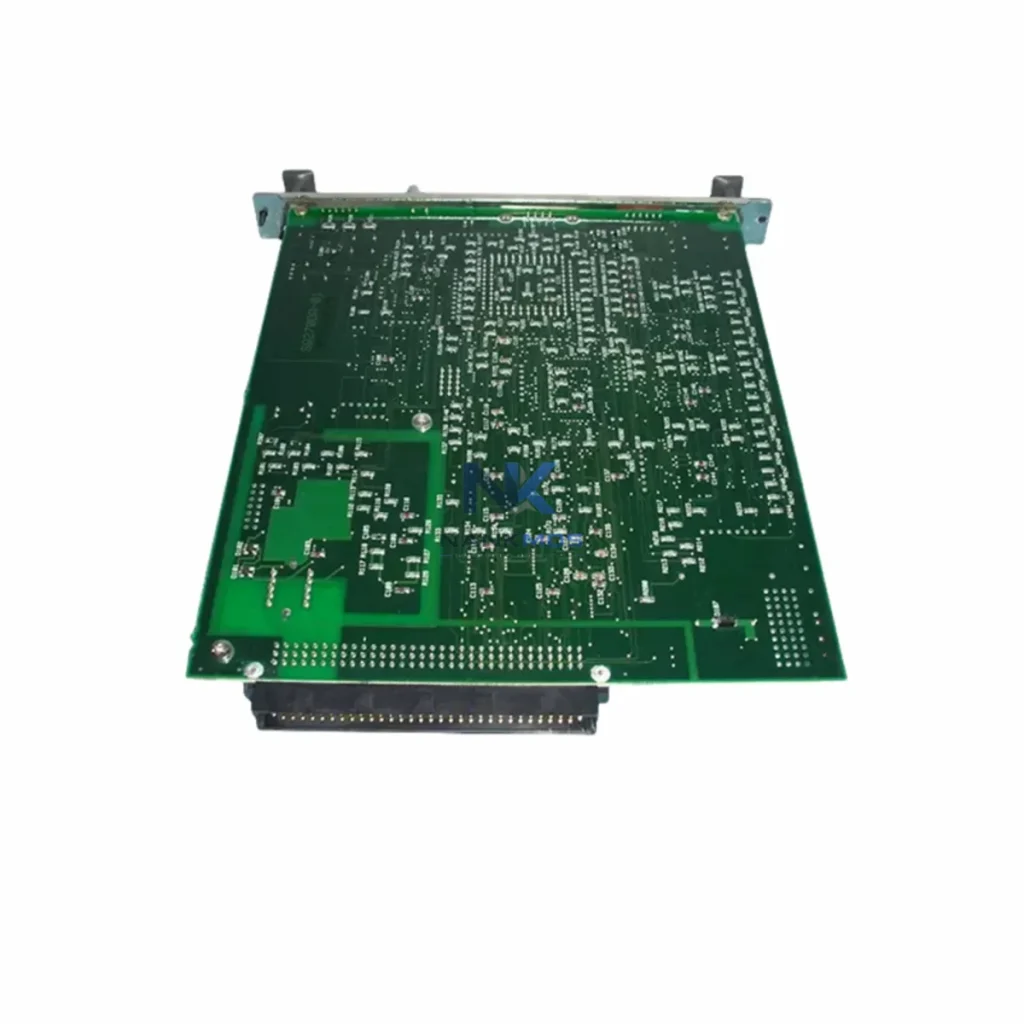

Yokogawa RB401-S2 Communication Gateway

Product Details

RB401-S2 Product Description

The Yokogawa RB401-S2 is a high-performance RIO (Remote I/O) Bus Communication Gateway engineered for seamless integration within the Centum VP Distributed Control System (DCS) architecture. Designed to bridge field-level instrumentation with supervisory control layers, the RB401-S2 enables deterministic, low-latency data exchange across complex industrial network topologies — from sensor nodes and remote I/O stations to SCADA servers and enterprise MES platforms.

In modern smart factory environments, the integrity of the data chain between field devices and control systems is non-negotiable. The RB401-S2 addresses this requirement by providing a robust, protocol-native communication link that eliminates data islands, reduces polling latency, and ensures continuous signal fidelity across the RIO bus segment. Whether deployed in oil and gas processing, chemical manufacturing, power generation, or advanced discrete automation, this gateway delivers the connectivity backbone that intelligent production demands.

The RB401-S2 sits at the heart of a layered industrial data architecture. At the field level, process sensors — including Yokogawa EJA-series differential pressure transmitters, temperature sensors wired to Yokogawa AAI141 analog input modules, and discrete I/O connected via Yokogawa ADV151 digital input cards — feed real-time process values into the RIO bus segment. The RB401-S2 aggregates these signals and transmits them upstream to the Centum VP Field Control Station (FCS), where control logic executes at deterministic scan rates.

From the FCS, process data propagates to the Centum VP Human Interface Station (HIS), where operators interact with live P&ID displays, trend charts, and alarm management panels. Simultaneously, the Yokogawa Exaopc OPC server bridges the Centum VP domain to third-party SCADA platforms and historian systems, enabling plant-wide data visibility. Integration with Yokogawa's FAST/TOOLS SCADA software or third-party systems such as Wonderware or iFIX is achieved through this OPC gateway layer, with the RB401-S2 ensuring that field data arrives at the supervisory layer without packet loss or timing jitter.

For remote diagnostic and asset management workflows, the RB401-S2's data stream feeds into Yokogawa's Plant Resource Manager (PRM), enabling predictive maintenance alerts, device health monitoring, and calibration scheduling — all without requiring physical access to the field cabinet. Edge computing nodes, such as industrial PCs running Yokogawa's OpreX Asset Management suite, can subscribe to real-time I/O data via the OPC-UA interface layer, enabling local analytics and anomaly detection at the plant edge.

In multi-segment DCS architectures, the RB401-S2 works in concert with Yokogawa ESB Bus couplers and RIO Bus repeaters to extend communication reach across large process units. Redundant bus configurations — supported by paired RB401-S2 modules in hot-standby arrangements — ensure that a single point of failure in the communication path does not interrupt process control. This redundancy architecture is critical in continuous process industries where unplanned downtime carries significant operational and safety consequences.

Network traffic from the RIO bus is ultimately aggregated at the Centum VP domain controller and made available to plant historians, MES systems, and ERP integration layers. The complete data chain — from field sensor through RIO bus gateway, FCS, HIS, OPC server, and enterprise integration — is enabled by the reliable, high-throughput communication performance of the RB401-S2.

Industrial automation sites frequently encounter data gaps that undermine production transparency and operational efficiency. The RB401-S2 directly addresses several of the most common challenges:

Protocol Fragmentation: Legacy field devices using proprietary or non-standard interfaces often cannot communicate directly with modern DCS platforms. The RB401-S2's native RIO bus protocol support ensures that Yokogawa field I/O modules integrate seamlessly into the Centum VP control domain without requiring additional protocol converters or signal conditioning hardware.

Data Islands and Visibility Gaps: In plants where field I/O is distributed across multiple remote cabinets, data islands form when communication links are unreliable or improperly configured. The RB401-S2 eliminates these islands by providing a stable, high-bandwidth bus connection that delivers continuous, gap-free data streams to the control system.

Remote Monitoring Limitations: Without a reliable field bus gateway, remote monitoring of distributed I/O stations is impractical. The RB401-S2 enables full remote visibility of field device status, I/O values, and communication health through the Centum VP HIS and connected SCADA systems — reducing the need for manual field inspections.

Production Line Transparency: Real-time data from the RB401-S2 feeds dashboards and KPI displays that give production managers instant visibility into process performance, batch progress, and equipment utilization — supporting lean manufacturing and continuous improvement initiatives.

Alarm Tracking and Event Management: The RB401-S2's deterministic communication ensures that alarm events generated at the field level are transmitted to the control system with accurate timestamps, enabling reliable alarm sequence-of-events (SOE) analysis and root cause investigation.

System Scalability: As production capacity expands, additional RIO bus segments and remote I/O stations can be added to the Centum VP architecture. The RB401-S2 supports this scalability by providing a standardized, proven communication interface that integrates new field devices without requiring changes to the existing control system configuration.

Q1: What communication latency can be expected from the RB401-S2 in a Centum VP DCS environment?The RB401-S2 operates on the Yokogawa RIO bus, which is engineered for deterministic, low-latency communication. In standard Centum VP configurations, RIO bus scan cycles are tightly controlled to ensure that field I/O data is updated at the FCS within the configured control period — typically in the range of 100ms to 500ms depending on system configuration. This deterministic behavior is essential for closed-loop process control applications.

Q2: Is the RB401-S2 compatible with both Centum VP and Centum CS 3000 systems?The RB401-S2 is primarily designed for Centum VP DCS architectures. Compatibility with Centum CS 3000 depends on the specific hardware revision and firmware version. We recommend confirming the target system configuration with our technical team prior to ordering. All units are pre-shipment tested to verify communication functionality before dispatch.

Q3: How does the RB401-S2 support remote diagnostics and predictive maintenance?The RB401-S2 provides continuous communication health data to the Centum VP system, including bus error counts, communication status flags, and device availability indicators. This data is accessible through the Centum VP HIS and can be forwarded to Yokogawa's Plant Resource Manager (PRM) for asset health monitoring, enabling maintenance teams to identify communication degradation trends before they result in process disruptions.

Q4: What warranty and support terms apply to the RB401-S2?All RB401-S2 units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify communication performance and hardware integrity. In-stock units are available for immediate dispatch, and our technical team provides post-sale support for integration and commissioning queries.
