Yokogawa STD4A-00 S1 Industrial Terminal Block

Product Details

STD4A-00 S1 Product Description

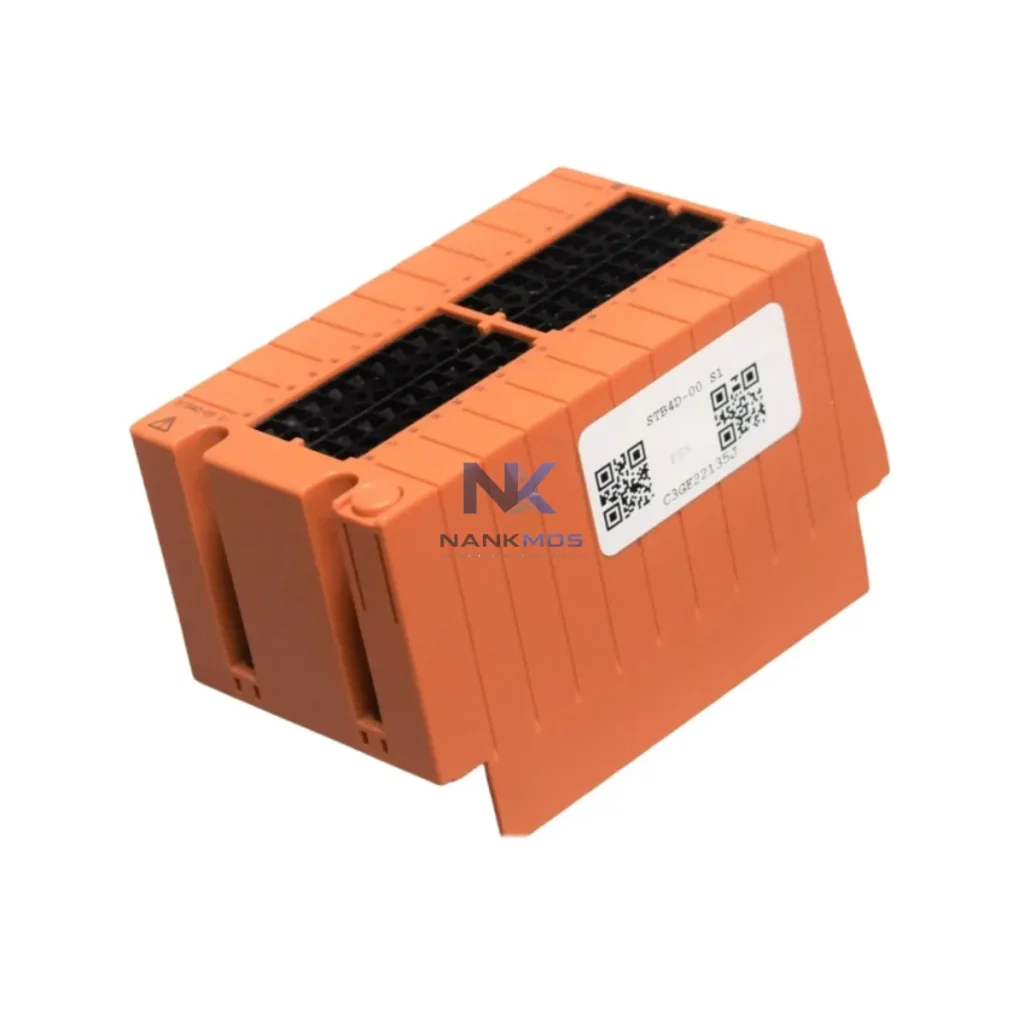

The Yokogawa STD4A-00-S1 is a precision-engineered pressure clamp terminal block designed to serve as the critical field-level connection point between EJA and EJX series differential pressure and flow transmitters and the broader industrial automation network. In modern smart factory environments, every node in the data chain — from the sensing element at the process line to the SCADA historian in the control room — must communicate reliably, accurately, and without interruption. The STD4A-00-S1 fulfills this role by providing a robust, HART-protocol-compatible interface that bridges field instrumentation with digital control infrastructure.

Deployed across power generation, petrochemical refining, oil and gas processing, water treatment, and marine propulsion facilities, the STD4A-00-S1 supports the complete industrial data flow lifecycle: signal acquisition at the transmitter, protocol-level communication over the HART highway, integration with DCS and PLC controllers, real-time monitoring via HMI panels, and upstream data delivery to SCADA platforms and MES systems. Its compact clamp terminal design ensures secure, vibration-resistant wiring connections that maintain signal integrity even in high-noise industrial environments.

When paired with Yokogawa EJA110E or EJX110A differential pressure transmitters, the STD4A-00-S1 enables seamless HART communication sessions initiated from handheld field communicators or from asset management software such as Yokogawa's PRM (Plant Resource Manager). This allows maintenance engineers to perform remote diagnostics, loop calibration, and device configuration without interrupting the live process — a key requirement for continuous operations in refineries and power plants.

In a typical smart factory data architecture, the STD4A-00-S1 sits at the field junction between the transmitter loop and the marshalling cabinet. From there, HART signals travel through HART multiplexers or HART-to-Modbus gateways — such as the Yokogawa YTA series or compatible third-party edge gateways — before being converted into Modbus RTU or Modbus TCP frames readable by Siemens S7-300/S7-400 PLCs, Rockwell ControlLogix systems, or Yokogawa CENTUM VP DCS platforms. This protocol conversion step is essential for integrating legacy 4–20 mA field devices into modern Ethernet-based control networks without requiring full instrument replacement.

The STD4A-00-S1 also plays a supporting role in remote I/O architectures. When field signals are aggregated through remote I/O modules — such as Yokogawa's STARDOM FCN/FCJ autonomous controllers or Pepperl+Fuchs remote I/O stations — the terminal block ensures clean, low-resistance signal paths that preserve measurement accuracy across long cable runs. This is particularly important in large-scale installations where transmitters may be located hundreds of meters from the control room, and where signal degradation or ground loops could compromise process data quality.

For facilities implementing OPC-UA or PROFINET-based smart factory architectures, the STD4A-00-S1 integrates naturally into the lower layers of the communication stack. Edge gateways equipped with HART-IP or WirelessHART adapters can poll transmitter data through the terminal block connection, then publish structured process variables — pressure, differential pressure, temperature, and flow — directly to OPC-UA servers accessible by Ignition SCADA, Wonderware System Platform, or Yokogawa Exaquantum historian platforms. This end-to-end data path supports real-time dashboards, KPI tracking, and predictive maintenance analytics without requiring manual data entry or intermediate data conversion steps.

Alarm management and remote diagnostics are further enhanced by the STD4A-00-S1's compatibility with HART-based device health monitoring. When integrated with an asset management system, the terminal block's loop supports continuous polling of transmitter diagnostic variables — including sensor drift indicators, process variable out-of-range alerts, and loop integrity checks — that feed directly into the facility's alarm management system. This enables maintenance teams to respond proactively to developing faults before they escalate into unplanned shutdowns, supporting the predictive maintenance strategies central to Industry 4.0 operations.

Every STD4A-00-S1 unit shipped by NANKMOS is pre-shipment tested to verify terminal contact resistance, insulation integrity, and HART loop compatibility. Units are supplied with a 12-month warranty covering manufacturing defects and are available from verified in-stock inventory for immediate dispatch to global destinations. This ensures that replacement or expansion projects can proceed without extended lead times that might delay critical maintenance windows.

In a fully connected smart factory deployment, the STD4A-00-S1 anchors the field instrumentation layer. A Yokogawa EJA110E differential pressure transmitter connects through the STD4A-00-S1 terminal block to a HART multiplexer, which aggregates signals from multiple transmitter loops across the process unit. The multiplexer forwards digital HART data to a Yokogawa CENTUM VP DCS I/O module, where process variables are logged, alarmed, and displayed on Yokogawa ProSafe-RS safety system HMI panels or third-party HMI terminals running on industrial Ethernet.

For facilities using Siemens or Rockwell automation platforms, a HART-to-Modbus gateway — such as the Pepperl+Fuchs HiDMux2700 or a compatible Moxa MGate series device — converts the HART loop data into Modbus TCP frames readable by Siemens S7-1500 PLCs or Allen-Bradley ControlLogix controllers. These PLCs then forward structured process data over PROFINET or EtherNet/IP to the plant's SCADA server, where Ignition or Wonderware historians archive time-series data for trend analysis and regulatory reporting.

At the edge layer, Yokogawa STARDOM FCN autonomous controllers or Advantech ADAM-6000 series remote I/O modules can serve as local data concentrators, buffering transmitter readings during network interruptions and synchronizing with the central SCADA system when connectivity is restored. This edge buffering capability is critical for offshore platforms and remote installations where network reliability cannot be guaranteed. Industrial Ethernet switches — such as Hirschmann MICE series or Cisco IE3000 series — provide the managed switching infrastructure that connects field junction boxes, remote I/O panels, and control room servers into a unified, redundant network fabric.

The complete data chain — from the EJA/EJX transmitter through the STD4A-00-S1 terminal block, HART multiplexer, protocol gateway, PLC, industrial switch, and SCADA historian — delivers the end-to-end process visibility required for real-time production monitoring, energy optimization, and predictive maintenance in Industry 4.0 facilities.

Many industrial facilities operate with a mix of legacy 4–20 mA instrumentation and modern digital control systems, creating protocol fragmentation that prevents unified process visibility. The STD4A-00-S1 addresses this challenge by providing a reliable HART communication interface on existing EJA/EJX transmitter loops, enabling digital data extraction without replacing field instruments. This approach eliminates data silos between the field instrumentation layer and the DCS/SCADA layer, allowing process engineers to access transmitter diagnostics, configuration parameters, and secondary variables that were previously invisible to the control system.

Remote monitoring gaps are resolved by integrating the STD4A-00-S1 loop with HART-IP or WirelessHART adapters that publish transmitter data to OPC-UA servers accessible from any networked workstation or mobile device. This capability supports remote diagnostics by maintenance engineers who can review device health indicators, loop current values, and alarm histories without traveling to the field — reducing maintenance costs and response times in large or geographically distributed facilities.

Production line transparency is enhanced by feeding STD4A-00-S1 loop data into MES and ERP systems through OPC-UA or REST API integrations, enabling production managers to correlate process conditions with batch quality outcomes and energy consumption metrics. Alarm tracking is improved by routing HART diagnostic alerts through the DCS alarm management system, ensuring that instrument faults are captured, timestamped, and assigned to maintenance work orders automatically. System expansion is straightforward: additional EJA/EJX transmitters with STD4A-00-S1 terminal blocks can be added to existing HART multiplexer channels without modifying the upstream control system configuration.

Q1: Does the STD4A-00-S1 introduce communication latency in HART loops?The STD4A-00-S1 is a passive terminal block component and does not introduce processing latency. HART communication timing is determined by the transmitter and the HART master device (handheld communicator, multiplexer, or gateway). Standard HART polling cycles of 500 ms to 1 second are unaffected by the terminal block connection.

Q2: Is the STD4A-00-S1 compatible with both HART 5 and HART 7 protocol versions?Yes. The STD4A-00-S1 provides a passive loop connection compatible with all HART protocol revisions supported by the connected EJA or EJX transmitter. Protocol version compatibility is determined by the transmitter firmware and the HART master device, not by the terminal block.

Q3: Can the STD4A-00-S1 be used in multi-drop HART configurations for network expansion?The STD4A-00-S1 supports standard HART loop wiring configurations. Multi-drop HART operation (up to 15 devices per loop at fixed 4 mA current) is supported when the connected EJA/EJX transmitter and HART master device are configured for multi-drop mode. Consult the transmitter documentation for multi-drop configuration requirements.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the STD4A-00-S1?Every STD4A-00-S1 unit supplied by NANKMOS undergoes pre-shipment testing covering terminal contact resistance, insulation integrity, and dimensional verification. Units are covered by a 12-month warranty against manufacturing defects from the date of shipment. In-stock units are available for immediate dispatch with full documentation.
