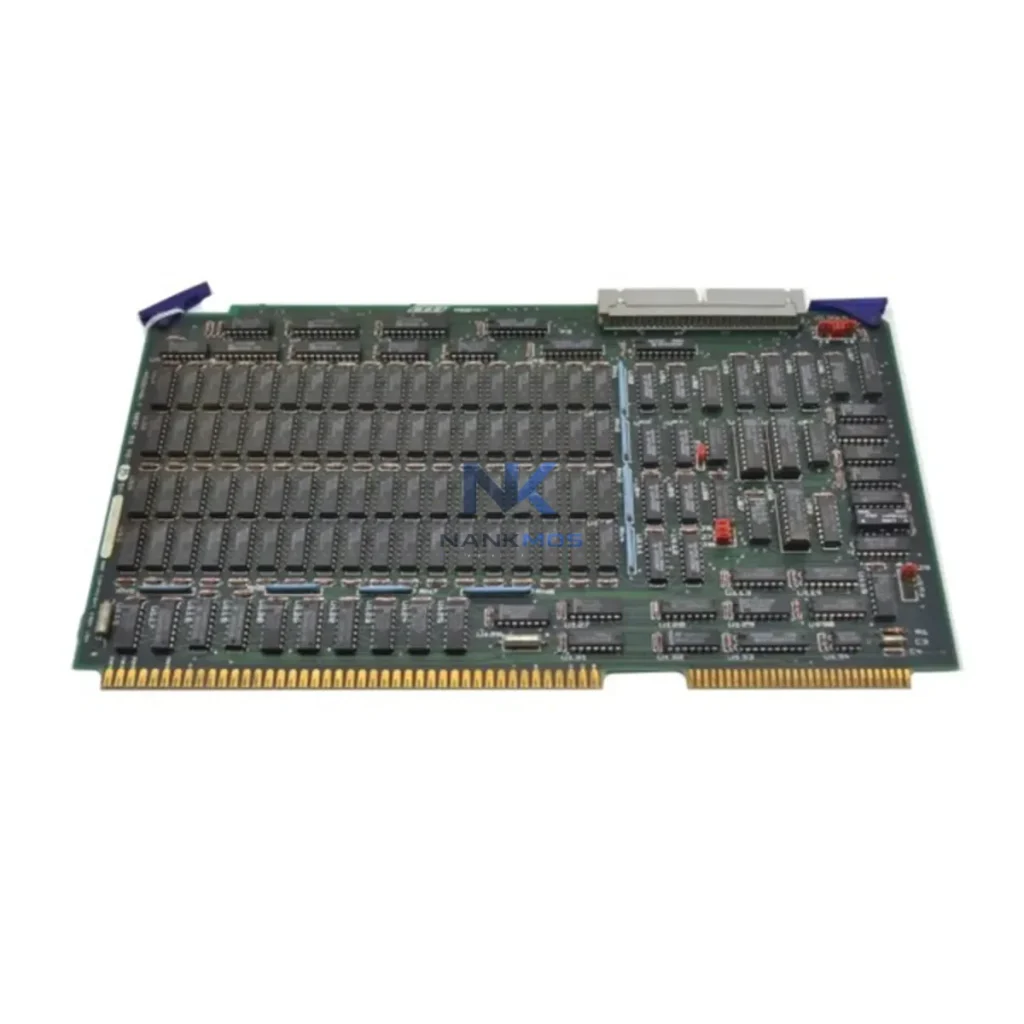

ABB 1948022A1 Industrial Network Interface

Product Details

1948022A1 Product Description

The ABB 1948022A1 is a high-performance industrial network interface and CPU memory module engineered for ABB's AC800M Distributed Control System platform. Designed to serve as a critical data bridge within smart factory architectures, the 1948022A1 enables seamless communication between field-level devices, PLC controllers, remote I/O stations, and upper-level SCADA and HMI systems. In modern industrial environments where data continuity and network stability are non-negotiable, this module delivers the protocol compatibility, real-time transmission capability, and system integration depth required to keep automation networks running without interruption.

As industrial facilities transition toward connected factory models, the demand for reliable memory and network interface modules has grown significantly. The ABB 1948022A1 addresses this demand by providing a stable, high-bandwidth communication pathway within the AC800M controller architecture, supporting Profibus DP protocol for deterministic field communication and enabling structured data exchange across multi-node automation networks. Whether deployed in power generation, water treatment, oil and gas processing, or discrete manufacturing, this module functions as the backbone of real-time data flow from sensor to system.

In a fully connected smart factory, the ABB 1948022A1 sits at the intersection of field instrumentation and supervisory control, managing the memory and communication resources that allow the AC800M controller to process, store, and relay real-time process data. The data flow begins at the field level, where sensors, transmitters, and actuators generate continuous streams of process variables — temperature, pressure, flow rate, valve position — that must be captured, digitized, and transmitted upstream without latency or data loss.

These signals are collected through ABB's S800 I/O modules and remote I/O stations connected via Profibus DP, a protocol well-suited to deterministic, cyclic data exchange in process-critical environments. The 1948022A1 memory interface ensures that the AC800M controller retains program logic, configuration parameters, and historical data buffers even during power cycling or controller restart events, providing the continuity that process industries demand. Alongside the 1948022A1, modules such as the ABB PM864AK01 processor module and the ABB CI854AK01 Profibus DP communication interface work in concert to manage controller execution and field bus communication simultaneously.

At the network layer, data aggregated by the AC800M controller is transmitted to SCADA platforms via OPC DA or OPC UA gateways, enabling operators to monitor live process values, trend historical data, and configure alarm thresholds from centralized control rooms. ABB's System 800xA serves as the primary SCADA and HMI environment in many installations using the AC800M platform, providing dashboards, alarm management, and asset health monitoring that depend on the reliable data pipeline anchored by the 1948022A1. Industrial Ethernet switches — including managed switches supporting PROFINET or Modbus TCP — connect the controller network to the plant-wide LAN, allowing data to flow from the process floor to MES and ERP systems without protocol barriers.

For facilities integrating variable frequency drives (VFDs) such as the ABB ACS880 or ACS580 series, the AC800M controller with the 1948022A1 memory module provides the coordination layer that synchronizes drive speed references, feedback signals, and fault status across the automation network. Edge gateways deployed at the plant boundary aggregate data from multiple AC800M controllers and transmit structured payloads to cloud analytics platforms, enabling predictive maintenance models and energy optimization algorithms to operate on live production data. The 1948022A1 ensures that the controller's memory resources are sufficient to handle the expanded data sets generated by these edge-to-cloud workflows.

Remote I/O expansion using ABB's FieldBusPlug or TB820V2 Profibus DP bus termination units extends the reach of the AC800M network to distributed field cabinets, allowing a single controller to manage hundreds of I/O points across large process areas. The 1948022A1 supports this scalability by providing the memory headroom required for large I/O maps and complex control strategies. In parallel, ABB's AF100 fieldbus interface modules and CI840A PROFIBUS DP slave interface modules can be integrated into the same network architecture, creating a layered communication structure that spans from field instruments to plant-level data historians.

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A plant may operate legacy Profibus DP devices alongside newer PROFINET or Modbus TCP nodes, creating protocol islands that prevent unified data visibility. The ABB 1948022A1, as part of the AC800M platform, addresses this by supporting gateway configurations that bridge Profibus DP field networks to higher-level Ethernet-based systems, eliminating the data silos that arise when incompatible protocols cannot exchange information directly.

Remote monitoring and diagnostics represent another critical gap in many automation sites. Without reliable memory and communication infrastructure at the controller level, remote access to live process data becomes unreliable, forcing maintenance teams to perform on-site inspections that increase downtime and labor costs. The 1948022A1 supports the AC800M's remote diagnostic capabilities by ensuring that controller memory is stable and accessible, allowing engineers to connect via ABB's Control Builder M engineering tool or OPC-based SCADA clients to retrieve fault logs, modify control parameters, and validate system performance without physical presence at the controller cabinet.

Production line transparency — the ability to visualize every step of a manufacturing or process sequence in real time — depends on uninterrupted data flow from field devices to HMI screens. When memory modules fail or communication interfaces become unstable, operators lose visibility into critical process variables, alarm conditions go undetected, and production quality suffers. The ABB 1948022A1 mitigates this risk by providing a robust, tested memory interface that maintains controller state and communication integrity under continuous industrial operating conditions. System expansion is equally well-supported: as production capacity grows and new I/O points are added, the 1948022A1 provides the memory resources needed to accommodate expanded control programs without requiring controller replacement.

Q1: What communication protocols does the ABB 1948022A1 support within the AC800M architecture? The 1948022A1 operates as a CPU memory module within the AC800M controller platform, which natively supports Profibus DP for field-level communication. When combined with communication interface modules such as the CI854AK01 or CI840A, the AC800M system can also interface with PROFINET, Modbus TCP, and OPC UA networks, enabling multi-protocol integration across heterogeneous automation environments.

Q2: How does the 1948022A1 contribute to network stability and communication reliability? By providing dedicated memory resources for the AC800M controller's program execution and data buffering, the 1948022A1 ensures that communication tasks are not interrupted by memory contention or resource exhaustion. This is particularly important in high-cycle-rate Profibus DP networks where deterministic timing is essential for process control accuracy. The module is designed to operate continuously in industrial environments with wide temperature ranges and high electromagnetic interference levels.

Q3: Can the ABB 1948022A1 support remote diagnostics and SCADA integration? Yes. The AC800M controller equipped with the 1948022A1 memory module supports remote engineering access via ABB Control Builder M and OPC DA/UA server interfaces, allowing SCADA systems such as ABB System 800xA, Wonderware, or Ignition to retrieve live process data, alarm records, and controller diagnostics. Remote firmware updates and parameter changes can be performed without interrupting the control loop, minimizing maintenance downtime.

Q4: What warranty and pre-shipment testing does the ABB 1948022A1 include? Every ABB 1948022A1 supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification testing to confirm memory integrity, communication interface operation, and compatibility with AC800M controller hardware. In-stock units are available for immediate dispatch, with lead times confirmed at the time of order. For technical specifications, compatibility verification, or volume pricing, contact [email protected] or call +86 18359268345.
