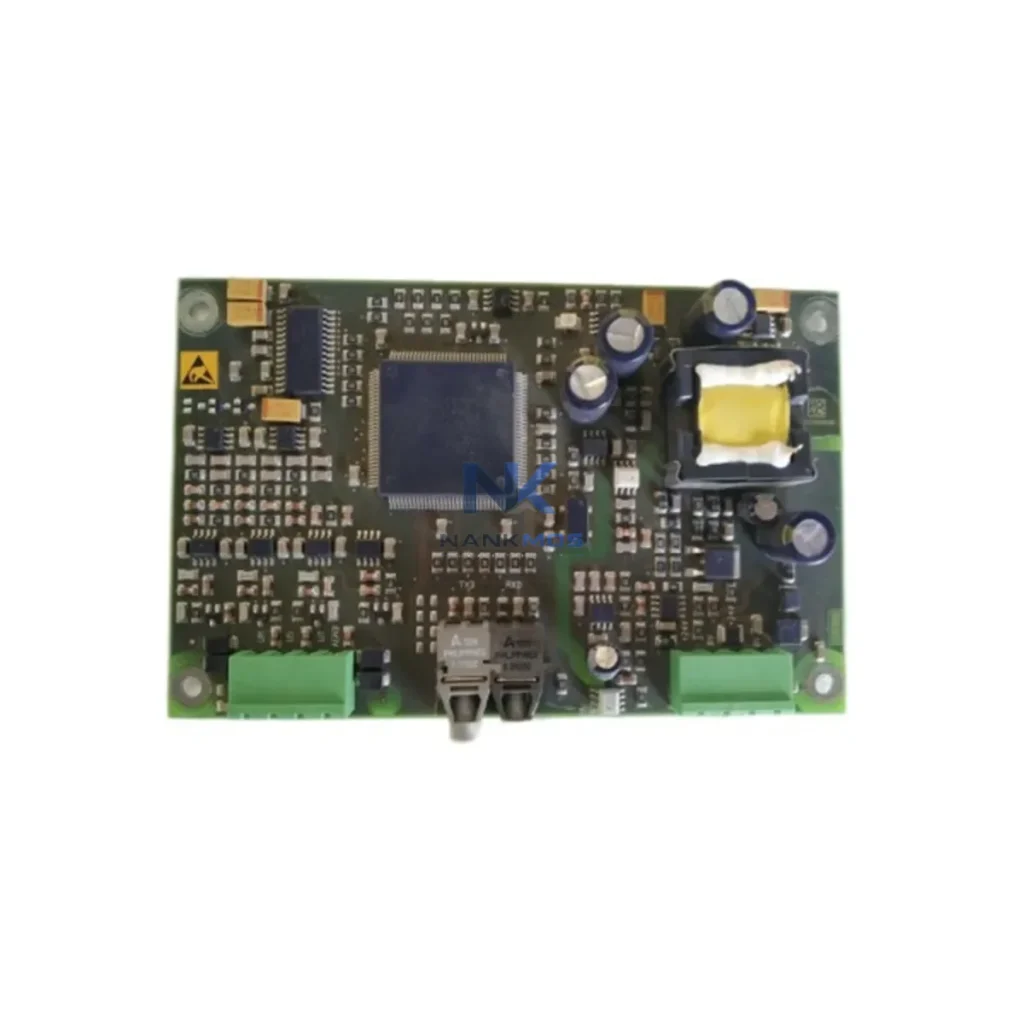

ABB 3BHE005555R0101 LDSYN-101 Synchronization Control Module

Product Details

3BHE005555R0101 LDSYN-101 Product Description

The ABB 3BHE005555R0101 LDSYN-101 is a dedicated synchronization control module engineered for deployment within ABB's UNITROL excitation and voltage regulation platform. Designed to operate as a precision synchronization interface between generator sets and grid infrastructure, the LDSYN-101 ensures phase-angle alignment, frequency matching, and voltage synchronization prior to breaker closure — eliminating transient disturbances that compromise generator longevity and grid stability. As a field-proven component in power generation and industrial energy management architectures, this module delivers the signal integrity, timing accuracy, and system-level coordination required for continuous, high-availability operation.

In modern industrial control architectures, synchronization is not an isolated function — it is a system-level discipline. The LDSYN-101 integrates directly into the UNITROL excitation control hierarchy, working in concert with the AVR (Automatic Voltage Regulator) board, the pulse transformer firing circuits, the field current measurement modules, and the protection relay layer. Its role spans the boundary between the control layer and the power conversion layer, making it a critical node in the overall excitation system topology. Proper deployment of the LDSYN-101 ensures that the excitation system responds correctly to load changes, grid disturbances, and parallel operation demands without introducing phase errors or timing jitter that could trigger protection trips.

From a system architecture perspective, the LDSYN-101 occupies the synchronization and firing control tier of the UNITROL platform. It receives reference signals from the voltage measurement and phase detection circuits, processes synchronization logic internally, and outputs precisely timed firing pulses to the thyristor bridge or IGBT converter stage. This closed-loop synchronization path is essential for maintaining excitation current stability during generator start-up sequences, load acceptance events, and grid reconnection procedures. The module's internal logic is optimized for the ABB UNITROL 5000 and UNITROL 6000 series, ensuring seamless compatibility with the broader excitation control ecosystem including the UNITROL-F and UNITROL-P variants.

The LDSYN-101 does not operate in isolation — its value is fully realized when deployed within a coherent, layered automation architecture. In a typical power generation or industrial energy facility, the UNITROL excitation system interfaces with multiple control and protection layers simultaneously. At the control layer, the ABB AC800M PLC or AC500 series controller provides supervisory logic, setpoint management, and sequence control for the generator start-up and synchronization procedure. The LDSYN-101 receives its operational context from this supervisory layer, executing synchronization tasks within the timing windows defined by the plant control strategy.

At the power conversion layer, the LDSYN-101 coordinates with the thyristor firing board (such as the ABB SDCS-CON-4 or equivalent UNITROL firing control card) to deliver precisely timed gate pulses to the excitation rectifier bridge. Any timing deviation at this interface directly affects field current ripple, which in turn impacts terminal voltage stability and reactive power output. The LDSYN-101's internal synchronization algorithm compensates for supply frequency variations and phase shifts, maintaining firing accuracy across the full operating range of the excitation system.

At the measurement and feedback layer, the LDSYN-101 works alongside the ABB UNITROL voltage measurement board (LDVMD or equivalent) and the field current transducer module to close the excitation control loop. Accurate voltage and current feedback is essential for the synchronization module to calculate the correct firing angle and adjust dynamically to load changes. In redundant excitation architectures, a secondary LDSYN-101 or equivalent standby synchronization card may be installed in a hot-standby configuration, with automatic changeover managed by the UNITROL system supervisor.

At the communication layer, the UNITROL platform integrates with plant-wide SCADA systems via PROFIBUS DP, Modbus RTU, or IEC 61850 communication gateways. Modules such as the ABB CI854A PROFIBUS DP interface or the CI840A fieldbus communication interface enable the excitation system — including the LDSYN-101's status and diagnostic data — to be monitored and controlled from the DCS or SCADA level. This integration supports remote diagnostics, alarm management, and performance trending without requiring physical access to the excitation cabinet.

At the protection layer, the LDSYN-101 operates in coordination with the generator protection relay (such as the ABB REG670 or RET670) and the excitation system's internal overcurrent and overvoltage protection circuits. Synchronization failures detected by the LDSYN-101 are reported to the protection layer, which can initiate controlled shutdown sequences to prevent equipment damage. This tight integration between synchronization control and protection logic is a hallmark of well-engineered excitation system architectures and is fully supported by the UNITROL platform's modular design.

At the HMI and diagnostics layer, the ABB Panel 800 or CP600 series operator panels provide local visualization of excitation system status, including synchronization state, firing angle, field current, and terminal voltage. Maintenance engineers can use the UNITROL commissioning software to configure synchronization parameters, run diagnostic routines, and verify LDSYN-101 performance against factory specifications. This toolchain significantly reduces commissioning time and supports structured preventive maintenance programs aligned with the 12-Month Warranty coverage period.

Power Generation & Grid Synchronization: In thermal, hydro, and gas turbine power plants, the LDSYN-101 is deployed as the primary synchronization control element within the UNITROL excitation system. It manages the critical pre-synchronization sequence — matching generator frequency, voltage magnitude, and phase angle to the grid — before the synchronizing breaker is closed. This function is essential for preventing synchronization transients that can cause mechanical stress on the generator shaft and electrical disturbances on the grid. The LDSYN-101's precision timing ensures smooth, disturbance-free grid connection across a wide range of generator capacities.

Industrial Cogeneration & Captive Power: In petrochemical complexes, steel mills, and large manufacturing facilities operating captive power plants, the LDSYN-101 supports both island-mode operation and grid-parallel operation of on-site generators. During planned grid outages or emergency islanding events, the module manages the transition between operating modes, maintaining excitation stability and preventing voltage collapse. Its compatibility with the UNITROL platform's load-sharing and reactive power control functions makes it suitable for multi-generator bus configurations common in industrial cogeneration applications.

Marine & Offshore Power Systems: Shipboard power systems and offshore platform electrical architectures demand excitation control modules capable of operating reliably in high-vibration, high-humidity environments with stringent EMC requirements. The LDSYN-101, as part of the ABB UNITROL marine excitation system, meets these demands and supports the synchronization of ship service generators, shaft generators, and emergency generators within the vessel's integrated power management system.

Mining & Metallurgical Processing: In mining operations and smelting facilities, large synchronous motors and generators require precise excitation control to maintain power factor, support reactive power compensation, and ensure stable operation during heavy load fluctuations. The LDSYN-101 contributes to excitation system reliability in these demanding environments, supporting long-term continuous operation with minimal maintenance intervention.

Water Treatment & Pumping Stations: Municipal water treatment plants and large pumping stations operating synchronous pump drives benefit from the LDSYN-101's ability to maintain excitation stability during motor start-up and load variation events. Integration with the plant's SCADA system via the UNITROL communication gateway enables remote monitoring of excitation system health, supporting predictive maintenance strategies that minimize unplanned downtime.

Q1: Is the ABB 3BHE005555R0101 LDSYN-101 compatible with both UNITROL 5000 and UNITROL 6000 series excitation systems?The LDSYN-101 is designed for the ABB UNITROL excitation platform and is primarily associated with the UNITROL 5000 series architecture. Compatibility with UNITROL 6000 series systems should be verified against the specific system configuration and firmware revision. ABB's UNITROL system documentation and the excitation system's bill of materials (BOM) are the authoritative references for cross-series compatibility. When in doubt, cross-reference the existing LDSYN card part number installed in the target system before ordering a replacement. Our team can assist with compatibility verification based on your system's nameplate data and configuration records.

Q2: What is the recommended procedure for replacing the LDSYN-101 in a live excitation system, and how does the 12-Month Warranty apply?Replacement of the LDSYN-101 should be performed during a planned maintenance window with the generator offline and the excitation system de-energized. Prior to removal, record all parameter settings using the UNITROL commissioning software to ensure correct re-configuration of the replacement module. After installation, perform a full synchronization test sequence to verify firing angle accuracy and phase alignment before returning the generator to service. The 12-Month Warranty covers manufacturing defects and component failures under normal operating conditions. Warranty claims require the module to be returned in its original condition with failure documentation. Damage resulting from incorrect installation, overvoltage events, or environmental exposure outside specified limits is excluded from warranty coverage.

Q3: How does the LDSYN-101 support long-term maintenance efficiency and inventory planning in multi-generator facilities?In facilities operating multiple UNITROL-based excitation systems, maintaining a spare LDSYN-101 module as part of the critical spares inventory is strongly recommended. The module's standardized form factor and plug-in installation design minimize replacement time, reducing mean time to repair (MTTR) in the event of a module failure. For facilities with extended lead times for OEM spare parts, sourcing the 3BHE005555R0101 from a verified industrial automation supplier with in-stock availability ensures that critical spares are accessible when needed. Our global shipping capability and in-stock inventory support rapid deployment to minimize excitation system downtime across all supported regions.
