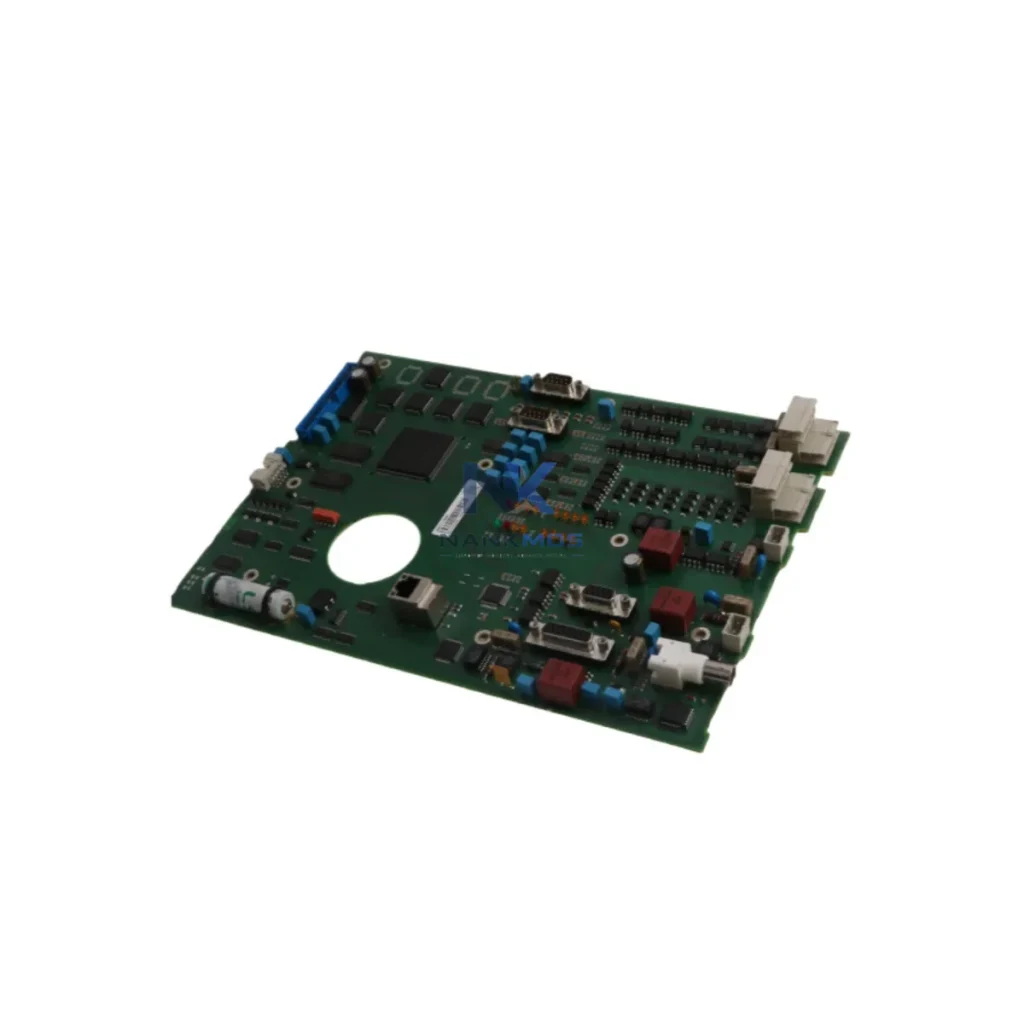

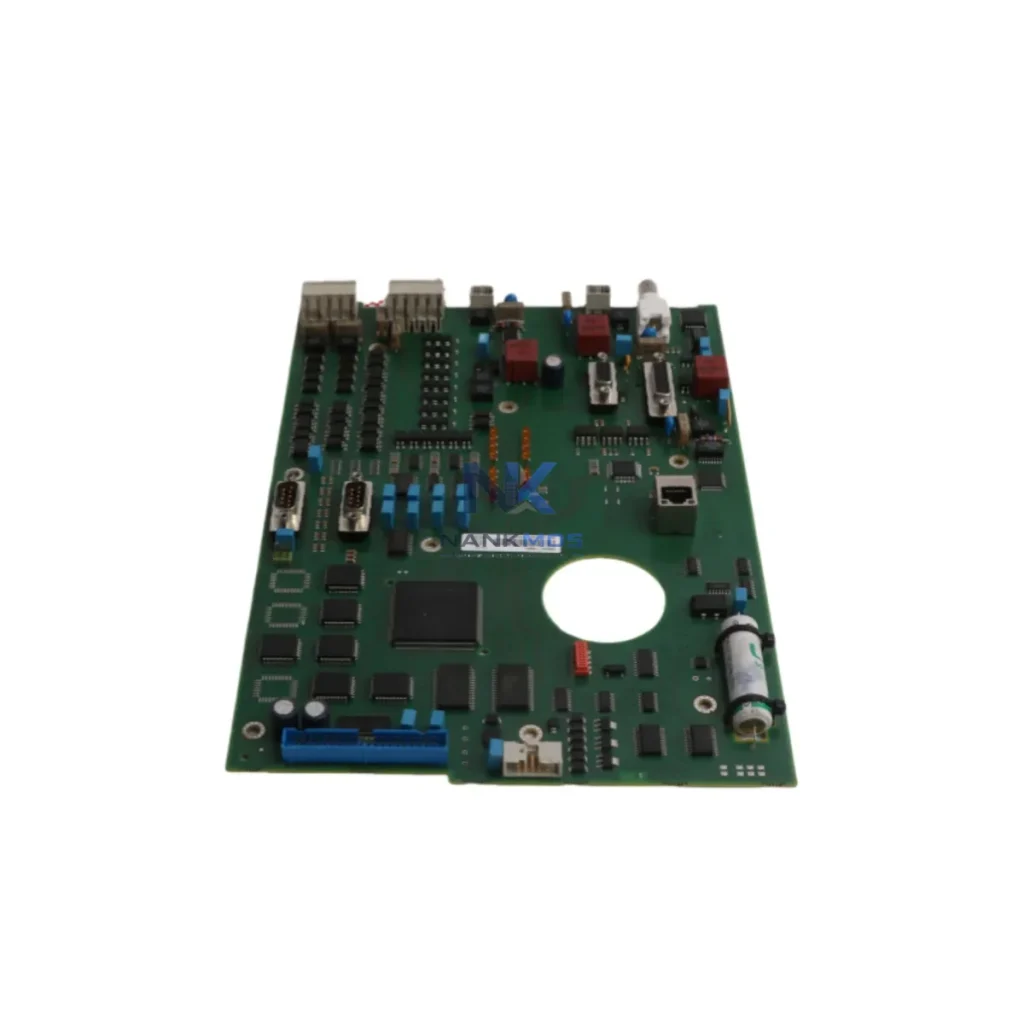

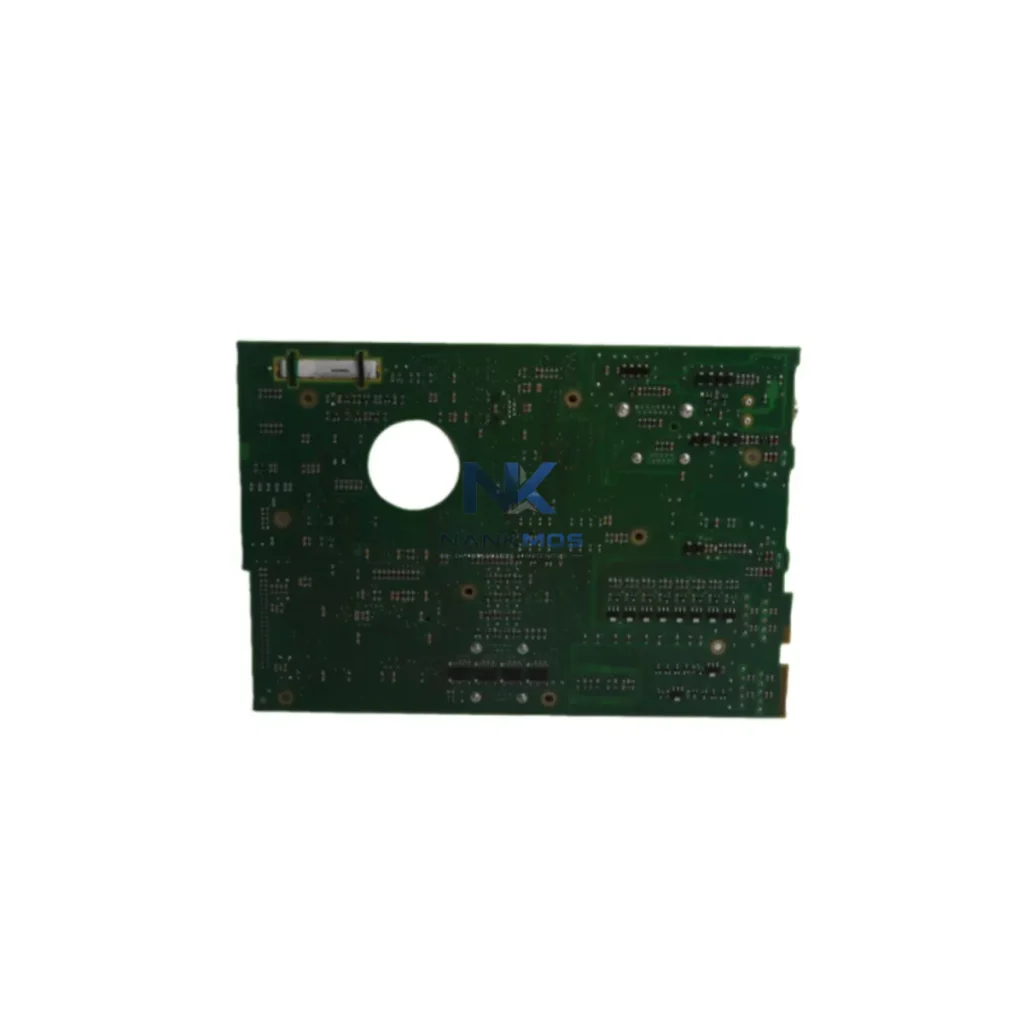

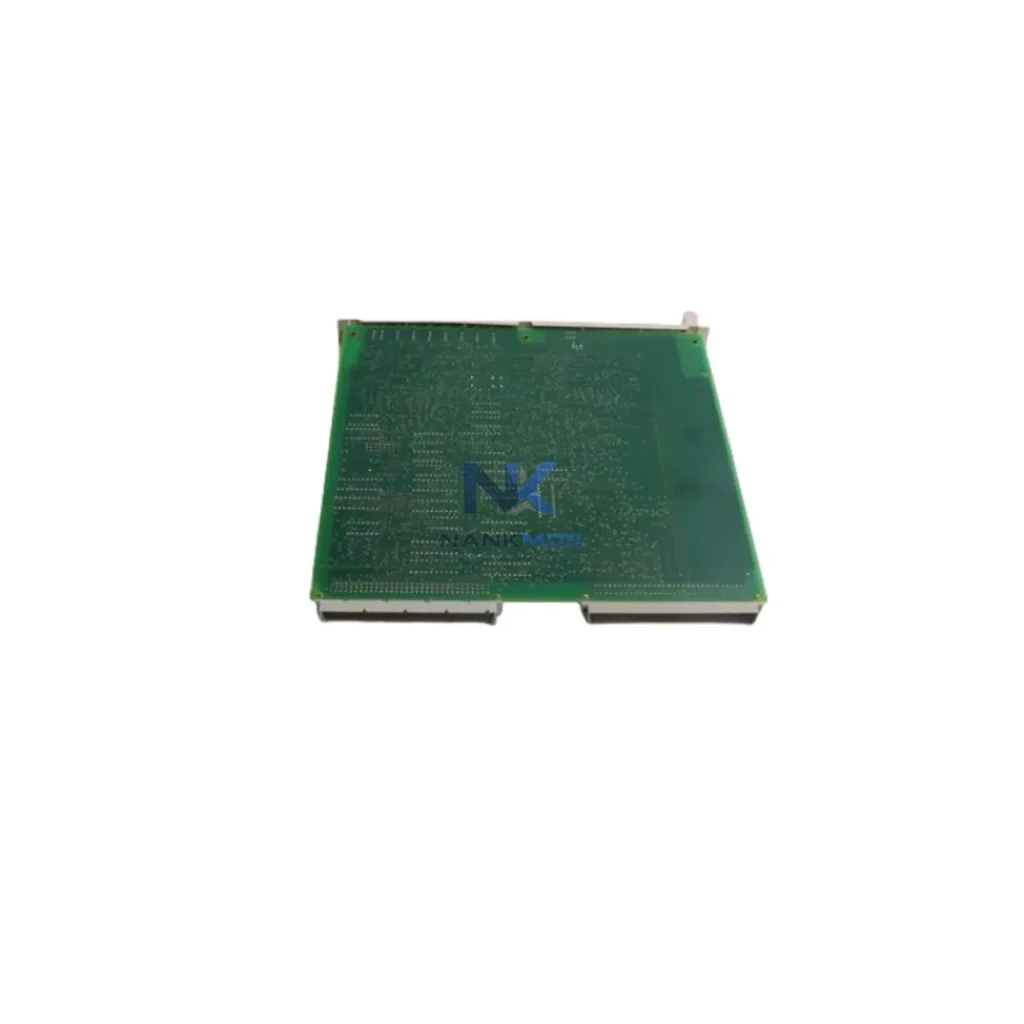

ABB 3BSE011789R1 PXAK402 Communication Gateway

Product Details

3BSE011789R1 PXAK402 Product Description

The ABB 3BSE011789R1 PXAK402 is a high-performance Profibus DP communication gateway engineered for the AC800M Distributed Control System platform. Designed to bridge field-level instrumentation with supervisory control networks, this module serves as a critical data link in smart factory architectures — enabling seamless protocol conversion, deterministic real-time data exchange, and remote diagnostic visibility across complex industrial environments.

In modern process automation sites — spanning oil & gas, power generation, chemical processing, and advanced manufacturing — the ability to unify heterogeneous device networks under a single communication backbone is no longer optional. The PXAK402 fulfills this role by connecting Profibus DP field devices directly into the AC800M controller fabric, ensuring that signals from transmitters, actuators, valve positioners, and remote I/O nodes are accurately captured, time-stamped, and forwarded to SCADA and DCS historian layers without data loss or latency spikes.

The PXAK402 sits at the intersection of field instrumentation and plant-wide control intelligence. In a typical smart factory deployment, the data flow begins at the sensor and actuator layer — pressure transmitters, flow meters, temperature sensors, and valve positioners connected via Profibus DP segments. The PXAK402 acts as the Profibus DP master, cyclically polling these field devices and delivering process values directly into the AC800M controller's execution environment.

Within the AC800M rack, the PXAK402 communicates over the internal backplane bus alongside processor modules such as the PM861 and PM864, sharing real-time I/O data with the controller's application programs. This tight integration eliminates the need for external protocol converters and reduces scan cycle overhead, which is critical in fast-loop control applications such as turbine governor control or compressor surge protection.

Upstream from the controller, process data flows via MMS (Manufacturing Message Specification) or OPC DA/UA interfaces to SCADA platforms — including ABB's own System 800xA — where operators monitor real-time trends, configure alarm thresholds, and execute remote setpoint adjustments. The PXAK402's deterministic Profibus DP communication ensures that field device status, diagnostic bytes, and process values arrive at the SCADA historian with consistent cycle times, supporting accurate event sequencing and alarm correlation.

For remote I/O expansion, the PXAK402 integrates with ABB S800 I/O modules deployed in field junction boxes, extending the AC800M's reach to distributed measurement points without running individual signal cables back to the control room. This architecture is particularly effective in large-scale process plants where field devices may be located hundreds of meters from the main control cabinet.

In multi-vendor environments, the PXAK402 enables the AC800M to communicate with third-party Profibus DP devices — including Siemens ET 200S remote I/O, Yokogawa EJX series transmitters, and Endress+Hauser Promass Coriolis flowmeters — using standard GSD (General Station Description) files. This cross-vendor compatibility is essential for brownfield modernization projects where existing field instrumentation must be retained while the control system is upgraded.

Edge connectivity is further enhanced when the AC800M system is paired with ABB Edge Computing Gateways or third-party industrial edge devices running OPC UA clients. In these configurations, the PXAK402-sourced field data is aggregated at the edge layer, pre-processed for anomaly detection, and forwarded to cloud-based analytics platforms — enabling predictive maintenance workflows and digital twin synchronization without disrupting the real-time control loop.

Variable speed drives — such as the ABB ACS880 series — connected to the Profibus DP segment via their optional fieldbus adapter boards report speed references, torque feedback, fault codes, and energy consumption data through the PXAK402 to the AC800M. This drive-to-controller data path supports coordinated motion control, energy optimization routines, and automated fault response sequences that would otherwise require manual operator intervention.

Industrial Ethernet switches — such as managed switches supporting PROFINET or Modbus TCP — can coexist in the same plant network topology, with the PXAK402 handling the Profibus DP segment while higher-level Ethernet-based communication is managed by the AC800M's Ethernet interface modules. This layered network architecture ensures that time-critical Profibus DP polling is isolated from general IT network traffic, preserving determinism at the field level.

Protocol Fragmentation: Many process plants operate a mix of legacy 4–20 mA analog loops, HART devices, and Profibus DP segments — often without a unified data aggregation layer. The PXAK402 resolves this by providing a standardized Profibus DP master interface that consolidates field device data into the AC800M's unified process database, eliminating the need for separate protocol converters or signal conditioners for Profibus-capable devices.

Data Islands and Visibility Gaps: Without a properly configured fieldbus gateway, field device diagnostics — valve stroke counts, transmitter self-test results, drive fault histories — remain trapped at the device level and invisible to SCADA operators. The PXAK402 surfaces these acyclic diagnostic messages (Profibus DP V1 Class 2 services) to the AC800M application layer, where they can be mapped to alarm tags and displayed on HMI faceplates in real time.

Remote Monitoring Limitations: In geographically distributed plants — pipeline stations, offshore platforms, water treatment facilities — the inability to remotely diagnose Profibus segment health leads to costly on-site maintenance visits. With the PXAK402 integrated into the AC800M and connected to a remote access infrastructure, maintenance engineers can interrogate Profibus device status, check bus load statistics, and identify communication errors from a central engineering workstation without traveling to the field.

Production Line Transparency: Real-time OEE (Overall Equipment Effectiveness) calculations require accurate, timestamped data from every production asset. The PXAK402 ensures that Profibus DP-connected devices contribute their process values and status bits to the AC800M's data historian at the configured scan rate, providing the data density needed for meaningful OEE analysis and continuous improvement initiatives.

Alarm Management and Traceability: Unstructured alarm floods are a persistent challenge in complex DCS environments. By delivering structured Profibus DP diagnostic data to the AC800M, the PXAK402 enables alarm rationalization — distinguishing between process alarms, device health warnings, and communication faults — and supports the alarm traceability requirements of IEC 62682 and ISA-18.2 standards.

System Scalability: As production capacity expands, additional Profibus DP devices can be added to existing segments (up to 126 nodes per segment with repeaters) without hardware changes to the PXAK402 or the AC800M controller. This scalability protects the initial capital investment and simplifies future automation expansion projects.

Q1: What is the maximum Profibus DP transmission speed supported by the ABB 3BSE011789R1 PXAK402? The PXAK402 supports Profibus DP transmission speeds up to 12 Mbit/s, with automatic baud rate detection. In practice, most AC800M installations operate at 1.5 Mbit/s or 3 Mbit/s to balance cycle time performance with cable length constraints. Longer cable runs require reduced baud rates per the Profibus DP EN 50170 specification.

Q2: Is the PXAK402 compatible with third-party Profibus DP devices from other manufacturers? Yes. The PXAK402 supports standard GSD (General Station Description) file-based device integration, which means it can communicate with any Profibus DP V0 or V1 compliant device — including transmitters, drives, remote I/O, and valve positioners from Siemens, Yokogawa, Endress+Hauser, Parker, and other vendors — without requiring proprietary configuration tools beyond the standard AC800M engineering environment.

Q3: How does the PXAK402 support remote diagnostics and network health monitoring? The PXAK402 exposes Profibus DP bus diagnostic information — including slave station status, communication error counters, and bus load — to the AC800M application layer via standard function blocks. This data can be mapped to SCADA tags and displayed on System 800xA or third-party HMI platforms, enabling remote engineers to assess segment health, identify failing devices, and plan maintenance interventions without physical access to the field panel.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the ABB 3BSE011789R1 PXAK402? Every ABB 3BSE011789R1 PXAK402 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes function verification testing prior to dispatch. Our quality control process confirms communication interface integrity, backplane connector condition, and firmware version compatibility before the unit leaves our facility. Expedited shipping and export documentation support are available for international orders.
