ABB BP910S 3KDE175831L9100 PROFIBUS-DP Connector

Product Details

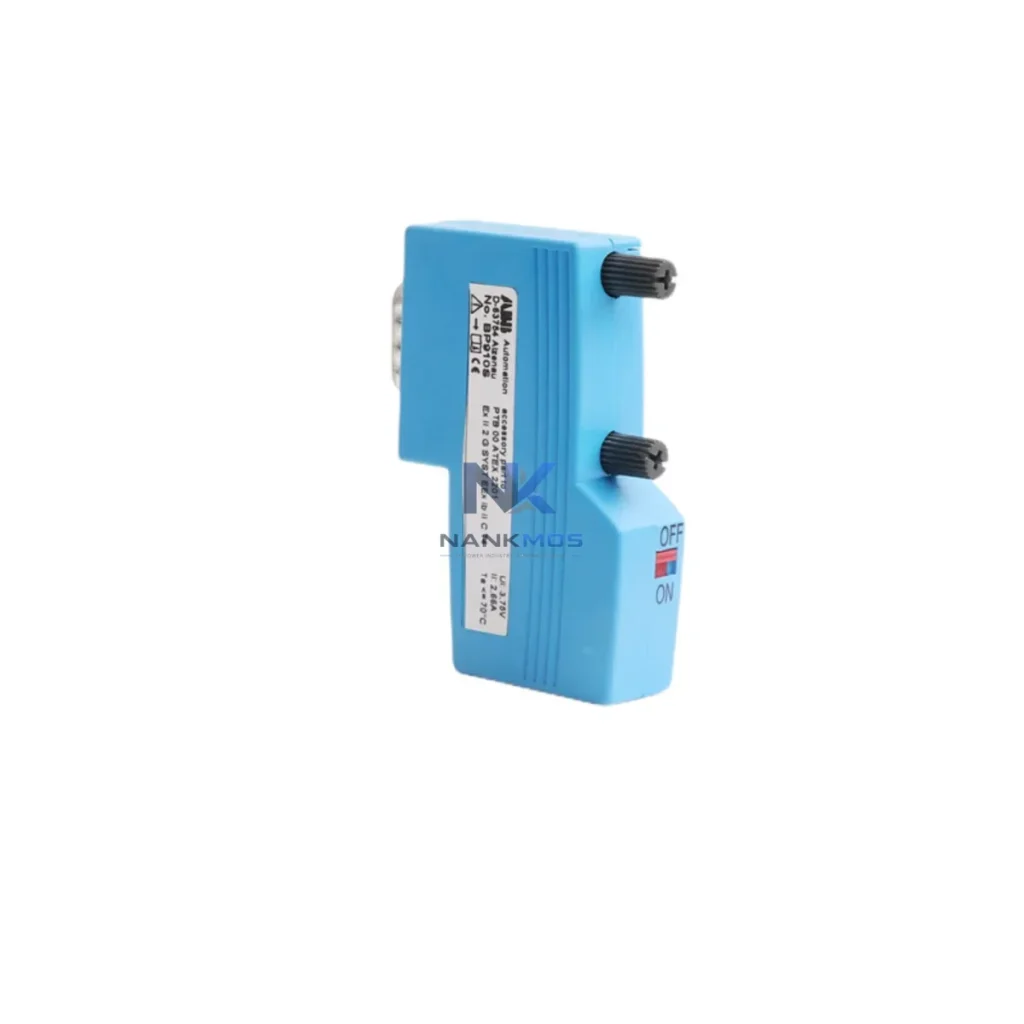

BP910S 3KDE175831L9100 Product Description

The ABB BP910S (3KDE175831L9100) is a PROFIBUS-DP bus connector engineered for seamless integration within ABB's AC800M Distributed Control System architecture. Designed to maintain signal integrity across multi-drop fieldbus segments, the BP910S serves as a critical junction component at the I/O and communication layers of industrial automation platforms. Its robust termination design, combined with ABB's proven fieldbus engineering, ensures stable data transmission in demanding process environments including power generation, oil & gas, chemical processing, water treatment, and advanced manufacturing.

Within a complete AC800M control architecture, the BP910S connects field devices — including S800 I/O modules, S900 remote I/O units, and third-party PROFIBUS slaves — to the PM866, PM891, or PM895 controller CPUs via the CI854 or CI858 PROFIBUS-DP communication interface modules. This layered connectivity supports deterministic scan cycles, real-time diagnostics, and fault-tolerant fieldbus operation across distributed plant topologies.

The BP910S is not a standalone component — it is an architectural element that enables cohesive fieldbus communication across the full AC800M control platform. In a typical system deployment, the PM866 or PM891 CPU module manages process logic and communicates with field devices through the CI854 PROFIBUS-DP master interface. The BP910S connectors are installed at each node along the PROFIBUS segment, linking S800 I/O modules such as the AI810 analog input, DI810 digital input, AO810 analog output, and DO810 digital output modules into a unified I/O network.

For extended or remote I/O architectures, the BP910S supports connectivity to S900 remote I/O stations deployed in hazardous or geographically distributed areas. The TB820 media converter and DP/PA coupler modules can be integrated into the same PROFIBUS segment, extending the network to PROFIBUS-PA field instruments including pressure transmitters, flow meters, and valve positioners. The SA801F power supply module provides stable 24 VDC rail power to the I/O backplane, ensuring consistent electrical performance across all connected modules.

In redundant control architectures, dual CI854 modules operating in hot-standby mode rely on correctly terminated PROFIBUS segments — a function the BP910S fulfills with its integrated switchable termination resistor. This eliminates the need for external termination plugs and reduces wiring complexity during commissioning. The TP830 termination panel and BC810 bus coupler further complement the BP910S in multi-segment topologies, enabling structured cable management and segment isolation for maintenance without full system shutdown.

For HMI integration, the AC800M platform connects to ABB's 800xA System via the OPC DA/UA server layer, with operator workstations accessing real-time process data from all PROFIBUS-connected field devices. The BP910S ensures that fieldbus signal quality is maintained at every node, supporting the high-frequency polling cycles required by advanced process graphics and alarm management systems. All components, including the BP910S, are covered under a 12-Month Warranty and are available from verified inventory with pre-shipment functional testing.

Power Generation & Energy: In thermal, hydro, and combined-cycle power plants, the BP910S enables reliable PROFIBUS-DP communication between AC800M controllers and turbine control I/O modules, excitation system interfaces, and generator protection relays. Its high baud rate support (up to 12 Mbit/s) ensures deterministic data exchange for time-critical protection and control loops.

Oil, Gas & Petrochemical: Offshore platforms and onshore refineries deploy AC800M systems with PROFIBUS-DP networks connecting pressure, temperature, and flow transmitters across hazardous zones. The BP910S maintains signal integrity in environments subject to vibration, humidity, and wide temperature swings, supporting SIL-rated safety instrumented system (SIS) architectures when paired with compatible safety I/O modules.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use AC800M-based PROFIBUS networks to control pump drives, valve actuators, and analytical instruments. The BP910S supports multi-drop segment configurations with up to 32 nodes per segment (extendable with repeaters), enabling cost-effective distributed control across large treatment plant footprints.

Mining & Metallurgy: In mineral processing and smelting operations, the BP910S connects AC800M controllers to variable frequency drives (VFDs), conveyor control I/O, and process analyzers via PROFIBUS-DP. Its robust termination design withstands the electrical noise common in high-power motor environments, maintaining communication reliability across long cable runs.

Packaging & Discrete Manufacturing: High-speed packaging lines and automotive assembly systems use PROFIBUS-DP for fast, cyclic I/O communication. The BP910S supports baud rates up to 12 Mbit/s, enabling sub-millisecond cycle times for motion-coordinated and vision-integrated production lines built on the AC800M platform.

Q1: Is the ABB BP910S 3KDE175831L9100 compatible with all AC800M controller variants? Yes. The BP910S is compatible with all AC800M CPU modules including PM866, PM891, and PM895, when used in conjunction with CI854 or CI858 PROFIBUS-DP communication interface modules. It supports the full PROFIBUS-DP baud rate range from 9.6 kbit/s to 12 Mbit/s, making it suitable for both legacy and high-speed fieldbus segment configurations. No firmware or hardware modification is required for integration into existing AC800M architectures.

Q2: How does the BP910S support long-term maintenance and segment diagnostics? The BP910S features an integrated switchable bus termination resistor that can be enabled or disabled without removing the connector from the cable, simplifying segment reconfiguration during maintenance. PROFIBUS-DP diagnostic frames transmitted by the CI854 master module can identify node communication faults at the segment level, allowing maintenance engineers to isolate faulty devices without interrupting the entire fieldbus network. Combined with ABB's 800xA asset monitoring tools, the BP910S-equipped segments support predictive maintenance workflows and structured commissioning documentation.

Q3: What is the inventory availability and warranty coverage for the BP910S 3KDE175831L9100? The ABB BP910S 3KDE175831L9100 is maintained in verified stock and is available for immediate dispatch with standard lead times. Each unit undergoes pre-shipment functional testing to confirm connector integrity, termination resistance values, and mechanical fit. All units are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. For volume procurement, system integration projects, or urgent replacement requirements, please contact our technical sales team directly.
