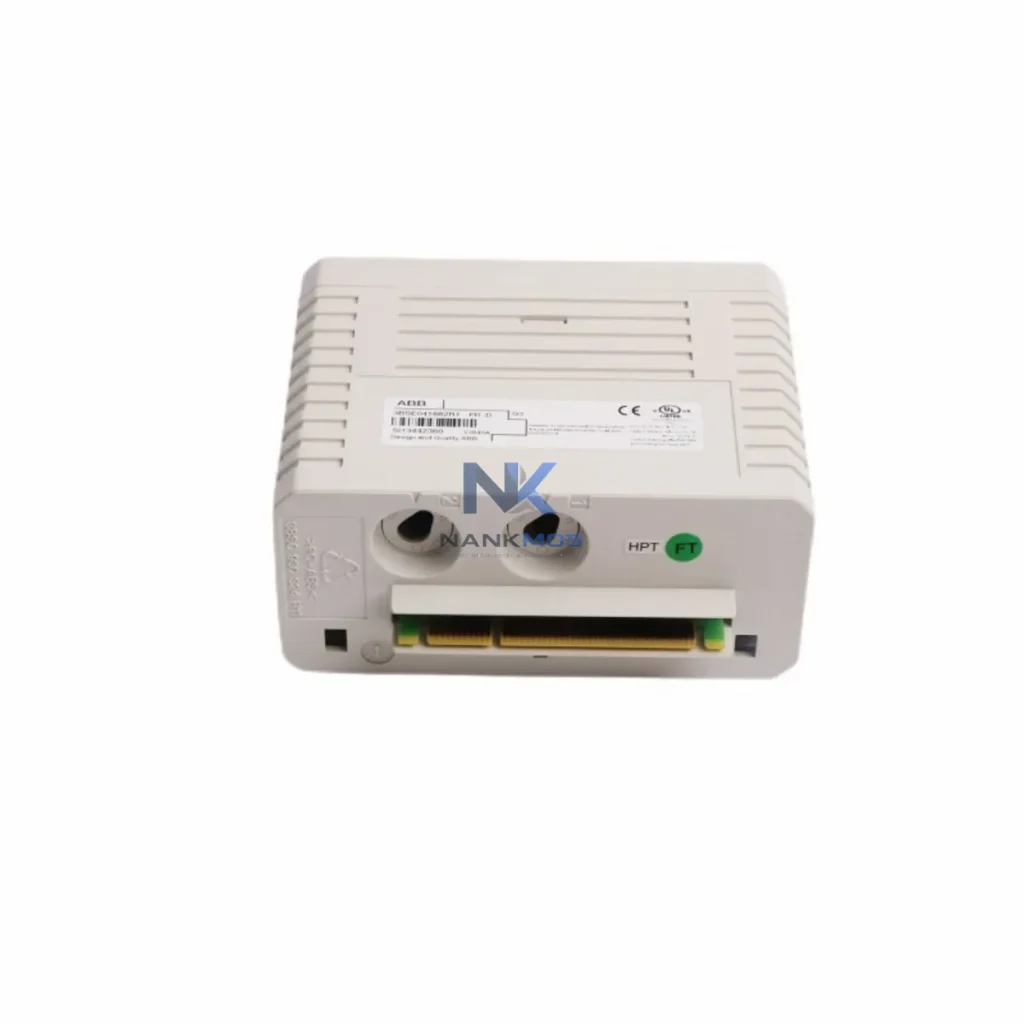

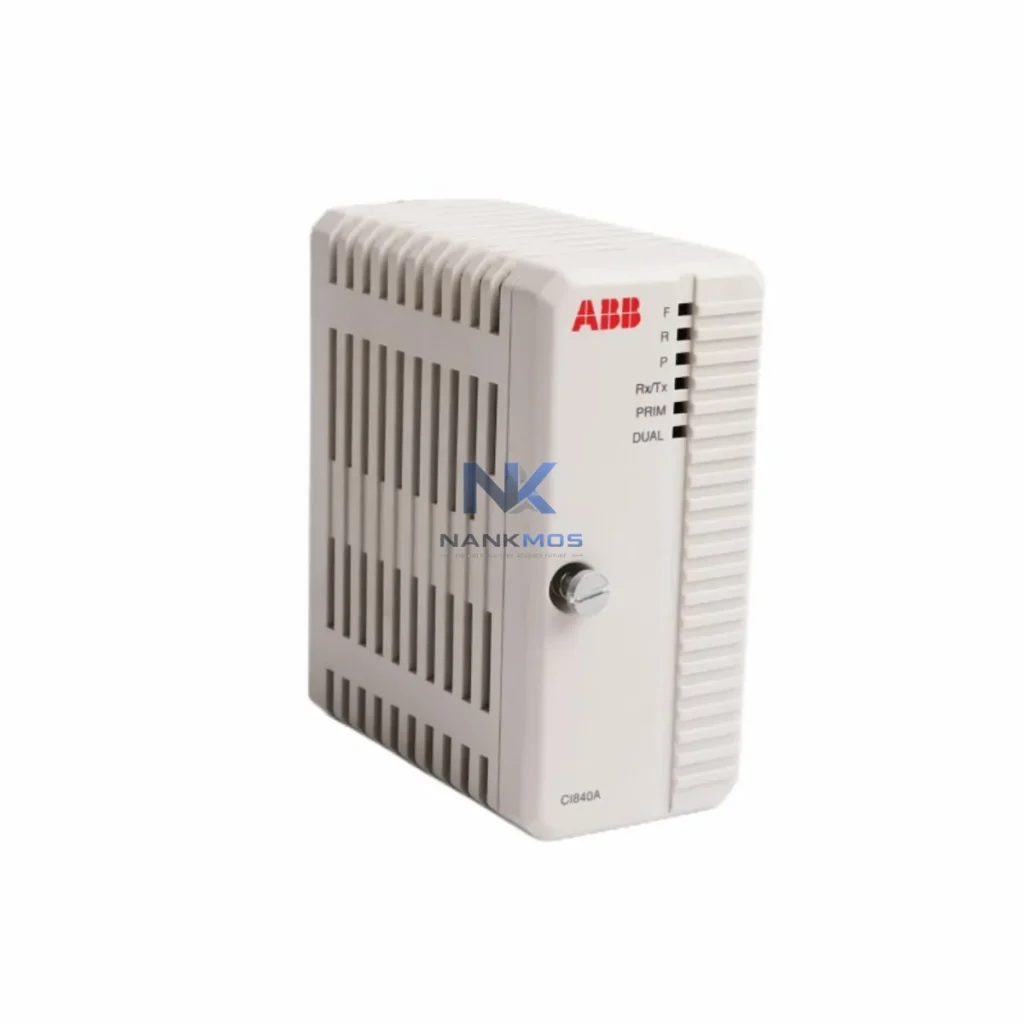

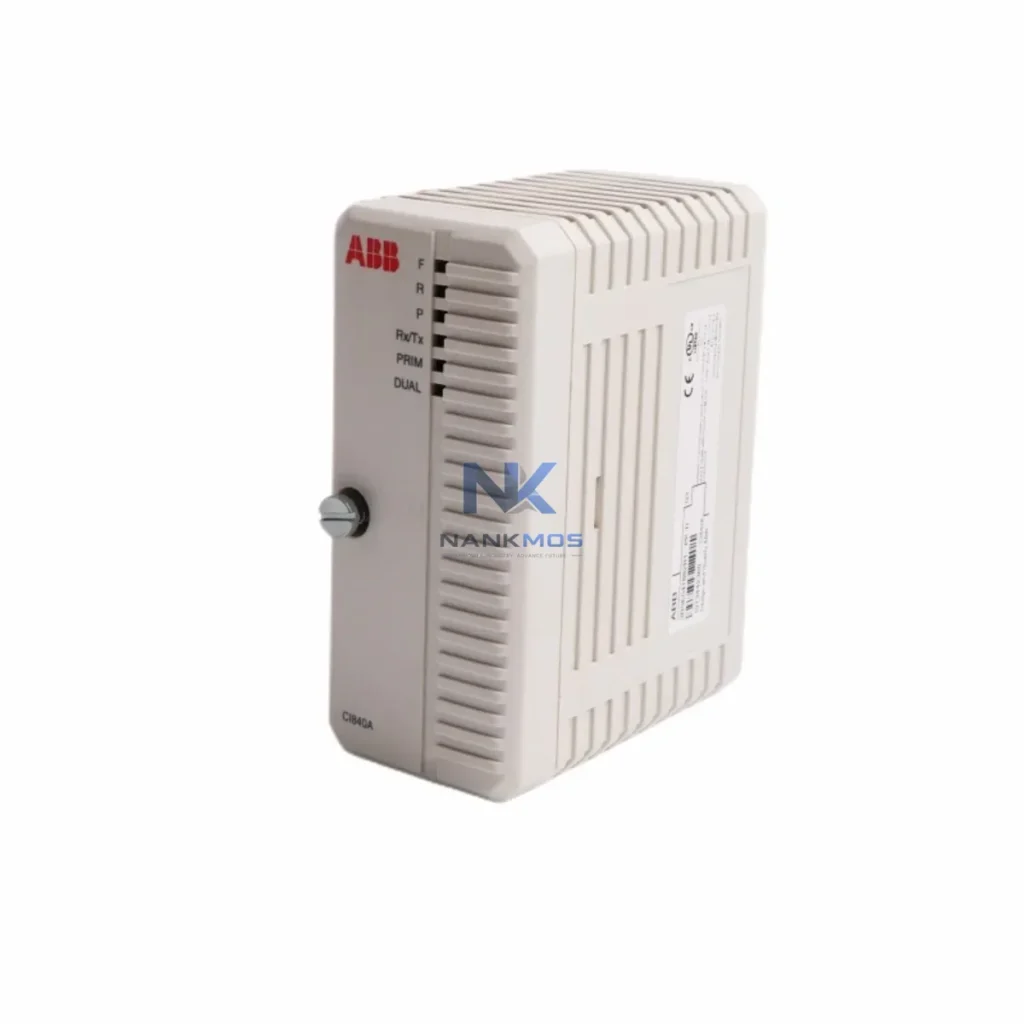

ABB CI840A 3BSE041882R1 Communication Interface Module

Product Details

CI840A 3BSE041882R1 Product Description

In modern smart factory deployments, the integrity of the data link between field devices and supervisory control systems determines the reliability of every automated process. The ABB CI840A 3BSE041882R1 is a redundant PROFIBUS DP communication interface module engineered for the ABB AC800M Distributed Control System platform. It serves as the critical network bridge between field-level instrumentation — sensors, actuators, variable speed drives, and remote I/O stations — and the higher-level control, SCADA, and HMI layers that operators depend on for real-time visibility and decision-making.

Designed for continuous-process industries including oil and gas, power generation, chemical processing, and advanced manufacturing, the CI840A delivers deterministic PROFIBUS DP communication with hardware-redundant architecture. This means that even in the event of a primary communication path failure, the secondary interface assumes control without interrupting data flow — a capability that is non-negotiable in high-availability automation environments.

The CI840A 3BSE041882R1 sits at the heart of a layered industrial network architecture. At the field level, PROFIBUS DP slaves — including ABB S800 I/O modules such as the AI810, AO810, DI810, and DO810 — transmit process values (temperature, pressure, flow, position) to the CI840A at cyclic intervals defined by the PROFIBUS master configuration. These values are then passed upward through the AC800M controller backplane to the PM864A or PM866K01 processor modules, where control logic executes in real time.

For drive integration, the CI840A supports PROFIBUS DP connectivity to ABB ACS880 and ACS580 variable speed drives, enabling speed reference, torque feedback, and fault status to be exchanged within the same PROFIBUS segment. This eliminates the need for separate analog wiring between the drive and the controller, reducing installation cost and improving diagnostic resolution.

At the supervisory layer, the AC800M communicates with ABB System 800xA — the integrated SCADA and DCS platform — via the CI857K01 Industrial Ethernet interface or the CI854AK01 PROFINET interface, depending on the network topology. The CI840A's PROFIBUS segment data is aggregated at the controller level and made available to 800xA for operator displays, alarm management, trend logging, and batch reporting. Operators at HMI workstations running ABB Panel 800 or third-party SCADA clients can monitor every field device on the PROFIBUS segment in real time.

For remote I/O expansion beyond the local control room, the CI840A supports connection to ABB S800 Remote I/O stations installed in field junction boxes or marshalling cabinets. Each remote I/O station can host multiple analog and digital modules, extending the reach of the AC800M controller across large plant footprints without additional controller hardware. When combined with an ABB CI801 or CI830 fieldbus communication interface at the remote station, the architecture supports mixed PROFIBUS and Foundation Fieldbus topologies within the same control system.

Edge connectivity is achieved by pairing the AC800M with an ABB Edge Gateway or a third-party industrial IoT gateway that subscribes to OPC UA data published by the 800xA server. This enables cloud-based analytics platforms to receive real-time process data from the PROFIBUS field network — closing the loop between physical plant operations and digital twin or predictive maintenance applications.

Protocol Fragmentation: Many brownfield plants operate mixed networks where legacy PROFIBUS DP devices coexist with newer PROFINET or EtherNet/IP equipment. The CI840A resolves this by providing a dedicated, high-performance PROFIBUS DP master channel within the AC800M, allowing engineers to maintain existing PROFIBUS field devices while migrating higher-level communications to Ethernet-based protocols through separate interface modules on the same controller rack.

Data Silos and Visibility Gaps: Without a reliable communication interface, field device data remains trapped at the sensor or actuator level. The CI840A ensures that every PROFIBUS slave — whether a pressure transmitter, a motor starter, or a valve positioner — contributes its process value and diagnostic status to the AC800M database, making that data available to SCADA historians, alarm systems, and reporting tools without manual data entry or secondary polling systems.

Remote Monitoring and Diagnostics: The CI840A supports PROFIBUS DP-V1 acyclic services, which allow the AC800M to read extended diagnostic data from intelligent field devices — including device-specific fault codes, calibration status, and communication health — without interrupting the cyclic data exchange. This capability is essential for remote diagnostic workflows where maintenance engineers need to assess field device health from a control room or remote access terminal without dispatching technicians to the field.

Production Line Transparency: By consolidating all PROFIBUS field data into the AC800M and forwarding it to 800xA, the CI840A enables production managers to view real-time KPIs — OEE, cycle time, reject rate, energy consumption — derived directly from field device signals. Alarm events generated by PROFIBUS slaves are time-stamped at the controller level and propagated to the 800xA alarm management system, providing a complete audit trail for root cause analysis and regulatory compliance reporting.

System Scalability: The redundant architecture of the CI840A supports up to 125 PROFIBUS DP slave addresses per segment, with segment repeaters available to extend physical reach. As production capacity grows, additional S800 I/O stations or third-party PROFIBUS devices can be added to the existing segment without replacing the communication interface or reconfiguring the controller hardware.

Q1: What is the maximum number of PROFIBUS DP slaves supported by the CI840A 3BSE041882R1? The CI840A supports up to 125 PROFIBUS DP slave addresses per segment in accordance with the PROFIBUS DP standard (IEC 61158). Physical segment length and the number of active slaves depend on the selected baud rate; at 12 Mbit/s, the maximum cable length per segment is 100 m, extendable with certified PROFIBUS repeaters.

Q2: Is the CI840A compatible with third-party PROFIBUS DP devices, and how is interoperability verified? Yes. The CI840A operates as a standard PROFIBUS DP master and is compatible with any GSD-file-based PROFIBUS DP slave device, regardless of manufacturer. Interoperability is configured through the PROFIBUS GSD file imported into the AC800M engineering tool (Control Builder M), which defines the slave's I/O data structure, parameter sets, and diagnostic capabilities.

Q3: How does the redundant architecture of the CI840A ensure network stability during a communication fault? The CI840A implements hardware-redundant dual-channel PROFIBUS DP communication. Both channels monitor the PROFIBUS segment simultaneously. If the active channel detects a communication fault — such as a cable break, connector failure, or electromagnetic interference event — the standby channel assumes the master role within the controller's scan cycle, maintaining uninterrupted data exchange with all connected slaves. This switchover is transparent to the AC800M application program and to connected SCADA/HMI systems.

Q4: What pre-shipment testing and warranty coverage is provided for the CI840A 3BSE041882R1? Every CI840A 3BSE041882R1 unit supplied by NANKMOS undergoes functional verification testing prior to shipment, including communication interface validation and power-on diagnostics. All units are covered by a 12-month warranty from the date of delivery. In-stock units are available for immediate dispatch to support urgent project timelines and unplanned maintenance requirements.
