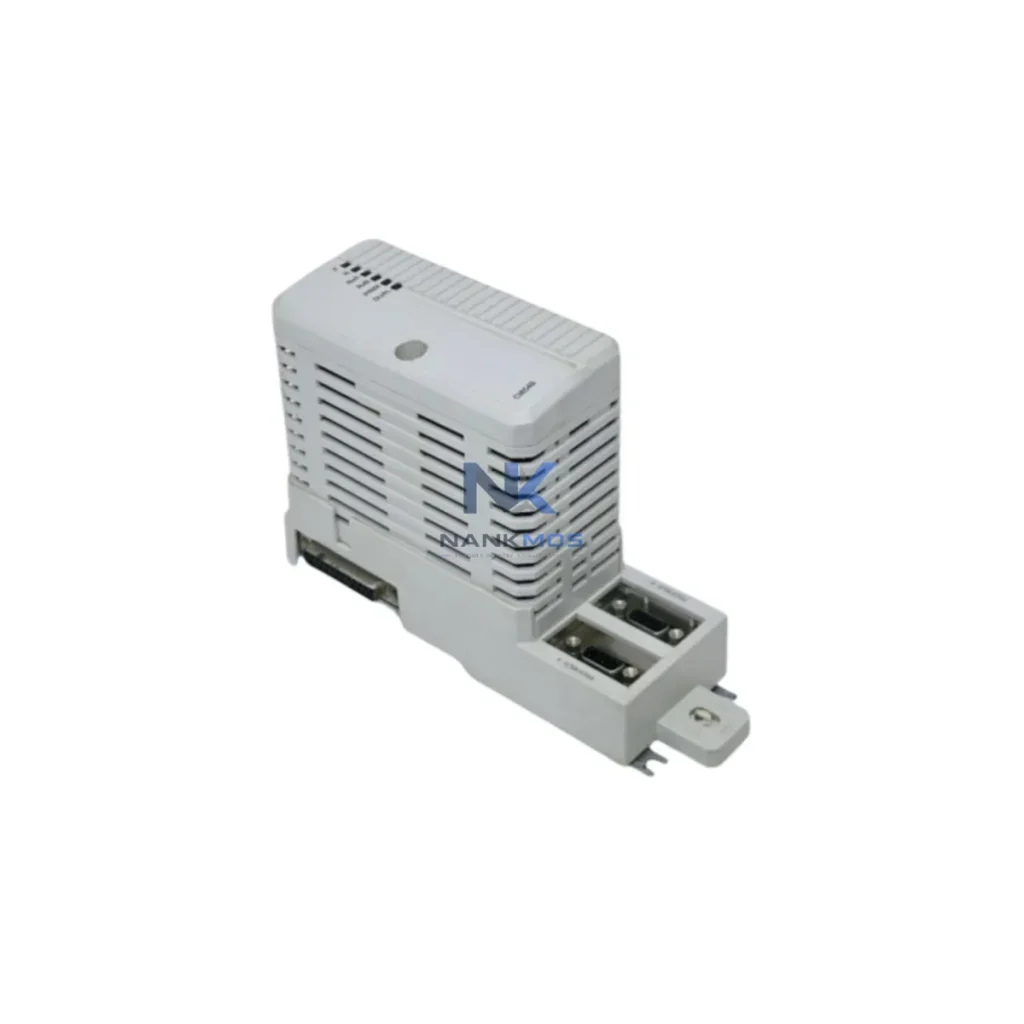

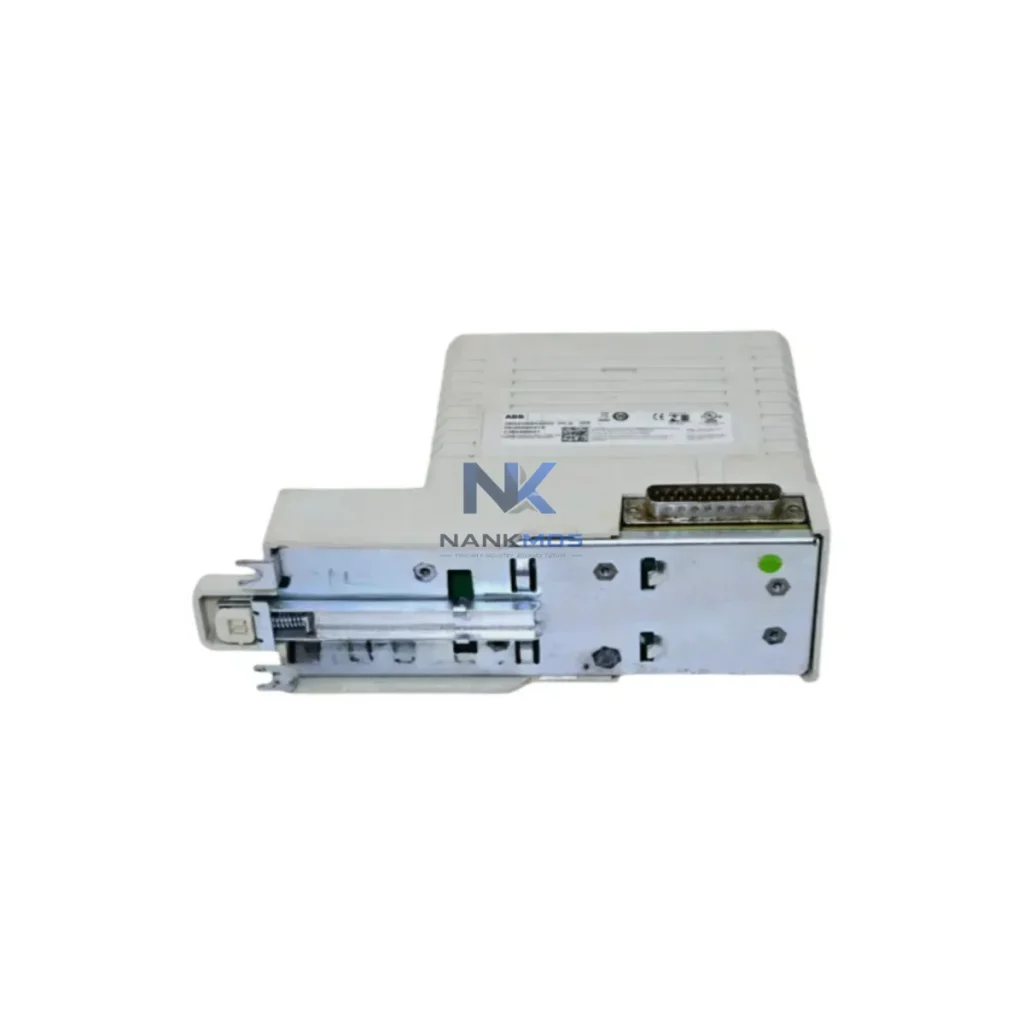

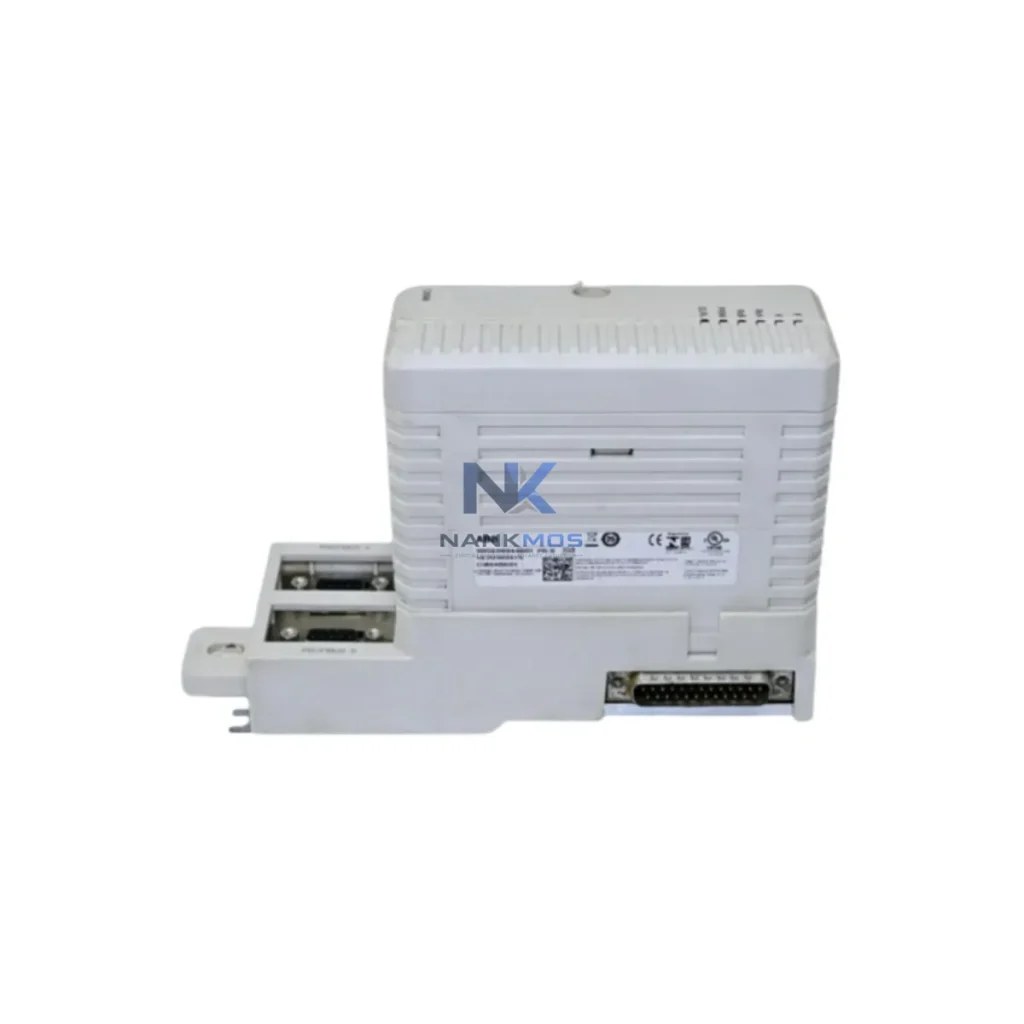

ABB CI868AK01 Communication Interface Module

Product Details

CI868AK01 Product Description

The ABB CI868AK01 is a high-performance PROFINET IO communication interface module engineered for seamless integration within ABB AC800M distributed control systems. Designed to bridge field-level devices and upper-layer automation networks, the CI868AK01 enables deterministic, real-time data exchange across PROFINET-based industrial Ethernet architectures. Whether deployed in power generation, petrochemical processing, water treatment, or advanced manufacturing environments, this module serves as a critical data link node — connecting PLCs, remote I/O stations, HMI panels, SCADA platforms, and edge computing gateways into a unified, transparent smart factory network.

In modern industrial automation, the ability to move process data reliably from the sensor layer to the supervisory layer defines operational efficiency. The CI868AK01 fulfills this role by acting as a PROFINET IO controller or device interface within the AC800M controller rack, enabling the AC800M CPU modules — such as the PM866 or PM891 — to communicate directly with PROFINET-compatible field devices including distributed I/O nodes, variable frequency drives, intelligent motor controllers, and safety modules. This eliminates proprietary protocol barriers and allows plant engineers to build open, scalable network topologies without sacrificing determinism or cycle-time performance.

Signal acquisition begins at the field level, where sensors, transmitters, and actuators feed process values into remote I/O stations or directly into PROFINET-capable devices. The CI868AK01 collects this data through its PROFINET IO interface and delivers it to the AC800M controller in real time, where control logic executes and generates output commands. Simultaneously, the module supports upstream data forwarding to SCADA systems such as ABB System 800xA, Wonderware, or Ignition, enabling operators to monitor live process variables, trend historical data, and respond to alarm conditions from centralized control rooms or remote terminals.

For facilities operating mixed-protocol environments, the CI868AK01 integrates naturally alongside protocol gateway modules and communication bridges. In architectures where legacy Modbus RTU or HART field instruments coexist with modern PROFINET networks, gateway devices can translate signals before they reach the CI868AK01, ensuring data continuity across the full automation hierarchy. Similarly, when OPC-UA servers are deployed for IIoT data aggregation, the AC800M platform — with CI868AK01 as its network backbone — can publish structured process data to cloud analytics platforms or MES systems, supporting Industry 4.0 digital twin and predictive maintenance workflows.

Remote diagnostics capability is a defining strength of the CI868AK01 deployment model. PROFINET's built-in diagnostic services allow maintenance engineers to query device status, identify communication faults, and retrieve alarm records without physical access to the field panel. When integrated with ABB System 800xA asset monitoring or third-party CMMS platforms, the CI868AK01 enables condition-based maintenance strategies — reducing unplanned downtime and extending equipment service intervals. Alarm events generated at the field device level propagate through the PROFINET network to the SCADA layer within milliseconds, ensuring operators receive timely fault notifications and can initiate corrective actions before process upsets escalate.

Network stability is maintained through PROFINET's media redundancy protocol (MRP) support, which the CI868AK01 leverages to sustain communication continuity even in the event of a single cable or switch failure. Industrial Ethernet switches with ring topology support — commonly deployed alongside modules like the CI868AK01 — provide the physical redundancy layer that PROFINET MRP requires. This architecture is particularly valuable in continuous-process industries where communication interruptions carry significant safety and financial consequences.

Data visualization and reporting are enabled through the CI868AK01's compatibility with standard PROFINET engineering tools, including STEP 7, TIA Portal-compatible GSDML device descriptions, and ABB's own Control Builder M software. Engineers can configure I/O mapping, set diagnostic thresholds, and monitor network health from a single engineering workstation, streamlining commissioning and reducing configuration errors. Integration with historian servers and data visualization platforms such as OSIsoft PI or ABB Ability further extends the module's value by enabling long-term process data archiving and KPI dashboarding.

System expansion is straightforward with the CI868AK01. Additional PROFINET IO devices — including remote I/O racks, smart valve positioners, and network-enabled sensors — can be added to the PROFINET segment without modifying the controller hardware. The AC800M rack architecture supports multiple communication interface modules in parallel, allowing engineers to segment networks by process area or redundancy zone as plant requirements evolve. This modularity ensures that the CI868AK01 investment scales with the facility's automation roadmap rather than becoming a bottleneck.

Every CI868AK01 unit supplied by NANKMOS is pre-shipment tested against ABB factory specifications, verifying communication initialization, I/O data exchange integrity, and diagnostic response before dispatch. Units are shipped with full documentation and are backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. In-stock availability ensures rapid delivery to support planned maintenance windows, emergency replacements, and new project commissioning schedules.

In a typical smart factory deployment, the CI868AK01 sits at the intersection of field instrumentation and supervisory control. At the field level, PROFINET-compatible remote I/O modules — such as ABB S900 I/O or third-party Wago 750-series nodes — collect analog and digital signals from pressure transmitters, flow meters, temperature sensors, and position encoders. These signals are transmitted over the PROFINET segment to the CI868AK01, which delivers them to the AC800M controller — equipped with a PM866 or PM891 CPU — for real-time control execution.

Variable frequency drives with integrated PROFINET interfaces, such as ABB ACS880 or ACS580 series drives, connect directly to the same PROFINET segment, enabling the AC800M to issue speed references and read drive status without additional protocol converters. Similarly, intelligent motor control centers and soft starters with PROFINET capability report thermal status, current draw, and fault codes directly through the CI868AK01 data path.

At the HMI layer, operator panels running on the PROFINET network — or connected via OPC-UA bridges — display live process values sourced from the AC800M via the CI868AK01. SCADA servers running ABB System 800xA or Ignition subscribe to OPC-UA data published by the AC800M platform, enabling plant-wide dashboards, alarm management, and historical trending. Edge gateways deployed at the network boundary aggregate PROFINET data and forward selected process variables to cloud analytics platforms or MES systems, completing the IIoT data chain from sensor to enterprise.

Industrial Ethernet switches with managed VLAN and QoS capabilities — deployed in ring topology with MRP support — provide the physical network infrastructure that ensures deterministic PROFINET communication across all connected nodes. Power over Ethernet (PoE) industrial switches further simplify field device cabling where applicable. The entire architecture, anchored by the CI868AK01, delivers a transparent, scalable, and maintainable data flow from the process floor to the boardroom.

Many industrial facilities operate with fragmented automation architectures — islands of control where PLCs, DCS controllers, and field devices communicate over incompatible protocols, creating data silos that prevent plant-wide visibility. The CI868AK01 addresses this challenge by providing a standardized PROFINET IO interface that integrates AC800M controllers into broader PROFINET networks, eliminating proprietary communication barriers between control domains.

Remote monitoring gaps are resolved through the CI868AK01's support for PROFINET diagnostic services and OPC-UA data publishing. Maintenance teams can access device health data, communication statistics, and alarm histories from remote engineering workstations or mobile terminals, reducing the need for on-site inspections and enabling proactive fault response. For facilities with geographically distributed assets, this remote diagnostics capability translates directly into reduced travel costs and faster mean-time-to-repair.

Production line transparency is achieved by mapping all PROFINET-connected field devices into the SCADA historian, creating a complete audit trail of process variables, setpoint changes, and alarm events. This data supports regulatory compliance reporting, root-cause analysis, and continuous improvement initiatives. System expansion is non-disruptive: new PROFINET devices are added to the network segment and configured in Control Builder M without controller downtime, supporting phased automation upgrades aligned with capital expenditure cycles.

Q: What is the communication cycle time of the CI868AK01 in PROFINET IRT mode?A: The CI868AK01 supports PROFINET IRT (Isochronous Real-Time) communication with cycle times as low as 250 µs, suitable for motion control and high-speed process applications within the AC800M architecture.

Q: Is the CI868AK01 compatible with third-party PROFINET devices from other manufacturers?A: Yes. The CI868AK01 uses standard GSDML device description files, ensuring compatibility with any PROFINET IO-compliant device regardless of manufacturer, including Siemens ET 200 remote I/O, Phoenix Contact Axioline, and Beckhoff EtherCAT-to-PROFINET gateways.

Q: How does the CI868AK01 support network redundancy and fault tolerance?A: The module supports PROFINET Media Redundancy Protocol (MRP), enabling ring topology deployments where a single cable or switch failure does not interrupt communication. Switchover time in MRP mode is typically under 200 ms, maintaining process continuity during network faults.

Q: Does NANKMOS provide pre-shipment testing and warranty coverage for the CI868AK01?A: Every CI868AK01 unit is functionally tested before dispatch, verifying PROFINET communication initialization, I/O data exchange, and diagnostic response. All units are covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate shipment to support urgent project and maintenance requirements.
