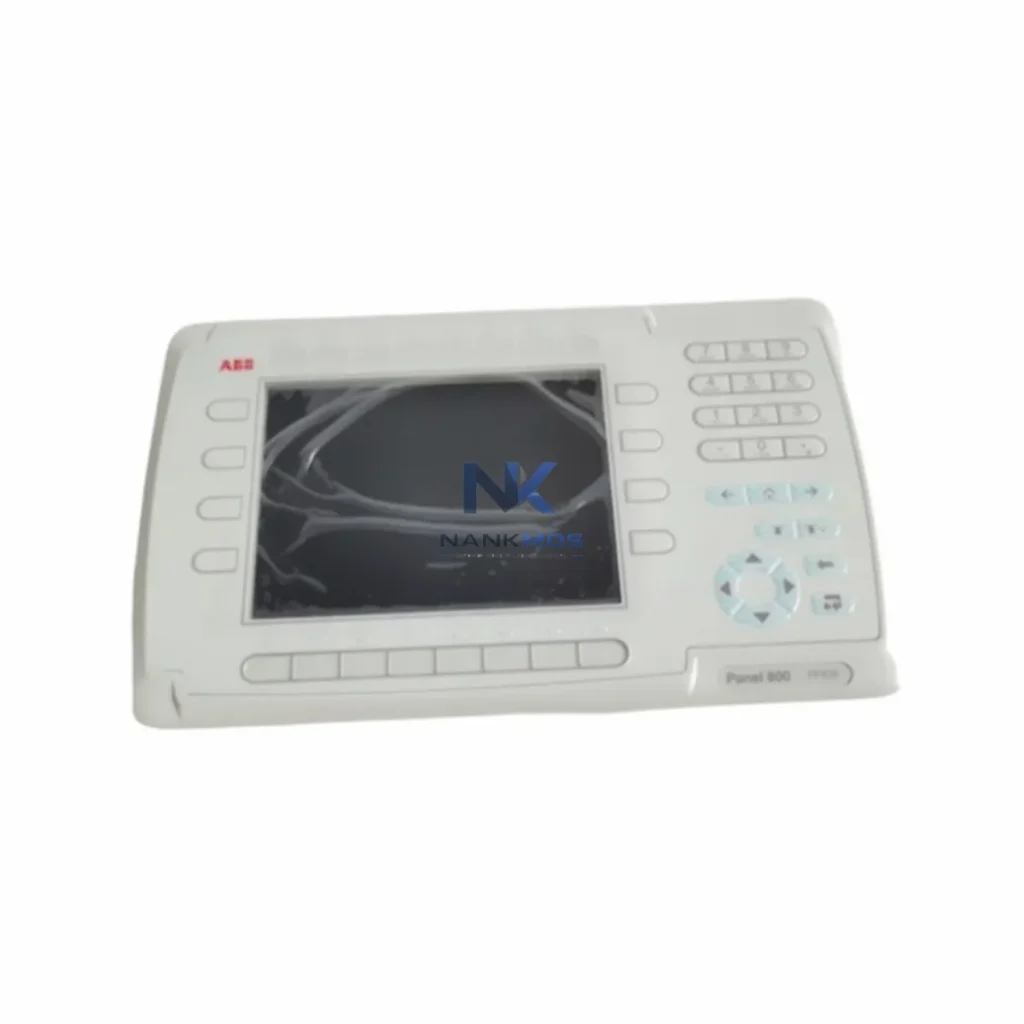

PP865A 3BSE042236R2 Product Description

The ABB PP865A 3BSE042236R2 is a high-performance energy-control operator panel engineered for demanding industrial automation environments. Designed as a core visualization and control interface within ABB's System 800xA distributed control architecture, this Panel 800 series HMI delivers real-time process visibility, load management feedback, and energy-aware operator interaction across continuous and batch production lines. With its robust industrial-grade construction and seamless integration into ABB's automation ecosystem, the PP865A 3BSE042236R2 enables operators to monitor energy consumption, respond to load fluctuations, and optimize production rhythm — all from a single, ergonomic interface.

In modern smart production lines, energy efficiency is not a passive outcome — it is an actively managed parameter. The ABB PP865A 3BSE042236R2 operator panel serves as the primary human-machine interface through which operators interact with the full energy control stack. When integrated with the ABB AC800M PLC, the PP865A provides direct visualization of controller outputs, setpoints, and energy-related process variables, enabling operators to make informed load-shedding decisions without leaving the control station.

The panel communicates natively with ABB S800 I/O modules, aggregating field-level signals from temperature sensors, current transducers, and pressure transmitters into coherent energy dashboards. When paired with ABB ACS880 variable speed drives or ACS580 general-purpose drives, the PP865A displays real-time motor speed, torque demand, and power draw — allowing operators to identify inefficient operating points and adjust drive parameters to reduce unnecessary energy consumption during partial-load cycles.

For power quality and energy metering applications, the PP865A integrates with ABB M2M power monitoring modules and compatible energy analyzers, surfacing kWh consumption trends, peak demand events, and power factor data directly on the operator screen. This closed-loop visibility between the HMI and the power monitoring layer is essential for facilities pursuing ISO 50001 energy management compliance or internal energy reduction targets.

The panel also supports integration with ABB Freelance DCS and third-party SCADA platforms via OPC DA/UA, enabling the PP865A to act as a local visualization node within a broader plant-wide energy management system. Operators can acknowledge alarms from ABB SPIET800 communication modules, monitor fieldbus health on PROFIBUS DP segments, and track the status of remote I/O racks — all contributing to a reduction in unplanned downtime and the associated energy waste of emergency restarts.

When deployed alongside ABB Panel Builder 800 engineering software, the PP865A's display pages can be configured to show energy-specific KPIs such as specific energy consumption (SEC) per production unit, shift-based energy benchmarks, and real-time OEE (Overall Equipment Effectiveness) metrics that correlate directly with energy utilization rates.

Factory energy waste most commonly originates from three sources: equipment running at unnecessary capacity, delayed operator response to process deviations, and poor visibility into cumulative energy consumption across production shifts. The ABB PP865A 3BSE042236R2 addresses all three vectors through its role as the central energy-control interface on the production floor.

By providing operators with high-resolution, real-time process graphics, the PP865A dramatically reduces the response latency between an energy anomaly — such as a motor drawing excessive current due to mechanical wear — and the corrective action taken by the operator. Early intervention prevents thermal overload events, reduces heat dissipation into the facility environment, and lowers the thermal load on cooling infrastructure, which itself represents a significant secondary energy cost in automated manufacturing facilities.

The panel's alarm management capabilities allow engineering teams to configure energy-threshold alarms: when a drive, motor, or process segment exceeds a defined power consumption limit, the PP865A alerts the operator immediately. This proactive load management approach prevents energy spikes from propagating across the production line and destabilizing the facility's power demand profile — a critical consideration for plants operating under demand-response contracts with their utility providers.

From a production rhythm perspective, the PP865A enables operators to synchronize machine cycles with energy availability windows, reducing peak-hour consumption and shifting non-critical loads to off-peak periods. This capability, when combined with scheduler functions in the ABB AC800M PLC, supports a measurable reduction in energy cost per unit produced without sacrificing throughput or product quality.

All units supplied by NANKMOS are sourced from verified inventory, subjected to pre-shipment functional testing, and backed by a 12-month warranty. In-stock availability ensures that replacement or expansion deployments can proceed without extended lead times, minimizing production downtime and the associated energy and financial costs of unplanned stoppages.

Q1: What energy efficiency benefits does the ABB PP865A 3BSE042236R2 provide in a System 800xA environment? The PP865A serves as the real-time energy visibility layer within 800xA, displaying drive power consumption, motor load trends, and process energy KPIs. By giving operators immediate access to this data, facilities can reduce idle-state energy waste, respond faster to load anomalies, and implement shift-based energy benchmarking — typically resulting in measurable reductions in specific energy consumption per production unit.

Q2: Is the PP865A 3BSE042236R2 compatible with ABB ACS880 and ACS580 variable speed drives? Yes. The PP865A integrates with ABB ACS880 and ACS580 drives via the System 800xA control layer and PROFIBUS DP or Ethernet fieldbus. Drive parameters including speed reference, output frequency, motor current, and power consumption can be visualized and adjusted directly from the operator panel, supporting energy-optimized motor control without requiring separate drive HMI panels.

Q3: What is the recommended replacement or upgrade path if the PP865A is end-of-life in my installation? For installations requiring a direct form-fit-function replacement, the PP865A 3BSE042236R2 remains available as a spare from NANKMOS verified stock. For new engineering projects, ABB's current Panel 800 lineup — including the PP886 and PP877 series — offers enhanced processing performance and extended display options while maintaining compatibility with System 800xA. NANKMOS can advise on cross-reference options based on your specific application requirements.

Q4: What testing and warranty coverage is provided with NANKMOS-supplied PP865A units? Every ABB PP865A 3BSE042236R2 unit supplied by NANKMOS undergoes pre-shipment functional verification, including power-on testing, display integrity checks, and communication port validation. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch, supporting rapid project timelines and minimizing production line downtime.
