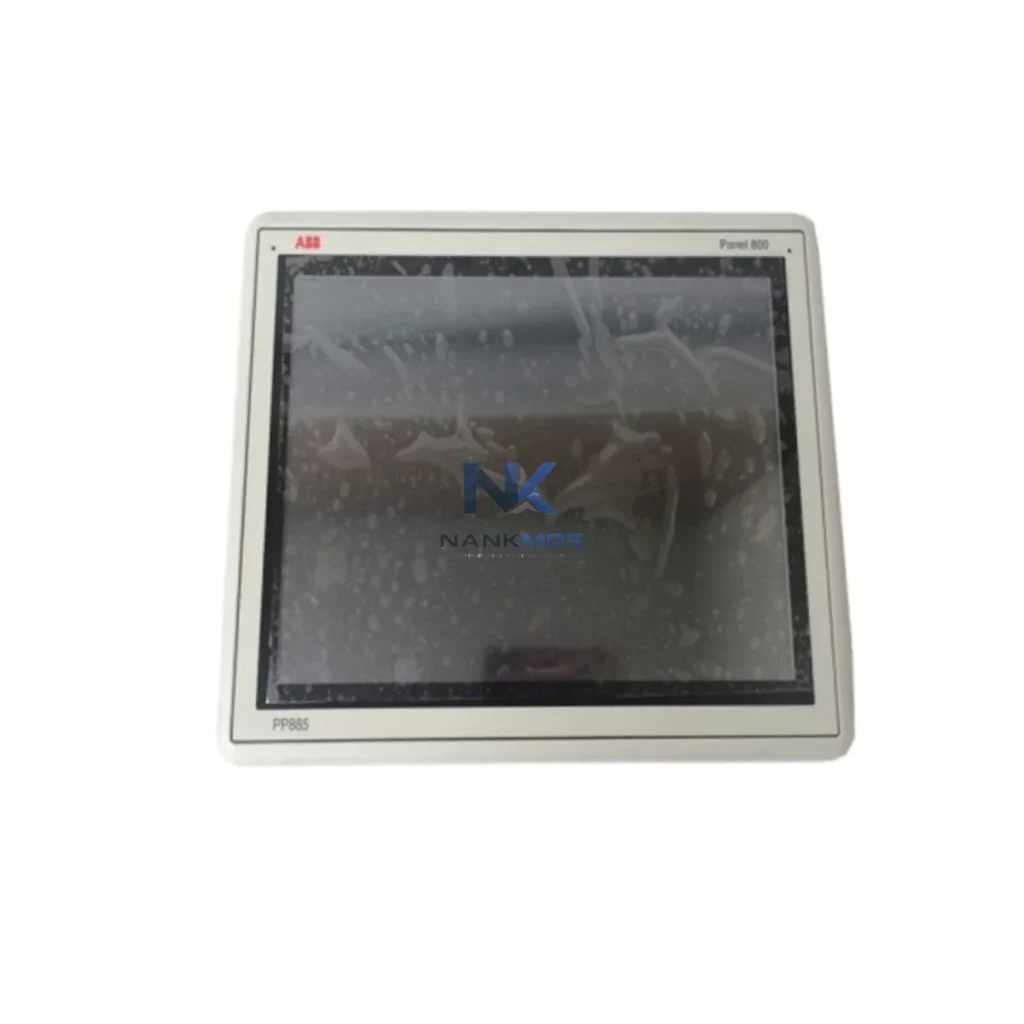

ABB PP885 3BSE069276R1 HMI Operator Panel

Product Details

PP885 3BSE069276R1 Product Description

The ABB PP885 3BSE069276R1 is a high-performance HMI Operator Panel engineered for the AC800M Distributed Control System platform, delivering a robust, real-time data bridge between field-level devices and upper-layer automation systems. Designed for demanding industrial environments, this panel integrates Profibus DP and Industrial Ethernet protocols to unify signal acquisition, process visualization, alarm management, and remote diagnostics into a single, cohesive operator interface. In smart factory deployments where data transparency and network stability are non-negotiable, the PP885 3BSE069276R1 serves as the critical human-machine touchpoint that keeps every layer of the automation stack synchronized and visible.

At the heart of modern industrial connectivity, the PP885 operates as a protocol-aware gateway node within the AC800M control architecture. Field instruments — including pressure transmitters, flow sensors, temperature probes, and motor-driven actuators — feed real-time process values through Profibus DP segments directly into the AC800M controller. The PP885 then renders this data as live process graphics, trend curves, and alarm banners on its operator display, while simultaneously forwarding structured data packets upstream via Ethernet to SCADA servers, MES platforms, and cloud-based analytics engines. This dual-protocol capability eliminates the data silos that traditionally separate field instrumentation from enterprise-level decision systems.

Within a typical smart factory data flow, the PP885 3BSE069276R1 sits at the convergence point of multiple automation layers. Remote I/O modules — such as the ABB S800 I/O series — collect discrete and analog signals from sensors and transmit them over Profibus to the AC800M PM866 or PM891 processor modules. The PP885 visualizes these signals in real time, enabling operators to monitor motor speed references from ABB ACS880 variable frequency drives, track energy consumption data from ABB M2M energy meters, and observe valve position feedback from field control elements — all from a single unified display. When process deviations occur, the panel's integrated alarm system triggers structured notifications that propagate through the Ethernet backbone to remote SCADA workstations and mobile operator terminals, ensuring that no critical event goes unacknowledged regardless of operator location.

The PP885's Ethernet connectivity extends its value beyond local HMI functions into the domain of remote diagnostics and predictive maintenance. By integrating with ABB System 800xA or third-party SCADA platforms via OPC-UA or Modbus TCP over Ethernet, the panel enables remote engineers to access live process data, historical trend archives, and alarm logs without physical presence on the plant floor. This capability is particularly valuable in geographically distributed facilities where maintenance teams must diagnose equipment faults, validate control loop performance, and authorize parameter changes from centralized operations centers. The PP885 also supports integration with edge gateway devices — such as industrial IoT gateways running MQTT or REST API protocols — enabling structured data export to cloud analytics platforms for long-term performance benchmarking and AI-driven anomaly detection.

System expansion is a core design principle of the AC800M platform, and the PP885 3BSE069276R1 is fully compatible with this scalable architecture. As production lines grow and new process units are commissioned, additional S800 I/O clusters, Profibus DP segments, and Ethernet subnets can be integrated without disrupting existing control logic or HMI configurations. The PP885 supports multi-panel redundancy configurations, ensuring that operator visibility is maintained even during planned maintenance windows or unexpected hardware events. Industrial Ethernet switches — including managed switches with PROFINET or EtherNet/IP support — provide the network infrastructure backbone that connects PP885 panels, AC800M controllers, ABB Freelance DCS nodes, and third-party PLC systems within a unified plant network topology.

Every ABB PP885 3BSE069276R1 unit supplied by NANKMOS undergoes pre-shipment functional verification, including communication protocol handshake testing, display calibration, and I/O signal integrity checks. Stock availability is maintained to support urgent project timelines and emergency replacement requirements. All units are covered by a 12-month warranty against manufacturing defects, with technical support available for integration guidance, firmware compatibility verification, and system commissioning assistance.

In a fully integrated smart factory deployment, the PP885 3BSE069276R1 anchors the operator layer of a multi-tier automation network. At the field level, ABB S800 I/O modules — including AI810 analog input and DO810 digital output cards — collect process signals from Endress+Hauser Promag flow transmitters, Yokogawa EJA pressure sensors, and Pt100 temperature elements. These signals travel over Profibus DP segments to the AC800M PM866 controller, where control algorithms execute PID loops, sequence logic, and safety interlocks. The PP885 renders the resulting process state as live mimic diagrams, enabling operators to monitor tank levels, pump discharge pressures, and heat exchanger outlet temperatures in real time.

Simultaneously, the AC800M communicates upstream via Industrial Ethernet to ABB System 800xA SCADA servers, where historian databases archive process trends at configurable scan rates. ABB ACS880 variable frequency drives report motor current, speed reference, and fault codes through Profibus DP to the same AC800M controller, with drive status visualized directly on the PP885 display alongside process variables. For facilities incorporating energy management, ABB M2M energy meters feed consumption data through Modbus TCP over Ethernet to the SCADA layer, where energy dashboards provide real-time kWh tracking and demand forecasting. Edge gateway devices — running MQTT brokers and REST API connectors — aggregate structured data from the PP885 Ethernet port and forward normalized datasets to cloud analytics platforms, enabling AI-driven predictive maintenance models to flag bearing wear, seal degradation, and pump cavitation before failures occur.

Industrial managed Ethernet switches with VLAN segmentation and redundant ring topology (MRP/RSTP) provide the network infrastructure that connects PP885 panels, AC800M controllers, remote I/O clusters, and SCADA workstations within a fault-tolerant plant LAN. This architecture ensures that a single cable fault or switch failure does not interrupt operator visibility or control system communication, maintaining the data continuity that smart factory operations demand.

Industrial automation sites frequently encounter data gaps that undermine production transparency and operational efficiency. Protocol fragmentation — where legacy Profibus devices coexist with modern Ethernet-based systems — creates communication barriers that prevent unified data visualization. The PP885 3BSE069276R1 addresses this directly by supporting both Profibus DP and Industrial Ethernet simultaneously, acting as a protocol bridge that consolidates heterogeneous device data into a single operator view without requiring costly protocol converters or middleware layers.

Data island problems — where individual machines or process units operate in isolation without sharing status information with the plant-wide control system — are resolved through the PP885's Ethernet connectivity, which enables structured data export to SCADA historians, MES databases, and ERP systems. Remote monitoring challenges, particularly in facilities with geographically separated process units or unmanned substations, are addressed through the panel's OPC-UA server capability, which allows authorized remote clients to access live process data and alarm states over secure Ethernet connections. Production line transparency is enhanced through the PP885's configurable trend displays and alarm summary screens, which provide operators and production managers with real-time visibility into process performance, equipment health, and quality control parameters. System expansion — adding new process units, I/O clusters, or communication nodes — is supported without disrupting existing HMI configurations, ensuring that the PP885 remains a scalable, future-proof investment as automation infrastructure grows.

Q: What communication protocols does the ABB PP885 3BSE069276R1 support?A: The PP885 supports Profibus DP for field device communication and Industrial Ethernet (TCP/IP) for SCADA, MES, and upper-system integration. It is also compatible with OPC-UA and Modbus TCP over Ethernet, enabling flexible connectivity across heterogeneous automation architectures.

Q: How does the PP885 ensure network stability in high-noise industrial environments?A: The PP885 is designed for industrial EMC compliance and operates reliably in environments with high electrical noise from variable frequency drives, motor starters, and power distribution equipment. When deployed with managed industrial Ethernet switches featuring MRP/RSTP redundant ring topology, network communication is maintained even in the event of a single cable or switch failure.

Q: Can the PP885 3BSE069276R1 be integrated with third-party SCADA or PLC systems?A: Yes. The PP885's Ethernet port supports OPC-UA and Modbus TCP, enabling integration with third-party SCADA platforms, Siemens S7 PLCs, Rockwell ControlLogix systems, and other automation controllers that support standard industrial Ethernet protocols. Profibus DP compatibility also allows connection to legacy field devices and third-party remote I/O modules.

Q: What does the 12-month warranty cover, and what pre-shipment testing is performed?A: Every PP885 3BSE069276R1 unit undergoes pre-shipment functional verification including communication protocol handshake testing, display calibration, and I/O signal integrity checks. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Technical support is available for integration guidance, firmware compatibility verification, and commissioning assistance throughout the warranty period.
