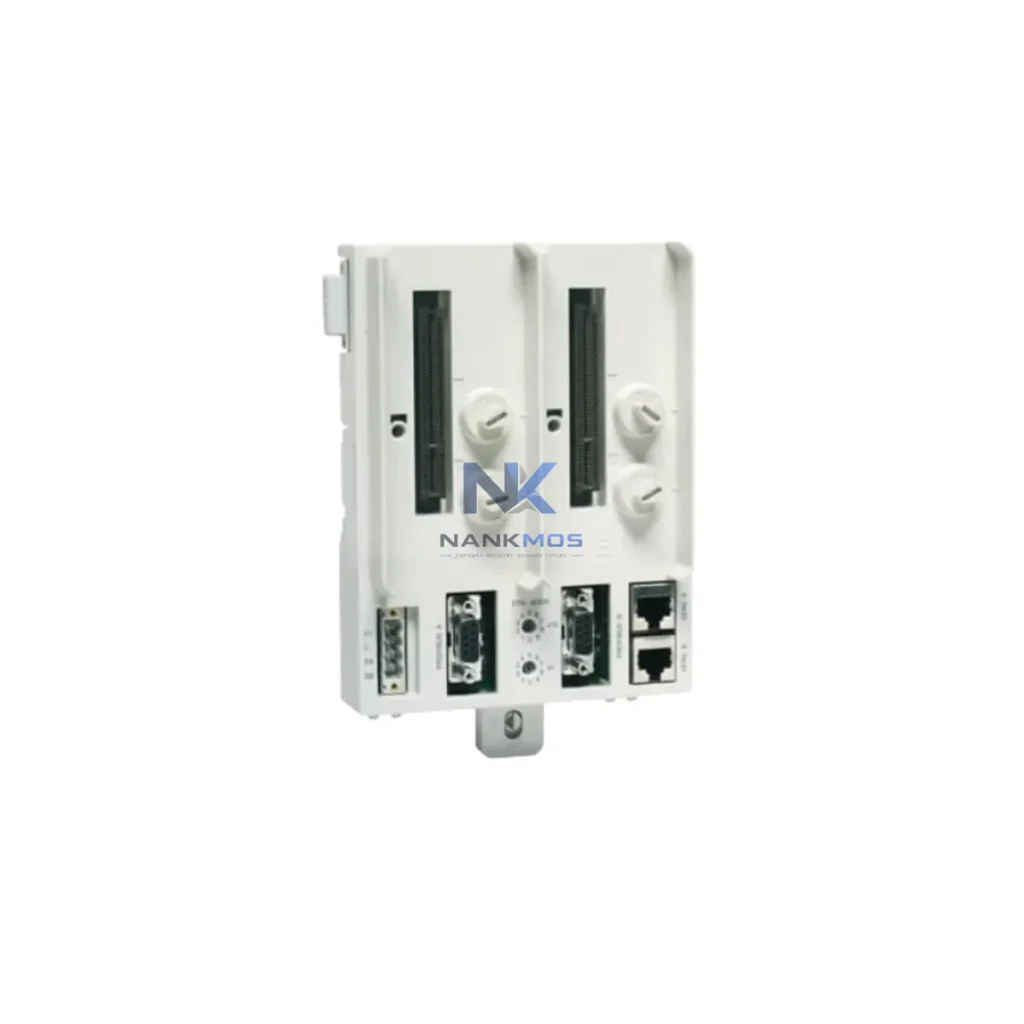

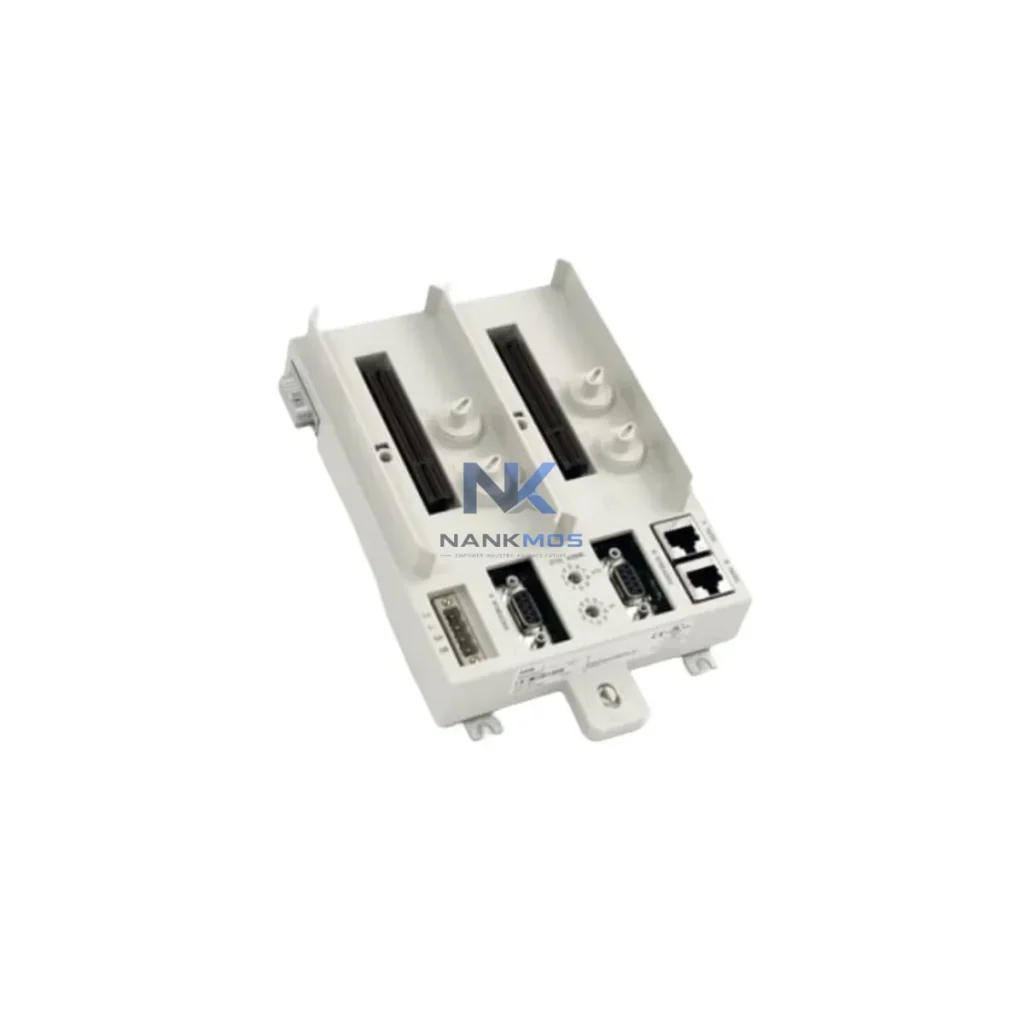

ABB TU847 3BSE022462R1 Network Interface Module

Product Details

TU847 3BSE022462R1 Product Description

The ABB TU847 3BSE022462R1 is a high-performance network interface module engineered for seamless integration within ABB's AC800M Distributed Control System (DCS) architecture. Designed to bridge field-level devices and upper-level control platforms, the TU847 serves as a critical node in the industrial data chain — enabling reliable Profibus DP communication between PLCs, remote I/O stations, HMI panels, SCADA systems, and edge gateways across demanding process automation environments.

In modern smart factory deployments, data continuity across every layer of the automation hierarchy is non-negotiable. The TU847 3BSE022462R1 addresses this requirement by providing a stable, low-latency communication backbone that connects field instruments, variable frequency drives, intelligent sensors, and distributed I/O modules directly to the AC800M controller platform. Whether deployed in power generation, oil and gas, chemical processing, or discrete manufacturing, this module ensures that real-time process data flows without interruption from the sensor level to the supervisory layer.

The TU847 3BSE022462R1 operates at the heart of a layered industrial communication architecture. At the field level, process signals from pressure transmitters, flow meters, temperature sensors, and intelligent actuators are collected and routed through Profibus DP to the AC800M controller via the TU847 termination interface. This module acts as the physical and logical connection point between the S800 I/O modules — such as the AI810 analog input module and DI810 digital input module — and the Profibus DP network segment managed by the AC800M CPU.

Within the controller layer, the PM864A or PM866 AC800M processor modules handle real-time scan cycles, executing control logic and passing process values upstream to SCADA and HMI platforms via OPC DA/UA or Modbus TCP. The TU847 ensures that the physical termination of the Profibus segment is correctly managed, maintaining signal integrity across multi-drop network topologies that may span hundreds of meters on the plant floor.

For remote I/O expansion, the TU847 works in conjunction with TB820V2 Profibus DP communication interface modules, enabling distributed I/O clusters to be placed close to field equipment while maintaining centralized control from the AC800M system. This architecture reduces wiring costs, minimizes signal degradation, and supports modular plant expansion without redesigning the core control network.

At the supervisory level, data collected through the TU847-linked Profibus network feeds directly into ABB System 800xA — the integrated SCADA and DCS platform — where operators monitor live process variables, configure alarm thresholds, and execute remote diagnostic routines. The 800xA environment provides full visibility into the health of each Profibus node, including the TU847 termination unit itself, enabling predictive maintenance workflows and reducing unplanned downtime.

For edge computing and IIoT integration, data from the AC800M system can be forwarded to edge gateways compatible with MQTT, OPC-UA, or REST APIs, enabling cloud-based analytics, digital twin modeling, and remote asset management. Variable frequency drives connected via Profibus DP — such as ABB ACS series drives — also benefit from the stable network termination provided by the TU847, ensuring that drive parameter reads, speed references, and fault diagnostics are transmitted reliably without bus collisions or timeout errors.

Industrial Ethernet switches positioned at the control network layer aggregate data from multiple Profibus segments and route it to the plant historian and MES systems, completing the data chain from field sensor to enterprise dashboard. The TU847 3BSE022462R1 is the foundational component that makes this end-to-end connectivity possible within ABB's AC800M ecosystem.

Many industrial sites operating legacy DCS infrastructure face persistent challenges: protocol fragmentation between field devices and control systems, data silos that prevent cross-system visibility, and the inability to perform remote diagnostics without dispatching on-site engineers. The ABB TU847 3BSE022462R1 directly addresses these pain points within AC800M-based installations.

Protocol Unification: By providing a standardized Profibus DP termination interface, the TU847 eliminates the need for custom wiring adapters or protocol converters between S800 I/O modules and the Profibus network. All field devices — regardless of manufacturer — that support Profibus DP can be integrated into the AC800M system through a consistent, validated interface.

Eliminating Data Silos: The TU847 enables continuous, cyclic data exchange between field instruments and the AC800M controller, ensuring that process values are always current in the SCADA historian. This eliminates the data gaps that occur when communication modules are improperly terminated or when bus reflections cause intermittent data loss.

Remote Monitoring and Alarm Tracking: With the TU847 correctly installed and the Profibus segment properly terminated, the AC800M system can perform continuous bus diagnostics, detecting node failures, communication timeouts, and cable faults in real time. Alarm events are logged with timestamps in the 800xA system, enabling root cause analysis without physical inspection of the field cabinet.

Production Line Transparency: Operators gain full visibility into every Profibus node on the network, including I/O module status, drive operating states, and sensor health indicators. This transparency supports OEE (Overall Equipment Effectiveness) calculations and enables data-driven maintenance scheduling.

System Scalability: The modular design of the AC800M S800 I/O system, anchored by components like the TU847, allows plants to expand their I/O count and Profibus node density without replacing the core controller infrastructure. New process areas can be added by extending the Profibus segment and adding additional S800 I/O clusters, all terminated through compatible MTU modules.

Q1: What is the role of the TU847 3BSE022462R1 in a Profibus DP network?The TU847 is a Module Termination Unit (MTU) used in ABB's S800 I/O system. It provides the physical termination and connection interface between S800 I/O modules and the Profibus DP communication bus managed by the AC800M controller. Proper termination is essential for maintaining bus signal integrity and preventing reflections that cause communication errors.

Q2: Is the TU847 compatible with third-party Profibus DP masters?The TU847 3BSE022462R1 is designed for use within ABB's AC800M and S800 I/O ecosystem. While Profibus DP is an open standard (IEC 61158), integration with third-party Profibus masters should be validated against the GSD file and system configuration requirements. For guaranteed compatibility and support, deployment within the ABB AC800M architecture is recommended.

Q3: How does the TU847 support remote diagnostics and predictive maintenance?When integrated with ABB System 800xA, the TU847-terminated Profibus segment provides continuous bus health monitoring. The 800xA platform logs communication errors, node dropouts, and signal quality metrics, enabling maintenance teams to identify degrading connections before they cause process interruptions. Remote access to 800xA further allows off-site engineers to perform diagnostics without plant visits.

Q4: What warranty and pre-shipment testing does the TU847 3BSE022462R1 include?Every TU847 3BSE022462R1 unit supplied by NANKMOS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional inspection and communication test to verify Profibus DP interface integrity and physical connector condition. In-stock units are available for prompt shipment following quality verification.
