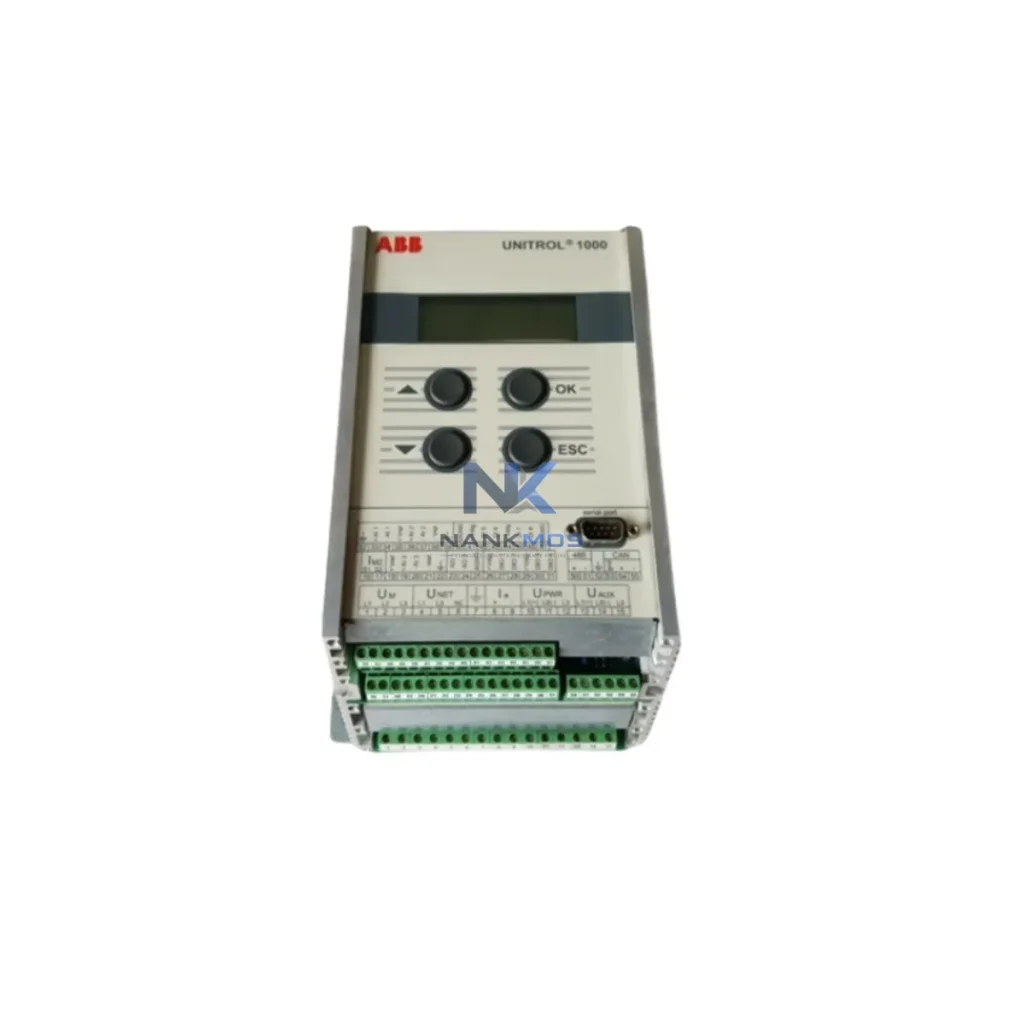

ABB UNITROL 1000 3BHE005774R0002 Automatic Voltage Regulator

Product Details

UNITROL 1000 3BHE005774R0002 Product Description

The ABB 3BHE005774R0002 is a precision Automatic Voltage Regulator (AVR) module from the ABB Unitrol 1000 series, engineered for energy-efficient excitation control in synchronous generators and industrial power systems. Designed to operate within demanding production environments, this AVR module delivers stable voltage output, minimizes reactive power losses, and supports continuous load management across complex industrial networks. With its compact DIN-rail-compatible form factor and robust signal processing architecture, the 3BHE005774R0002 integrates seamlessly into modern smart production lines where energy optimization and uptime reliability are critical operational priorities.

In modern industrial power management architectures, the ABB 3BHE005774R0002 AVR module functions as the core excitation controller that governs generator output quality and reactive power balance. When integrated with an ABB AC800M PLC or ABB Symphony Plus DCS, the 3BHE005774R0002 receives real-time setpoint commands that allow the control system to dynamically adjust excitation current in response to load fluctuations — a critical capability for facilities operating large synchronous generators under variable production demand.

The module works in close coordination with ABB Unitrol 1000 excitation panels, where companion components such as the 3BHE004573R0002 field flashing module and the 3BHE009681R0101 thyristor firing board form a complete excitation chain. Power quality monitoring is enhanced when the 3BHE005774R0002 is paired with ABB REG670 generator protection relays, which provide overcurrent, loss-of-excitation, and voltage deviation alarms that feed back into the AVR's closed-loop control logic.

For facilities using SCADA platforms such as ABB Ability System 800xA, the AVR's analog and digital I/O signals can be mapped to supervisory dashboards, enabling operators to monitor excitation current, terminal voltage, and power factor in real time. This integration supports predictive maintenance workflows by trending excitation response curves over time and flagging deviations that may indicate winding degradation or cooling system inefficiency. ABB ACS880 variable speed drives operating in parallel with the generator system benefit from stable grid voltage maintained by the 3BHE005774R0002, reducing drive input filter stress and improving overall system power factor.

In multi-generator paralleling applications, the 3BHE005774R0002 cooperates with ABB Unitrol 6800 cross-current compensation circuits to ensure reactive load sharing between generator sets, preventing circulating currents that waste energy and increase thermal loading on stator windings. Communication with plant-level energy management systems is facilitated through Modbus RTU or PROFIBUS DP interfaces, allowing the AVR to participate in demand-response programs that curtail reactive power consumption during peak tariff periods.

Unstable generator excitation is one of the most overlooked sources of energy waste in industrial facilities. Voltage fluctuations caused by poorly regulated excitation force downstream equipment — including motor starters, variable frequency drives, and power distribution transformers — to operate outside their optimal efficiency bands, increasing I²R losses and accelerating insulation aging. The ABB 3BHE005774R0002 addresses this at the source by maintaining terminal voltage within tight tolerances regardless of load transients, ensuring that every downstream device on the production line receives clean, stable power.

In continuous process industries such as petrochemical, pulp and paper, and steel manufacturing, generator excitation stability directly influences production line throughput. A voltage sag during a high-inertia motor start can trigger protective relay trips across multiple feeders, causing cascading shutdowns that disrupt production schedules and require lengthy restart sequences. By maintaining precise voltage regulation through the 3BHE005774R0002's fast-response excitation control, facilities can reduce nuisance trips, shorten restart cycles, and maintain consistent production line beat rates.

Thermal load reduction is another measurable benefit. Overexcitation conditions — common in poorly tuned AVR systems — cause excessive reactive current circulation in generator stator windings, increasing copper losses and elevating winding temperatures. The 3BHE005774R0002's under/overexcitation limiters actively prevent these conditions, extending generator insulation life and reducing cooling system energy consumption. Facilities that have migrated from legacy analog AVR systems to the Unitrol 1000 platform typically report measurable reductions in generator operating temperature and reactive power import from the utility grid.

From a predictive maintenance perspective, the 3BHE005774R0002 provides excitation current and voltage feedback signals that can be trended over time to detect early signs of rotor winding degradation, brush gear wear, or exciter diode failure — all before these faults escalate into unplanned outages. This capability supports condition-based maintenance strategies that maximize equipment utilization and minimize maintenance-related production losses. Every unit supplied by NANKMOS undergoes pre-shipment functional testing to verify AVR response characteristics, setpoint accuracy, and communication integrity, ensuring that replacement modules perform to OEM specification from the moment they are installed.

Q1: What energy efficiency improvements can I expect after replacing a faulty AVR with the ABB 3BHE005774R0002? A: A correctly functioning 3BHE005774R0002 restores closed-loop voltage regulation, eliminating the reactive power excess and voltage instability caused by a degraded AVR. Facilities typically observe reduced reactive power import from the grid, lower generator operating temperatures, and improved power factor — all of which translate directly into lower energy costs and reduced wear on downstream equipment.

Q2: Is the 3BHE005774R0002 compatible with my existing Unitrol 1000 excitation panel and ABB protection relays? A: Yes. The 3BHE005774R0002 is a direct replacement module for the ABB Unitrol 1000 excitation system and is designed to interface with standard Unitrol 1000 backplane connectors, I/O wiring, and communication buses. Compatibility with ABB REG670, REG216, and similar generator protection relays is maintained through standard analog and digital signal interfaces. If your panel uses a non-standard configuration, our technical team can advise on any required parameter adjustments prior to installation.

Q3: What does the pre-shipment testing process cover, and how does it support my maintenance workflow? A: Every 3BHE005774R0002 unit is functionally tested prior to dispatch. Testing covers AVR response to voltage setpoint changes, under/overexcitation limiter activation, analog I/O signal integrity, and communication interface verification where applicable. A test report is available upon request. This process ensures that the replacement module is fully operational on arrival, minimizing installation time and eliminating the risk of receiving a defective unit that could delay production restart.

Q4: What is the warranty coverage, and how quickly can replacement stock be dispatched? A: All ABB 3BHE005774R0002 modules supplied by NANKMOS are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. We maintain ready stock of critical Unitrol 1000 series components to support urgent replacement requirements. Orders confirmed before the daily dispatch cutoff are processed for same-day or next-business-day shipment, with global logistics options available to minimize generator downtime.
