ABB YPH 108B(61156844) Speed Measurement Board

Product Details

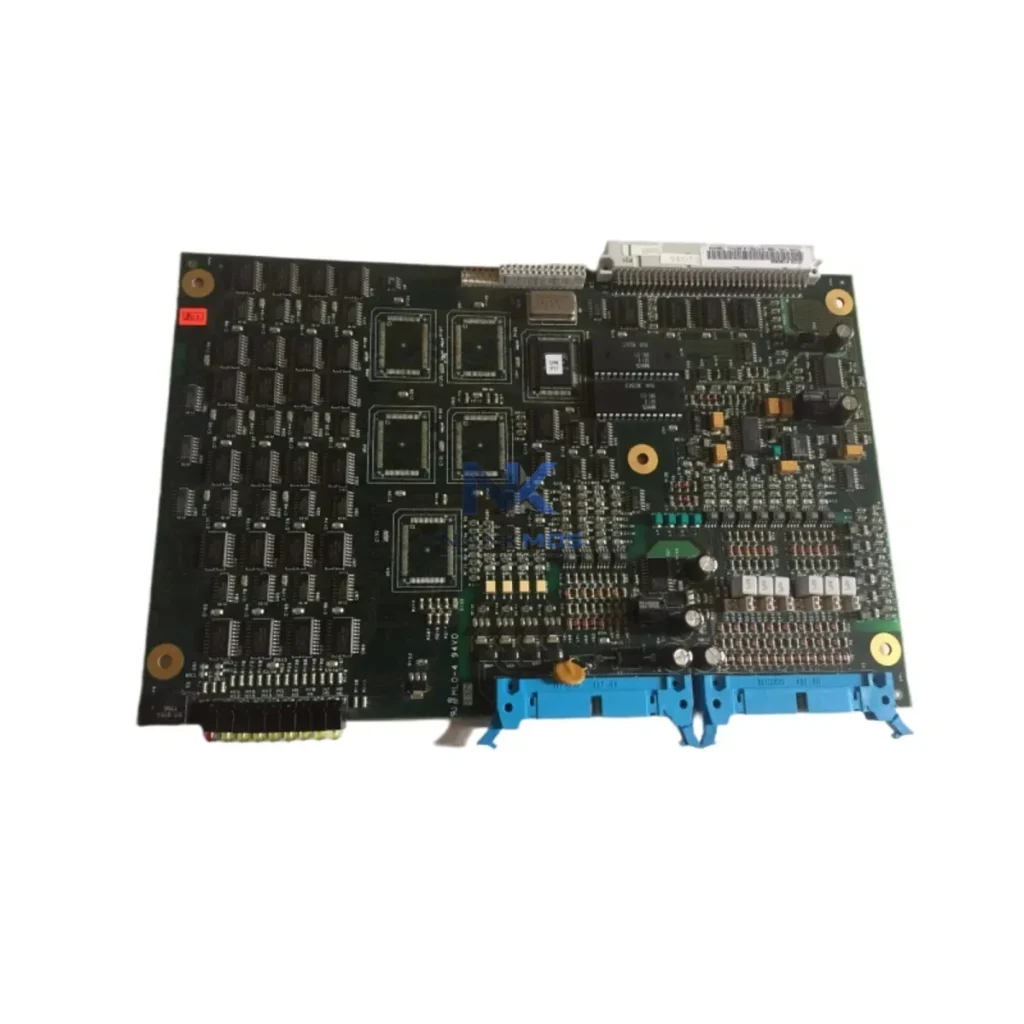

YPH 108B(61156844) Product Description

The ABB YPH108B61156844 is a precision speed measurement board engineered for Unitrol excitation control systems, delivering accurate rotor speed feedback that is fundamental to energy-efficient motor control, load management, and production line optimization. Designed for demanding industrial environments including power generation, petrochemical processing, semiconductor manufacturing, and heavy-duty automation, this board enables real-time speed signal acquisition that directly supports drive efficiency, thermal load reduction, and predictive maintenance strategies across smart factory architectures.

In modern energy management systems, accurate speed feedback is not merely a control parameter — it is the foundation of intelligent power allocation. The YPH108B61156844 captures high-resolution speed signals from synchronous generators and large AC motors, feeding critical data to the Unitrol 5000 or Unitrol 6000 excitation controllers. These controllers use the speed input to regulate field excitation with precision, preventing over-excitation losses, minimizing reactive power waste, and stabilizing voltage output under variable load conditions. The result is a measurable reduction in energy consumption across the entire drive system.

The YPH108B61156844 operates as a core sensing element within a layered automation architecture. In a typical smart factory deployment, the board interfaces directly with the ABB Unitrol 5000 automatic voltage regulator (AVR), providing the speed signal required for slip compensation and power factor correction. This integration ensures that the excitation system responds dynamically to load changes, preventing energy spikes that would otherwise increase thermal stress on generator windings and connected switchgear.

Within the broader control platform, the speed measurement data from the YPH108B61156844 is consumed by the ABB AC800M process controller, which coordinates excitation commands with upstream SCADA systems and energy management software. The AC800M uses this feedback to implement load-shedding algorithms during peak demand periods, directly reducing energy costs and preventing unnecessary generator overloading. Paired with the ABB ACS880 variable frequency drive series, the speed signal enables coordinated motor-generator control that optimizes energy flow across multi-drive production lines.

For power monitoring, the YPH108B61156844 works alongside ABB M2M power measurement modules and CM series power quality analyzers, which log real-time energy consumption data and flag inefficiencies caused by speed deviations or excitation instability. This data feeds into the plant's energy management system (EMS), enabling operators to identify and eliminate sources of idle energy consumption. The board also integrates with ABB S800 I/O modules through the Unitrol controller backplane, allowing digital status outputs to be mapped to HMI panels such as the ABB CP600 operator panel series, giving line operators immediate visibility into speed feedback health and excitation status.

Communication with higher-level systems is handled through PROFIBUS DP or PROFINET interfaces supported by the Unitrol platform, enabling the YPH108B61156844's speed data to be transmitted to Siemens SIMATIC S7 PLCs or Rockwell ControlLogix systems in mixed-vendor environments. This interoperability ensures that energy optimization strategies are not limited to single-brand architectures but can be implemented across heterogeneous industrial networks. Additionally, proximity sensors and encoder modules connected upstream of the YPH108B61156844 provide the raw pulse signals that the board conditions and transmits, making encoder selection and signal integrity critical factors in overall measurement accuracy.

In production line applications, uncontrolled speed variation in generators and large motors is one of the primary causes of energy waste, equipment wear, and unplanned downtime. The ABB YPH108B61156844 addresses this directly by providing the Unitrol excitation system with the precise speed reference it needs to maintain stable voltage output under fluctuating load conditions. When a production line transitions between high-load machining cycles and low-load idle states, the excitation controller uses the speed signal to adjust field current in real time, preventing the voltage sags and surges that cause PLC faults, drive trips, and sensor errors.

By stabilizing the electrical environment, the YPH108B61156844 contributes to a reduction in thermal load across connected equipment. Generators operating with accurate excitation control run cooler, extending insulation life and reducing the frequency of thermal protection trips. Variable frequency drives such as the ACS880 benefit from a stable supply voltage, allowing them to operate at higher efficiency points and reducing the harmonic distortion that would otherwise increase energy losses in motor windings and cables.

From a production rhythm perspective, the board's contribution to excitation stability directly supports consistent machine cycle times. CNC machining centers, injection molding machines, and robotic welding cells all depend on stable power quality to maintain programmed cycle speeds. Voltage instability caused by poor excitation control introduces micro-interruptions that disrupt servo drive positioning, increase scrap rates, and reduce overall equipment effectiveness (OEE). The YPH108B61156844 eliminates this source of variability, supporting predictable production throughput and enabling accurate energy consumption forecasting per production batch.

For maintenance teams, the speed measurement board also supports predictive maintenance workflows. Deviations in the speed signal — caused by encoder wear, coupling looseness, or bearing degradation — can be detected early through trend monitoring in the SCADA system, allowing maintenance to be scheduled during planned downtime rather than in response to unexpected failures. This shift from reactive to predictive maintenance reduces both energy waste from degraded equipment and the production losses associated with unplanned stoppages.

Q1: How does the YPH108B61156844 contribute to energy savings in generator-based power systems?The board provides the Unitrol excitation controller with accurate rotor speed feedback, enabling precise field excitation regulation. This prevents over-excitation, reduces reactive power losses, and stabilizes output voltage — all of which directly reduce energy waste in the generator and connected distribution equipment. Plants using properly calibrated excitation systems typically report measurable reductions in generator fuel consumption and cooling load.

Q2: Is the YPH108B61156844 compatible with third-party PLCs and SCADA systems?Yes. The Unitrol platform supports PROFIBUS DP and PROFINET communication, allowing speed and status data from the YPH108B61156844 to be integrated into Siemens, Rockwell, Schneider, and other third-party control architectures. For Modbus RTU environments, gateway modules can be used to bridge the Unitrol controller to legacy SCADA systems without hardware replacement.

Q3: What is the recommended replacement and testing process for the YPH108B61156844?Each unit in our inventory undergoes outgoing functional testing before shipment, verifying signal output integrity and board-level communication. For replacement, the board should be installed with the Unitrol system powered down, with encoder connections verified for signal polarity and pulse count compatibility. After installation, a no-load excitation test is recommended to confirm speed signal acquisition before returning the generator to service.

Q4: What warranty and supply terms apply to this board?The ABB YPH108B61156844 is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. We maintain stock inventory for rapid dispatch, with lead times typically within 3–5 business days for in-stock units. For urgent requirements or bulk procurement, please contact our team directly to confirm availability and arrange expedited shipping.
