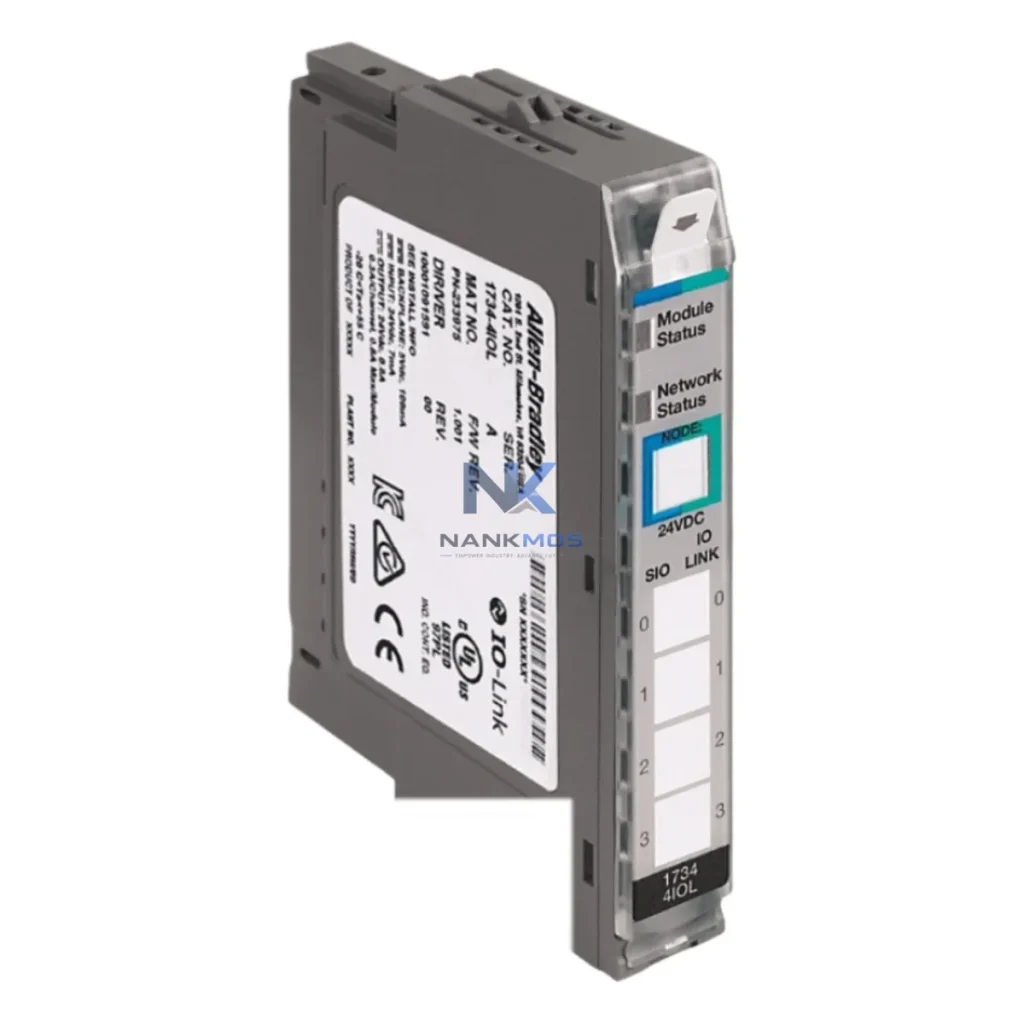

Allen-Bradley 1734-4IOL IO-Link Master Module

Product Details

1734-4IOL Product Description

The Allen-Bradley 1734-4IOL is a four-port IO-Link Master module engineered for seamless integration within the Rockwell Automation Point I/O platform. Designed to bridge intelligent field devices with the upper control layers of a distributed automation architecture, the 1734-4IOL enables deterministic, bidirectional communication between IO-Link-capable sensors, actuators, and the ControlLogix or CompactLogix controller backbone. Its role in a modern control system extends far beyond simple signal acquisition — it serves as a contextual integration node that unifies device parameterization, process data exchange, and diagnostic transparency across the entire automation stack.

Within a layered industrial control architecture, the 1734-4IOL occupies the I/O layer while maintaining tight coordination with the control layer, communication layer, and field device layer. The module mounts directly onto the 1734 POINT I/O backplane, sharing the same DIN-rail footprint as other Point I/O modules such as the 1734-IB8 digital input module, 1734-OB8 digital output module, and 1734-IE4C analog current input module. This physical and logical consistency simplifies cabinet layout, reduces wiring complexity, and supports modular expansion without architectural redesign.

Communication between the 1734-4IOL and the host controller is handled through the POINT I/O adapter — typically the 1734-AENT or 1734-AENTR EtherNet/IP adapter — which connects the I/O backplane to the plant-level EtherNet/IP network. This architecture ensures that IO-Link device data is transported over a standard, high-speed industrial Ethernet backbone, enabling integration with Studio 5000 Logix Designer, FactoryTalk View, and SCADA systems without protocol conversion overhead. The 1734-AENTR adapter further supports Device-Level Ring (DLR) topology, providing network-level redundancy that complements the module's inherent diagnostic capabilities.

Each of the four IO-Link ports on the 1734-4IOL operates independently at IO-Link COM1, COM2, or COM3 speeds, supporting data rates up to 230.4 kbaud. Ports can also be configured as standard digital I/O channels when IO-Link devices are not present, preserving backward compatibility with conventional sensors and actuators. This flexibility allows engineers to phase in IO-Link-capable devices incrementally without replacing existing field wiring or restructuring the control cabinet.

From a system architecture perspective, the 1734-4IOL significantly enhances diagnostic efficiency. IO-Link devices connected to the module continuously report process values, device status, and event codes back to the controller. This data stream enables predictive maintenance workflows within FactoryTalk AssetCentre or third-party CMMS platforms, reducing unplanned downtime and extending equipment service intervals. When a connected device such as a photoelectric sensor, pressure transmitter, or IO-Link valve manifold reports a fault, the controller can isolate the event to the specific port and device without requiring a technician to physically inspect the field installation.

The module's parameter server functionality is particularly valuable in high-availability environments. When an IO-Link device is replaced, the 1734-4IOL automatically downloads the stored parameter set to the new device, eliminating manual reconfiguration and reducing mean time to repair. This capability is critical in continuous process industries such as petrochemicals, power generation, and water treatment, where unscheduled downtime carries significant operational and financial consequences.

Power architecture for the 1734-4IOL follows the standard Point I/O power distribution model. The module draws logic power from the 1734 backplane, while field-side power for IO-Link devices is supplied through the module's Class A or Class B port configuration. The 1734-PWR power supply module or an external 24 VDC source provides the necessary field power budget, and the system's power distribution can be segmented using 1734-EP24DC power distribution modules to isolate field device power from backplane logic power — a best practice in safety-critical and high-noise industrial environments.

For applications requiring functional safety integration, the 1734-4IOL can coexist within a Point I/O rack alongside 1734 POINT Guard I/O safety modules, enabling a mixed standard and safety I/O architecture on a single backplane. The safety modules communicate over CIP Safety via the EtherNet/IP adapter, while the 1734-4IOL handles standard IO-Link process data on the same physical infrastructure. This co-location capability reduces panel footprint and simplifies the overall system bill of materials.

All units supplied by NANKMOS are pre-shipment tested against Rockwell Automation factory specifications, verified for IO-Link port functionality, backplane communication integrity, and EtherNet/IP adapter compatibility. Each module is covered by a 12-Month Warranty and is available from in-stock inventory for immediate dispatch, supporting both project commissioning timelines and emergency replacement requirements.

The 1734-4IOL achieves its full architectural value when deployed as part of a cohesive Rockwell Automation control platform. In a typical ControlLogix-based system, the 1734-4IOL operates downstream of a 1756-L8x or 1756-L7x ControlLogix controller, which manages the EtherNet/IP network through a 1756-EN2T or 1756-EN2TR communication module. The Point I/O subsystem connects to this network via the 1734-AENTR adapter, which supports DLR for network fault tolerance.

Within the Point I/O rack, the 1734-4IOL shares the backplane with 1734-IB8 and 1734-OB8 digital I/O modules for conventional field devices, 1734-IE4C analog input modules for 4–20 mA process signals, and 1734-OE4C analog output modules for control valve positioners. The 1734-EP24DC power distribution module segments field power zones, ensuring that a fault on one IO-Link device branch does not propagate to adjacent I/O channels.

At the HMI layer, FactoryTalk View SE or PanelView Plus 7 terminals display IO-Link device diagnostics alongside conventional process values, providing operators with a unified view of field device health. At the drive layer, PowerFlex 525 or PowerFlex 755 variable frequency drives may be connected to the same EtherNet/IP network, with their status data aggregated alongside IO-Link device data in the controller's data table for coordinated motion and process control.

For applications requiring signal isolation between IO-Link field devices and the control backplane, inline signal isolators or IO-Link hubs with galvanic isolation can be inserted between the 1734-4IOL port and the field device, maintaining signal integrity in high-noise environments such as variable speed drive cabinets or high-current motor control centers.

Power Generation: In combined-cycle power plants, the 1734-4IOL connects IO-Link-capable vibration sensors, temperature transmitters, and valve position feedback devices to the plant DCS or PLC, enabling continuous condition monitoring of turbine auxiliaries and balance-of-plant equipment without dedicated fieldbus infrastructure.

Petrochemical & Refining: Process units with dense sensor populations benefit from the 1734-4IOL's ability to consolidate multiple IO-Link devices onto a single backplane slot, reducing panel wiring density and simplifying hazardous area cable routing. The parameter server function ensures rapid device replacement during turnaround maintenance windows.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the 1734-4IOL to integrate IO-Link flow meters, level sensors, and chemical dosing pump feedback into CompactLogix-based control systems, supporting remote monitoring via EtherNet/IP and SCADA integration through OPC-UA or Modbus TCP gateways.

Mining & Minerals Processing: Conveyor systems, crusher controls, and flotation cell automation benefit from the 1734-4IOL's robust diagnostic reporting, which enables maintenance teams to identify sensor degradation before it causes process interruptions in remote or harsh operating environments.

Packaging & Discrete Manufacturing: High-speed packaging lines use the 1734-4IOL to integrate IO-Link photoelectric sensors, inductive proximity switches, and pneumatic valve manifolds, enabling rapid format changeover through automated parameter download and real-time device status monitoring within the machine controller.

Q1: Is the 1734-4IOL compatible with both ControlLogix and CompactLogix platforms? Yes. The 1734-4IOL is compatible with any EtherNet/IP-capable controller, including ControlLogix (1756 series), CompactLogix (1769 series), and Micro850 controllers with EtherNet/IP communication modules. The module communicates through the 1734-AENT or 1734-AENTR EtherNet/IP adapter, which presents the IO-Link data as standard EtherNet/IP I/O data to the host controller. No special firmware or licensing is required beyond standard Studio 5000 Logix Designer configuration.

Q2: Can the 1734-4IOL be installed in the same rack as POINT Guard I/O safety modules? Yes. The 1734-4IOL is fully compatible with mixed standard and safety Point I/O architectures. Safety modules such as the 1734-IB8S and 1734-OB8S communicate over CIP Safety via the EtherNet/IP adapter, while the 1734-4IOL handles standard IO-Link process data on the same backplane. The two module types operate independently, and the safety integrity of the CIP Safety network is not affected by the presence of standard IO-Link modules on the same rack.

Q3: What warranty and supply assurance does NANKMOS provide for the 1734-4IOL? All 1734-4IOL units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment testing to verify IO-Link port functionality, backplane communication, and EtherNet/IP adapter compatibility before dispatch. In-stock inventory is maintained to support both planned project deliveries and emergency replacement requirements, with same-day or next-day dispatch available for confirmed orders. For procurement inquiries, contact [email protected] or +86 18359268345.
