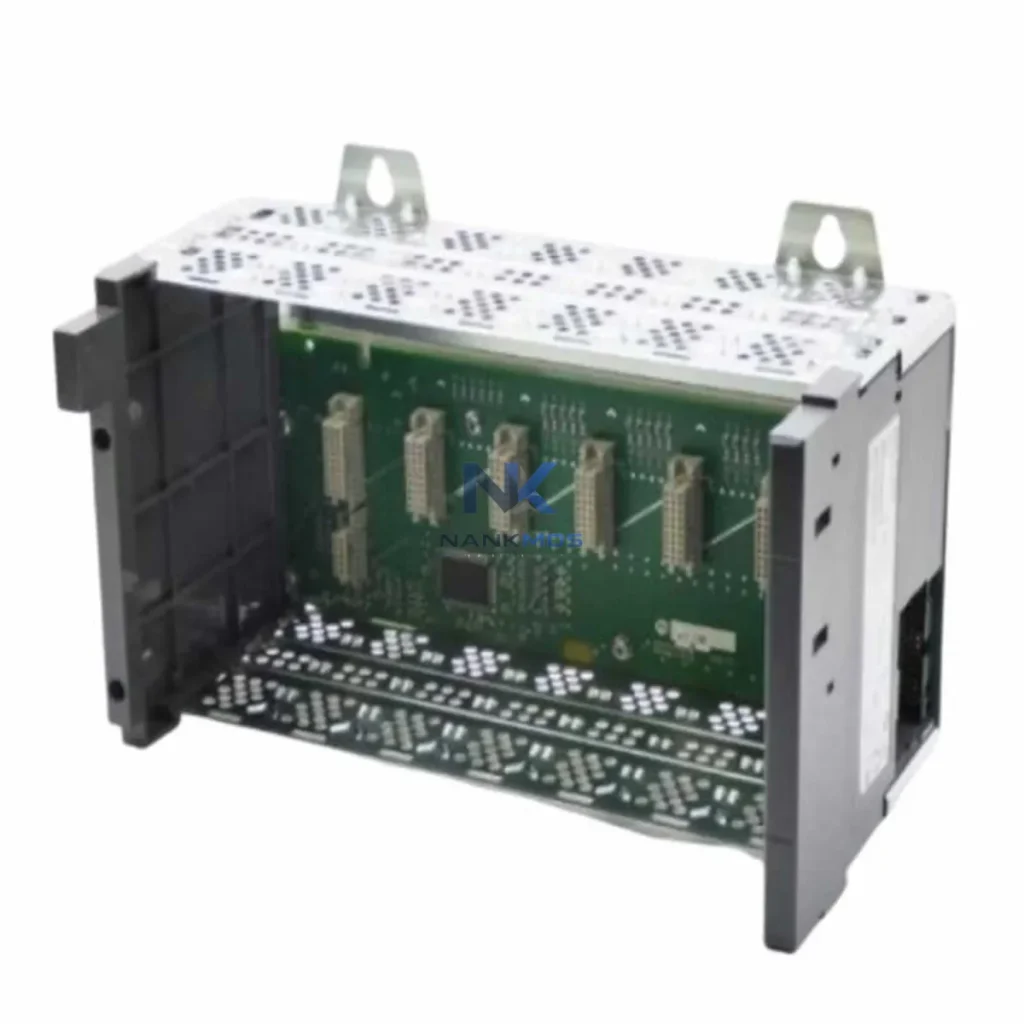

Allen-Bradley 1746-A4 PLC Chassis

Product Details

1746-A4 Product Description

The Allen-Bradley 1746-A4 is a 4-slot modular PLC chassis engineered for the SLC 500 control platform, delivering the structural backbone that unifies processor modules, I/O cards, communication interfaces, and power supply units into a single, cohesive control architecture. Designed for industrial environments demanding high reliability, deterministic scan cycles, and long-term maintainability, the 1746-A4 chassis serves as the physical and electrical integration point for distributed automation systems across manufacturing, utilities, and process industries.

In a complete SLC 500 control architecture, the 1746-A4 chassis accommodates the 1747-L532 or 1747-L543 SLC 5/03 and SLC 5/04 processor modules, which provide the CPU processing power and communication channel management for the entire rack. The chassis backplane distributes both logic power and I/O bus signals across all installed modules, ensuring synchronized data exchange between the processor and field-connected devices. When paired with the 1746-P2 or 1746-P4 power supply modules, the chassis delivers stable 5 VDC and 24 VDC rails to support mixed digital and analog I/O configurations without voltage fluctuation under variable load conditions.

Signal integrity across the control layer is maintained through the chassis backplane's low-impedance bus architecture, which minimizes noise coupling between adjacent I/O modules. This is particularly critical when the 1746-IB16 digital input module and 1746-OB16 digital output module are installed alongside analog modules such as the 1746-NI4 or 1746-NO4I, where cross-channel interference could compromise process measurement accuracy. The 1746-A4 chassis physically isolates module slots while maintaining a unified backplane communication path, supporting both discrete and analog signal coexistence within the same rack.

For applications requiring network connectivity and supervisory integration, the 1746-A4 chassis supports the installation of the 1747-SDN DeviceNet Scanner module or the 1747-KE RS-232/DH-485 Interface module, enabling the SLC 500 processor to communicate with field devices, variable frequency drives, and SCADA systems over standard industrial protocols. This communication layer integration allows the chassis to serve as the convergence point between field-level I/O and plant-level supervisory control, supporting both peer-to-peer and master-slave communication topologies without requiring external communication gateways.

In redundancy-sensitive applications, the 1746-A4 chassis can be deployed as a secondary rack in a distributed I/O configuration, where the primary SLC 500 processor rack manages control logic while the secondary chassis handles remote I/O expansion via the 1747-ASB Remote I/O Adapter module. This architecture extends the physical reach of the control system without increasing processor scan time, maintaining deterministic response across geographically distributed field devices in large-scale process plants, water treatment facilities, and power distribution substations.

The chassis mounting system supports standard DIN rail and panel mounting configurations, allowing integration into existing control cabinet layouts without structural modification. The 1746-A4's compact 4-slot form factor is optimized for space-constrained enclosures where full-size 13-slot chassis such as the 1746-A13 would exceed available panel depth or width. This makes the 1746-A4 particularly suitable for machine-level control panels, skid-mounted automation systems, and retrofit modernization projects where legacy control hardware is being replaced with current-generation SLC 500 modules.

From a maintenance and lifecycle perspective, the 1746-A4 chassis supports hot-swap-compatible module replacement procedures when used with appropriate processor configurations, reducing unplanned downtime during corrective maintenance activities. The chassis backplane connectors are rated for repeated insertion cycles, supporting the module replacement frequency typical of long-term industrial deployments. All units supplied by NANKMOS undergo pre-shipment functional verification, including backplane continuity testing and slot connector inspection, ensuring that each chassis arrives ready for immediate installation and commissioning.

Every 1746-A4 chassis supplied is covered by a 12-Month Warranty, providing assurance of electrical and mechanical integrity from the date of delivery. NANKMOS maintains verified inventory of the 1746-A4 and related SLC 500 components, supporting rapid fulfillment for both planned procurement and emergency replacement requirements across global industrial operations.

The 1746-A4 chassis functions as the integration hub within a layered SLC 500 automation platform. At the control layer, the 1747-L543 SLC 5/04 processor provides DH+ and RS-232 communication alongside the primary scan engine, while the 1746-P4 power supply ensures stable multi-rail power delivery to all installed modules. At the I/O layer, the 1746-IB16 16-point 24 VDC digital input module and 1746-OB16 16-point digital output module handle discrete field signals, while the 1746-NI4 analog input module processes 4–20 mA and 0–10 VDC process variable signals from transmitters and sensors.

Communication layer integration is achieved through the 1747-SDN DeviceNet Scanner, which connects the SLC 500 processor to field devices including variable frequency drives, smart sensors, and distributed I/O blocks over the DeviceNet network. For HMI integration, the PanelView 550 or PanelView 600 operator terminals connect via DH-485 or RS-232 to the processor module, providing operator visualization and parameter adjustment without requiring a dedicated SCADA workstation. At the power layer, the 1746-P2 compact power supply supports smaller chassis configurations where the full capacity of the 1746-P4 is not required, optimizing energy consumption in machine-level control panels.

For signal conditioning and isolation in high-noise environments, signal isolators and terminal block assemblies mounted adjacent to the chassis provide galvanic isolation between field wiring and the chassis backplane, protecting the 1746-A4 and installed modules from transient voltage events originating in the field wiring infrastructure. This layered protection approach ensures long-term reliability of the chassis backplane and extends the operational service life of installed I/O modules.

In discrete manufacturing environments, the 1746-A4 chassis supports machine-level control panels managing conveyor systems, assembly stations, and robotic cell interfaces, where the compact 4-slot form factor fits within standard 400mm-wide control enclosures. In the power and utilities sector, the chassis is deployed in substation automation panels and motor control centers, where the SLC 500 platform's proven reliability and deterministic scan performance meet the operational continuity requirements of critical infrastructure.

In petrochemical and refinery applications, the 1746-A4 chassis is integrated into process skid control panels managing pump stations, valve actuators, and flow measurement loops, where the chassis backplane's noise immunity supports accurate analog signal processing in electrically demanding environments. Water treatment and wastewater facilities utilize the 1746-A4 in distributed pump control and chemical dosing systems, where the chassis's compatibility with remote I/O adapters enables centralized supervisory control over geographically distributed field stations.

In mining and metallurgical operations, the chassis supports conveyor drive control, crusher monitoring, and ore processing automation, where the SLC 500 platform's long-term parts availability and established maintenance procedures reduce lifecycle support costs. Packaging line automation and food processing applications benefit from the chassis's compact footprint and modular I/O flexibility, enabling rapid line reconfiguration and minimal changeover downtime in high-throughput production environments.

Q1: Is the 1746-A4 chassis compatible with all SLC 500 processor generations, and can it be mixed with newer ControlLogix or CompactLogix modules?The 1746-A4 chassis is fully compatible with all SLC 500 processor modules, including the SLC 5/01 (1747-L511), SLC 5/02 (1747-L524), SLC 5/03 (1747-L532), SLC 5/04 (1747-L543), and SLC 5/05 (1747-L553). It is not compatible with ControlLogix (1756 series) or CompactLogix (1769 series) modules, as these platforms use different backplane architectures and communication protocols. For mixed-platform architectures, communication gateways or EtherNet/IP bridges are required to exchange data between SLC 500 and Logix-based systems.

Q2: What are the installation and commissioning requirements for the 1746-A4 chassis in a new control panel build?The 1746-A4 chassis requires panel mounting with M5 or equivalent fasteners, with adequate clearance above and below the chassis for convective cooling of installed modules. The power supply module must be installed in the leftmost slot before any I/O or processor modules are inserted. Backplane power-up sequencing should follow the SLC 500 installation manual to prevent inrush current events that could affect adjacent panel components. Pre-commissioning checks should include backplane continuity verification, module seating confirmation, and power supply output voltage measurement before applying field wiring.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for the 1746-A4?The 12-Month Warranty covers manufacturing defects, backplane electrical failures, and mechanical integrity of the chassis structure from the date of delivery. NANKMOS maintains verified stock of the 1746-A4 and related SLC 500 components to support both planned procurement cycles and emergency replacement requirements. All units undergo pre-shipment functional testing prior to dispatch. For long-term maintenance planning, NANKMOS can provide availability forecasts and bulk procurement options to support multi-year operational continuity for installed SLC 500 systems.
