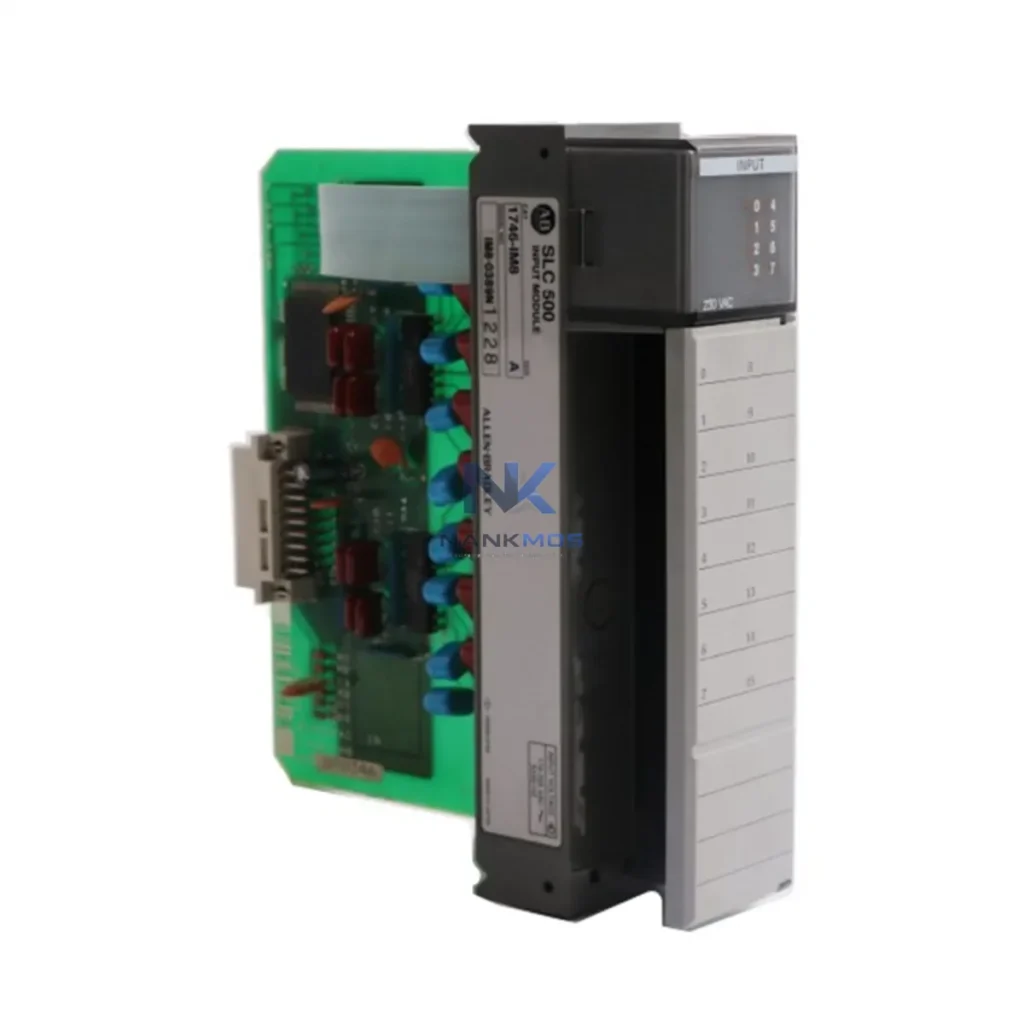

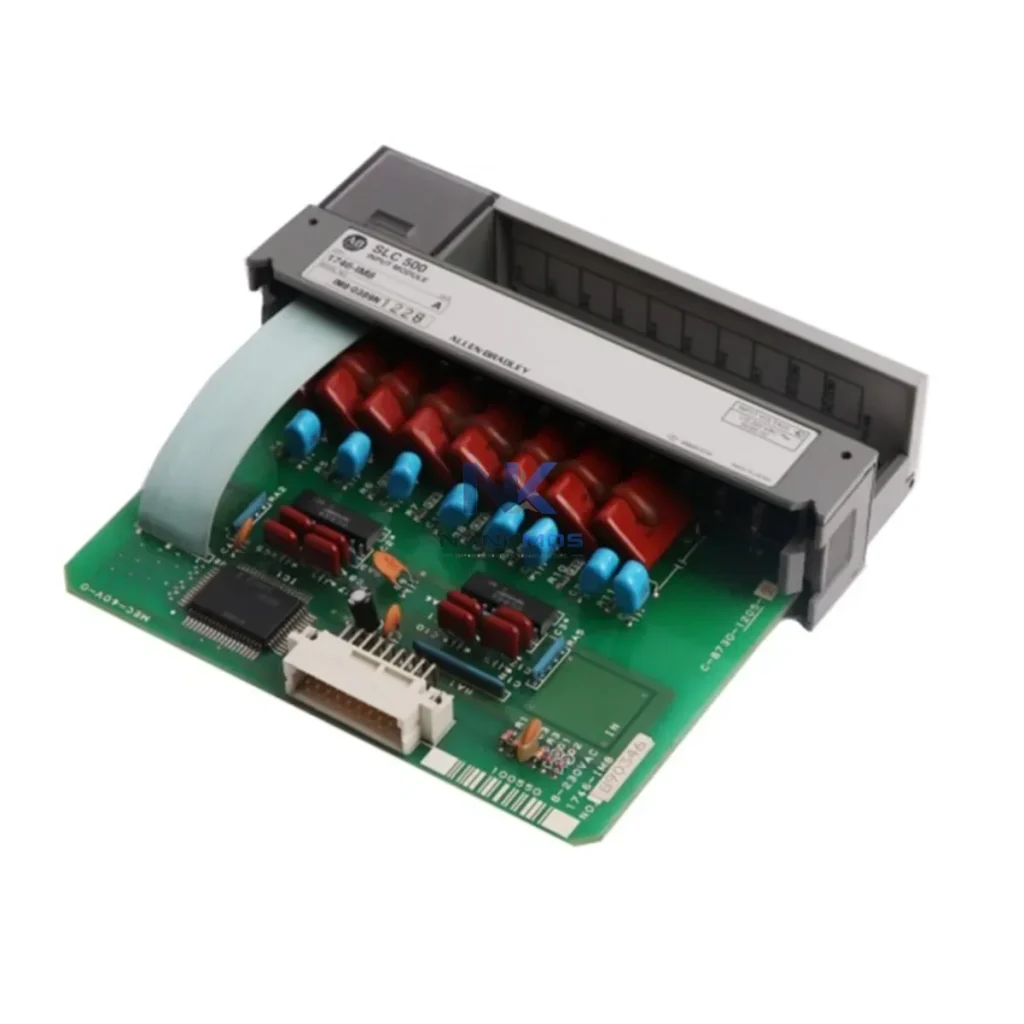

Allen-Bradley 1746-IM8 AC Discrete Input Module

Product Details

1746-IM8 Product Description

The Allen-Bradley 1746-IM8 is an 8-channel, 240V AC discrete input module engineered for the SLC 500 modular rack system. Designed to serve as a critical signal acquisition node in industrial automation architectures, the 1746-IM8 captures real-world AC field signals — from limit switches, proximity sensors, push buttons, and motor status contacts — and transmits them across the SLC 500 backplane to the resident processor for real-time logic execution. In smart factory environments where data integrity and communication latency directly impact production efficiency, the 1746-IM8 delivers reliable, deterministic input scanning that forms the foundation of a connected automation data chain.

Deployed across manufacturing, energy, water treatment, and process industries, the 1746-IM8 integrates seamlessly into SLC 5/03, SLC 5/04, and SLC 5/05 processor-based systems. When paired with communication modules such as the 1747-KE (DH-485 interface) or the 1747-SDN (DeviceNet scanner), the 1746-IM8's input data becomes accessible to upstream SCADA platforms, HMI terminals, and MES systems — enabling full-stack visibility from field device to enterprise dashboard. This connectivity positions the 1746-IM8 not merely as a passive input card, but as an active participant in the plant-wide data flow architecture.

In a fully integrated smart factory, the 1746-IM8 sits at the signal acquisition layer — the first point of contact between the physical world and the digital automation network. Field devices such as inductive proximity sensors, photoelectric sensors, and AC-powered limit switches wire directly into the 1746-IM8's screw terminals. The module conditions and digitizes these AC signals, passing discrete input states across the SLC 500 backplane to the SLC 5/04 or SLC 5/05 processor at deterministic scan rates.

From the processor, data flows outward through communication modules. A 1747-KE DH-485 interface module bridges the SLC 500 rack to a DH-485 network, enabling real-time data exchange with PanelView HMI terminals for operator visualization. Simultaneously, a 1747-SDN DeviceNet scanner module can aggregate device-level diagnostics from variable frequency drives, smart sensors, and distributed I/O nodes — all feeding into the same SLC 500 data table that the 1746-IM8 populates. For plants running ControlNet infrastructure, the 1747-ACN15 ControlNet adapter extends the SLC 500's reach to remote I/O racks and peer-to-peer controller communication, creating a unified data backbone across production zones.

At the supervisory level, RSLinx Classic or RSLinx Enterprise software bridges the SLC 500 network to SCADA platforms such as FactoryTalk View SE or Wonderware InTouch, where the 1746-IM8's input states are visualized as real-time process indicators, alarm triggers, and trend data points. Edge gateway devices — such as the Moxa MGate MB3170 or similar industrial protocol converters — can further translate SLC 500 data into MQTT or OPC-UA streams for cloud-based analytics platforms, enabling remote diagnostics and predictive maintenance workflows without disrupting the existing SLC 500 control architecture.

For remote I/O expansion, the 1746-IM8 can be installed in satellite racks connected via 1747-ASB remote I/O adapter modules, extending discrete input coverage to distant field panels while maintaining centralized data aggregation at the host SLC 500 processor. This architecture supports scalable plant expansion without requiring controller replacement, protecting existing automation investments while enabling incremental smart factory upgrades.

Many industrial sites operating legacy SLC 500 systems face a common set of data challenges: protocol fragmentation between older discrete I/O modules and modern Ethernet-based SCADA systems, data silos where field-level input states are invisible to plant management dashboards, and limited remote diagnostic capability for distributed field panels. The 1746-IM8 addresses these challenges by providing a reliable, high-density discrete input interface that integrates directly into the SLC 500's unified data table — making all 8 input channels immediately accessible to any communication module installed in the same rack.

Protocol unification is achieved through the SLC 500's modular communication architecture. By adding a 1761-NET-ENI Ethernet interface or a 1747-KE DH-485 module alongside the 1746-IM8, plant engineers can bridge legacy AC field signals into modern Ethernet/IP or DH-485 networks without rewiring field devices or replacing the control platform. This eliminates data islands between field panels and control rooms, enabling production line transparency through real-time input state monitoring on SCADA and HMI screens.

Alarm tracking is enhanced by the deterministic scan cycle of the SLC 500 processor, which ensures that input state changes captured by the 1746-IM8 are reflected in the data table within a single scan — typically under 10ms for standard program sizes. This low-latency response supports reliable alarm generation and event logging in FactoryTalk Historian or equivalent data historian platforms. For system expansion, the 1746-IM8's compatibility with all SLC 500 rack sizes — from the compact 1746-A4 four-slot chassis to the 1746-A13 thirteen-slot chassis — provides flexible capacity planning as production requirements grow.

Q1: What communication protocols does the Allen-Bradley 1746-IM8 support for SCADA integration? The 1746-IM8 itself communicates via the SLC 500 backplane bus. SCADA integration is achieved through communication modules installed in the same rack: the 1747-KE supports DH-485, the 1747-DSN supports DeviceNet, and the 1761-NET-ENI provides Ethernet/IP connectivity. These modules expose the 1746-IM8's input data to RSLinx, FactoryTalk View SE, and third-party SCADA platforms via standard industrial protocols.

Q2: How does the 1746-IM8 support remote diagnostics in distributed automation sites? When the SLC 500 rack is connected to a DH+ or Ethernet/IP network via appropriate communication modules, RSLinx Classic or RSLinx Enterprise enables remote online monitoring of the SLC 500 data table — including all 1746-IM8 input states — from any networked engineering workstation. This supports remote fault diagnosis, input state verification, and program monitoring without requiring on-site access to the field panel.

Q3: Is the 1746-IM8 compatible with modern network architectures including ControlNet and DeviceNet? Yes. While the 1746-IM8 is a backplane-connected module, its input data is fully accessible to ControlNet and DeviceNet networks through the 1747-ACN15 ControlNet adapter and 1747-SDN DeviceNet scanner modules installed in the same SLC 500 rack. This allows the 1746-IM8 to participate in multi-network automation architectures without hardware modification.

Q4: What warranty and availability terms apply to the Allen-Bradley 1746-IM8? All 1746-IM8 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance. Units are in-stock and available for immediate shipment. Pre-shipment functional testing is performed on all modules. For volume orders, lead time and pricing inquiries, contact [email protected] or call +86 18359268345.
