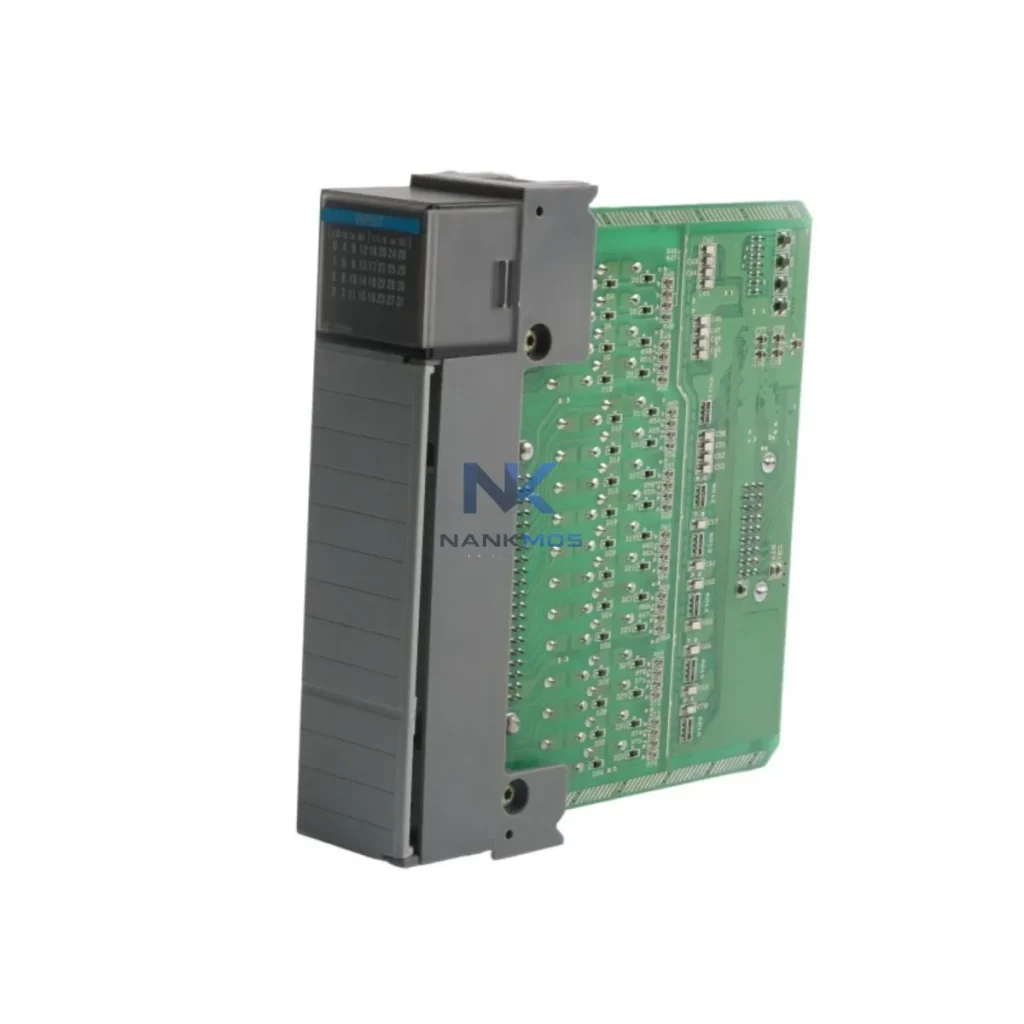

Allen-Bradley 1746-NIO4V Analog I/O Module

Product Details

1746-NIO4V Product Description

The Allen-Bradley 1746-NIO4V is a combination analog input/output module engineered for seamless integration within the SLC 500 modular control platform. Designed to occupy a single slot in the 1746 I/O chassis, this module delivers four configurable voltage analog channels — supporting both input and output functions — making it a versatile, space-efficient solution for process control, machine automation, and energy management applications. Its architecture-native design ensures direct compatibility with the SLC 5/03, SLC 5/04, and SLC 5/05 processors, enabling deterministic signal exchange across the full control hierarchy without additional signal conditioning hardware.

In a complete automation architecture, the 1746-NIO4V operates at the I/O layer, bridging the gap between field instrumentation and the SLC 500 processor's data table. Voltage signals from transmitters, positioners, and transducers are acquired, scaled, and delivered to the processor in real time, while analog output channels drive control elements such as proportional valves, variable-speed drives, and electropneumatic regulators. This bidirectional signal flow is fundamental to closed-loop process control, where precision, repeatability, and low-latency response are non-negotiable requirements.

The 1746-NIO4V achieves its full potential when deployed as part of a cohesive SLC 500 automation platform. At the control layer, the SLC 5/04 processor (1747-L541) manages the data table, executes ladder logic, and coordinates I/O scanning across all chassis slots. The processor communicates with upstream SCADA or DCS systems via the 1747-KE DH-485 to RS-232 interface module or through an Ethernet-enabled 1747-L552 SLC 5/05 processor using EtherNet/IP, enabling seamless integration into plant-wide information networks.

Power integrity is maintained by the 1746-P4 power supply, which delivers regulated 5 V DC and 24 V DC backplane power to all installed modules, including the 1746-NIO4V. For applications requiring expanded I/O capacity, the 1746-A10 or 1746-A13 chassis provides additional slots, accommodating discrete modules such as the 1746-IB16 (16-point 24 V DC input) and 1746-OB16 (16-point 24 V DC output) alongside the analog module without signal interference or backplane contention.

In process control environments, the 1746-NIO4V analog outputs are frequently paired with PowerFlex 4M or PowerFlex 40 variable-frequency drives, where the 0–10 V DC voltage reference signal directly commands motor speed, enabling precise flow, pressure, or temperature regulation. On the input side, 4–20 mA transmitters connected through signal isolators or loop-powered barriers — converted to voltage via precision shunt resistors — feed the module's input channels, ensuring clean, noise-immune signal acquisition in electrically demanding industrial environments.

For HMI integration, a PanelView 550 or PanelView Plus 600 terminal connected via DH-485 or EtherNet/IP provides operators with real-time visibility into analog process values, setpoints, and alarm states managed by the SLC 500 processor. Communication gateways such as the 1761-NET-AIC Advanced Interface Converter extend DH-485 network reach across larger facilities, maintaining reliable data exchange between the SLC 500 platform and remote operator stations or historian servers.

Contextual Integration of the 1746-NIO4V within this layered architecture eliminates the need for standalone signal conditioners, reduces panel wiring complexity, and consolidates analog I/O management within the RSLogix 500 programming environment — delivering a unified, maintainable, and diagnostically transparent control system.

Manufacturing & Packaging Lines: In discrete and hybrid manufacturing environments, the 1746-NIO4V controls analog setpoints for servo amplifiers, proportional pneumatic valves, and tension controllers on web-handling or filling lines. Its voltage output channels provide precise reference signals to drive systems, while input channels monitor load cells, pressure transducers, and position sensors — enabling closed-loop tension, fill-weight, and pressure control within a single SLC 500 chassis.

Power Generation & Energy Facilities: Substations and power generation plants deploy the 1746-NIO4V to monitor transformer temperature sensors, generator excitation feedback, and bus voltage transducers. The module's configurable input ranges accommodate the diverse signal levels produced by different sensor types, while its optical isolation protects the SLC 500 backplane from high-voltage transients common in electrical switchgear environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the 1746-NIO4V to regulate chemical dosing pumps, monitor flow transmitters, and control variable-speed aerator drives. The module's ability to simultaneously handle multiple analog loops within a single slot reduces chassis footprint in space-constrained control panels, while its compatibility with the SLC 5/04 processor supports the complex PID ladder logic required for multi-loop process control.

Oil, Gas & Petrochemical: In upstream and midstream applications, the 1746-NIO4V interfaces with pressure and differential pressure transmitters on pipeline monitoring systems, providing the SLC 500 processor with real-time process data for leak detection, flow balancing, and compressor control. Its robust operating temperature range and optical isolation make it suitable for installation in Class I, Division 2 (with appropriate enclosure) environments when paired with certified barriers.

Mining & Metallurgy: Conveyor speed control, crusher load monitoring, and flotation cell level regulation in mining operations benefit from the 1746-NIO4V's multi-channel analog capability. The module's 12-bit resolution provides sufficient granularity for precise process variable monitoring, while its integration with the SLC 500 platform's fault-tolerant architecture supports the high-availability requirements of continuous mining operations.

Q1: Is the 1746-NIO4V compatible with all SLC 500 chassis and processors, and can it coexist with other 1746 I/O modules in the same chassis? The 1746-NIO4V is compatible with all standard 1746 chassis (1746-A4, A7, A10, A13) and all SLC 500 processors (SLC 5/01 through SLC 5/05). It occupies a single I/O slot and coexists with any combination of 1746-series discrete, analog, and specialty modules. Channel configuration is performed independently per module via RSLogix 500 M0/M1 configuration files, with no cross-module interference on the backplane. For mixed analog/discrete architectures, Rockwell Automation recommends placing analog modules away from high-current discrete output modules to minimize backplane noise coupling.

Q2: What are the long-term maintenance and spare parts considerations for the 1746-NIO4V in an aging SLC 500 installation? The SLC 500 platform, while mature, remains widely deployed across global industrial facilities, and the 1746-NIO4V continues to be available as a tested, inspected replacement module. For long-term maintenance planning, it is advisable to maintain at least one spare 1746-NIO4V per critical control panel, given the platform's age and the potential for extended lead times on new production units. All modules supplied by NANKMOS are covered by a 12-Month Warranty and undergo functional testing prior to shipment, including channel-level analog verification, to ensure drop-in replacement reliability without requiring recalibration of the host system.

Q3: How is the 1746-NIO4V configured for mixed input/output operation, and what software tools are required? Channel direction (input or output) and voltage range for each of the four channels are configured via the module's M0 configuration file within RSLogix 500 (v8.0 or later) or RSLogix Micro. Configuration is performed online or offline and downloaded to the SLC 500 processor; no hardware jumpers or DIP switches are required. Each channel can be independently assigned as a voltage input or voltage output, with range selection from the supported ±5 V, ±10 V, 0–5 V, or 0–10 V options. After configuration download, the processor automatically initializes the module and maps channel data to the appropriate input (I) and output (O) data table words, making the analog values immediately accessible to ladder logic without additional programming overhead.
