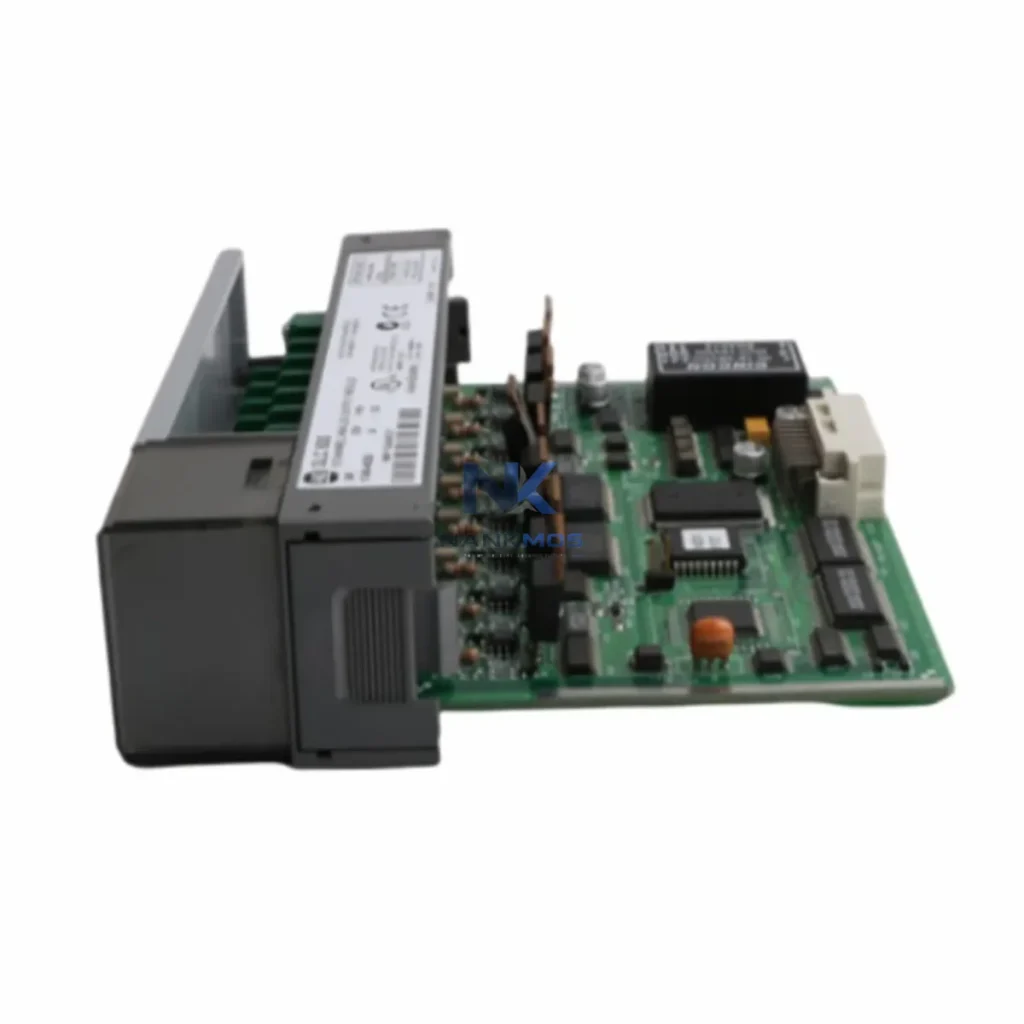

Allen-Bradley 1746-NO8V PLC Analog Output Module

Product Details

1746-NO8V Product Description

The Allen-Bradley 1746-NO8V is an 8-channel analog voltage output module engineered for the SLC 500 programmable controller platform. Designed to bridge the gap between digital control logic and real-world field devices, the 1746-NO8V delivers precision voltage signals across eight independent channels, enabling seamless command of variable-speed drives, proportional control valves, servo amplifiers, and process actuators in demanding industrial environments. As smart factories increasingly depend on continuous, high-fidelity data exchange between field instrumentation and supervisory systems, the 1746-NO8V serves as a critical node in the analog output data chain — converting PLC register values into calibrated 0–10 V or ±10 V signals that drive physical processes with deterministic accuracy.

In a fully connected smart factory architecture, the 1746-NO8V operates at the intersection of digital control and physical process execution. The data flow begins upstream at the SLC 500 CPU — such as the 1747-L553 or 1747-L543 processor — where ladder logic programs compute output register values based on sensor feedback, operator setpoints, and SCADA commands. These register values are written to the 1746-NO8V output image table via the SLC 500 backplane, which then converts them to precise analog voltage signals in real time.

On the network communication layer, the SLC 500 rack communicates upstream through a 1747-AENTR EtherNet/IP adapter, enabling the controller to exchange data with plant-level EtherNet/IP networks. This allows SCADA platforms such as Ignition or FactoryTalk View SE to read process variables and write output setpoints to the 1746-NO8V channels without interrupting the real-time control scan. Alongside the analog output module, a 1746-NI8 analog input module typically occupies an adjacent slot, closing the feedback loop by reading process variables — temperature, pressure, flow — back into the SLC 500 for PID control calculations.

For field device connectivity, the 1746-NO8V voltage outputs are wired directly to variable-frequency drives such as the PowerFlex 40 or PowerFlex 70, where the 0–10 V signal commands motor speed references. In parallel, proportional control valves and electro-pneumatic positioners receive analog commands from dedicated channels, enabling precise flow and pressure regulation across the production line. Sensor signals from 1746-NI4 thermocouple input modules or 1746-IB32 digital input modules feed process data back to the CPU, which recalculates output values and updates the 1746-NO8V channels on every scan cycle.

At the supervisory layer, a PanelView Plus 7 HMI terminal connected via EtherNet/IP provides operators with real-time visualization of analog output values, channel status, and process trends. Alarm conditions — such as output saturation or wire-break detection — are surfaced immediately on the HMI and forwarded to the SCADA historian for long-term trend analysis. Remote diagnostic access is enabled through the 1747-AENTR adapter, allowing maintenance engineers to monitor SLC 500 I/O status, verify 1746-NO8V channel outputs, and adjust setpoints from remote workstations without physical access to the control panel.

For installations requiring protocol bridging between legacy DH-485 networks and modern EtherNet/IP infrastructure, a 1761-NET-AIC Advanced Interface Converter or a third-party Modbus TCP gateway can be deployed alongside the SLC 500 rack, enabling the 1746-NO8V's output data to be surfaced on plant-wide SCADA and MES systems. This architecture supports full data visibility from field actuator to enterprise dashboard, forming the backbone of a transparent, data-driven smart factory environment.

Many industrial sites operating legacy SLC 500 systems face a common set of challenges: protocol fragmentation between older DH-485 networks and modern EtherNet/IP infrastructure, analog data islands where field device status is invisible to SCADA, and limited remote diagnostic capability that forces costly on-site maintenance visits. The 1746-NO8V addresses these challenges by providing a standardized, backplane-integrated analog output interface that works natively within the SLC 500 ecosystem while remaining accessible to modern network gateways and SCADA platforms.

Protocol unification is achieved by pairing the 1746-NO8V with EtherNet/IP adapter modules, allowing legacy SLC 500 analog output data to be published on plant-wide Ethernet networks without controller replacement. Data silos are eliminated as SCADA historians gain continuous read/write access to all eight output channels, enabling production transparency and real-time process optimization. Remote diagnostics are supported through network-accessible I/O status registers, allowing engineers to verify channel output values, detect wiring faults, and adjust analog setpoints from centralized control rooms or remote locations. Alarm tracking is enhanced by integrating 1746-NO8V channel status into FactoryTalk Alarms and Events or Ignition alarm pipelines, ensuring that output anomalies trigger immediate notifications and are logged for root-cause analysis. System expansion is straightforward — additional 1746-NO8V modules can be added to the SLC 500 chassis as process requirements grow, with no changes to the network architecture or SCADA configuration required.

Q1: Does the 1746-NO8V support EtherNet/IP communication directly? The 1746-NO8V communicates via the SLC 500 backplane using the DF1/DH-485 protocol natively. EtherNet/IP connectivity is achieved by pairing the SLC 500 rack with a 1747-AENTR EtherNet/IP adapter, which bridges the backplane data — including 1746-NO8V output registers — onto the plant EtherNet/IP network for SCADA and HMI access.

Q2: What is the communication latency for analog output updates on the 1746-NO8V? Output channel updates are synchronized with the SLC 500 CPU scan cycle, typically ranging from 5 ms to 20 ms depending on program size and chassis configuration. For time-critical analog control loops, scan time optimization and dedicated I/O slot assignment are recommended to minimize latency between PLC register writes and physical output response.

Q3: Is the 1746-NO8V compatible with Modbus TCP SCADA systems? Direct Modbus TCP communication is not native to the SLC 500 platform. However, protocol gateway devices — such as a Modbus TCP-to-DF1 converter or a third-party EtherNet/IP-to-Modbus TCP bridge — can be deployed alongside the SLC 500 rack to expose 1746-NO8V output data to Modbus TCP SCADA systems, enabling integration with multi-vendor automation environments.

Q4: What warranty and pre-shipment testing does the 1746-NO8V include? Every 1746-NO8V unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify all eight analog output channels, backplane communication integrity, and signal accuracy. In-stock units are available for immediate dispatch with full traceability documentation, supporting fast project timelines and minimizing production downtime.
