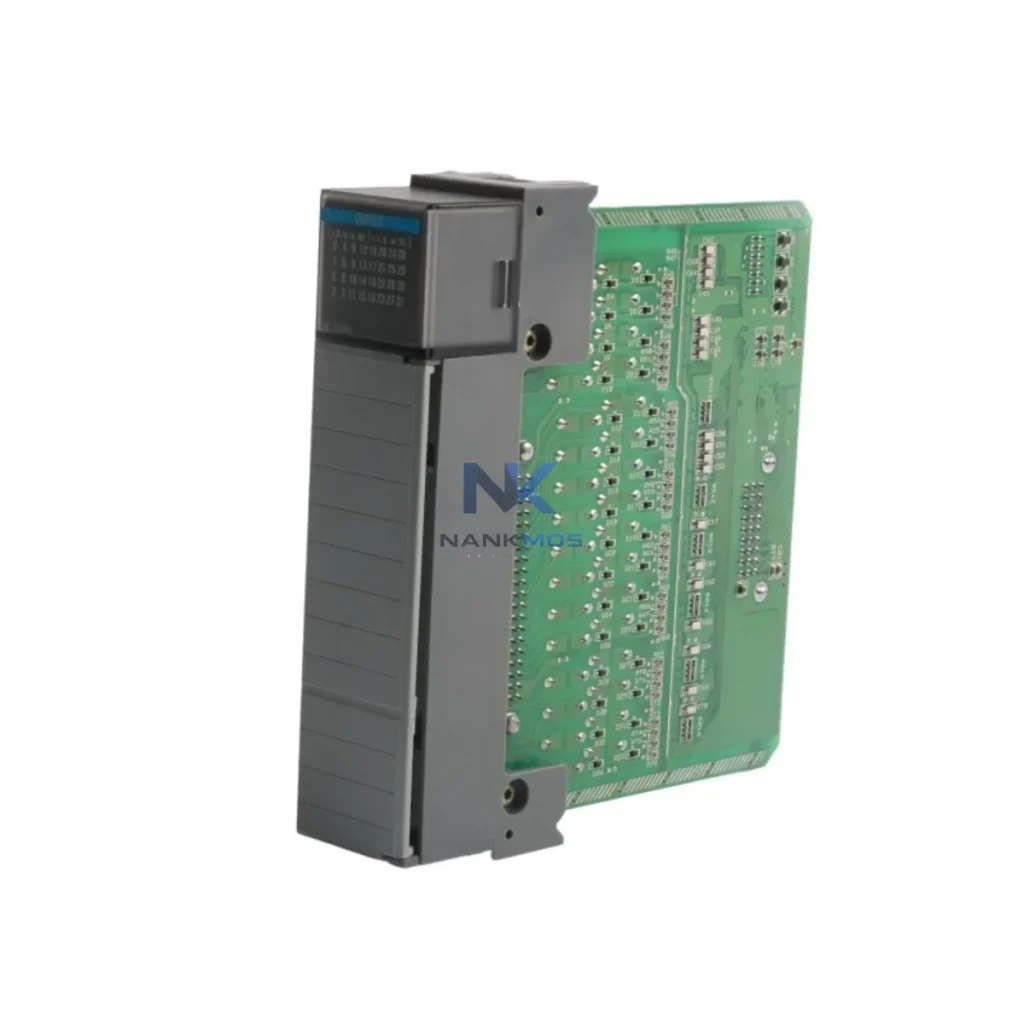

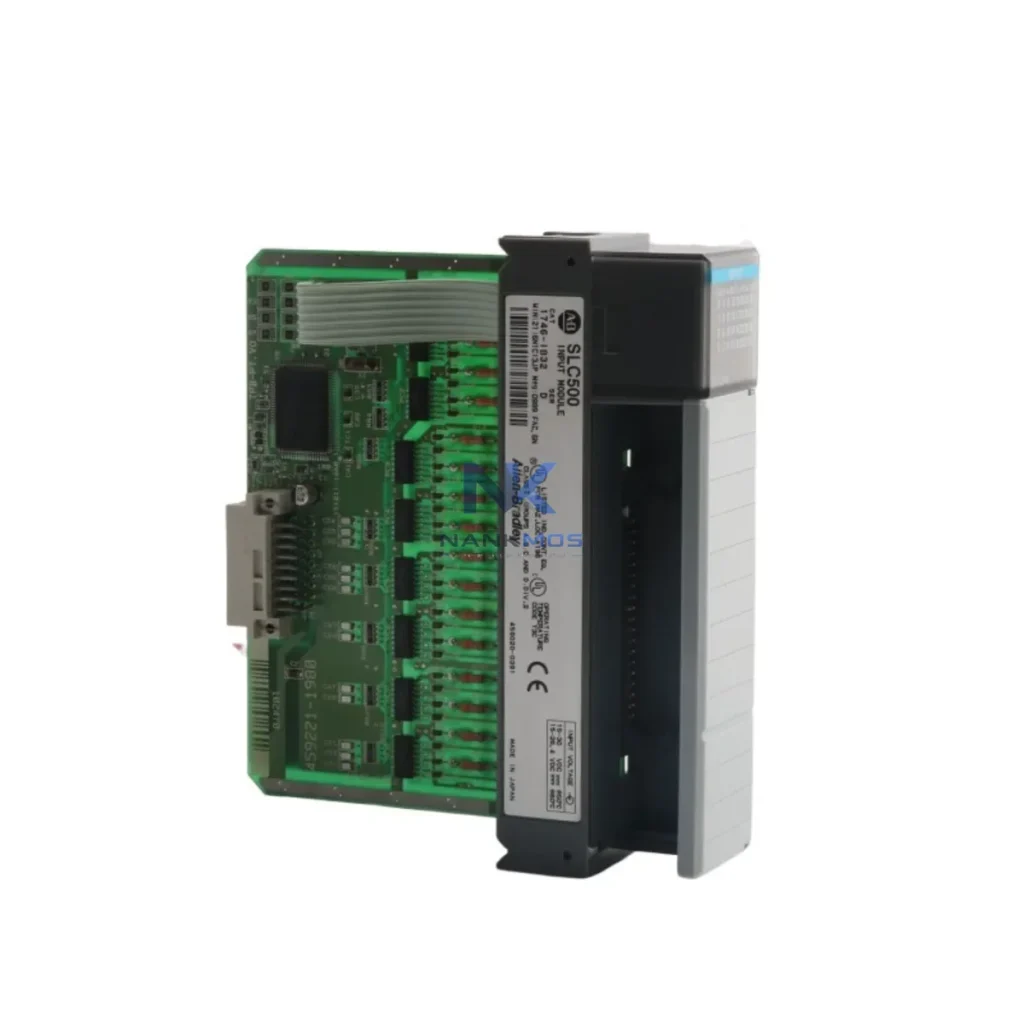

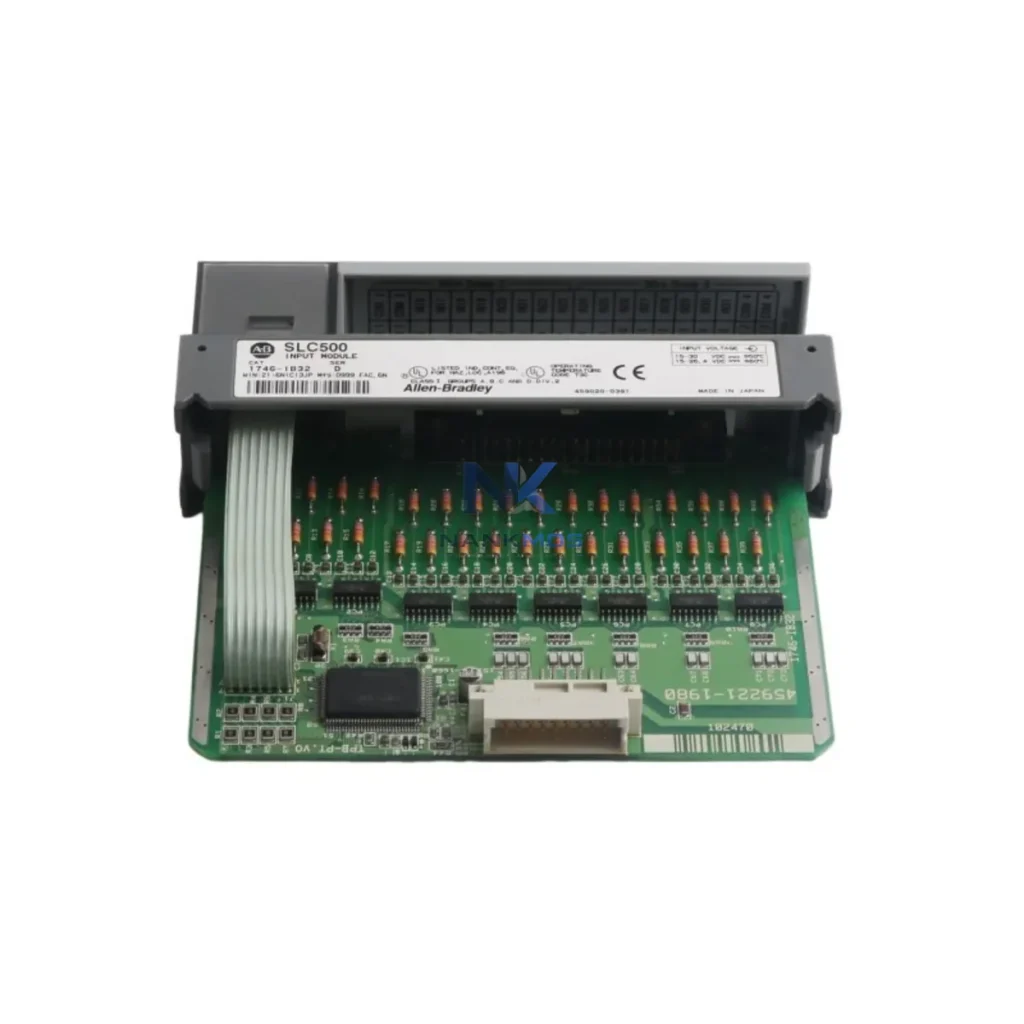

Allen-Bradley 1746-IB32 PLC Input Module

Product Details

1746-IB32 Product Description

The Allen-Bradley 1746-IB32 is a 32-point, 24VDC sinking digital input module engineered for seamless integration within the SLC 500 modular control platform. Designed to occupy a single slot in the 1746 fixed or modular chassis, this module delivers high-density field signal acquisition with deterministic scan-cycle performance — a critical requirement in discrete manufacturing, packaging lines, and process-adjacent control architectures where signal integrity and system consistency define uptime. With its proven compatibility across the SLC 500 family and its role as a direct drop-in replacement in legacy and active installations alike, the 1746-IB32 remains a cornerstone I/O component for engineers maintaining or expanding SLC 500-based control systems.

In a fully realized SLC 500 control architecture, the 1746-IB32 does not operate in isolation. It functions as the field-facing input layer of a layered automation stack, receiving discrete 24VDC signals from proximity sensors, limit switches, pushbuttons, and photoelectric devices, then passing structured data to the SLC 5/04 or SLC 5/05 processor via the 1746 backplane. This backplane-level communication ensures sub-millisecond data transfer latency between the I/O module and the CPU, supporting tight scan-cycle budgets in high-speed discrete applications. The module's 32-point density reduces chassis slot consumption, allowing engineers to allocate remaining slots to analog I/O, specialty modules, or communication adapters without expanding the rack footprint.

From a system architecture perspective, the 1746-IB32 contributes directly to signal-layer consistency and diagnostic efficiency. Each input channel is individually optically isolated, protecting the processor and backplane from field-side voltage transients and ground loops — a design characteristic that simplifies commissioning in electrically noisy environments such as motor control centers, variable frequency drive panels, and high-current switching cabinets. The module's LED status indicators per channel enable rapid field-level diagnostics without requiring a programming terminal, reducing mean time to repair during production incidents.

The 1746-IB32 achieves its full architectural value when deployed as part of a cohesive SLC 500 platform stack. At the processor layer, the Allen-Bradley SLC 5/04 (1747-L541) or SLC 5/05 (1747-L551) CPU manages ladder logic execution and I/O scan, with the 1746-IB32's 32 input points mapped directly into the processor's input image table for deterministic read access each scan cycle. The 1746-P4 power supply provides regulated 5VDC and 24VDC backplane power, ensuring stable operation of the 1746-IB32 alongside co-resident modules under full chassis load.

For output-side symmetry, the 1746-OB32 32-point 24VDC sourcing output module mirrors the 1746-IB32's density and form factor, enabling balanced I/O allocation within a single chassis slot pair. Where analog process variables must be monitored alongside discrete inputs, the 1746-NI8 8-channel analog input module integrates into the same chassis, sharing backplane bandwidth without contention. Communication expansion is handled by the 1747-SDN DeviceNet Scanner or the 1747-AENTR EtherNet/IP adapter, extending the SLC 500 platform's connectivity to distributed I/O blocks, smart field devices, and supervisory SCADA systems.

At the HMI layer, a PanelView 550 (2711-B5A8) or PanelView Plus 600 terminal communicates with the SLC 5/05 processor over EtherNet/IP or DH-485, providing operators with real-time visibility into the discrete input states captured by the 1746-IB32. For installations requiring signal conditioning between field devices and the module's input terminals, Phoenix Contact MACX MCR signal isolators or equivalent DIN-rail-mounted isolators protect input channels from common-mode noise in high-interference environments. The 1746-A13 13-slot chassis accommodates the full I/O complement — input modules, output modules, analog cards, and communication adapters — within a single rack, minimizing panel footprint and simplifying cable management.

In discrete manufacturing and assembly lines, the 1746-IB32 collects position feedback from inductive proximity sensors, end-of-travel limit switches, and part-present photoelectric sensors across conveyor, pick-and-place, and robotic welding cells. Its 32-point density supports complex multi-station interlocking logic without requiring additional chassis slots, keeping the control cabinet compact and thermally manageable.

In power distribution and electrical substation automation, the module monitors breaker status, relay contact states, and interlock conditions across switchgear panels. The optical isolation between field inputs and the SLC 500 backplane is particularly valuable in these environments, where ground potential differences between panels can introduce destructive common-mode voltages on unprotected I/O circuits.

In water and wastewater treatment facilities, the 1746-IB32 interfaces with float switches, valve position feedback, pump run/fault contacts, and flow switch outputs across lift stations, filtration banks, and chemical dosing systems. The module's wide operating temperature range and humidity tolerance support installation in outdoor or semi-enclosed control enclosures typical of water infrastructure projects.

In oil, gas, and petrochemical process plants, the module is deployed in non-hazardous control rooms and marshalling panels to aggregate discrete field signals from process shutdown systems, emergency stop circuits, and equipment health monitors. When paired with the SLC 5/04 processor and a 1747-SDN DeviceNet scanner, the architecture supports distributed I/O expansion to remote field junction boxes, reducing home-run cabling costs across large process units.

In packaging and material handling, the 1746-IB32 supports high-cycle-rate applications where input scan frequency and signal debounce characteristics directly affect throughput. Its deterministic backplane scan ensures that sensor transitions are captured within a single processor scan cycle, preventing missed counts or false triggers in high-speed labeling, filling, and palletizing systems.

Q1: Is the 1746-IB32 compatible with all SLC 500 chassis and processors? Yes. The 1746-IB32 is compatible with all 1746-series chassis (1746-A4, A7, A10, A13) and all SLC 500 processors including the SLC 5/01, 5/02, 5/03, 5/04, and 5/05. It occupies one I/O slot and is addressed automatically by the SLC 500 I/O configuration in RSLogix 500. No special configuration is required beyond assigning the module to its chassis slot address. For mixed-chassis architectures using a 1747-SN remote I/O scanner, the 1746-IB32 can also be deployed in remote expansion racks connected via the SLC 500 remote I/O link.

Q2: How does the 1746-IB32 support long-term maintenance and spare-parts strategy in aging SLC 500 installations? The 1746-IB32 is one of the most widely deployed I/O modules in the SLC 500 ecosystem, and NANKMOS maintains verified stock of tested units to support both planned maintenance rotations and emergency replacement scenarios. Each unit shipped by NANKMOS undergoes functional verification prior to dispatch and is covered by a 12-Month Warranty, providing documented assurance for maintenance engineers managing spare-parts inventories under ISO 55001 or equivalent asset management frameworks. The module's removable terminal block (RTB) wiring interface allows field replacement without rewiring, minimizing downtime during swap-out procedures.

Q3: What are the key considerations for integrating the 1746-IB32 into a control architecture that includes variable frequency drives or other high-noise equipment? The primary concern in VFD-adjacent installations is conducted and radiated EMI coupling onto 24VDC field wiring connected to the 1746-IB32 input terminals. Best practices include routing input signal cables in dedicated cable trays separated from power and VFD output cables, using shielded twisted-pair wiring for long cable runs, and grounding cable shields at a single point at the control panel. The module's built-in optical isolation provides a first line of defense against common-mode noise, but for installations with severe EMI environments, inline signal isolators such as the Phoenix Contact MACX MCR-SL-UI-UI or equivalent should be inserted between field devices and the module terminals. Additionally, ensuring the 1746-P4 or 1746-P7 power supply is properly grounded and that the chassis ground bus is bonded to the panel earth bar will significantly reduce susceptibility to backplane-coupled noise. Contextual Integration of these protective measures ensures the 1746-IB32 delivers reliable, error-free input data throughout the system's operational life.
