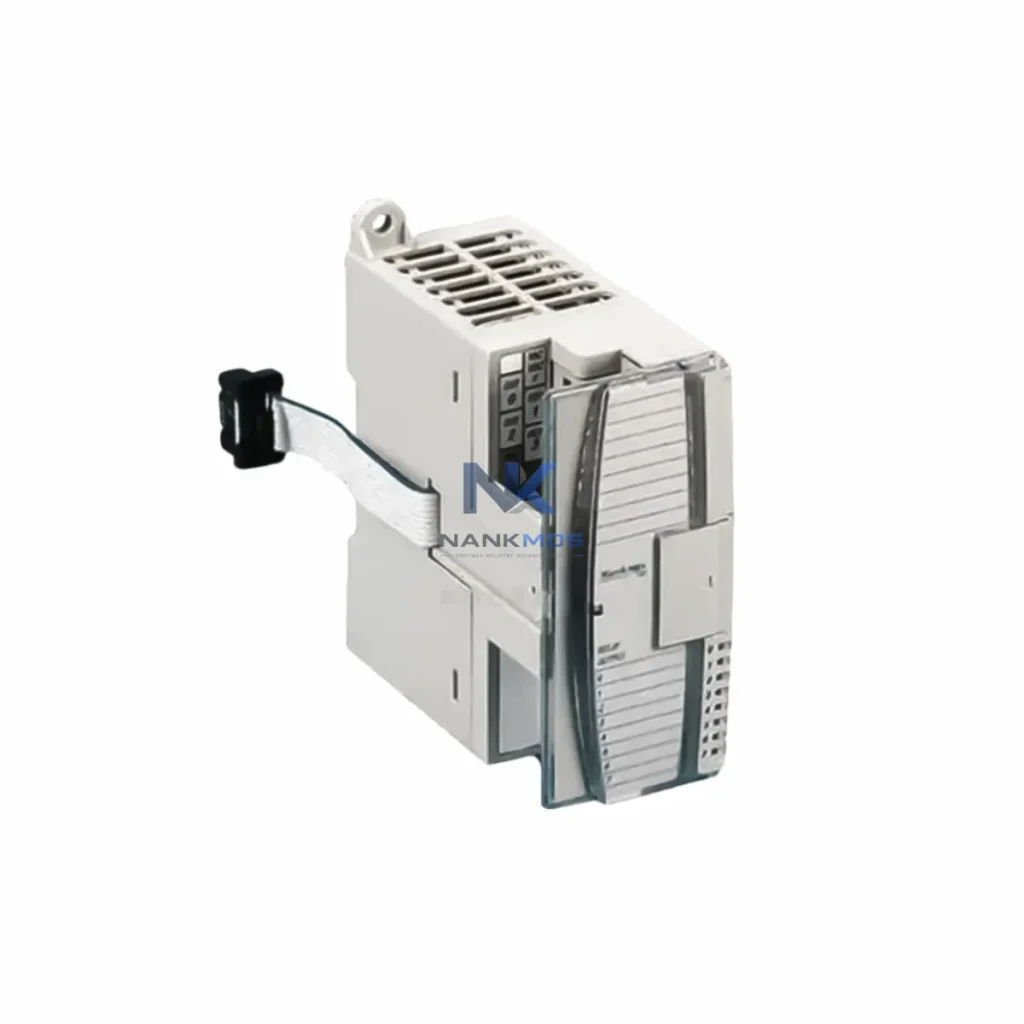

Allen-Bradley 1762-IF2OF2 PLC Analog I/O Module

Product Details

1762-IF2OF2 Product Description

The Allen-Bradley 1762-IF2OF2 is a compact analog combination I/O expansion module engineered for the MicroLogix 1100 and MicroLogix 1400 control platforms. Designed to extend the analog signal handling capacity of small-to-mid-scale automation systems, this module delivers two analog inputs and two analog outputs within a single 1762 series expansion slot. Its role in the control architecture is not merely additive — it is structural. By consolidating analog signal acquisition and command output into one module, the 1762-IF2OF2 reduces panel footprint, simplifies wiring topology, and maintains signal integrity across the full I/O bus without introducing additional communication latency.

In modern industrial control environments, analog I/O modules are the sensory and command interface between the controller and the physical process. The 1762-IF2OF2 supports 0–10V, ±10V, 0–20mA, and 4–20mA signal ranges on both input and output channels, making it directly compatible with the majority of field transmitters, positioners, and variable-speed drives deployed across manufacturing, process, and utility applications. Each channel is independently configurable via RSLogix 500 or Studio 5000 Logix Designer, enabling engineers to tailor signal ranges to specific field device requirements without hardware modification.

The 1762-IF2OF2 achieves its full value when deployed as part of a coherent MicroLogix-based automation platform. At the controller layer, the MicroLogix 1400 (1766-L32BXBA) serves as the primary CPU, providing onboard digital and analog I/O alongside embedded EtherNet/IP and RS-232/RS-485 communication ports. The 1762-IF2OF2 connects directly to the controller's right-side expansion bus, consuming one of the available expansion slots and appearing transparently in the I/O tree within RSLogix 500.

For applications requiring additional digital I/O capacity alongside the analog expansion, the 1762-IQ16 (16-point 24VDC digital input) and 1762-OW16 (16-point relay output) modules extend the discrete control layer without requiring a separate communication gateway. Where relay isolation is needed for high-voltage field devices, the 1762-OB16 transistor output module provides fast-switching solid-state outputs compatible with motor starters, solenoid valves, and indicator circuits.

At the communication layer, the 1761-NET-ENI EtherNet/IP adapter enables legacy MicroLogix 1100 systems to participate in modern Ethernet-based SCADA and MES architectures, bridging the gap between older serial-based field networks and contemporary plant-wide Ethernet infrastructure. For serial device integration, the 1761-NET-AIC advanced interface converter supports RS-232 to RS-485 conversion, enabling the MicroLogix platform to communicate with Modbus RTU field devices, variable-frequency drives, and third-party instrumentation.

Power supply integrity is foundational to analog signal accuracy. The 1606-XLP72E QUINT-series 24VDC power supply provides regulated, low-ripple DC power to the MicroLogix system and field devices, ensuring that the 4–20mA and 0–10V signals processed by the 1762-IF2OF2 are not corrupted by power rail noise. In redundant power architectures, a secondary 1606-XLP72E unit with a diode ORing module maintains continuous system operation during primary supply failure.

At the HMI layer, the 2711P-T7C22D9P PanelView Plus 7 terminal provides operator visualization of analog process values acquired by the 1762-IF2OF2, displaying real-time trends, setpoint controls, and alarm states. The PanelView communicates with the MicroLogix 1400 via EtherNet/IP, enabling remote monitoring and parameter adjustment without requiring direct PLC access. For compact panel installations, the 2711R-T7T PanelView 800 offers a cost-effective HMI alternative with direct EtherNet/IP connectivity.

Signal conditioning and isolation are critical in environments with high electromagnetic interference. The 1492-AIFM8-F-5 analog interface module provides terminal block-level signal conditioning for the 1762-IF2OF2's input channels, offering surge protection, signal filtering, and loop-powered transmitter support. In high-noise environments such as variable-speed drive cabinets or motor control centers, dedicated signal isolators in the 1492 series prevent ground loop interference from corrupting analog measurements.

Manufacturing and Discrete Production Lines: In automotive assembly, food and beverage processing, and packaging machinery, the 1762-IF2OF2 manages analog feedback from load cells, pressure transducers, and temperature sensors while simultaneously issuing analog setpoint commands to proportional valves and variable-frequency drives. Its dual-channel output capability allows simultaneous speed reference and torque limit commands to be issued to a single drive axis, reducing the number of expansion modules required per control cabinet.

Water and Wastewater Treatment: Municipal water treatment facilities deploy the 1762-IF2OF2 within MicroLogix-based pump station controllers to monitor flow transmitters and level sensors (4–20mA) while modulating chemical dosing pump speeds via analog output. The module's compatibility with HART-capable transmitters — when used with appropriate signal splitters — enables asset health monitoring alongside process control without additional hardware investment.

Power Generation and Utilities: In small-scale power generation facilities, including diesel generator sets and renewable energy balance-of-plant systems, the 1762-IF2OF2 monitors generator output voltage and frequency via analog transducers and issues load-sharing commands to automatic voltage regulators. Its 12-bit resolution provides sufficient precision for generator synchronization applications where analog setpoint accuracy directly affects grid stability.

Oil, Gas, and Petrochemical: Wellhead automation and pipeline monitoring systems use the 1762-IF2OF2 to acquire pressure and temperature signals from field transmitters while controlling actuator positioners via 4–20mA output. In hazardous area installations, the module is deployed in purged and pressurized enclosures (Type X or Type Z) with appropriate intrinsic safety barriers on the field wiring side.

Mining and Metals Processing: Conveyor belt tension monitoring, crusher load management, and flotation cell level control are representative applications in mining environments. The 1762-IF2OF2's robust operating temperature range and vibration tolerance make it suitable for deployment in mobile equipment control panels and fixed plant installations subject to mechanical shock.

Q1: How many 1762-IF2OF2 modules can be connected to a single MicroLogix 1400 controller, and are there any bus power limitations to consider? The MicroLogix 1400 supports up to 7 expansion modules on its right-side expansion bus. The 1762-IF2OF2 draws 85 mA at 5 VDC from the expansion bus. The MicroLogix 1400 provides a maximum of 800 mA on the 5 VDC expansion bus, so a system with multiple analog and digital expansion modules must be budgeted carefully. In practice, a mix of 1762-IF2OF2, 1762-IQ16, and 1762-OW16 modules can be accommodated within the bus power budget, but engineers should verify total current draw using Rockwell's system sizing tools before finalizing the expansion configuration.

Q2: Is the 1762-IF2OF2 compatible with both MicroLogix 1100 and MicroLogix 1400 platforms, and what software version is required for full channel configuration? Yes, the 1762-IF2OF2 is fully compatible with both the MicroLogix 1100 (firmware series C or later) and MicroLogix 1400 (all firmware revisions). Channel configuration — including signal range selection, filter time constants, and scaling parameters — is performed within RSLogix 500 version 8.10 or later. Studio 5000 Logix Designer does not directly program MicroLogix controllers but can be used for documentation and offline configuration review. NANKMOS supplies the 1762-IF2OF2 with pre-shipment functional testing verified against standard 4–20mA and 0–10V signal ranges.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for MicroLogix 1762 series modules? NANKMOS provides a 12-Month Warranty on all 1762-IF2OF2 units covering manufacturing defects, functional failures under normal operating conditions, and pre-shipment test certification. Each unit undergoes functional verification prior to dispatch, including analog input accuracy checks and output load testing. For long-term MRO and capital project supply, NANKMOS maintains buffer stock of 1762 series expansion modules to support both immediate replacement requirements and scheduled maintenance programs. Customers with multi-site or multi-unit requirements are encouraged to contact [email protected] to discuss volume availability and lead time commitments.
