Allen-Bradley 1762-L24BWAR PLC Controller

Product Details

1762-L24BWAR Product Description

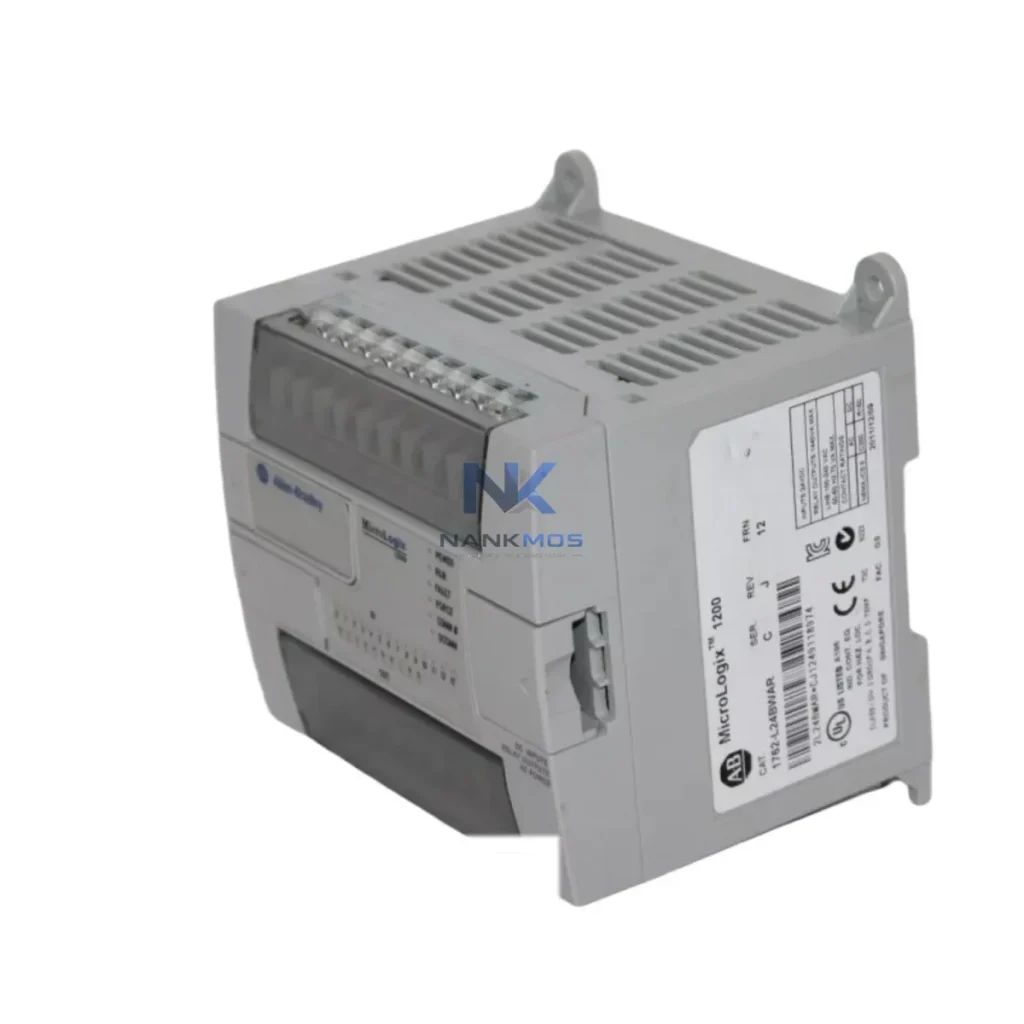

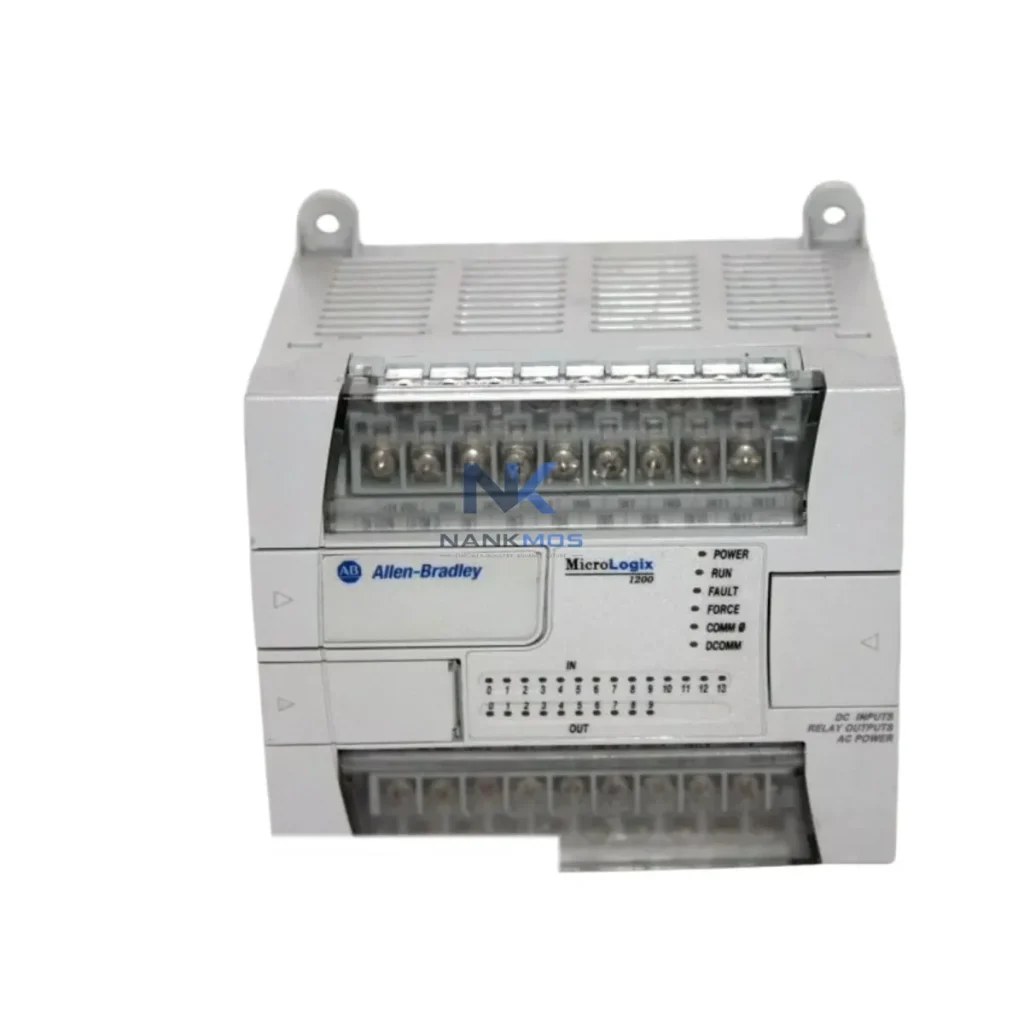

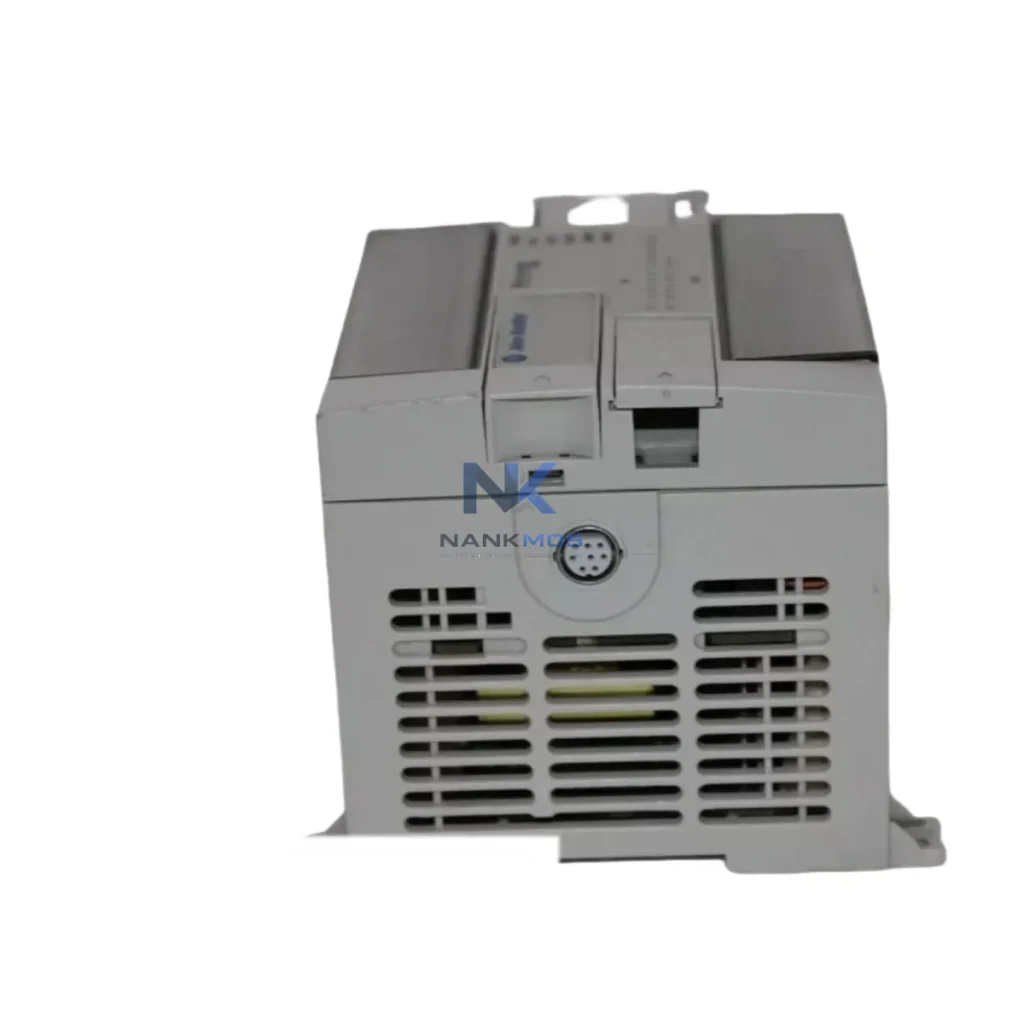

The Allen-Bradley 1762-L24BWAR is a compact, high-performance programmable logic controller from the MicroLogix 1100 series, engineered to serve as the central processing unit within layered industrial control architectures. With 24 onboard I/O points — 14 DC inputs and 10 relay outputs — powered by 120/240V AC, this controller delivers the processing density, communication versatility, and modular expandability required for demanding automation environments across manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, marine propulsion, and packaging lines.

Unlike isolated single-device deployments, the 1762-L24BWAR is designed to function as a cohesive node within a multi-layer control system. Its role spans the control layer, I/O layer, and communication layer simultaneously, enabling engineers to build architectures that are scalable, diagnostically transparent, and maintainable over long operational lifecycles. Every unit supplied by NANKMOS is in-stock, pre-shipment tested, and backed by a 12-Month Warranty.

The 1762-L24BWAR achieves its full architectural value when deployed within a coordinated automation platform. At the I/O expansion layer, engineers commonly pair this controller with 1762-IQ16 (16-point DC input module) and 1762-OW16 (16-point relay output module) to extend field signal capacity without migrating to a larger rack-based system. For analog process variables — pressure, temperature, flow — the 1762-IF4 4-channel analog input module integrates directly into the same 1762 expansion bus, maintaining signal integrity across the I/O layer.

At the communication layer, the built-in EtherNet/IP port enables direct integration with 1763-L16AWA MicroLogix 1100 peer controllers in distributed architectures, as well as upstream connectivity to 1756-ENBT ControlLogix EtherNet/IP Bridge modules for supervisory data exchange. For legacy DH-485 networks, the onboard Channel 1 port supports transparent communication with 1747-SN SLC Remote I/O Scanner nodes, preserving investment in existing field infrastructure.

At the HMI layer, the 1762-L24BWAR communicates natively with 2711P-T7C22D9P PanelView Plus 7 operator terminals via EtherNet/IP, enabling real-time process visualization, alarm management, and operator control without additional protocol converters. For smaller installations, 2711-B5A16 PanelView 550 terminals connected via DH-485 provide a cost-effective HMI solution within the same communication architecture.

At the power layer, the controller's 120/240V AC input is typically fed from a 1606-XLP72E SELV-rated power supply, ensuring stable, regulated DC power to field sensors and I/O modules within the same control cabinet. Signal isolation between the PLC I/O layer and field instrumentation is achieved using 700-HLT1Z24 interposing relay modules or dedicated signal isolators, protecting the controller from transient voltages in high-noise industrial environments.

For motion and drive integration, the 1762-L24BWAR coordinates with PowerFlex 4M AC drives via Modbus RTU over the RS-232 port, enabling speed reference, run/stop commands, and fault status feedback within a unified control loop. This architecture supports modular deployment across packaging lines, conveyor systems, pump stations, and compressor control panels where compact footprint and multi-protocol flexibility are essential.

Manufacturing & Packaging Lines: The 1762-L24BWAR serves as the primary sequence controller for conveyor indexing, filling station control, labeling synchronization, and end-of-line inspection systems. Its relay outputs directly drive solenoid valves, motor starters, and indicator lamps, while EtherNet/IP connectivity enables real-time OEE data upload to MES platforms.

Water & Wastewater Treatment: In pump station and dosing system architectures, this controller manages multi-pump alternation logic, level-based start/stop sequencing, and chemical dosing interlocks. Modbus RTU communication links the PLC to flow meters, pH analyzers, and variable frequency drives within a unified SCADA-integrated control loop.

Power Generation & Utilities: The 1762-L24BWAR is deployed in auxiliary control panels for generator set management, transformer protection relay interfacing, and switchgear sequencing. Its DH-485 network capability supports integration with legacy Allen-Bradley SLC 500 systems during phased modernization projects, preserving operational continuity.

Petrochemical & Process Control: In skid-mounted process control applications — heat exchangers, separator units, and metering skids — the controller manages PID loop execution for temperature and pressure regulation, with analog I/O expansion modules providing the signal density required for multi-variable process control.

Mining & Metallurgy: Deployed in conveyor drive control, crusher sequencing, and ventilation fan management systems, the 1762-L24BWAR operates reliably in high-vibration, high-dust environments within its rated temperature range. Its compact DIN rail form factor simplifies installation in space-constrained electrical rooms and field junction boxes.

Marine & Shipboard Automation: For auxiliary machinery control — ballast pump management, HVAC sequencing, and cargo handling interlocks — the controller's relay output configuration and AC power input align with shipboard electrical standards, while EtherNet/IP connectivity supports integration with vessel automation networks.

Q1: How many expansion modules can be connected to the 1762-L24BWAR, and which 1762 series modules are compatible? The 1762-L24BWAR supports up to 4 × 1762 series expansion modules connected directly to the right side of the controller via the integrated expansion bus. Compatible modules include the 1762-IQ16 (DC input), 1762-OW16 (relay output), 1762-IF4 (analog input), 1762-OF4 (analog output), and 1762-IR4 (RTD input), among others. This expansion architecture allows engineers to scale I/O capacity from 24 to over 80 points without changing the base controller, supporting modular deployment across diverse application requirements.

Q2: Is the 1762-L24BWAR compatible with existing ControlLogix or SLC 500 architectures for phased migration projects? Yes. The 1762-L24BWAR supports EtherNet/IP communication for peer-to-peer messaging with ControlLogix 1756 series controllers and upstream SCADA/MES connectivity. For legacy SLC 500 and DH-485 networks, the onboard Channel 1 RS-485 port enables transparent data exchange with 1747-series SLC processors and 1747-SN remote I/O scanners. This dual-protocol capability makes the 1762-L24BWAR an effective bridge controller during phased modernization, allowing new and legacy systems to coexist within the same control architecture during transition periods.

Q3: What warranty and supply assurance does NANKMOS provide for the 1762-L24BWAR? All 1762-L24BWAR units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify I/O operation, communication port integrity, and power supply performance prior to dispatch. NANKMOS maintains in-stock inventory of MicroLogix 1100 series controllers and 1762 expansion modules to support urgent project timelines, emergency replacements, and long-term maintenance contracts. For procurement inquiries, contact [email protected] or +86 18359268345.
