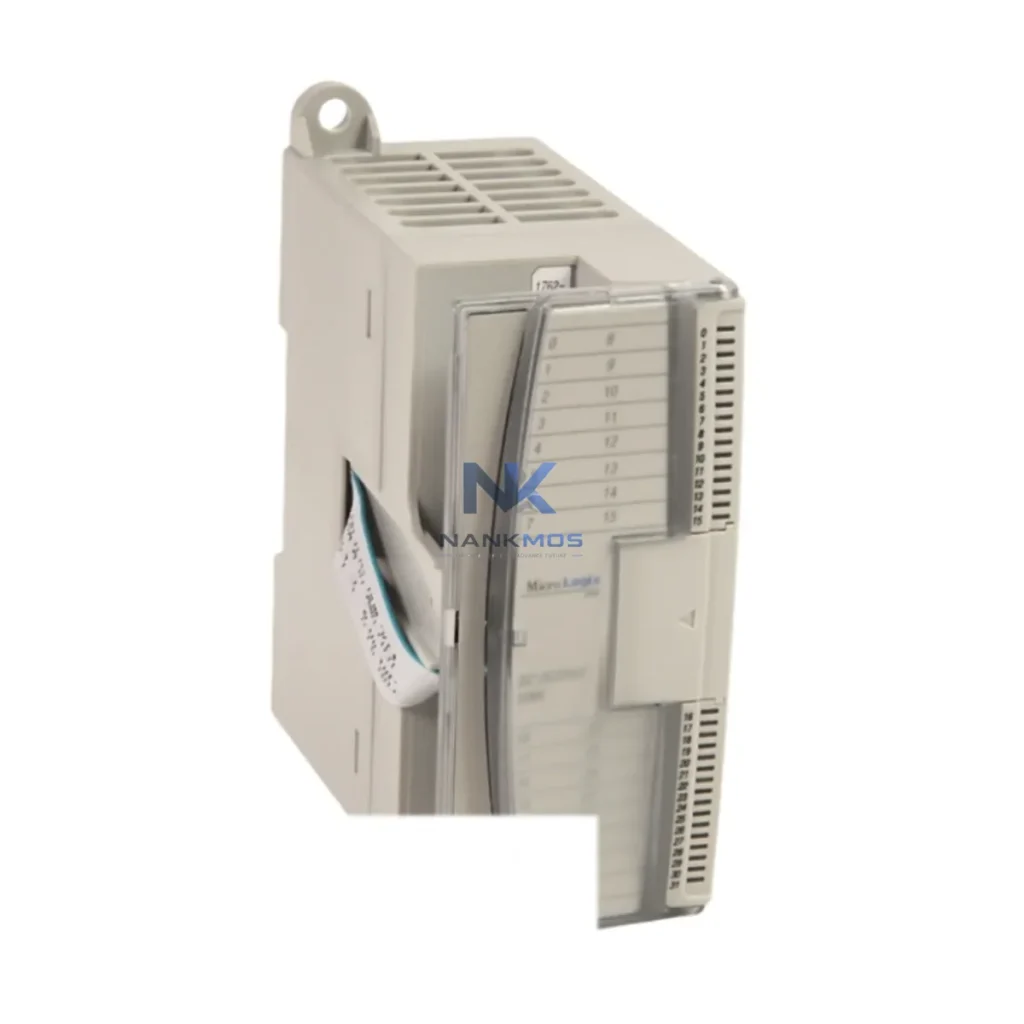

Allen-Bradley 1762-IR4 RTD Analog Input Module

Product Details

1762-IR4 Product Description

The Allen-Bradley 1762-IR4 is a 4-channel RTD analog input module engineered for seamless integration within the MicroLogix 1762 I/O expansion platform. Designed to deliver high-accuracy temperature measurement across demanding industrial environments, this module serves as a critical sensing layer component in distributed control architectures. Whether deployed in standalone MicroLogix 1200 or MicroLogix 1400 systems, the 1762-IR4 provides the signal fidelity, electrical isolation, and modular scalability that modern process control and machine automation applications require. Every unit ships pre-shipment tested and is backed by a 12-Month Warranty, ensuring long-term operational confidence from day one.

The 1762-IR4 is not a standalone device — it is a precision sensing node within a layered MicroLogix automation architecture. In a typical control cabinet deployment, the module connects directly to the MicroLogix 1200 (catalog 1762-L24AWA or 1762-L40AWA) or MicroLogix 1400 (catalog 1766-L32AWA or 1766-L32BXBA) controller via the 1762 expansion bus, enabling real-time RTD data acquisition without additional signal conditioning hardware.

At the power layer, the 1762-PA8 power supply or an equivalent 24VDC rail-mounted power supply provides stable bus voltage to the entire 1762 I/O expansion chain, ensuring that analog signal integrity is not compromised by power rail noise. For applications requiring digital I/O alongside temperature monitoring, the 1762-IQ16 (16-point 24VDC digital input) and 1762-OW16 (16-point relay output) modules can be added to the same expansion bus, creating a unified I/O platform under a single MicroLogix controller scan cycle.

Where communication transparency to SCADA or MES systems is required, the 1761-NET-ENI Ethernet interface or the 1761-NET-DNI DeviceNet interface can be attached to the MicroLogix controller's communication port, bridging the 1762-IR4's RTD data into EtherNet/IP or DeviceNet networks. For installations requiring RS-232 or RS-485 Modbus RTU connectivity to third-party HMI panels or data loggers, the MicroLogix 1400's built-in Channel 1 serial port supports Modbus RTU master/slave operation natively, eliminating the need for external protocol converters.

At the HMI layer, PanelView Component C400 or C600 terminals communicate with the MicroLogix controller over DF1 or EtherNet/IP, displaying live RTD channel values, alarm states, and trend data. For more advanced visualization, the PanelView Plus 7 series connected via EtherNet/IP provides full faceplates and historian integration. The 1762-IR4's channel data is mapped directly into the MicroLogix data file (N, F, or I file types depending on configuration), making it immediately accessible to HMI tag databases without custom scaling middleware.

In redundancy-sensitive applications such as boiler control or HVAC monitoring, dual 1762-IR4 modules can be deployed on separate expansion chains with cross-validation logic implemented in the MicroLogix ladder program, providing sensor-level redundancy without requiring a full ControlLogix or CompactLogix redundancy chassis. Terminal block wiring is typically managed via 1492-CABLE series pre-wired cables or Phoenix Contact PTFIX distribution blocks, reducing field wiring errors and accelerating commissioning time.

Power Generation & Utilities: In gas turbine auxiliary systems and boiler feedwater circuits, the 1762-IR4 monitors Pt100 RTD sensors embedded in bearing housings, steam headers, and heat exchanger outlets. The module's 16-bit resolution enables early detection of thermal drift, supporting predictive maintenance schedules and reducing unplanned outages in baseload and peaking power plants.

Petrochemical & Refining: Reactor jacket temperature monitoring, distillation column tray temperature profiling, and heat trace circuit verification are common applications. The 1762-IR4's differential input architecture rejects common-mode noise from variable-frequency drives and high-current bus bars that are prevalent in refinery electrical environments, maintaining measurement accuracy across the full process temperature range.

Water & Wastewater Treatment: Aeration basin temperature monitoring, UV disinfection system thermal management, and sludge digester temperature control benefit from the module's multi-sensor type support. MicroLogix 1400 systems equipped with 1762-IR4 modules are widely deployed in lift station control panels and SCADA-connected remote terminal units (RTUs) for municipal water authorities.

Mining & Mineral Processing: Conveyor drive motor winding temperature monitoring, crusher bearing thermal surveillance, and flotation cell temperature regulation are addressed by integrating the 1762-IR4 into MicroLogix-based local control panels. The module's DIN rail form factor and compact footprint make it suitable for installation in NEMA 4X enclosures mounted directly on mobile mining equipment.

Food, Beverage & Packaging: Pasteurization temperature verification, CIP (clean-in-place) circuit thermal monitoring, and oven zone temperature control are typical applications in food processing lines. The 1762-IR4's compatibility with Pt1000 sensors supports hygienic process designs where sensor lead resistance variation due to long cable runs must be compensated accurately.

Marine & Offshore: Engine room temperature monitoring, fuel oil heating system control, and HVAC zone temperature management on vessels and offshore platforms utilize MicroLogix systems with 1762-IR4 expansion modules. The module's operating temperature range and vibration tolerance align with DNV and ABS marine equipment guidelines when installed in appropriately rated enclosures.

Q1: How many 1762-IR4 modules can be connected to a single MicroLogix controller, and are there expansion bus limitations? The MicroLogix 1200 supports up to 6 expansion I/O modules on the 1762 bus, while the MicroLogix 1400 supports up to 7 expansion modules. Each 1762-IR4 occupies one module slot. When combining analog input modules (1762-IR4, 1762-IT4, 1762-IF4) with digital I/O modules (1762-IQ16, 1762-OW16), the total module count must not exceed the controller's expansion limit. Bus current consumption must also be verified against the controller's expansion bus current budget, typically 800 mA for MicroLogix 1200 and 1000 mA for MicroLogix 1400.

Q2: Is the 1762-IR4 compatible with both 2-wire and 3-wire RTD sensor configurations, and how does wiring affect accuracy? The 1762-IR4 supports 2-wire, 3-wire, and 4-wire RTD connections. For highest accuracy, 3-wire or 4-wire configurations are strongly recommended, as they compensate for lead wire resistance errors that become significant in installations with long cable runs (exceeding 30 meters). In 2-wire mode, lead resistance is added directly to the measured resistance, introducing a positive temperature offset. Rockwell Automation's 1762-IR4 user manual (publication 1762-UM002) provides detailed wiring diagrams and accuracy specifications for each configuration.

Q3: What is the recommended approach for long-term maintenance, spare parts availability, and warranty coverage for the 1762-IR4? All 1762-IR4 units supplied by NANKMOS are covered by a 12-Month Warranty and are pre-shipment tested to verify channel accuracy, isolation integrity, and bus communication functionality before dispatch. For long-term maintenance planning, it is advisable to maintain at least one spare 1762-IR4 module per control panel, given the module's role in continuous temperature monitoring. NANKMOS maintains in-stock inventory of 1762-IR4 and related 1762 series expansion modules including the 1762-IT4 (thermocouple input), 1762-IF4 (voltage/current analog input), and 1762-OA8 (AC output), enabling rapid replacement without extended lead times. For system lifecycle planning, Rockwell Automation's TechConnect support contracts provide firmware update access and migration guidance as MicroLogix platforms evolve.
