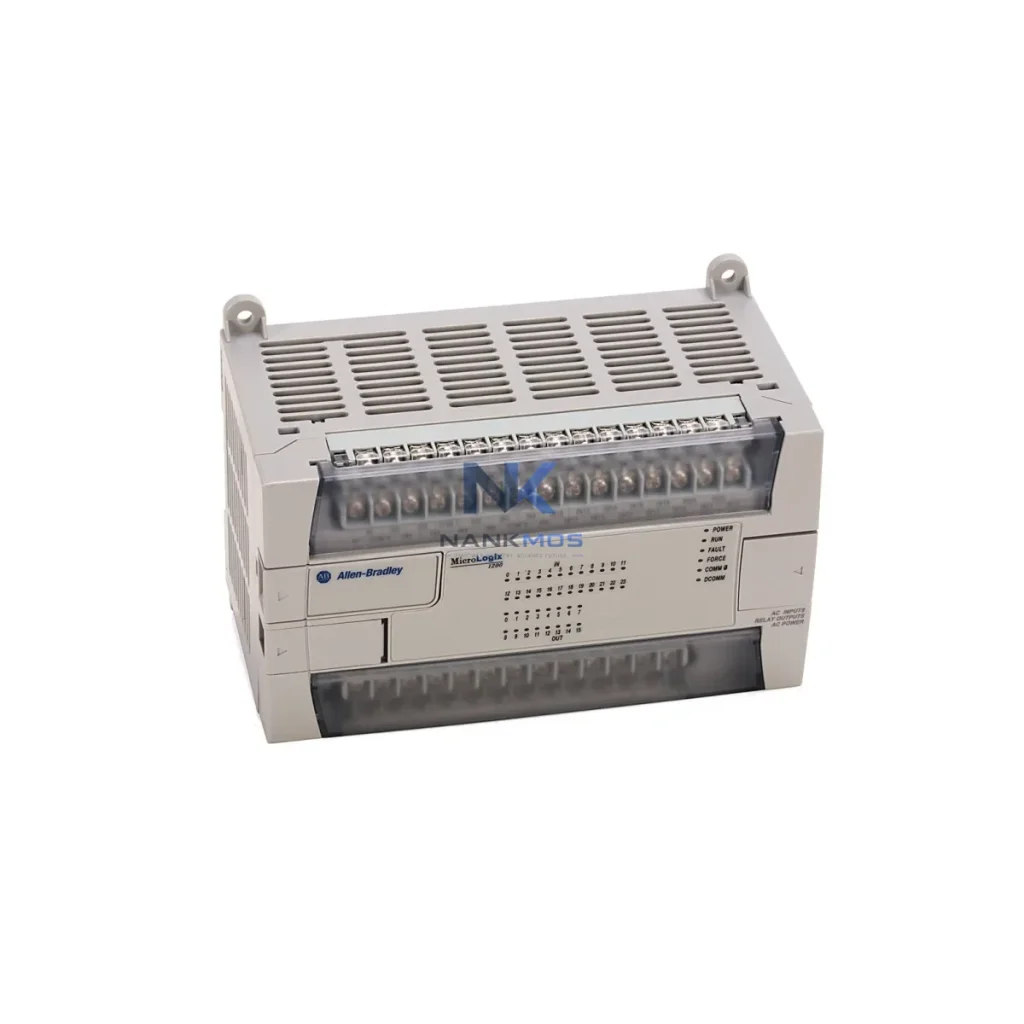

Allen-Bradley 1762-L40BWA Programmable Logic Controller

Product Details

1762-L40BWA Product Description

The Allen-Bradley 1762-L40BWA is a MicroLogix 1200 series programmable logic controller engineered for energy-aware industrial automation. With 40 discrete I/O points — 24 inputs and 16 relay outputs — this controller delivers precise load management, motor sequencing, and real-time device feedback across demanding production environments. Designed for integration into smart factory architectures, the 1762-L40BWA enables manufacturers to reduce idle-state energy consumption, minimize thermal load on control panels, and maintain consistent production line throughput.

The 1762-L40BWA is built to serve as the central decision node in a power-aware automation architecture. In a typical smart production cell, this controller interfaces directly with a PowerFlex 40 variable frequency drive to regulate motor speed based on real-time load demand — eliminating full-speed motor operation during low-throughput periods and cutting energy waste at the drive level. When paired with a 1762-IQ16 digital input expansion module, the system gains additional sensor feedback capacity, enabling the PLC to monitor equipment state across multiple zones simultaneously.

For energy metering and power quality visibility, the 1762-L40BWA communicates with a PowerMonitor 500 unit via the DH-485 network, pulling active power, reactive power, and power factor data directly into the control program. This allows the ladder logic to trigger load-shedding routines automatically when demand thresholds are exceeded — a critical capability for facilities operating under time-of-use tariff structures.

On the HMI side, a PanelView Component C600 terminal connects to the MicroLogix 1200 via DF1 serial, giving operators a real-time dashboard of motor states, I/O status, and energy consumption trends without requiring a SCADA server. For larger installations, the 1762-L40BWA can be integrated into a FactoryTalk View SE SCADA environment through a 1761-NET-AIC Advanced Interface Converter, enabling centralized energy monitoring across multiple production cells.

The relay outputs of the 1762-L40BWA are well-suited for controlling 1794-OB16 FLEX I/O output modules in distributed panel configurations, extending the controller's reach across wide production floor layouts while keeping wiring costs low. Proximity sensors, photoelectric sensors, and flow switches connected to the 24 digital inputs provide the real-time process feedback needed for demand-responsive control — ensuring that motors, conveyors, and actuators only run when production conditions require it.

Factory energy waste most commonly originates from three sources: motors running at full speed under partial load, equipment left energized during idle periods, and uncoordinated start sequences that cause peak demand spikes. The 1762-L40BWA addresses all three through programmable ladder logic that enforces demand-based motor control, scheduled de-energization of non-critical loads during shift breaks, and staggered start sequencing to flatten inrush current peaks.

In conveyor and material handling applications, the controller monitors upstream and downstream sensor states to determine whether belt sections need to run at full speed or can be stepped down — reducing motor wear and energy draw simultaneously. In pump control applications, the 1762-L40BWA can implement alternating duty/standby pump logic, distributing run hours evenly across pump sets and preventing the thermal fatigue that leads to unplanned downtime.

For facilities pursuing ISO 50001 energy management compliance, the 1762-L40BWA provides the control-layer data acquisition needed to feed energy KPIs into higher-level reporting systems. By logging motor run hours, cycle counts, and fault events through the DH-485 network to a data concentrator, maintenance teams gain the predictive maintenance visibility needed to schedule interventions before failures occur — eliminating the energy and production losses associated with emergency repairs.

The 1762-L40BWA ships pre-tested and verified functional, with each unit undergoing a full I/O check and communication verification before dispatch. In-stock availability ensures rapid deployment for both new installations and emergency replacements, minimizing production downtime. All units are covered by a 12-month warranty, providing procurement teams with the supply assurance needed for long-term maintenance planning.

Q1: How does the 1762-L40BWA contribute to measurable energy savings on a production line?The 1762-L40BWA enables demand-responsive control by reading real-time sensor inputs and adjusting output states — motor contactors, VFD enable signals, and load relay outputs — based on actual production conditions. By eliminating unnecessary motor run time and coordinating staggered starts, facilities typically observe reductions in peak demand charges and overall kWh consumption within the first billing cycle after deployment.

Q2: Is the 1762-L40BWA compatible with existing Rockwell Automation control platforms and communication networks?Yes. The 1762-L40BWA natively supports DF1 full-duplex and DH-485 protocols, making it directly compatible with RSLogix 500 programming environments and existing Allen-Bradley network infrastructure. With the addition of a 1762-NET-DNI DeviceNet interface module, the controller can also participate in DeviceNet device networks alongside PowerFlex drives and 1794 FLEX I/O adapters.

Q3: What is the recommended replacement or upgrade path if the 1762-L40BWA needs to be substituted?The 1762-L40BWAR (relay output, AC power) and 1762-L40AWA are functionally equivalent alternatives within the MicroLogix 1200 family. For applications requiring expanded memory or Ethernet connectivity, the MicroLogix 1400 series (1766-L32BWA) provides a direct upgrade path while maintaining program compatibility through RSLogix 500.

Q4: What pre-shipment testing is performed, and what does the 12-month warranty cover?Every 1762-L40BWA unit undergoes a full functional test prior to shipment, including I/O point verification, power supply check, and communication port validation. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Units are dispatched from verified in-stock inventory, supporting both planned procurement schedules and urgent replacement requirements.
