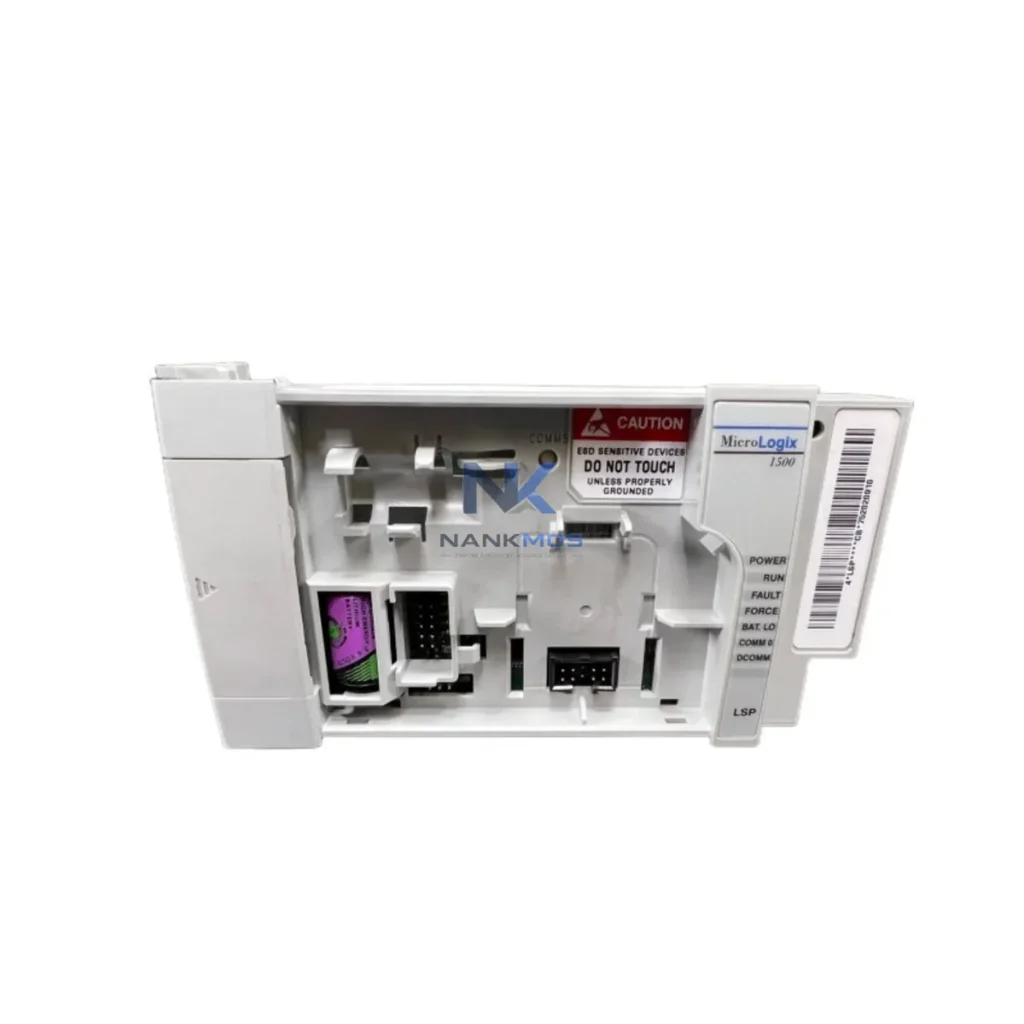

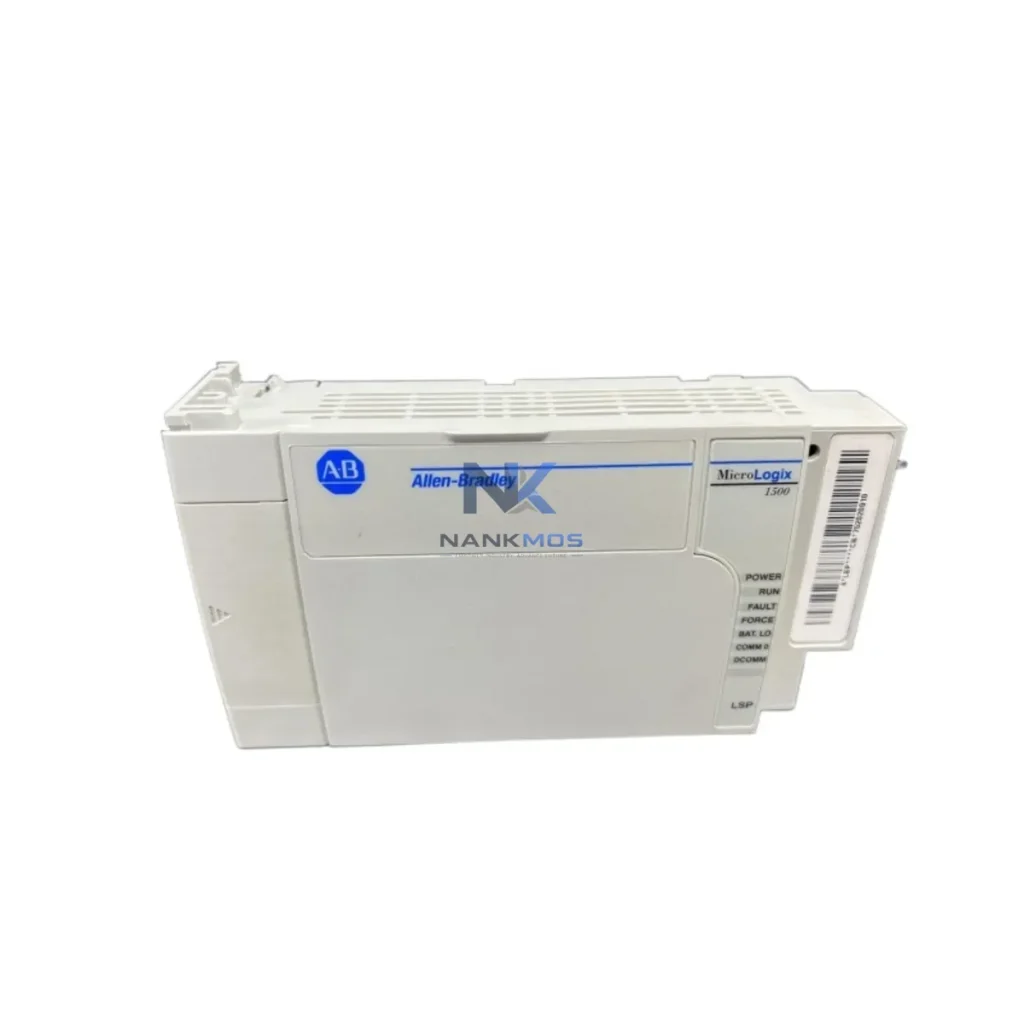

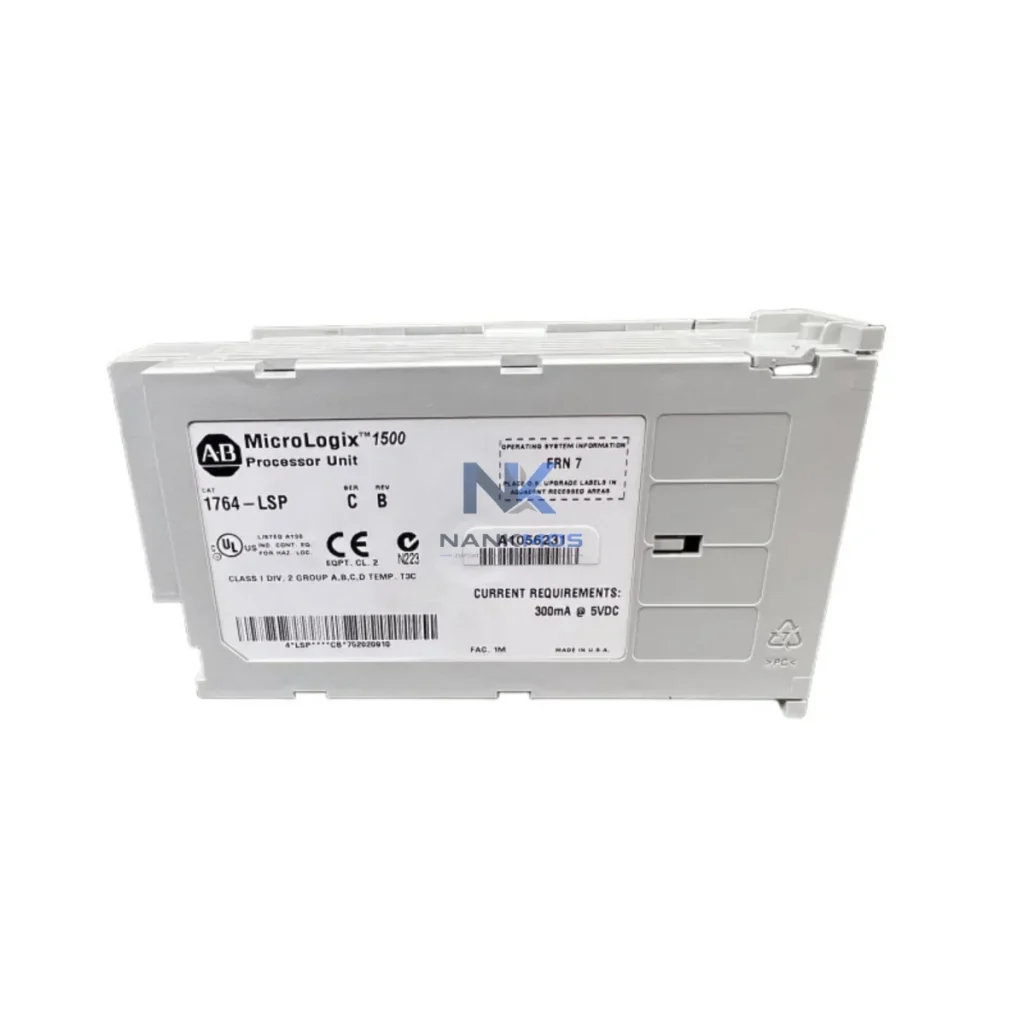

Allen-Bradley 1764-LSP PLC Processor Module

Product Details

1764-LSP Product Description

The Allen-Bradley 1764-LSP is the base processor module of the MicroLogix 1500 series — a compact, high-performance programmable logic controller engineered for energy-conscious industrial environments. Designed to deliver precise control over motor drives, I/O subsystems, and production-line sequencing, the 1764-LSP enables facilities to reduce unnecessary energy consumption, minimize thermal loading, and maintain consistent production throughput. Whether deployed in discrete manufacturing, material handling, or process automation, this processor provides the computational backbone for a leaner, more efficient production line.

In a modern smart production line, energy efficiency is not a single-device achievement — it is a system-level outcome. The Allen-Bradley 1764-LSP MicroLogix 1500 processor acts as the central coordinator for a network of energy-sensitive components. When paired with a PowerFlex 40 variable frequency drive, the 1764-LSP can issue speed-reference commands that match motor output precisely to load demand, eliminating the constant-speed energy waste common in fixed-speed motor applications. This drive coordination alone can reduce motor energy consumption by 20–50% in variable-torque applications such as fans, pumps, and conveyors.

The processor communicates with 1769-PA2 or 1764-24BWA power supply modules to maintain stable backplane voltage, ensuring that downstream I/O modules — including 1769-IQ16 digital input modules and 1769-OW16 relay output modules — operate within their rated power envelopes. By monitoring I/O load in real time, the 1764-LSP can implement load-shedding routines that deactivate non-critical outputs during peak demand windows, directly reducing facility energy costs.

For facilities integrating power quality monitoring, the 1764-LSP can interface with PowerMonitor 500 or PowerMonitor 1000 units via DF1 or DH-485 communication, pulling real-time kW, kVAR, and power factor data into the control logic. This allows the PLC to trigger corrective actions — such as capacitor bank switching or drive derating — before energy inefficiencies escalate into thermal events or equipment stress.

On the HMI side, a PanelView Component C600 or PanelView Plus 600 terminal connected via DH-485 gives operators a real-time window into energy consumption trends, drive status, and alarm states. Operators can adjust setpoints, review energy logs, and respond to load anomalies without interrupting the production cycle. When integrated with a FactoryTalk View SE SCADA platform, the 1764-LSP's data becomes part of a plant-wide energy dashboard, enabling energy managers to benchmark consumption across production cells and identify optimization opportunities.

The 1764-LSP also supports integration with 1764-MM3 memory expansion modules and communication adapters that extend its connectivity to DeviceNet networks, where smart sensors — including photoelectric presence sensors, inductive proximity switches, and temperature transmitters — feed real-time process data back to the processor. This closed-loop feedback enables the controller to adjust drive speeds, valve positions, and conveyor rates dynamically, keeping the production line operating at its most energy-efficient setpoint at all times.

Factory energy waste most commonly originates from three sources: motors running at full speed under partial load, equipment left energized during idle periods, and uncoordinated start sequences that create inrush current spikes. The Allen-Bradley 1764-LSP addresses all three through programmable control logic that is both flexible and deterministic.

By implementing time-based and event-driven sequencing, the 1764-LSP can automatically de-energize non-critical loads — lighting circuits, auxiliary conveyors, cooling fans — during scheduled downtime or between production batches. This idle-state energy management reduces standby consumption without requiring manual operator intervention, and the logic can be adjusted via RSLogix 500 to match evolving production schedules.

For motor-intensive applications, the 1764-LSP's coordination with PowerFlex series drives enables soft-start and ramp-down profiles that eliminate mechanical shock and reduce inrush current. Controlled acceleration and deceleration not only protect mechanical components — extending the service life of gearboxes, couplings, and bearings — but also reduce peak demand charges on the facility's electricity bill. Over a 12-month operating cycle, these savings can be substantial in high-cycle applications such as packaging lines, press feeders, and automated assembly stations.

Thermal load management is another key benefit. By preventing motors from running at full torque under light loads, the 1764-LSP reduces heat generation in drive cabinets and motor windings. Lower operating temperatures translate directly into longer insulation life, reduced cooling requirements, and fewer unplanned maintenance events. Predictive maintenance routines — triggered by hour-meter accumulators and fault-count registers within the 1764-LSP — can alert maintenance teams before thermal degradation leads to a production stoppage.

All units are sourced from verified supply channels, inspected upon receipt, and subjected to functional testing prior to shipment. In-stock availability supports fast deployment for both planned upgrades and emergency replacement scenarios. Each 1764-LSP is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Q1: How does the 1764-LSP contribute to measurable energy savings on a production line? The 1764-LSP enables demand-based motor control by coordinating with variable frequency drives such as the PowerFlex 40 or PowerFlex 400. By matching motor speed to actual load requirements rather than running at fixed speed, facilities typically achieve 20–50% reductions in motor energy consumption in variable-torque applications. Additional savings come from idle-state load shedding and coordinated soft-start sequencing that reduces peak demand charges.

Q2: Which systems and communication protocols is the 1764-LSP compatible with? The 1764-LSP is compatible with the full MicroLogix 1500 base unit family (1764-24BWA, 1764-28BXB) and supports DH-485 and DF1 Full/Half Duplex communication natively. With the 1764-MM3 expansion module, DeviceNet connectivity is available. It integrates with RSLogix 500 for programming, PanelView HMI terminals for operator interface, PowerMonitor units for energy metering, and FactoryTalk View SE for SCADA-level energy management.

Q3: Can the 1764-LSP replace an existing MicroLogix 1500 processor without reprogramming? In most cases, yes. The 1764-LSP is a direct base processor replacement for MicroLogix 1500 systems. Existing RSLogix 500 programs can be downloaded to the replacement unit without modification, provided the firmware revision is compatible. It is recommended to verify the firmware version and I/O configuration before installation. Our technical team can advise on compatibility for specific existing installations.

Q4: What does the 12-month warranty cover, and what is the typical lead time? The 12-month warranty covers manufacturing defects and operational failures under normal industrial operating conditions from the date of shipment. Units are in stock and typically ship within 1–3 business days. Each unit undergoes functional testing prior to dispatch to ensure it meets operational specifications. For urgent replacement requirements, expedited shipping options are available — contact us directly for lead-time confirmation.
