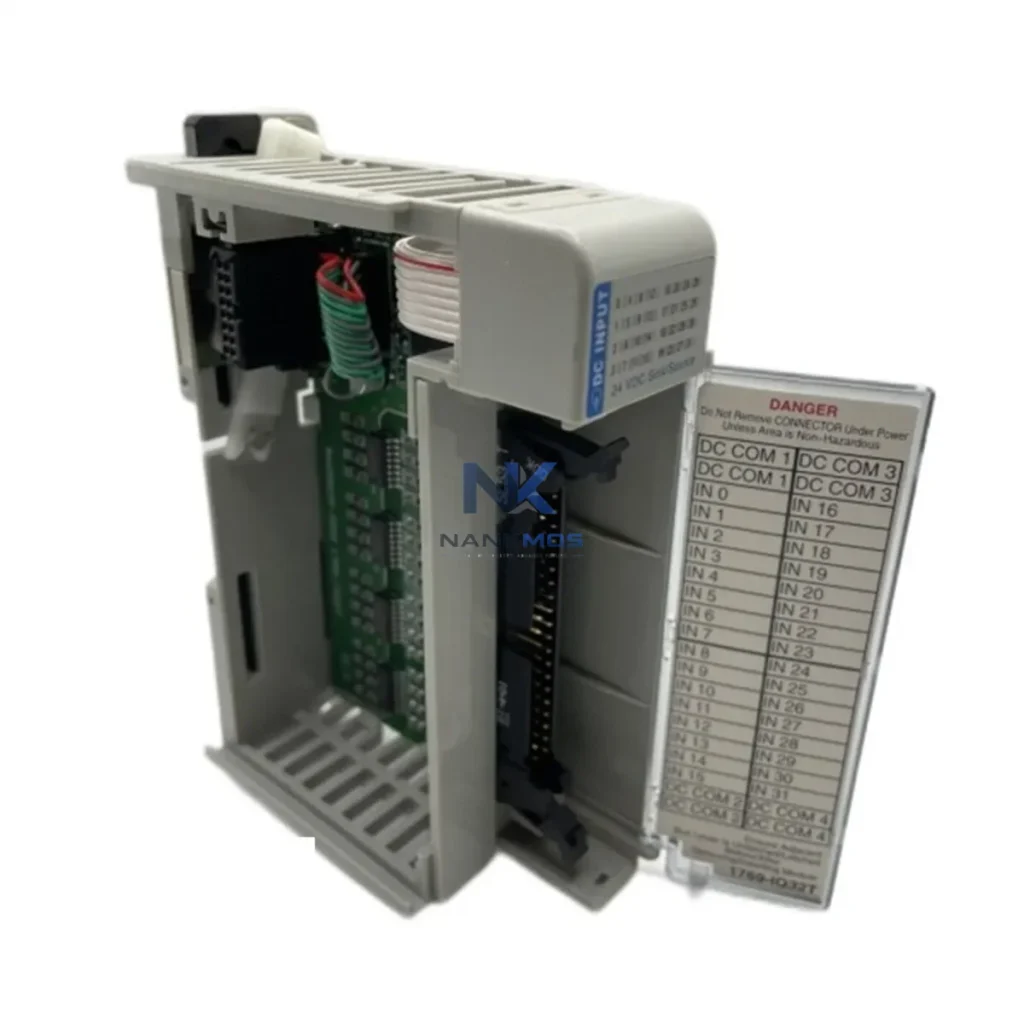

Allen-Bradley 1769-IQ32T Digital Input Module

Product Details

1769-IQ32T Product Description

The Allen-Bradley 1769-IQ32T is a 32-point, 24VDC sourcing/sinking digital input module engineered for CompactLogix and MicroLogix 1500 control platforms. Designed for high-density field signal acquisition in energy-intensive manufacturing environments, the 1769-IQ32T delivers deterministic input scanning, low self-consumption, and seamless integration with Rockwell Automation's energy-aware control architecture. Whether deployed in discrete manufacturing, process control, or utility-grade energy management systems, this module serves as a critical node in the real-time data loop that drives load reduction, equipment utilization, and production line efficiency.

In a fully integrated CompactLogix architecture, the 1769-IQ32T functions as the primary field-signal gateway between physical plant assets and the control layer. When paired with a 1769-L33ER CompactLogix 5370 L3 controller, the module's 32 input channels deliver real-time status data from motor starters, proximity sensors, pressure switches, and energy metering contacts — enabling the PLC to execute load-shedding logic and demand-response routines without additional polling cycles.

For drive-intensive lines, the 1769-IQ32T works alongside PowerFlex 525 and PowerFlex 755 variable frequency drives to close the feedback loop between motor run/fault status and the control program. Digital run-confirm and fault signals from the VFD are captured by the input module and processed by the controller to adjust drive speed references, preventing over-speed conditions and reducing reactive energy consumption during partial-load operation.

In servo-driven assembly cells, the module integrates with Kinetix 5500 servo drives via the CompactLogix backplane, capturing home-sensor, limit-switch, and part-present signals that synchronize servo motion profiles with upstream conveyor pacing — reducing unnecessary servo holding torque and associated heat generation.

Power quality monitoring is enhanced when the 1769-IQ32T is deployed alongside a PowerMonitor 5000 or 1408-EM3A-ENT energy meter. Demand-threshold alerts from the power monitor are wired as digital inputs to the 1769-IQ32T, allowing the CompactLogix controller to automatically shed non-critical loads when facility demand approaches contract limits — a direct mechanism for peak-demand charge avoidance.

On the I/O expansion side, the 1769-IQ32T coexists on the 1769 compact I/O bus with 1769-OB32 digital output modules and 1769-IF4 analog input modules, enabling mixed discrete-and-analog signal architectures without additional communication overhead. This tight bus integration reduces scan-cycle latency and ensures that energy-relevant field events are acted upon within the same controller scan.

For operator visibility, field status data aggregated by the 1769-IQ32T is surfaced through PanelView Plus 7 HMI terminals running FactoryTalk View ME, giving line operators real-time insight into equipment run states, fault conditions, and energy-consumption trends — supporting informed decisions on shift scheduling and equipment rotation to maximize utilization and minimize idle-state losses.

At the network layer, the CompactLogix controller hosting the 1769-IQ32T communicates upstream to FactoryTalk Historian and SCADA platforms via EtherNet/IP, enabling long-term trending of input-event frequency, equipment cycle counts, and load-profile data. This historian data feeds predictive maintenance models that identify abnormal cycling patterns — a leading indicator of mechanical wear — before unplanned downtime disrupts production throughput and energy efficiency targets.

Where legacy field devices require serial connectivity, a 1769-ASCII or 1769-SM2 communication module on the same compact I/O bus bridges older instrumentation into the unified control network, ensuring that energy data from all field assets — regardless of protocol — is visible to the control and energy management layers.

The 1769-IQ32T's configurable input filter times (0–32ms) are a practical energy-optimization tool often overlooked in standard deployments. By tuning filter times to match the mechanical response characteristics of each connected device, engineers eliminate spurious input transitions that would otherwise trigger unnecessary actuator cycles — reducing compressed-air consumption, hydraulic pump run-time, and conveyor start-stop frequency. On a high-cycle assembly line, this alone can reduce actuator energy consumption by measurable percentages over a production shift.

The module's low backplane power draw (≤4.0W) contributes to reduced panel thermal load. In control cabinets where multiple I/O modules are installed, aggregate heat generation directly drives air-conditioning runtime and cooling energy costs. Selecting low-consumption modules like the 1769-IQ32T across a multi-rack installation reduces the cooling burden and extends the service life of thermal management equipment.

From a production-line pacing perspective, the 1769-IQ32T enables event-driven control strategies that replace time-based polling with state-change interrupts. When a part-present sensor or conveyor-arrival signal changes state, the CompactLogix controller responds immediately rather than waiting for the next scheduled scan — tightening line takt time, reducing buffer inventory requirements, and improving overall equipment effectiveness (OEE).

For maintenance teams, the module's diagnostic transparency — accessible via Studio 5000 Logix Designer and FactoryTalk Diagnostics — provides point-level input status, wire-off detection (on compatible sensor types), and module health data. Proactive identification of degraded field devices prevents the energy waste associated with stuck-on inputs that hold actuators energized beyond their intended duty cycle.

Every 1769-IQ32T unit supplied by NANKMOS is sourced from verified supply channels, undergoes pre-shipment functional testing, and is backed by a 12-month warranty. In-stock availability supports rapid deployment for both planned capital projects and emergency replacement scenarios, minimizing production downtime and the associated energy and throughput losses of unscheduled stoppages.

Q1: How does the 1769-IQ32T contribute to measurable energy savings on a production line? By enabling event-driven control logic in the CompactLogix controller, the module reduces unnecessary actuator cycling, compressor run-time, and conveyor idle energy. Configurable input filters eliminate spurious transitions that would otherwise trigger wasteful mechanical responses. When integrated with a PowerMonitor 5000 for demand monitoring, the system can execute automated load-shedding routines that directly reduce peak-demand energy charges.

Q2: Is the 1769-IQ32T compatible with my existing CompactLogix or MicroLogix system? Yes. The 1769-IQ32T is fully compatible with the 1769 compact I/O bus used by CompactLogix 5370 (L1, L2, L3) controllers and MicroLogix 1500 LRP processors. It is configured via Studio 5000 Logix Designer (CompactLogix) or RSLogix 500 (MicroLogix 1500) and supports standard Add-On Instructions for rapid integration into existing programs.

Q3: Can this module replace a faulty 1769-IQ32 or 1769-IQ32T in an existing installation? Yes. The 1769-IQ32T is a direct form-fit-function replacement for the 1769-IQ32 and earlier 1769-IQ32T revisions. No wiring changes are required for standard 24VDC sourcing/sinking field devices. Configuration is restored automatically when the replacement module is inserted and the controller program is downloaded, minimizing replacement time and production interruption.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted? All 1769-IQ32T units supplied by NANKMOS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification including input-point continuity checks, backplane communication validation, and visual inspection for physical integrity. Units that do not pass testing are not shipped. Warranty claims are processed directly through NANKMOS with replacement or refund options available.
