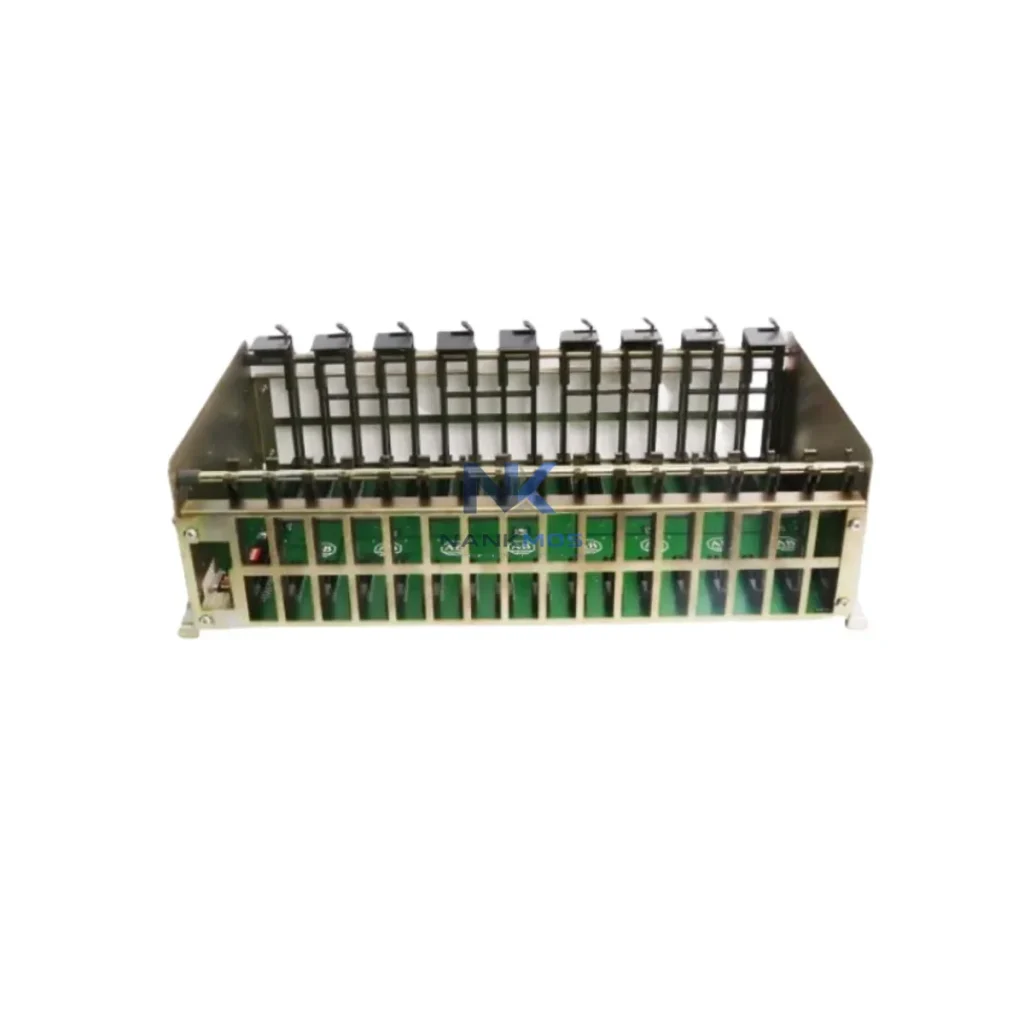

Allen-Bradley 1771-A4B PLC I/O Chassis

Product Details

1771-A4B Product Description

The Allen-Bradley 1771-A4B is a 16-slot I/O chassis engineered for the Rockwell Automation PLC-5 platform, serving as the structural and electrical backbone of modular industrial control architectures. Designed to accommodate the full range of 1771-series I/O modules, the 1771-A4B provides the physical mounting, backplane power distribution, and inter-module communication pathways that define system integrity across demanding manufacturing and process environments. Its role within a complete automation architecture extends far beyond passive mounting — the chassis governs slot addressing, module sequencing, and backplane signal routing that directly influence scan cycle performance, I/O response latency, and overall system determinism.

In a layered control architecture, the 1771-A4B occupies the I/O layer, interfacing upward to the PLC-5 processor module and downward to field devices including sensors, actuators, drives, and instrumentation. The chassis backplane supports both local and remote I/O configurations, enabling engineers to distribute I/O across large plant footprints while maintaining centralised processor control. When deployed alongside the 1771-P4S or 1771-P7 power supply modules, the chassis delivers stable, regulated backplane voltage to all installed I/O cards, ensuring consistent signal conditioning and minimising noise-induced faults in high-density wiring environments.

System architects integrating the 1771-A4B into a PLC-5 platform benefit from its compatibility with the full 1771 I/O module library, including digital input modules such as the 1771-IB and 1771-IA, digital output modules such as the 1771-OB and 1771-OW, and analogue modules including the 1771-IF and 1771-OF series. This breadth of module compatibility allows a single chassis to serve mixed-signal applications — combining discrete control, analogue process measurement, and specialised function modules within one unified backplane structure. For applications requiring high-channel-density I/O, the 16-slot configuration of the 1771-A4B maximises module population per chassis, reducing the number of chassis required in a rack assembly and simplifying inter-chassis cabling.

Communication architecture integration is a critical consideration when deploying the 1771-A4B. The chassis supports connection of the PLC-5 processor to Data Highway Plus (DH+) networks via the processor's built-in port, enabling peer-to-peer messaging, remote programming, and distributed control across multi-node DH+ segments. For facilities requiring Ethernet connectivity, the 1756-ENBT or 1761-NET-ENI bridge modules can be incorporated into the broader control panel design to extend network reach. In remote I/O configurations, the 1771-ASB remote I/O adapter module installed in the chassis allows the rack to function as a remote I/O drop, communicating with the host PLC-5 processor over the 1771 remote I/O link at scan rates appropriate for time-critical process loops.

Redundancy design considerations for the 1771-A4B focus on chassis-level power redundancy and I/O module redundancy strategies. Dual power supply configurations using paired 1771-P4S units can be implemented to eliminate single points of failure at the backplane power level, a requirement in continuous process industries such as petrochemical refining, water treatment, and power generation. For critical output channels, redundant output modules with external relay logic or solid-state switching provide failsafe operation during module replacement or fault conditions. The chassis's robust steel construction and conformal coating options on installed modules support operation in environments with elevated humidity, particulate contamination, and vibration — conditions common in mining, metallurgy, and heavy manufacturing.

Engineering commissioning of the 1771-A4B involves slot addressing configuration via the chassis address plug, module keying verification, and backplane continuity testing prior to energisation. RSLogix 5 programming software provides the diagnostic environment for I/O tree configuration, module status monitoring, and fault code interpretation during initial system startup. Maintenance engineers benefit from the chassis's modular design, which allows individual I/O modules to be replaced without disturbing adjacent slots, minimising process downtime during corrective maintenance. Spare module inventory management is simplified by the standardised 1771 form factor, which is consistent across the entire 1771 I/O module family.

Long-term maintenance efficiency is a defining advantage of the 1771-A4B in installed base applications. The chassis's passive backplane design — with no active components subject to wear — contributes to exceptional service life in continuous operation environments. Facilities maintaining legacy PLC-5 systems benefit from the availability of tested, warranted 1771-A4B chassis units as direct replacements, avoiding the engineering cost and process risk associated with full control system migrations. NANKMOS maintains verified stock of the 1771-A4B and associated 1771-series components, with pre-shipment functional testing and a 12-Month Warranty covering all units supplied.

The 1771-A4B chassis functions as the integration hub for a complete PLC-5 automation platform. A typical system architecture built around this chassis incorporates the 1785-L40B PLC-5/40 processor as the primary control engine, managing scan cycles, ladder logic execution, and network communications. Backplane power is supplied by the 1771-P4S power supply, which delivers regulated 5 VDC and 24 VDC rails to all installed modules. Digital I/O capacity is expanded using 1771-IB input modules and 1771-OB output modules, providing 16-channel discrete signal handling per slot for interfacing with field sensors, solenoids, and motor starters.

Analogue process measurement is handled by 1771-IF analogue input modules, which accept 4–20 mA and 0–10 VDC signals from pressure transmitters, flow meters, and temperature sensors. Analogue output control is provided by 1771-OF analogue output modules, driving control valves, variable speed drives, and positioners. For applications requiring remote I/O expansion beyond the local chassis, the 1771-ASB remote I/O adapter enables additional 1771 chassis to be connected as remote drops over the 1771 remote I/O link, extending the control architecture across large plant areas without additional processor hardware.

HMI integration is achieved through PanelView 550 or PanelView 900 terminals connected to the DH+ network, providing operator interface capability for process visualisation, alarm management, and parameter adjustment. Network-level integration with supervisory systems is facilitated by 1761-NET-ENI Ethernet interface modules, bridging the DH+ network to Ethernet/IP for SCADA connectivity. Terminal block modules and 1492-series wiring systems complete the field wiring interface, providing organised, labelled termination points for all I/O field cables within the control cabinet.

The Allen-Bradley 1771-A4B is deployed across a broad spectrum of industrial sectors where PLC-5 platform continuity, modular I/O density, and long-term parts availability are operational priorities.

In manufacturing and assembly automation, the 1771-A4B chassis supports high-density discrete I/O configurations for conveyor control, robotic cell interfacing, and machine sequencing. The 16-slot capacity accommodates the full range of digital and analogue modules required for complex multi-axis production lines. In power generation and utilities, the chassis is used in turbine control panels, switchgear automation, and substation protection systems where PLC-5 platforms remain the installed standard and system replacement is not operationally feasible.

In petrochemical and refining applications, the 1771-A4B supports continuous process control loops for reactor management, distillation column control, and pipeline monitoring. The chassis's compatibility with intrinsically safe I/O modules and its robust backplane design make it suitable for Zone 2 classified areas when installed in appropriate enclosures. Water and wastewater treatment facilities rely on the 1771-A4B for pump station control, chemical dosing automation, and SCADA-integrated process monitoring, where the PLC-5 platform's proven reliability and the availability of replacement chassis units are critical to uninterrupted operations.

In mining and metallurgy, the chassis is integrated into ore processing control systems, conveyor drive management, and smelter automation panels. The modular I/O architecture allows maintenance teams to replace individual modules during planned shutdowns without disturbing the broader control system. Packaging and material handling lines utilise the 1771-A4B for high-speed discrete I/O applications, coordinating servo drives, vision systems, and reject mechanisms within a unified PLC-5 control framework.

Q1: Is the Allen-Bradley 1771-A4B compatible with all PLC-5 processor models, and can it be used in both local and remote I/O configurations? The 1771-A4B is compatible with the full range of PLC-5 processors, including the 1785-L20B, 1785-L40B, 1785-L60B, and 1785-L80B. In a local I/O configuration, the PLC-5 processor is installed directly in the chassis, with the remaining slots populated by I/O modules. In a remote I/O configuration, a 1771-ASB remote I/O adapter is installed in the chassis, connecting it to the host PLC-5 processor over the 1771 remote I/O link. Both configurations are fully supported by the 1771-A4B backplane architecture.

Q2: What power supply options are compatible with the 1771-A4B, and how is backplane power redundancy achieved? The 1771-A4B is compatible with the 1771-P4S, 1771-P7, and 1771-P4R power supply modules. The 1771-P4R is specifically designed for redundant power supply configurations, allowing two power supplies to share the backplane load and provide automatic failover in the event of a single supply failure. This redundancy configuration is recommended for continuous process applications where unplanned downtime carries significant operational or safety consequences. NANKMOS supplies both standard and redundant power supply variants with 12-Month Warranty coverage.

Q3: How does NANKMOS ensure the quality and reliability of 1771-A4B units, and what warranty and support terms apply? All 1771-A4B chassis units supplied by NANKMOS undergo pre-shipment functional testing, including backplane continuity verification, slot integrity checks, and power rail validation. Each unit is supplied with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. NANKMOS maintains verified stock of the 1771-A4B and associated 1771-series components to support rapid dispatch for maintenance and emergency replacement requirements. Technical support for system integration, slot addressing configuration, and compatibility verification is available through our engineering team.
