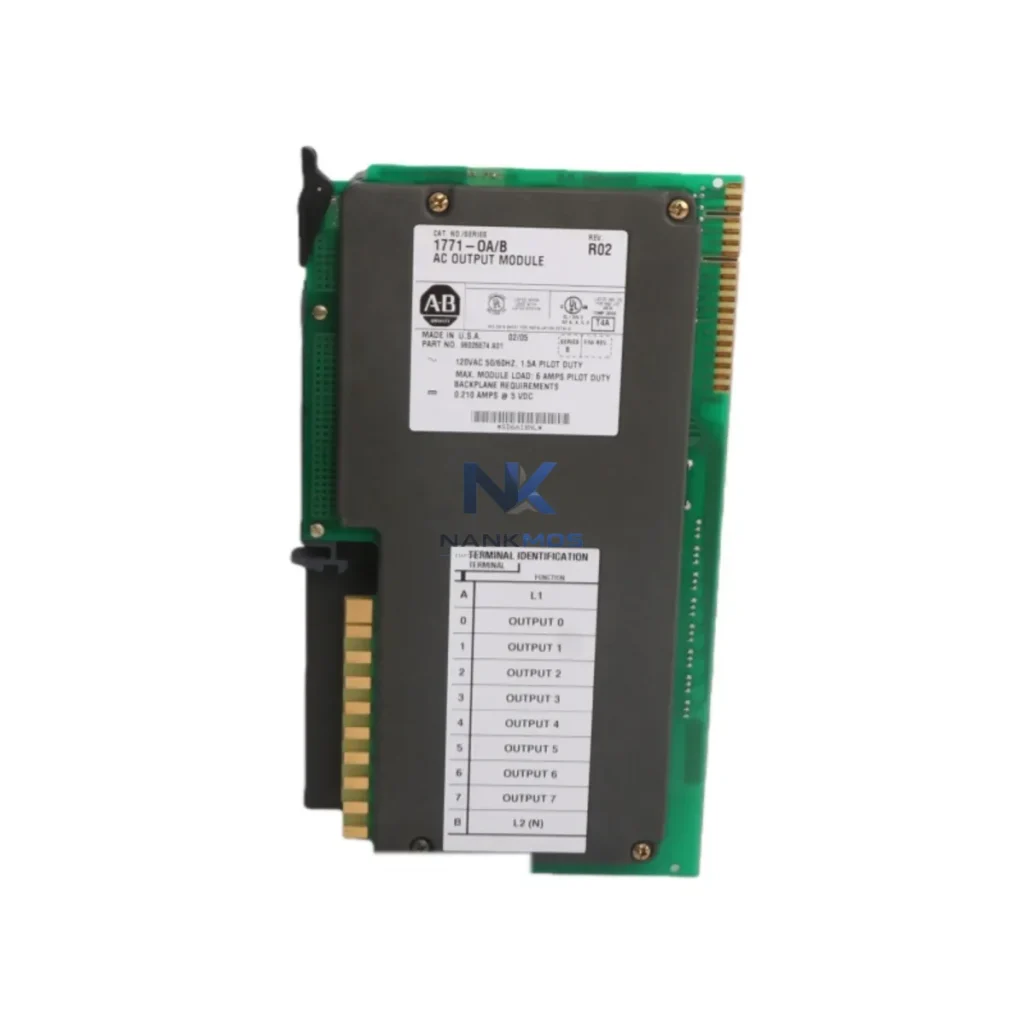

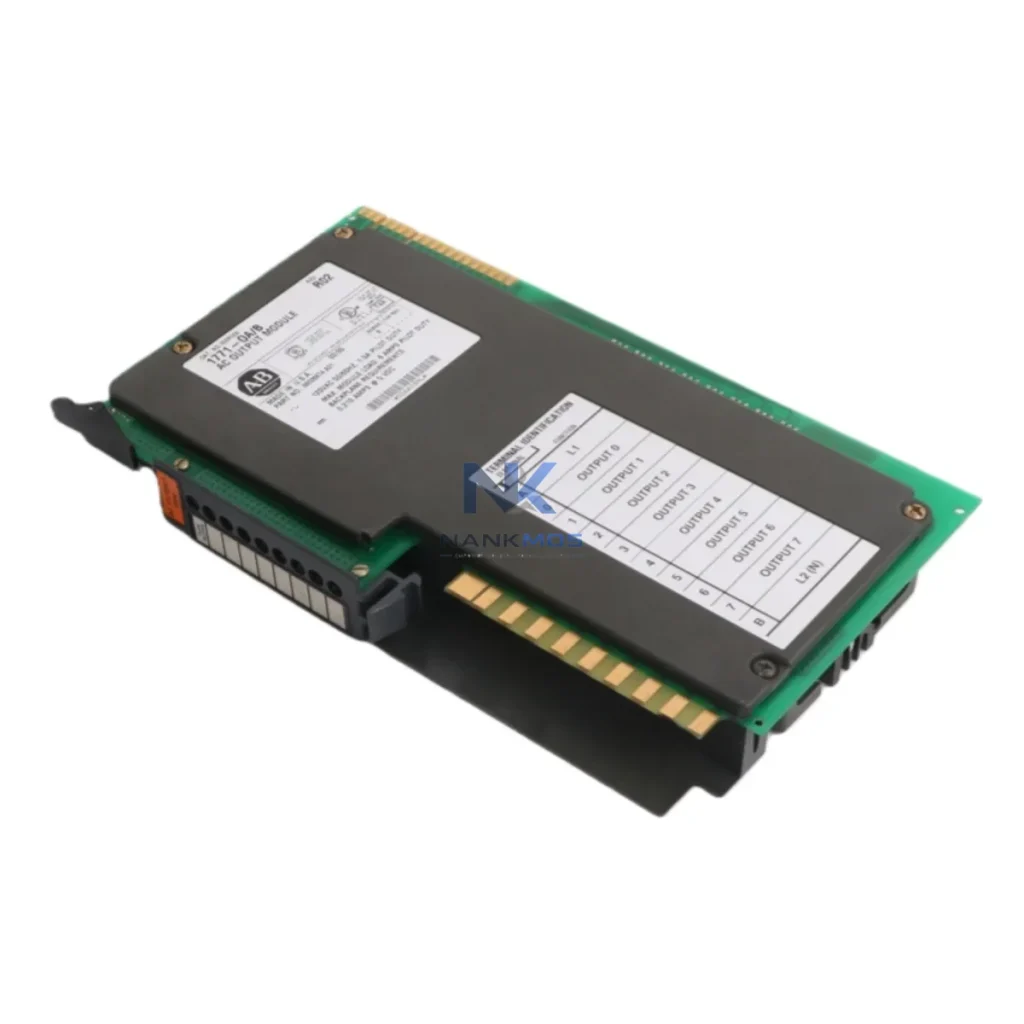

Allen-Bradley 1771-OA PLC AC Output Module

Product Details

1771-OA Product Description

The Allen-Bradley 1771-OA is a discrete AC output module engineered for seamless integration within the Series 1771 modular I/O platform. Designed to operate within Rockwell Automation's layered control architecture, this module delivers reliable 120V AC output switching across demanding industrial environments. Its role within the control system extends far beyond simple signal switching — the 1771-OA serves as a critical execution-layer component that bridges the logic decisions of the PLC processor with real-world actuators, motor starters, solenoids, and control relays on the plant floor.

In a complete automation architecture, the 1771-OA occupies the output layer of the I/O chassis, receiving discrete commands from the processor module — typically a 1771-P4 or 1771-P7 power supply paired with a PLC-5 family processor such as the 1785-L40B or 1785-L80B. The module slots directly into the 1771-A1B, 1771-A2B, or 1771-A4B I/O chassis, maintaining full backplane compatibility and ensuring consistent signal integrity across all installed I/O modules. This modular chassis architecture allows engineers to mix and match discrete, analog, and specialty modules within the same rack, enabling scalable system design without compromising control density or wiring discipline.

From a signal flow perspective, the 1771-OA receives output data words from the processor over the 1771 backplane, converting digital logic states into switched 120V AC signals at its output terminals. Each output point is individually fused and optically isolated, providing a high degree of protection against field-side voltage transients and ground faults. This isolation architecture is essential in environments where inductive loads — such as motor contactors, pneumatic valve solenoids, and heating elements — generate significant electrical noise that could otherwise corrupt backplane communications or damage adjacent I/O modules.

System architects integrating the 1771-OA into a broader control platform will typically pair it with complementary modules to achieve full I/O coverage. On the input side, the 1771-IA AC input module provides the corresponding discrete input capability, while the 1771-IB and 1771-OB modules extend the architecture into 24V DC control circuits for sensor-level integration. For analog process control loops, the 1771-OFE analog output module and 1771-IFE analog input module can be installed in adjacent slots within the same chassis, allowing the PLC-5 processor to manage both discrete and continuous control strategies from a unified backplane.

Communication stability is maintained through the 1771 backplane protocol, which supports deterministic scan-cycle timing critical for synchronized machine control. In larger distributed architectures, the 1771-ASB remote I/O adapter module extends the 1771 chassis to remote locations over Allen-Bradley's Remote I/O (RIO) network, allowing the 1771-OA and its companion modules to be deployed in field enclosures while maintaining centralized processor control. This distributed topology is widely used in automotive assembly lines, packaging machinery, and process plant control rooms where physical separation between the control room and field devices is required.

For redundancy-critical applications, the 1771-OA can be deployed in dual-chassis configurations where a standby processor and I/O chassis mirror the primary system. Changeover logic managed by the 1785-CHBM chassis interconnect module ensures bumpless transfer between primary and backup I/O, maintaining output states during processor switchover events. This redundancy architecture is particularly valued in continuous process industries such as petrochemical refining, water treatment, and power generation, where unplanned output interruptions carry significant operational and safety consequences.

Maintenance engineers benefit from the 1771-OA's front-panel LED status indicators, which provide point-by-point output state visibility without requiring a programming terminal connection. This diagnostic transparency accelerates fault isolation during production troubleshooting, reducing mean time to repair (MTTR) and minimizing unplanned downtime. When used alongside RSLogix 5 programming software and a 1784-KTX or 1784-PCMK communication card, technicians can perform online monitoring of output forcing, tag cross-referencing, and I/O fault diagnostics in real time.

NANKMOS maintains verified stock of the 1771-OA with full pre-shipment functional testing, ensuring each unit meets original Allen-Bradley performance specifications before dispatch. All units are covered by a 12-Month Warranty and supported by Contextual Integration guidance to assist engineers with rack configuration, module addressing, and system commissioning. Global shipping is available with lead times confirmed at order placement.

The 1771-OA achieves its full operational value when deployed as part of a cohesive automation platform rather than as a standalone component. A typical Series 1771 control cabinet integrates the 1771-OA alongside the 1785-L40B PLC-5 processor, which executes the ladder logic program and manages the I/O scan cycle. The 1771-P4 power supply provides regulated backplane power to all installed modules, while the 1771-A4B four-slot chassis or 1771-A2B two-slot chassis provides the physical mounting and backplane interconnect infrastructure.

On the input side, the 1771-IA AC input module complements the 1771-OA by capturing discrete AC signals from field devices such as limit switches, pressure switches, and proximity sensors, completing the discrete I/O loop. For DC control circuits, the 1771-IB DC input module and 1771-OB DC output module extend the system's sensing and actuation range into 24V DC field devices, enabling integration with modern sensor technologies including inductive proximity sensors and photoelectric detectors.

Process control loops requiring analog signal handling are served by the 1771-OFE analog output module and 1771-IFE analog input module, which allow the PLC-5 processor to manage 4–20mA and 0–10V process signals within the same chassis as the 1771-OA discrete outputs. For distributed I/O architectures, the 1771-ASB remote I/O adapter extends the 1771 platform to remote chassis locations over the RIO network, maintaining centralized processor control while distributing I/O closer to field devices. HMI integration is typically achieved through PanelView terminals communicating over DH+ or RIO networks, providing operators with real-time output status visualization and manual override capability.

The 1771-OA is deployed across a broad spectrum of industrial sectors where 120V AC output switching within a PLC-5 architecture remains the established control standard. In automotive manufacturing, the module controls welding gun solenoids, conveyor drive contactors, and fixture clamping cylinders within high-cycle-rate assembly line control systems. In food and beverage processing, the 1771-OA switches AC-powered agitator motors, filling valve actuators, and conveyor indexing drives within hygienic process environments where reliable output switching is essential for batch consistency.

In the power generation and utilities sector, the 1771-OA is used within substation control panels and generator management systems to switch AC control relays, alarm annunciators, and motor-operated valve actuators. Water and wastewater treatment facilities rely on the module for pump motor starter control, chemical dosing valve actuation, and process isolation valve switching within SCADA-integrated PLC-5 control systems. In mining and mineral processing, the 1771-OA controls conveyor belt drive starters, crusher motor contactors, and process isolation gates within harsh-environment control enclosures rated for elevated dust and vibration exposure.

Petrochemical and refining applications utilize the 1771-OA within distributed control architectures where the PLC-5 platform manages compressor control, heat exchanger bypass valve actuation, and emergency shutdown relay switching. Packaging and palletizing lines deploy the module to control case erector solenoids, label applicator actuators, and palletizer lift motor starters within high-throughput production environments. In each of these applications, the 1771-OA's optical isolation, individual point fusing, and LED diagnostic indicators contribute directly to system reliability, fault transparency, and maintenance efficiency.

Q1: Is the 1771-OA compatible with all PLC-5 processor variants and 1771 chassis configurations?The 1771-OA is compatible with all PLC-5 family processors including the 1785-L20B, 1785-L40B, and 1785-L80B, and installs in any standard 1771 I/O chassis including the 1771-A1B, 1771-A2B, and 1771-A4B. Module addressing is configured via the backplane address switches on the module face, and the processor I/O configuration must be updated in RSLogix 5 to reflect the module's chassis slot assignment. NANKMOS provides Contextual Integration support to assist with rack configuration and addressing verification during commissioning.

Q2: Can the 1771-OA be used in a redundant PLC-5 architecture, and what additional components are required?Yes, the 1771-OA supports deployment in redundant PLC-5 architectures using the 1785-CHBM chassis interconnect module, which manages synchronization between primary and backup processor chassis. In a redundant configuration, identical 1771-OA modules are installed in both the primary and standby I/O chassis, with the 1785-CHBM coordinating output state transfer during processor switchover. This architecture is recommended for continuous process applications where output interruption during processor faults is not acceptable.

Q3: What warranty and supply assurance does NANKMOS provide for the 1771-OA?All 1771-OA units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures. Each unit undergoes pre-shipment functional testing to verify output switching performance, isolation integrity, and backplane communication compatibility before dispatch. NANKMOS maintains verified inventory of the 1771-OA to support both immediate project requirements and long-term maintenance stock programs, with global shipping available and lead times confirmed at order placement. For technical support, contact [email protected] or +86 18359268345.
