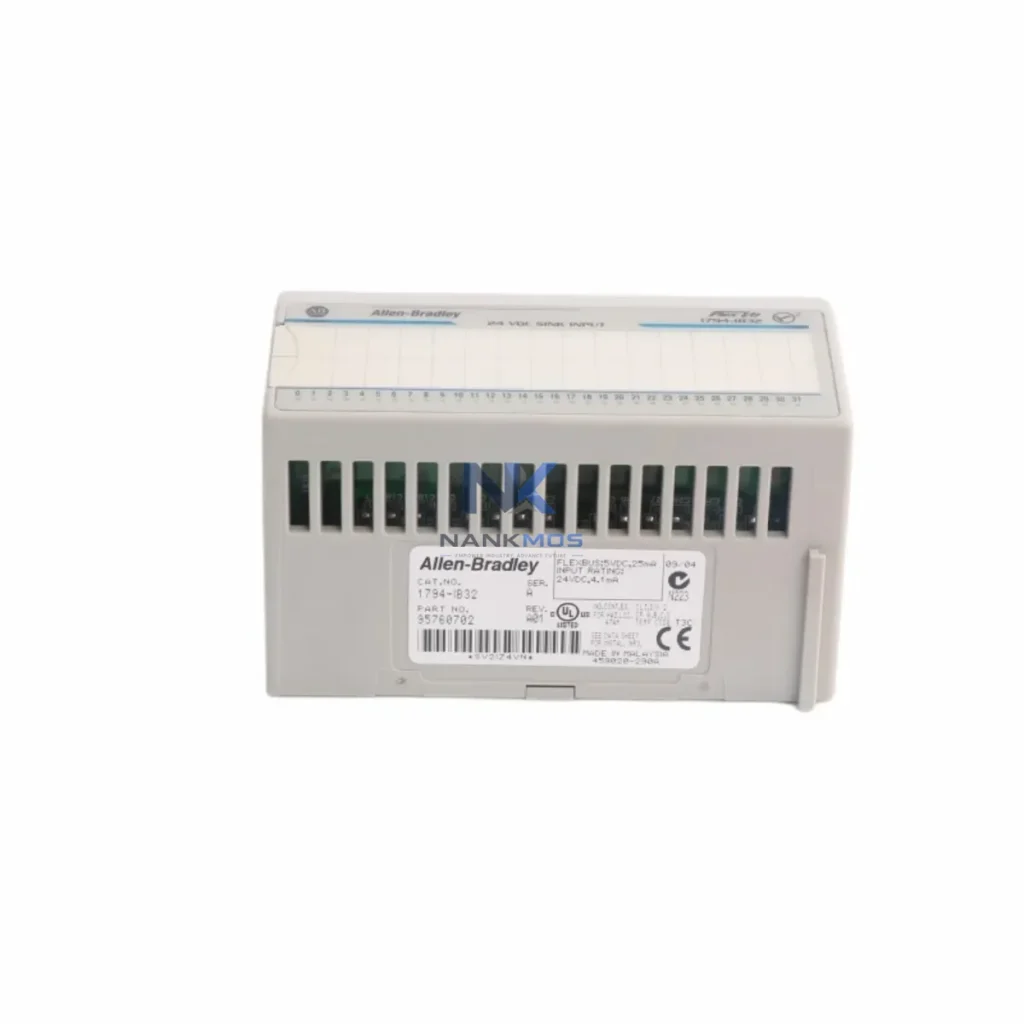

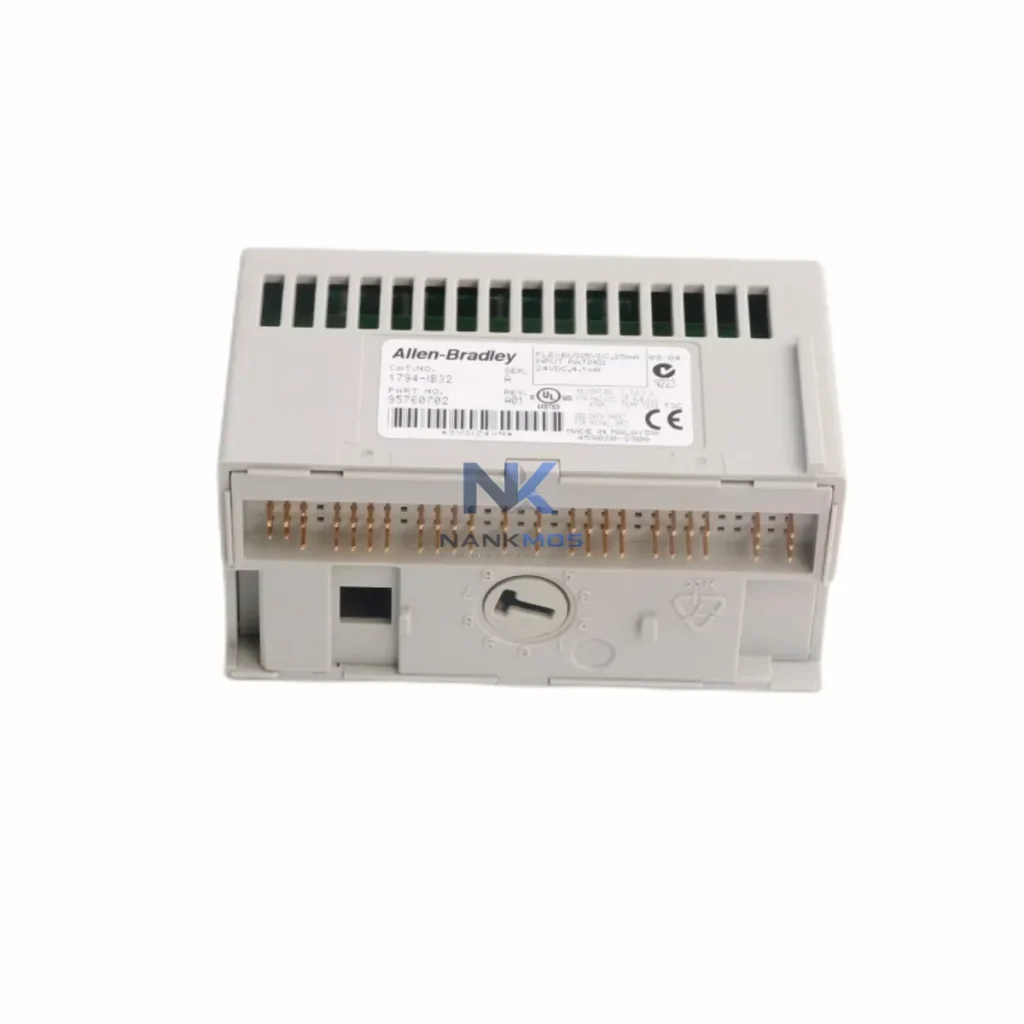

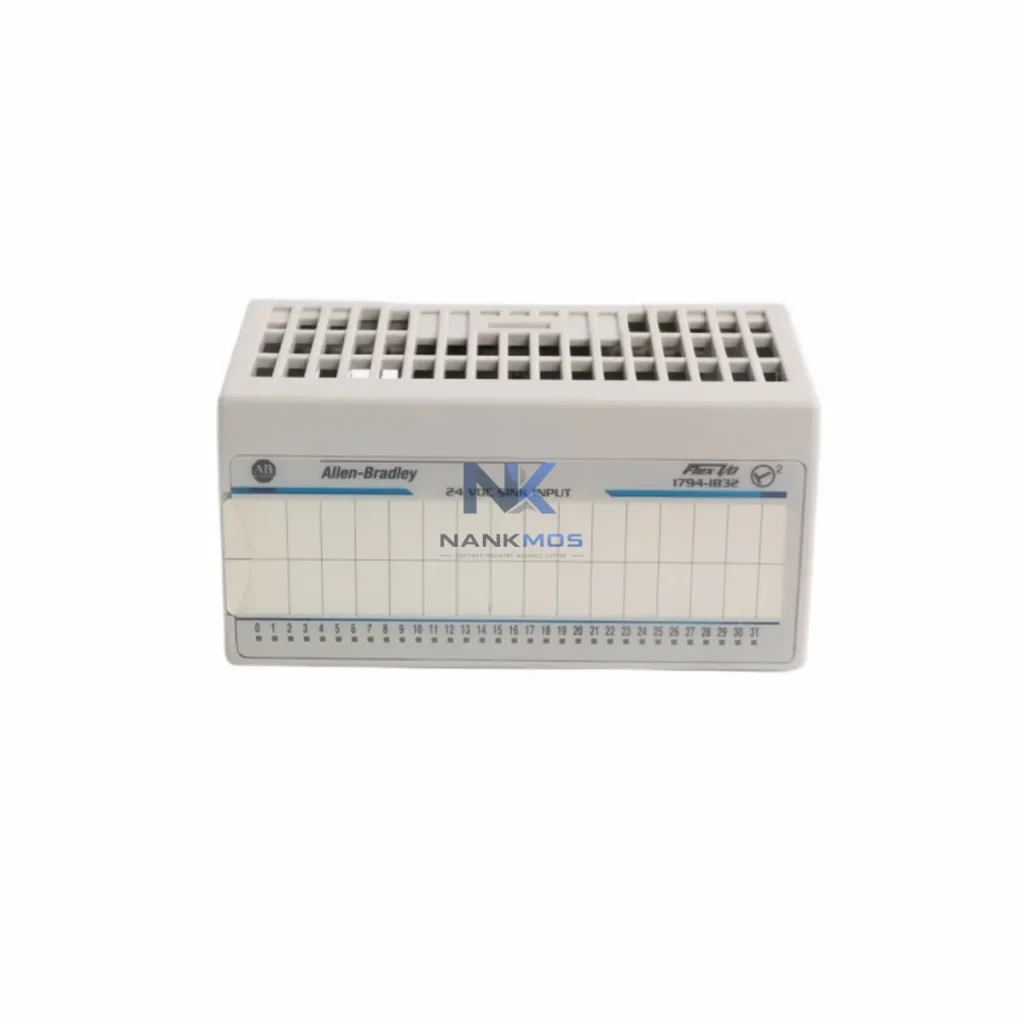

Allen-Bradley 1794-IB32 Digital Input Module

Product Details

1794-IB32 Product Description

The Allen-Bradley 1794-IB32 is a 32-point, 24VDC FLEX I/O digital input module engineered for high-density signal acquisition in energy-conscious industrial environments. As a core component of the Rockwell Automation FLEX I/O platform, the 1794-IB32 delivers deterministic input scanning that enables precise load management, motor state monitoring, and production line synchronization — all critical factors in reducing unnecessary energy consumption across automated facilities.

In modern smart production lines, every millisecond of input latency translates into wasted motion, extended cycle times, and elevated energy draw. The 1794-IB32 addresses this by providing fast, reliable 24VDC digital input acquisition that feeds real-time status data directly to the ControlLogix or CompactLogix PLC backplane via the 1794-AENT or 1794-ACNR15 adapter. This tight integration allows the PLC to make immediate control decisions — shutting down idle conveyor drives, adjusting PowerFlex 525 or PowerFlex 755 variable frequency drive (VFD) output, or triggering energy-saving standby modes on servo axes — based on accurate field-level input signals.

When paired with a PowerFlex 755 drive and a 1756-PM16 power monitor module, the 1794-IB32 becomes part of a closed-loop energy management architecture. Input signals from proximity sensors, limit switches, and machine guards are captured by the 1794-IB32 and processed by the ControlLogix L7x controller, which then commands the PowerFlex drive to ramp down motor speed during low-demand intervals. This dynamic load management strategy can significantly reduce peak demand charges and lower overall kWh consumption per production shift.

The module's 32-point capacity reduces the number of I/O adapters required per panel, directly lowering panel heat load and the energy burden on cooling systems. Fewer adapters also mean reduced backplane communication overhead, allowing the 1794-AENT Ethernet adapter to maintain tighter scan cycle consistency — a prerequisite for stable PID loop execution in temperature control, pressure regulation, and flow management applications where energy waste often originates from oscillating control responses.

The 1794-IB32 operates as the field-sensing foundation of a power-aware automation strategy. In a typical motor control center (MCC) application, the module captures run/stop feedback from motor starters and feeds this data to a ControlLogix L73 or L75 controller. The PLC cross-references these inputs against production schedule data from the SCADA system — such as Rockwell's FactoryTalk View SE — to determine whether a motor should remain energized or transition to a low-power standby state.

For servo-driven axes, the 1794-IB32 provides the discrete position and safety interlock signals that the Kinetix 5700 servo drive requires before enabling or disabling axis motion. By ensuring that servo drives only energize when valid input conditions are confirmed, the module prevents unnecessary holding torque — a common source of thermal loss in precision assembly lines. This coordination between the 1794-IB32, the Kinetix 5700, and the 1756-L85E ControlLogix controller forms a tightly integrated energy-control loop.

In conveyor and material handling systems, the 1794-IB32 works alongside 1794-OB32 digital output modules and 1794-IE8 analog input modules to create a balanced I/O architecture. Photoelectric sensors and inductive proximity switches feed the 1794-IB32, which signals the PLC to modulate PowerFlex 525 drive speed based on actual product flow — eliminating the energy waste of running conveyors at full speed during low-throughput periods. The 1734 POINT I/O modules distributed along the line complement the FLEX I/O backbone by handling localized I/O at individual stations, reducing long cable runs and associated signal degradation.

For energy monitoring integration, the 1794-IB32 status data can be correlated with measurements from the 1410-EM-3P energy monitoring module or third-party power analyzers connected via the EtherNet/IP network. This allows the FactoryTalk Energy Manager or a custom ControlLogix Add-On Instruction (AOI) to calculate per-machine energy intensity — kWh per unit produced — and trigger automated load-shedding routines when consumption exceeds defined thresholds.

Deploying the 1794-IB32 as part of a structured energy optimization program delivers measurable improvements across four key dimensions: reduced idle-state energy consumption, lower thermal load on control panels, improved production line beat time consistency, and extended equipment service life through reduced thermal cycling.

Idle-state energy reduction is achieved by using the 1794-IB32's input signals to confirm that downstream equipment — conveyors, pumps, fans, and compressors — has reached a safe stop condition before the PLC commands the associated PowerFlex VFD to enter sleep mode. This prevents the common scenario where drives continue to run at minimum speed while waiting for upstream product flow, consuming energy without contributing to throughput.

Panel thermal load is reduced because the 1794-IB32's low per-point power consumption (8 mA @ 24VDC) and high integration density mean fewer modules, fewer adapters, and less heat generated per I/O point compared to legacy discrete wiring approaches. Lower panel temperatures extend the service life of contactors, relays, and power supplies, reducing unplanned downtime and the energy cost of emergency maintenance.

Production line beat time consistency improves because the 1794-IB32 provides deterministic input scanning synchronized to the ControlLogix controller's RPI (Requested Packet Interval). Consistent scan times eliminate the input jitter that causes PLC programs to issue premature or delayed motor start/stop commands — a subtle but significant source of energy waste in high-cycle applications such as packaging, stamping, and injection molding.

Predictive maintenance integration is supported by logging 1794-IB32 input transition counts and comparing them against baseline values stored in the ControlLogix controller tags. Abnormal transition rates — indicating sensor drift, mechanical wear, or electrical noise — can be flagged by the FactoryTalk Historian or a custom SCADA alarm, allowing maintenance teams to address issues before they cause energy-wasting process upsets or unplanned stops.

All units are sourced from authorized distribution channels, verified against factory specifications, and subjected to functional testing prior to shipment. In-stock inventory ensures rapid fulfillment to support both planned maintenance schedules and emergency replacement requirements. Each 1794-IB32 is covered by a 12-Month Warranty from the date of shipment.

Q1: How does the 1794-IB32 contribute to energy savings in a VFD-controlled motor system?The 1794-IB32 provides the discrete input signals — run confirmation, speed reference enable, and safety interlock status — that the ControlLogix PLC uses to command PowerFlex 525 or PowerFlex 755 drives to reduce speed or enter sleep mode during low-demand periods. By ensuring drives only run at full speed when production conditions require it, the module enables dynamic load management that directly reduces kWh consumption.

Q2: Is the 1794-IB32 compatible with EtherNet/IP-based energy management systems?Yes. When used with the 1794-AENT EtherNet/IP adapter, the 1794-IB32 integrates seamlessly into EtherNet/IP networks, allowing input status data to be accessed by FactoryTalk View SE, FactoryTalk Energy Manager, and third-party SCADA systems via standard CIP messaging. This enables real-time energy monitoring and automated demand-response control.

Q3: Can the 1794-IB32 replace older FLEX I/O input modules in existing panels?The 1794-IB32 is a direct form-fit-function replacement for earlier 32-point 24VDC FLEX I/O digital input modules. It is compatible with existing 1794-series adapters and terminal bases, allowing drop-in replacement without rewiring. Functional testing is recommended after installation to verify input response times meet application requirements.

Q4: What is the warranty coverage and lead time for the 1794-IB32?Each 1794-IB32 unit is covered by a 12-Month Warranty from the date of shipment. Units are held in stock and tested prior to dispatch, supporting both scheduled maintenance replacements and urgent production line repair scenarios. Contact our team for current inventory availability and lead time confirmation.
