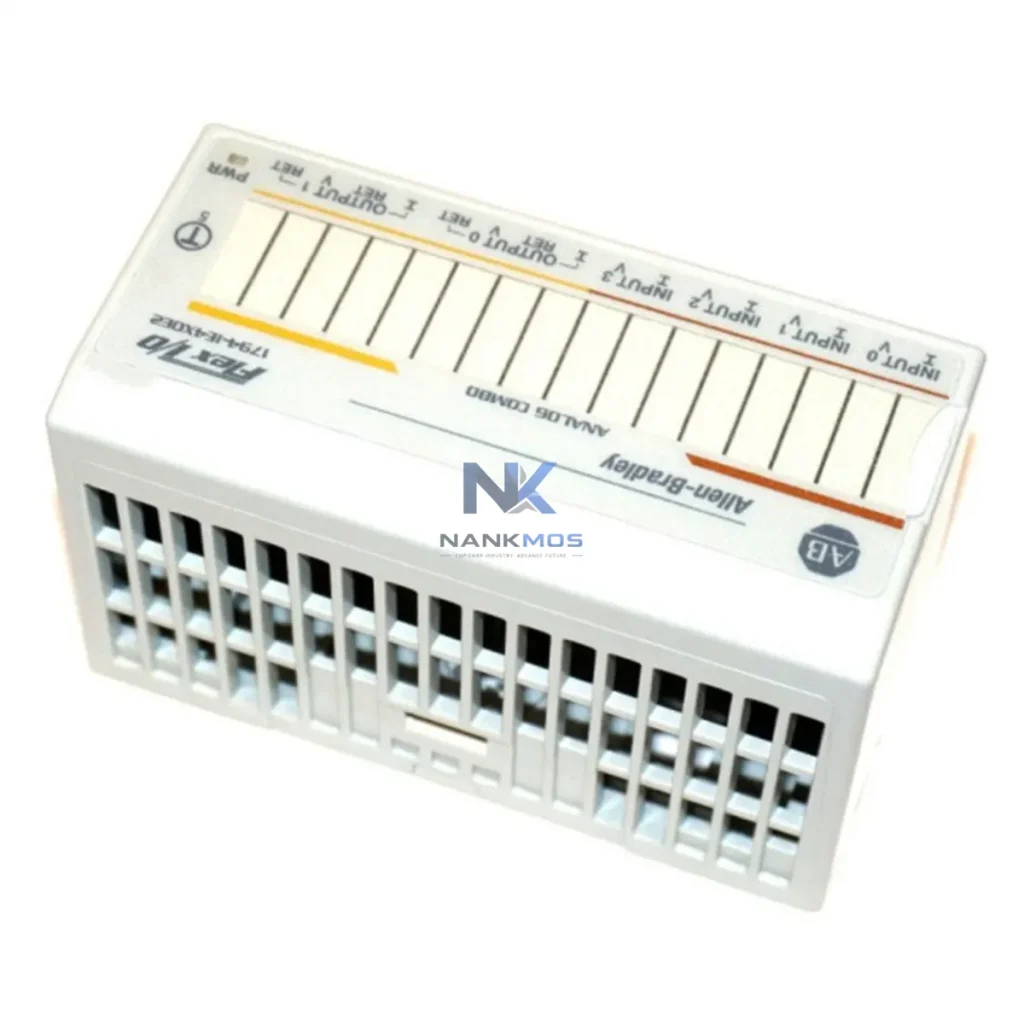

Allen-Bradley 1794-IE4X0E2 Analog Input Module

Product Details

1794-IE4X0E2 Product Description

The Allen-Bradley 1794-IE4X0E2 is a high-density analog input module engineered for the Rockwell Automation FLEX I/O platform, delivering precision signal acquisition and seamless integration within distributed control architectures. Designed to operate within the 1794 FLEX I/O system, this module supports four analog input channels configurable for current (4–20 mA) and voltage (0–10 V / ±10 V) signals, enabling direct interface with field transmitters, sensors, and process instrumentation across manufacturing, energy, and process industries. Its compact DIN-rail-compatible form factor and modular backplane design make it an ideal building block for scalable, maintainable, and redundancy-capable automation systems.

In modern industrial control architectures, the analog input layer serves as the critical bridge between physical process variables and the digital control domain. The 1794-IE4X0E2 fulfills this role with 12-bit resolution, channel-to-channel isolation, and configurable input ranges that accommodate diverse sensor types without additional signal conditioning hardware. Its integration into the FLEX I/O adapter framework — via adapters such as the 1794-AENT (EtherNet/IP) or 1794-ADN (DeviceNet) — ensures deterministic data delivery to the control layer, supporting real-time process monitoring and closed-loop control strategies.

The 1794-IE4X0E2 achieves its full engineering value when deployed as part of a cohesive, layered automation architecture. Within a typical Rockwell Automation control system, this module occupies the I/O layer, feeding real-time analog data upward to the control layer and downward to the execution layer through a structured signal flow.

At the control layer, a ControlLogix or CompactLogix PLC — such as the 1756-L73 or 1769-L33ER — serves as the primary processing node, executing ladder logic and function block programs that consume the analog data delivered by the 1794-IE4X0E2. The module's data is mapped directly into the controller's I/O tree via the FLEX I/O adapter, enabling sub-millisecond scan-cycle updates for time-critical process loops.

At the communication layer, the 1794-AENT EtherNet/IP adapter connects the FLEX I/O rack to the plant network, supporting Device Level Ring (DLR) topology for media redundancy. Alternatively, the 1794-ADN DeviceNet adapter or 1794-ACN15 ControlNet adapter can be selected based on existing network infrastructure, ensuring the 1794-IE4X0E2 integrates without protocol conversion overhead.

At the power layer, the 1794-PS13 FLEX I/O power supply provides regulated 24 VDC backplane power, ensuring stable operation of the analog input module even under fluctuating plant supply conditions. Proper power segmentation between analog and digital I/O modules on the same backplane is critical to minimizing ground loop interference and maintaining signal integrity across all four input channels.

At the HMI layer, a PanelView Plus 7 terminal or FactoryTalk View SE SCADA station visualizes the real-time process values acquired by the 1794-IE4X0E2, enabling operators to monitor temperature, pressure, flow, and level variables from a centralized interface. Alarm thresholds configured in the controller logic trigger HMI notifications when analog values exceed defined engineering limits.

At the execution layer, the analog outputs of the 1794-IE4X0E2 drive control signals to PowerFlex 525 or PowerFlex 755 variable frequency drives, modulating motor speed in response to PID loop outputs. This closed-loop integration eliminates the need for separate analog signal converters, reducing wiring complexity and improving loop response time.

At the protection layer, channel-to-channel isolation within the 1794-IE4X0E2 safeguards the module against transient overvoltages. When deployed alongside 1794-OB16 digital output modules and 1794-IB16 digital input modules on the same FLEX I/O backplane, the system achieves a balanced mix of analog and discrete I/O within a single compact rack, reducing panel footprint and simplifying cable management.

At the maintenance layer, the module's LED status indicators and Studio 5000 diagnostic tags provide channel-level fault detection, enabling maintenance engineers to isolate signal faults without removing the module from service. Integration with FactoryTalk AssetCentre supports firmware version tracking and configuration backup, ensuring long-term maintainability across multi-site deployments.

In manufacturing and assembly lines, the module monitors tension, torque, and position feedback from load cells and linear transducers, enabling real-time quality control and adaptive process adjustment. Automotive body-in-white welding lines and food and beverage filling systems rely on its multi-channel capability to consolidate sensor inputs within a single compact module.

In power generation and electrical utilities, the 1794-IE4X0E2 acquires current and voltage signals from power transducers, supporting energy metering, load balancing, and grid synchronization functions within substation automation systems.

In petrochemical and refinery applications, the module interfaces with HART-capable transmitters for pressure, temperature, and flow measurement across hazardous process zones. Its channel isolation and configurable input ranges accommodate the wide signal diversity typical of upstream and downstream process instrumentation.

In water and wastewater treatment, the module reads pH, dissolved oxygen, turbidity, and flow signals from field analyzers, feeding data to PLC-based control loops that regulate dosing pumps, aeration blowers, and filtration systems.

In mining and metallurgy, the 1794-IE4X0E2 monitors conveyor belt load, crusher vibration, and furnace temperature signals, supporting predictive maintenance strategies and process optimization in high-dust, high-vibration environments.

In packaging and material handling, the module integrates with servo drive feedback systems and vision system analog outputs, enabling precise speed and position control across multi-axis packaging lines.

Q1: Is the 1794-IE4X0E2 compatible with both EtherNet/IP and DeviceNet FLEX I/O adapters? Yes. The 1794-IE4X0E2 is compatible with all standard FLEX I/O adapters, including the 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), 1794-ACN15 (ControlNet), and 1794-APB (PROFIBUS DP). The adapter selection determines the network protocol but does not affect the module's internal channel configuration. Input range, filter frequency, and data format are configured via Studio 5000 module properties, independent of the adapter type.

Q2: Can the 1794-IE4X0E2 be used in a redundant control architecture? Yes. The 1794-IE4X0E2 can be incorporated into redundant architectures by deploying duplicate FLEX I/O racks connected to a ControlLogix redundancy chassis pair using 1756-RM2 redundancy modules. In this configuration, both primary and secondary controllers maintain synchronized I/O data, enabling bumpless switchover in the event of a controller fault. For field-level redundancy, dual-channel wiring from critical transmitters to separate 1794-IE4X0E2 modules on independent racks is recommended.

Q3: What is the warranty coverage and pre-shipment testing process for the 1794-IE4X0E2? Every 1794-IE4X0E2 supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including backplane communication check, channel-by-channel analog signal injection and measurement, LED status confirmation, and visual inspection. Units that do not meet factory-equivalent performance standards are quarantined and not shipped. Contact [email protected] or +86 18359268345 for warranty registration and support.
