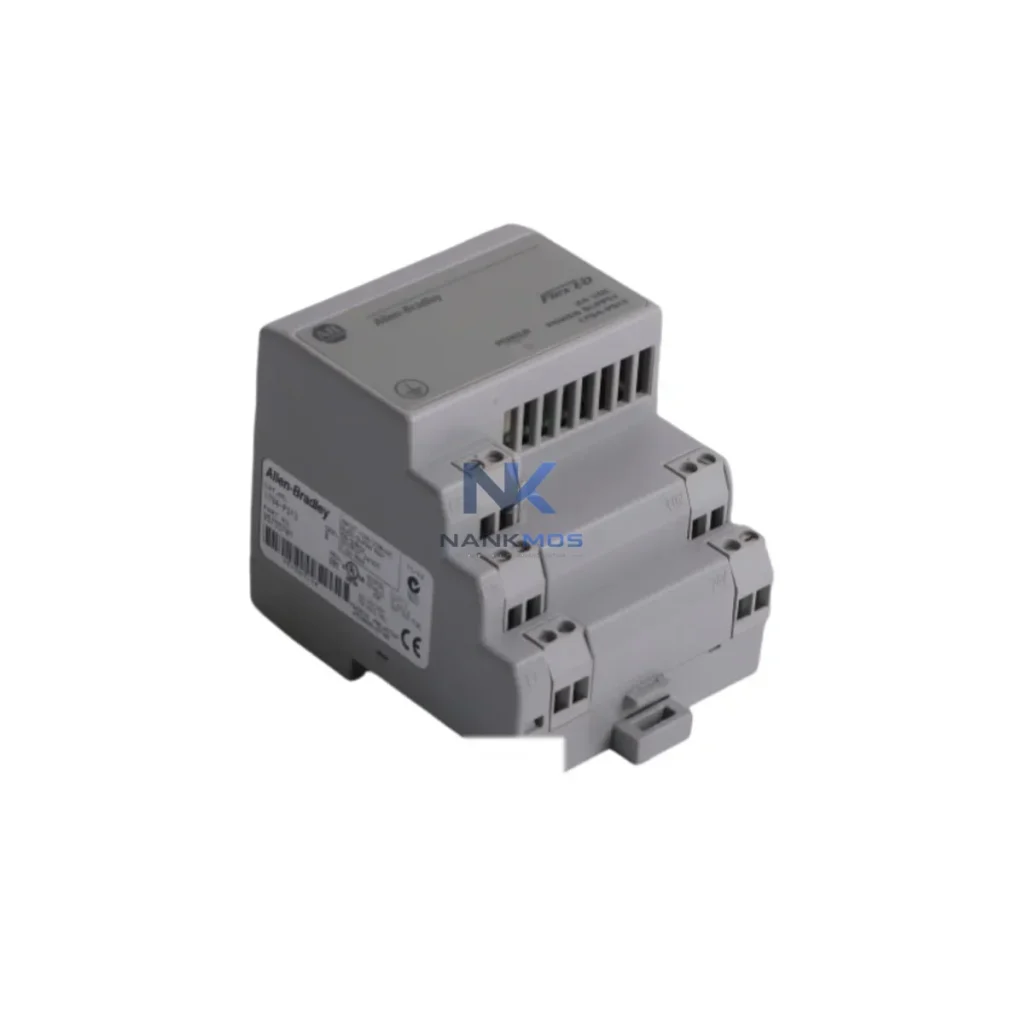

Allen-Bradley 1794-PS13 PLC Power Supply Module

Product Details

1794-PS13 Product Description

The Allen-Bradley 1794-PS13 is a 24VDC power supply module engineered for the Rockwell Automation FLEX I/O platform, delivering stable, regulated power across distributed I/O nodes in demanding industrial control architectures. Designed for contextual integration within the 1794 series ecosystem, the 1794-PS13 ensures consistent voltage delivery to I/O adapter modules, terminal bases, and field devices — forming the electrical backbone of modular, scalable automation systems. Whether deployed in a centralized control cabinet or a distributed field panel, this power supply module supports system-wide reliability, long-term maintainability, and deterministic signal performance across all connected layers of the control hierarchy.

In modern industrial automation, power integrity is not an isolated concern — it is a system-level discipline. The 1794-PS13 is built to serve as a foundational element within multi-layer control architectures that span the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer. Its regulated 24VDC output ensures that upstream controllers and downstream field devices operate within specified electrical tolerances, reducing noise-induced faults, minimizing diagnostic false positives, and extending the service life of connected modules.

The 1794-PS13 is most effective when understood as a system component rather than a standalone module. Within a complete Rockwell Automation control architecture, it operates in close coordination with the 1794-AENT EtherNet/IP adapter, which bridges the FLEX I/O node to the plant-level Ethernet backbone. The adapter relies on the 1794-PS13 for stable logic bus power, ensuring uninterrupted communication with upstream controllers such as the Allen-Bradley ControlLogix 1756-L7x or CompactLogix 5380 series processors.

On the I/O layer, the 1794-PS13 powers a range of FLEX I/O modules including the 1794-IB16 16-point 24VDC digital input module, 1794-OB16 digital output module, and 1794-IE8 8-channel analog input module. These modules mount directly onto 1794 series terminal bases, with the power supply module positioned at the head of the I/O bank to distribute regulated voltage across the entire node. For analog signal integrity, the 1794-PS13's clean power output reduces common-mode noise that could otherwise corrupt 4–20mA or 0–10VDC process signals.

At the communication layer, the 1794-PS13 supports architectures using the 1794-ACN15 ControlNet adapter or 1794-ADN DeviceNet adapter, enabling the same physical I/O bank to participate in different network topologies depending on the plant's communication infrastructure. This flexibility makes the 1794-PS13 a versatile power foundation for both legacy DeviceNet installations and modern EtherNet/IP deployments.

For redundant power architectures, the 1794-PS13 can be paired with external 24VDC redundant power supplies such as the Allen-Bradley 1606-XLP series DIN rail power supplies, which provide N+1 redundancy at the cabinet level. This combination ensures that a single power supply failure does not interrupt I/O node operation — a critical requirement in continuous process industries such as petrochemicals, power generation, and water treatment.

At the HMI and supervisory layer, the stable I/O data delivered through the 1794-PS13-powered node feeds into PanelView Plus 7 terminals or SCADA systems via the ControlLogix backplane, enabling operators to monitor field device status, process variables, and alarm conditions in real time. The 1794-PS13's role in maintaining signal fidelity directly impacts the accuracy of operator displays and historian data.

Power Generation & Utilities: In turbine control and generator protection systems, the 1794-PS13 powers FLEX I/O nodes that monitor vibration, temperature, and speed signals. Its stable 24VDC output ensures that protection relay inputs receive clean, noise-free signals, reducing nuisance trips and improving plant availability.

Petrochemical & Oil and Gas: Distributed control systems in refinery and pipeline applications rely on FLEX I/O nodes for field device interfacing. The 1794-PS13 supports long-distance I/O drops where cable-induced voltage drops could otherwise compromise module performance. Its compatibility with EtherNet/IP adapters enables integration with DeltaV or Honeywell Experion systems via OPC-DA/UA gateways.

Water & Wastewater Treatment: Municipal water treatment facilities use FLEX I/O for pump control, valve actuation, and flow measurement. The 1794-PS13's robust power delivery supports continuous 24/7 operation in humid, chemically aggressive environments when installed in NEMA 4X enclosures.

Mining & Metallurgy: Conveyor systems, crusher controls, and ore processing lines use distributed I/O architectures where the 1794-PS13 provides reliable power to remote I/O nodes located hundreds of meters from the main control room. Its compatibility with ControlNet adapters supports deterministic communication in high-vibration environments.

Packaging & Discrete Manufacturing: High-speed packaging lines require deterministic I/O scan times and stable power delivery. The 1794-PS13 supports FLEX I/O nodes integrated into motion control architectures alongside Kinetix 5500 servo drives, ensuring coordinated axis control and I/O synchronization.

Marine & Offshore: Vessel automation systems and offshore platform controls use FLEX I/O for engine room monitoring and ballast control. The 1794-PS13's wide operating temperature range and DIN rail mounting make it suitable for marine-grade control panels certified to DNV or ABS standards.

Q1: How many FLEX I/O modules can the 1794-PS13 power in a single node? The 1794-PS13 provides 13W of logic bus power, sufficient to support up to 8 FLEX I/O modules in a standard node configuration, depending on the power consumption of each module. For nodes requiring more than 8 modules or high-current output modules, an additional 1794-PS13 or a supplemental field power supply should be added. Always verify the total node power budget using Rockwell Automation's I/O power calculator before finalizing the node design.

Q2: Is the 1794-PS13 compatible with both EtherNet/IP and ControlNet adapter modules in the same system? Yes. The 1794-PS13 is compatible with all 1794 series adapter modules, including the 1794-AENT (EtherNet/IP), 1794-ACN15 (ControlNet), and 1794-ADN (DeviceNet). The power supply module is adapter-agnostic — it provides regulated logic bus power regardless of the communication protocol used. This makes it suitable for hybrid architectures where different I/O nodes use different network protocols within the same plant.

Q3: What is the warranty coverage and how is the 1794-PS13 tested before shipment? Every 1794-PS13 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes pre-shipment functional testing including input voltage verification, output voltage regulation check, and logic bus load testing to confirm performance within Allen-Bradley specifications. Units are shipped in anti-static packaging with inspection documentation. In-stock units are available for immediate dispatch, with lead times confirmed at the time of order.
