Allen-Bradley 1794-IE4XOE2 PLC Analog I/O Module

Product Details

1794-IE4XOE2 Product Description

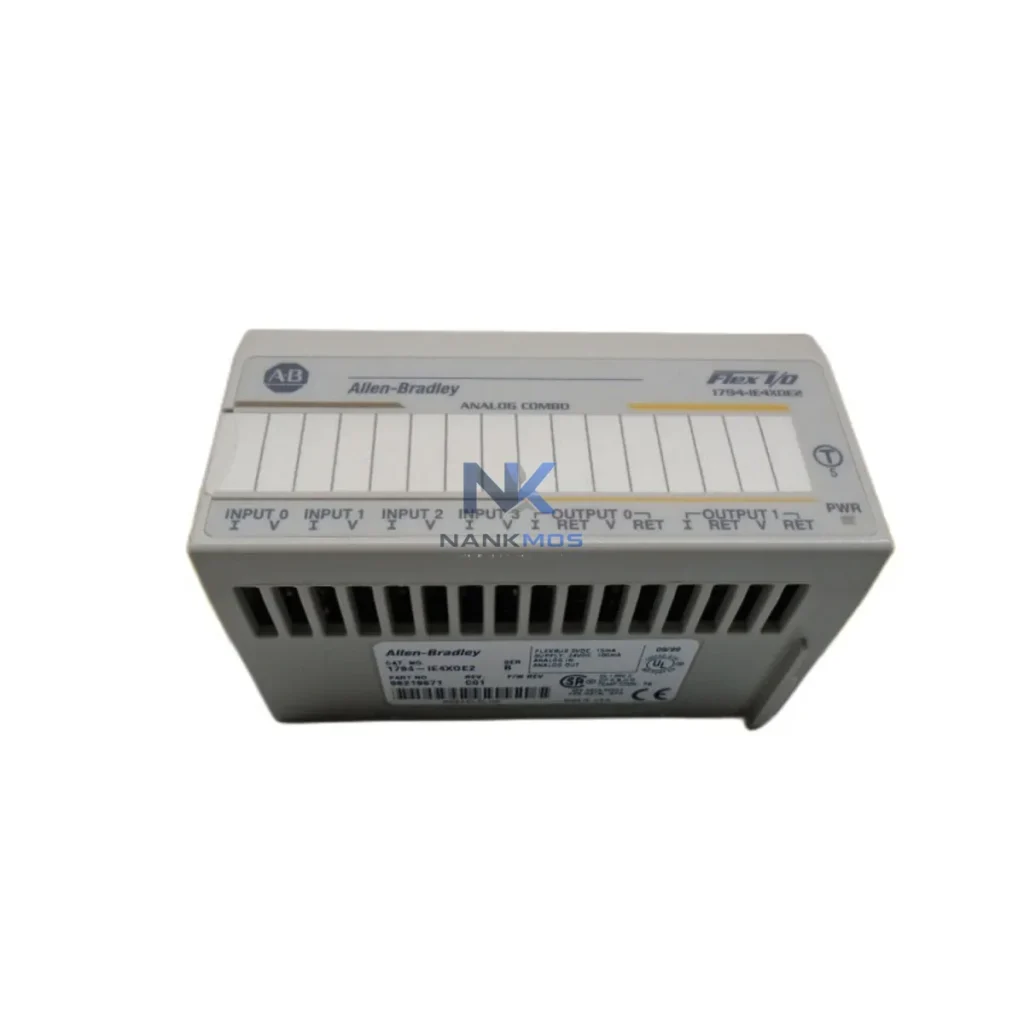

The Allen-Bradley 1794-IE4XOE2 is a combination analog input/output module engineered for the FLEX I/O distributed I/O platform. Designed to operate within Rockwell Automation's integrated control architecture, this module delivers four analog current/voltage inputs and two analog current outputs on a single compact module body — reducing panel footprint while maintaining full signal fidelity across demanding industrial environments. Its system-matched design ensures seamless integration with ControlLogix, CompactLogix, and SoftLogix controller families via the 1794-AENT, 1794-ACNR15, or 1794-ADN adapter backplanes, making it a precision-fit component for distributed control architectures in manufacturing, energy, and process industries.

The 1794-IE4XOE2 supports both 4–20 mA current and 0–10 V / ±10 V voltage signal ranges, configurable per channel through RSLogix 5000 or Studio 5000 Logix Designer. Its 16-bit resolution on inputs and 13-bit resolution on outputs ensures accurate process variable representation across PID loops, flow control, pressure regulation, and temperature monitoring applications. The module communicates over the FLEX I/O backplane at full adapter scan rates, contributing to deterministic signal delivery within time-critical control loops.

Built for long-term deployment in industrial cabinets, the 1794-IE4XOE2 operates across a wide temperature range and meets IEC 61131-2 compliance standards. Each unit shipped by NANKMOS undergoes pre-shipment functional verification, and is covered by a 12-Month Warranty against manufacturing defects — supporting your maintenance planning and capital expenditure confidence.

The 1794-IE4XOE2 achieves its full value when deployed as part of a coherent, layered automation architecture rather than as a standalone component. At the control layer, a 1756-L73 ControlLogix CPU or 1769-L33ER CompactLogix controller manages the scan cycle and executes PID and analog scaling routines that directly reference the 1794-IE4XOE2's channel data. The controller communicates with the FLEX I/O adapter — typically a 1794-AENT EtherNet/IP adapter — over a managed industrial Ethernet switch such as the Stratix 5700, ensuring deterministic packet delivery across the I/O layer.

At the power layer, the 1794-PS13 FLEX I/O power supply provides regulated 24 VDC backplane power to the 1794-IE4XOE2 and adjacent modules, while a 1606-XLP power supply or equivalent DIN-rail PSU conditions incoming AC supply before distribution. For installations requiring signal isolation — particularly in high-noise environments such as motor control centers or variable frequency drive (VFD) panels — a signal isolator or loop-powered isolator inserted between field transmitters and the 1794-IE4XOE2 inputs eliminates ground loop interference and protects module inputs from transient overvoltage.

At the HMI layer, a PanelView Plus 7 terminal connected via EtherNet/IP to the same ControlLogix backplane provides operators with real-time analog trend displays, alarm acknowledgment, and setpoint adjustment — all referencing the live channel values from the 1794-IE4XOE2. For remote monitoring, a 1783-NATR NAT router or Ewon Flexy industrial gateway can tunnel EtherNet/IP data to SCADA platforms such as FactoryTalk View SE or Ignition, enabling plant-wide visibility of analog process variables.

At the execution layer, the 4–20 mA outputs from the 1794-IE4XOE2 drive control elements such as electro-pneumatic positioners, variable frequency drives (e.g. PowerFlex 525 or PowerFlex 755), or proportional control valves, closing the control loop between the controller and the physical process. For redundancy-critical applications, a secondary 1794-AENTR EtherNet/IP adapter with dual-port ring topology provides adapter-level redundancy without requiring a second module chassis, preserving signal continuity during network maintenance windows.

At the terminal and wiring layer, the 1794-TB3 or 1794-TB3S terminal base provides the physical connection point for field wiring to the 1794-IE4XOE2, with clearly labeled screw terminals that simplify commissioning and reduce wiring errors during panel build. Proper labeling and cable segregation between analog signal cables and power conductors — following IEC 60204-1 wiring practice — ensures long-term signal integrity and simplifies future maintenance interventions.

Manufacturing & Assembly Lines: In automotive body-in-white or discrete parts manufacturing, the 1794-IE4XOE2 monitors analog feedback from servo valve positions, hydraulic pressure transducers, and load cells, feeding real-time data to ControlLogix PID blocks that maintain dimensional tolerances within tight process windows. Its compact FLEX I/O form factor allows distributed I/O nodes to be placed close to the machine cell, minimizing analog signal cable runs and reducing susceptibility to electromagnetic interference from servo drives and welding equipment.

Power Generation & Energy Facilities: In thermal power plants and renewable energy substations, the 1794-IE4XOE2 interfaces with 4–20 mA transmitters monitoring steam pressure, turbine inlet temperature, generator excitation current, and transformer oil temperature. Its 16-bit input resolution supports the fine measurement granularity required for turbine governor control and automatic voltage regulation (AVR) loops, where small signal deviations translate directly into generation efficiency losses.

Petrochemical & Refinery Process Control: In continuous process plants operating under ISA-88 or ISA-95 frameworks, the 1794-IE4XOE2 serves as the analog front-end for flow, level, pressure, and temperature control loops in distillation columns, heat exchangers, and reactor vessels. Its compatibility with HART-capable transmitters (via external HART multiplexer) enables asset health monitoring alongside process control, reducing unplanned shutdowns and supporting predictive maintenance programs.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the 1794-IE4XOE2 to monitor dissolved oxygen sensors, pH transmitters, turbidity analyzers, and pump discharge pressure transducers across distributed lift stations and treatment basins. The module's wide operating temperature range and sealed terminal base accommodate the humid, chemically aggressive environments typical of water treatment infrastructure.

Mining & Metals Processing: In ore processing and smelting operations, the 1794-IE4XOE2 handles analog signals from belt scale integrators, vibration transmitters on crusher bearings, and pyrometer inputs from furnace zones. Its robust backplane communication ensures signal availability even in environments with significant electrical noise from large motor starters and thyristor-controlled drives.

Q1: Which FLEX I/O adapters are compatible with the 1794-IE4XOE2, and does the choice of adapter affect analog scan performance? The 1794-IE4XOE2 is compatible with all standard FLEX I/O adapters, including the 1794-AENT (EtherNet/IP), 1794-ACNR15 (ControlNet), 1794-ADN (DeviceNet), and 1794-ASB (Remote I/O). Adapter selection determines the network protocol and scan rate ceiling: EtherNet/IP via 1794-AENT supports Requested Packet Intervals (RPI) as low as 1 ms in ControlLogix systems, while DeviceNet via 1794-ADN is typically limited to 5–10 ms scan intervals. For high-speed PID applications, the 1794-AENT adapter on a Gigabit EtherNet/IP network is recommended to minimize analog loop latency.

Q2: Can the 1794-IE4XOE2 be used in a redundant control architecture, and what configuration is required? The 1794-IE4XOE2 itself does not support module-level redundancy, but adapter-level redundancy can be achieved using the 1794-AENTR dual-port EtherNet/IP adapter in a Device Level Ring (DLR) topology. For controller-level redundancy, a ControlLogix redundancy system (1756-SRM) with a primary and secondary 1756-L7x CPU pair can manage the 1794-AENT adapter, providing seamless controller failover without interrupting analog I/O scanning. Full I/O module redundancy requires duplicating the FLEX I/O node and implementing cross-comparison logic in the controller program.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for the 1794-IE4XOE2? NANKMOS provides a 12-Month Warranty on the 1794-IE4XOE2 covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification including analog channel accuracy checks and backplane communication testing. For long-term projects requiring multi-year inventory assurance, NANKMOS maintains buffer stock of the 1794-IE4XOE2 and can provide scheduled delivery agreements to support planned maintenance shutdowns and capital spares programs. Contact [email protected] or +86 18359268345 to discuss volume pricing and inventory reservation.
