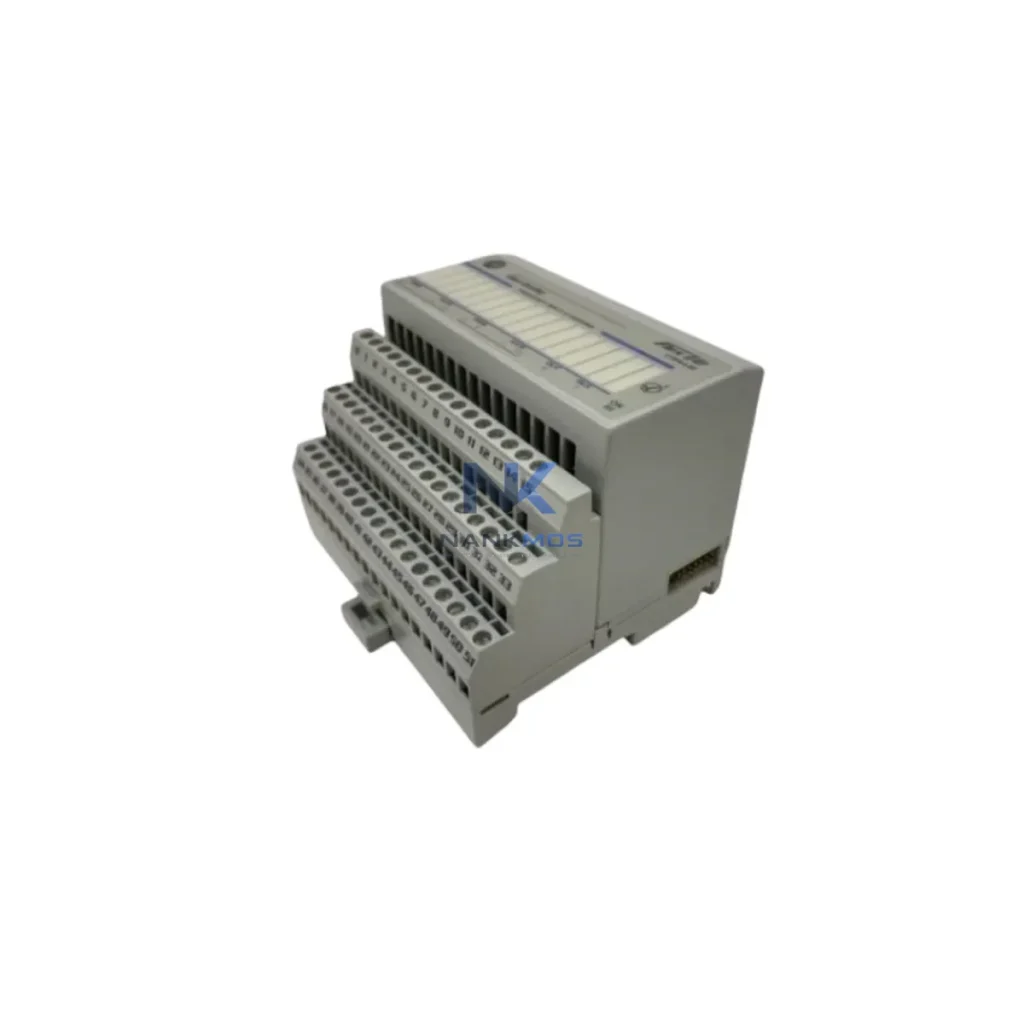

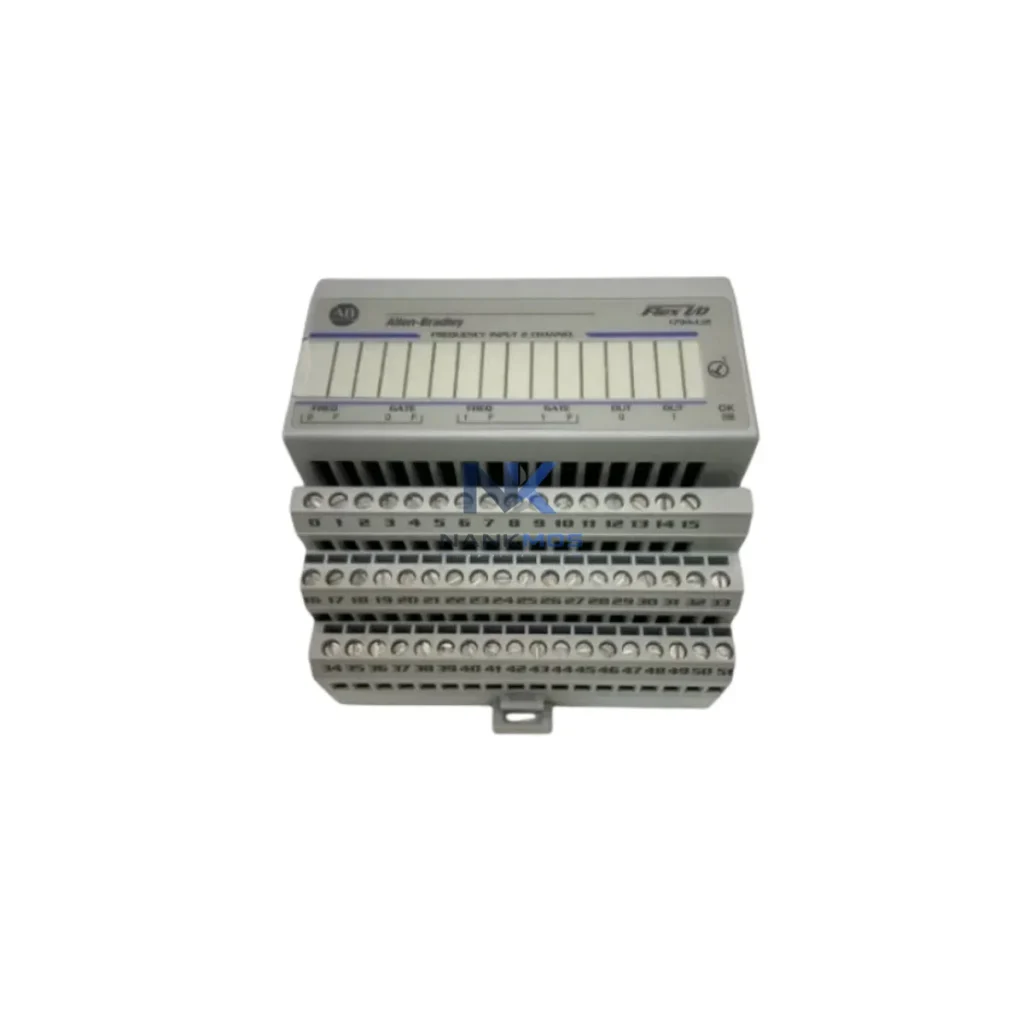

Allen-Bradley 1794-IJ2 Encoder Counter Module

Product Details

1794-IJ2 Product Description

The Allen-Bradley 1794-IJ2 is a dual-channel quadrature encoder and counter module engineered for the Flex I/O platform, delivering precise position and velocity feedback across distributed automation networks. Designed for integration into smart factory data architectures, the 1794-IJ2 bridges field-level encoder signals with upper-layer control and monitoring systems — enabling real-time data flow from motion sensors through PLCs, SCADA platforms, and edge gateways without signal loss or protocol mismatch.

In modern industrial environments where production transparency and remote diagnostics are non-negotiable, the 1794-IJ2 serves as a critical node in the data chain. Its dual-channel quadrature input captures high-resolution positional data from rotary encoders and linear transducers, feeding structured count values directly into the ControlLogix or CompactLogix controller backplane via the 1794-AENT or 1794-ACNR15 adapter. This tight integration with the Flex I/O communication adapter layer ensures that encoder data is immediately available to the PLC scan cycle — eliminating the latency and data gaps that plague legacy hardwired counter circuits.

The 1794-IJ2 sits at the intersection of physical motion and digital intelligence. In a typical smart factory deployment, rotary encoders mounted on conveyor drives, servo axes, or packaging machinery feed quadrature pulse trains into the 1794-IJ2's input channels. The module processes these signals and presents structured count and velocity data to the Flex I/O backplane, where a 1794-AENT EtherNet/IP adapter transmits the values upstream to a ControlLogix L7x or CompactLogix L3x controller over a managed industrial Ethernet network.

From the PLC, encoder data flows into the Studio 5000 Logix Designer tag database, where it becomes available to FactoryTalk View SE HMI screens for real-time position visualization, and to FactoryTalk Historian for long-term trend logging. Operators monitoring production from a central SCADA workstation can observe encoder counts, detect velocity deviations, and trigger alarms — all without physical access to the machine floor. When integrated alongside a 1794-OB16 digital output module and a 1794-IE8 analog input module within the same Flex I/O bank, the 1794-IJ2 contributes to a unified remote I/O node that consolidates motion, analog, and discrete data into a single EtherNet/IP connection.

For facilities running mixed-protocol environments, the 1794-IJ2 data path can extend through a Stratix 5700 industrial managed switch to reach edge computing nodes running FactoryTalk Edge Gateway or third-party OPC-UA servers. This enables encoder data to be published to MES and ERP layers, supporting production counting, OEE calculation, and predictive maintenance analytics. In multi-axis applications, the 1794-IJ2 pairs naturally with PowerFlex 525 or PowerFlex 755 variable frequency drives — where encoder feedback from the 1794-IJ2 supplements drive speed references, enabling closed-loop velocity control and real-time fault correlation between drive status and position data.

Remote diagnostic workflows benefit directly from the 1794-IJ2's network-transparent architecture. Maintenance engineers can use FactoryTalk Diagnostics or RSLinx Classic to poll module health, verify channel counts, and confirm signal integrity from any networked workstation — reducing unplanned downtime and eliminating the need for on-site troubleshooting in the early stages of fault investigation. When combined with a 1794-ACNR15 ControlNet adapter, the module supports redundant network topologies, ensuring encoder data continuity even during partial network failures.

Many automation sites still operate with isolated counter circuits that have no network visibility — encoder pulses are counted locally, displayed on a panel meter, and never integrated into the plant's data infrastructure. The 1794-IJ2 eliminates this data island by converting encoder signals into structured, network-accessible process values that any EtherNet/IP or ControlNet device can consume.

Protocol fragmentation is another common challenge. Legacy systems may use DeviceNet or DH+ communication, while newer infrastructure runs on EtherNet/IP. The Flex I/O platform's adapter flexibility means the 1794-IJ2 can be deployed with a 1794-ADN DeviceNet adapter for legacy integration or a 1794-AENT adapter for modern EtherNet/IP networks — without changing the module itself. This adapter-agnostic design protects the investment in field wiring and encoder hardware while enabling protocol migration at the network layer.

For remote monitoring and alarm management, the 1794-IJ2's data is immediately consumable by SCADA systems via OPC-DA or OPC-UA bridges. Count thresholds can be mapped to PLC alarm tags, triggering notifications in FactoryTalk View or third-party SCADA platforms when production targets are missed or encoder signals are lost. This closes the loop between field events and control room awareness — a critical requirement for lean manufacturing and Industry 4.0 transparency initiatives.

System expansion is straightforward: additional 1794-IJ2 modules can be added to an existing Flex I/O bank without rewiring the communication adapter, and the EtherNet/IP network can accommodate hundreds of nodes without architectural redesign. Pre-shipment functional testing is performed on every 1794-IJ2 unit, verifying channel count accuracy, signal integrity, and backplane communication before dispatch. All units are covered by a 12-month warranty and supported by in-stock availability for rapid deployment.

Q1: What communication protocols does the 1794-IJ2 support?The 1794-IJ2 itself is a Flex I/O backplane module. Its network protocol is determined by the communication adapter installed in the same Flex I/O bank. Using a 1794-AENT adapter enables EtherNet/IP communication; a 1794-ACNR15 adapter enables ControlNet; and a 1794-ADN adapter enables DeviceNet. This makes the 1794-IJ2 compatible with virtually all Rockwell Automation control platforms and many third-party systems via gateway devices.

Q2: Can the 1794-IJ2 be integrated with SCADA and HMI systems?Yes. Encoder count and velocity data from the 1794-IJ2 is mapped to PLC tags in Studio 5000 Logix Designer and is immediately accessible to FactoryTalk View SE, FactoryTalk Historian, and any OPC-compatible SCADA platform. Real-time visualization, alarm configuration, and historical trending are all supported without additional hardware.

Q3: How does the 1794-IJ2 support remote diagnostics?Because the 1794-IJ2 communicates over standard industrial networks (EtherNet/IP, ControlNet, DeviceNet), its module status, channel data, and fault codes are accessible remotely via RSLinx Classic, FactoryTalk Diagnostics, or any OPC-UA client. Engineers can verify signal integrity, reset counters, and diagnose wiring faults from a remote workstation without visiting the machine.

Q4: What warranty and pre-shipment testing does the 1794-IJ2 include?Every 1794-IJ2 unit undergoes functional pre-shipment testing covering channel count accuracy, quadrature signal verification, and backplane communication integrity. Units are shipped with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. In-stock units are available for immediate dispatch to minimize project lead times.
