1794-OB32P Product Description

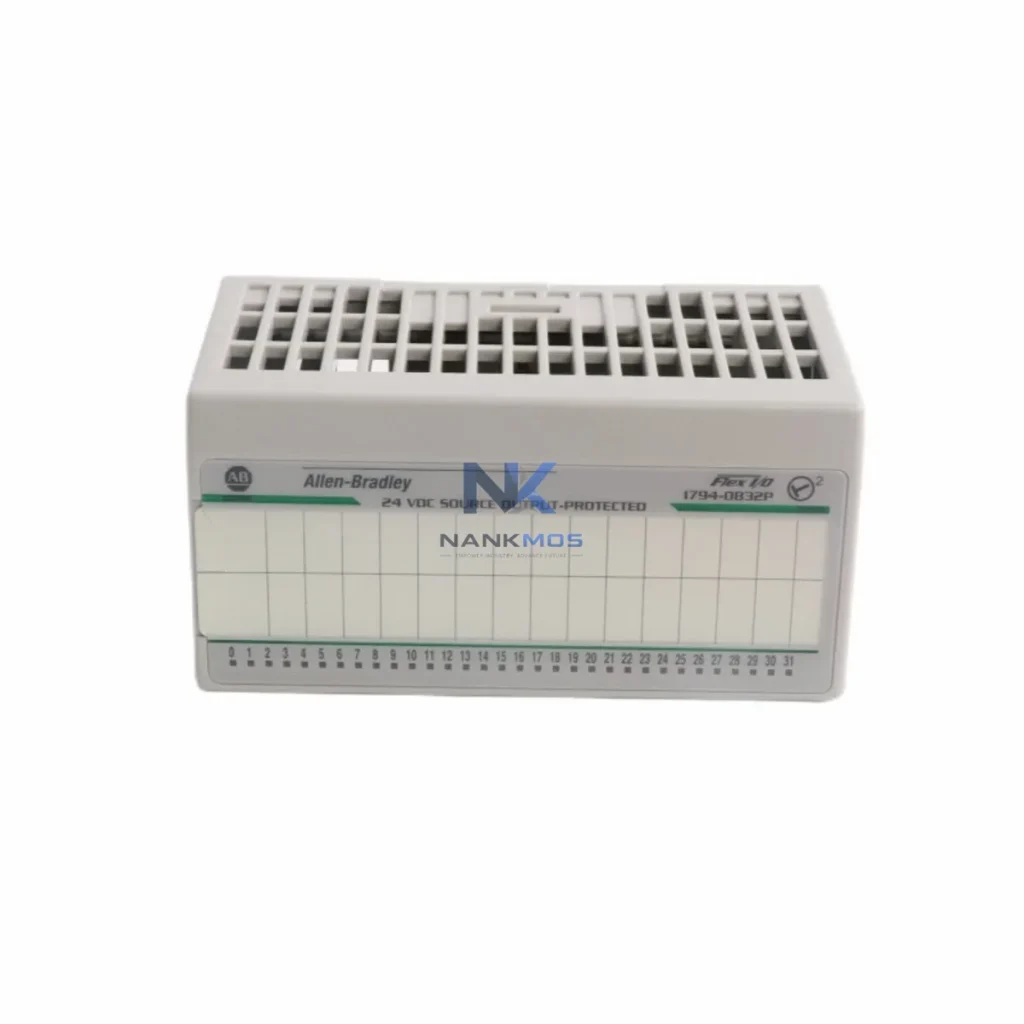

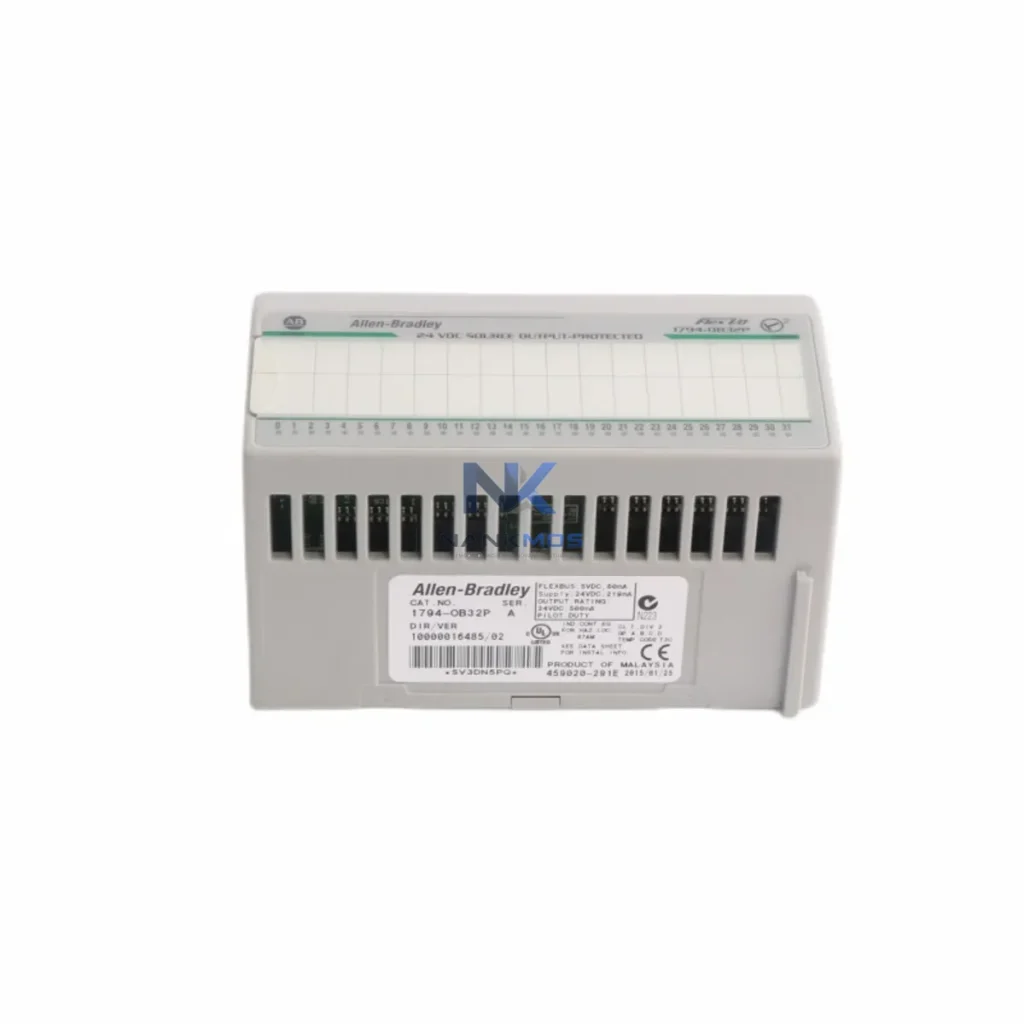

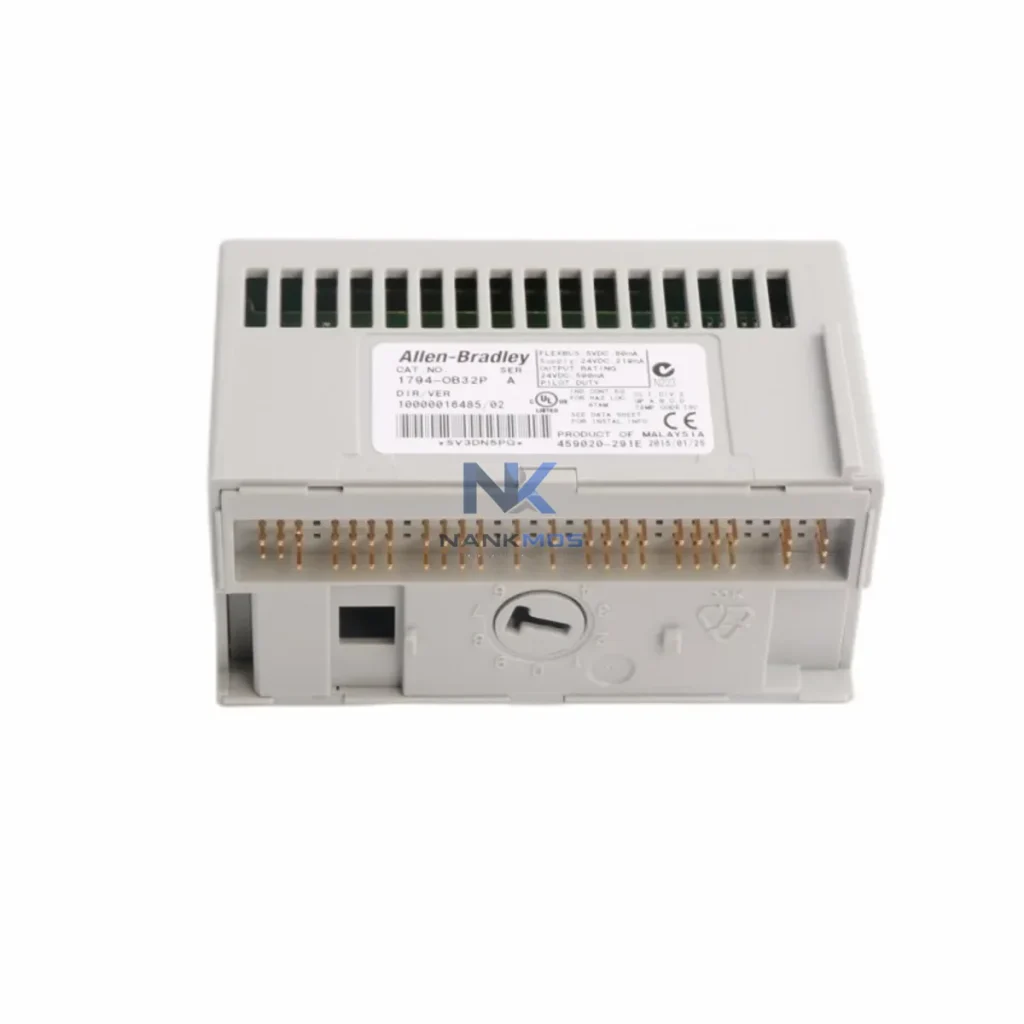

The Allen-Bradley 1794-OB32P is a 32-point 24VDC digital output module engineered for the FLEX I/O platform — a modular, distributed I/O architecture purpose-built for high-density industrial automation environments. Designed to operate seamlessly within DeviceNet and EtherNet/IP network topologies, the 1794-OB32P serves as a critical data-link node between PLC control logic and field-level actuators, enabling deterministic output switching, real-time command execution, and transparent device-level diagnostics across the full automation data chain.

In a connected factory environment, the 1794-OB32P does not operate in isolation. It functions as a downstream execution point within a broader data flow architecture that begins at the sensor layer and terminates at enterprise-level SCADA and MES platforms. Signal acquisition from proximity sensors, photoelectric detectors, and pressure transducers feeds upstream through remote I/O adapters — such as the 1794-AENT EtherNet/IP adapter — into the FLEX I/O backplane, where the 1794-OB32P receives discrete output commands from the controlling PLC. In Allen-Bradley environments, this is typically a ControlLogix or CompactLogix processor executing ladder logic or function block programs via Studio 5000 Logix Designer. The 1794-OB32P translates those digital commands into 24VDC switching signals that drive solenoid valves, motor starters, indicator lamps, relay coils, and other field devices with sub-millisecond response consistency.

The module's native EtherNet/IP compatibility positions it as a first-class citizen in modern Industrial Ethernet architectures. When paired with a 1794-AENT or 1794-AENTR adapter, the 1794-OB32P participates in implicit I/O messaging — the cyclic, connection-oriented data exchange that underpins real-time control in Rockwell Automation systems. This allows the ControlLogix L8x or CompactLogix 5380 controller to maintain continuous, low-latency visibility into output state, fault conditions, and module health without polling overhead. Simultaneously, explicit messaging enables on-demand parameter reads and configuration updates from FactoryTalk View SE SCADA or any EtherNet/IP-compliant HMI platform, supporting live dashboards, alarm management, and remote diagnostics without interrupting the control cycle.

For facilities operating legacy DeviceNet infrastructure alongside newer EtherNet/IP segments, the 1794-OB32P integrates equally well through the 1794-ADN DeviceNet adapter. This dual-protocol flexibility makes the module a practical choice for phased network modernization projects, where older DeviceNet trunk lines coexist with EtherNet/IP rings managed by Stratix 5700 or Stratix 5400 industrial managed switches. The network layer ensures that output state data from the 1794-OB32P is continuously available to upstream systems — including FactoryTalk Historian, FactoryTalk AssetCentre, and third-party OPC-UA gateways — enabling long-term trend analysis, predictive maintenance scheduling, and compliance reporting without manual data extraction.

At the edge, the 1794-OB32P's diagnostic capabilities extend the reach of remote monitoring teams. Each output channel supports individual fault detection, with open-load and short-circuit diagnostics surfaced through the adapter's status registers and propagated to the controller's fault table. When integrated with FactoryTalk Remote Access or a third-party edge gateway running MQTT or OPC-UA, maintenance engineers can interrogate module health, review output state histories, and initiate corrective actions from off-site locations — reducing mean time to repair and eliminating unnecessary site visits. This remote diagnostic capability is especially valuable in geographically distributed installations such as water treatment facilities, oil and gas pipeline stations, and multi-site manufacturing networks where on-site response time is a critical cost driver.

The 1794-OB32P also plays a key role in data visualization workflows. Output state data, cycle counts, and fault event logs generated by the module are ingested by FactoryTalk View ME or SE, where process engineers configure trend displays, alarm banners, and production KPI dashboards. When combined with a PowerFlex 525 or PowerFlex 755 variable frequency drive on the same EtherNet/IP segment, the output module's switching signals can be correlated with drive speed references and energy consumption data — providing a unified view of actuator performance and drive efficiency within a single SCADA screen. This level of data integration supports continuous improvement initiatives, OEE calculations, and energy management programs aligned with ISO 50001 frameworks.

Every 1794-OB32P unit supplied by NANKMOS undergoes pre-shipment functional verification, including output channel continuity checks, backplane communication validation, and firmware version confirmation. Stock is maintained for immediate dispatch, supporting urgent MRO requirements, line-down recovery scenarios, and scheduled maintenance windows. All units are covered by a 12-month warranty from the date of shipment, with technical support available for installation guidance, network configuration, and system integration queries.

A representative smart factory data flow built around the 1794-OB32P begins at the field device layer, where inductive proximity sensors and photoelectric switches feed discrete input signals into a companion 1794-IB32 32-point digital input module mounted on the same FLEX I/O backplane. The backplane communicates with the plant network through a 1794-AENT EtherNet/IP adapter, which bridges the I/O tier to the control tier via a Stratix 5700 managed industrial switch configured with VLAN segmentation and QoS prioritization for I/O traffic. The controlling ControlLogix L83E processor — housed in a 1756 chassis with a 1756-EN2T EtherNet/IP communication module — executes the output logic and drives the 1794-OB32P's 32 output channels to switch solenoid valves, conveyor motor starters, and status indicator arrays on the production floor.

Upstream from the controller, a FactoryTalk View SE server aggregates real-time I/O state data from multiple FLEX I/O drops distributed across the facility. Process engineers monitor output activation patterns, cycle times, and fault events through graphical displays, while FactoryTalk Historian archives time-stamped output state records for trend analysis and regulatory reporting. At the edge, a Kepware KEPServerEX OPC-UA server bridges the EtherNet/IP network to cloud-based analytics platforms, enabling remote visualization of production line status without exposing the control network to external traffic. For facilities incorporating variable speed drives, a PowerFlex 525 on the same EtherNet/IP segment provides coordinated motor control, with the 1794-OB32P handling the discrete enable/disable interlocks that govern drive start permissives and safety relay circuits. A 1606-XLP industrial power supply provides stable 24VDC rail power to the FLEX I/O backplane, ensuring output switching reliability under variable load conditions across all 32 channels.

Industrial facilities frequently encounter data fragmentation challenges when legacy DeviceNet segments, newer EtherNet/IP rings, and proprietary fieldbus networks coexist without a unified integration layer. The 1794-OB32P addresses this directly through its dual-protocol adapter compatibility — a single module can be reassigned between DeviceNet and EtherNet/IP infrastructure by swapping the adapter, preserving the I/O investment while the network layer evolves. For sites where output state data never reaches the SCADA layer — a common data island scenario in older installations — deploying the 1794-OB32P with a 1794-AENT adapter and configuring produced tags in the ControlLogix controller immediately surfaces output activity in FactoryTalk View SE, closing the visibility gap without hardware redesign.

Remote monitoring gaps are resolved through the module's per-channel diagnostics, which propagate fault conditions through the EtherNet/IP connection to the controller fault table and onward to SCADA alarm displays. Maintenance teams using FactoryTalk Remote Access or a VPN-connected engineering workstation can review fault histories, reset latched outputs, and verify channel states without dispatching field personnel — a significant operational advantage in multi-site or geographically remote installations. For production line transparency initiatives, the 1794-OB32P's output cycle data feeds OEE calculation engines, enabling accurate availability and performance metrics that support continuous improvement programs. System expansion is straightforward: additional FLEX I/O modules — including analog input modules such as the 1794-IE8 or specialty modules for thermocouple and RTD inputs — can be added to the same backplane without controller reprogramming, scaling I/O capacity in line with production growth.

Q: What is the communication latency of the 1794-OB32P on an EtherNet/IP network?A: When configured for implicit I/O messaging with a ControlLogix or CompactLogix controller, the 1794-OB32P supports requested packet intervals (RPI) as low as 1ms, delivering deterministic output response times suitable for high-speed discrete control applications. Actual latency depends on network topology, switch configuration, and controller task period.

Q: Is the 1794-OB32P compatible with third-party SCADA systems beyond FactoryTalk?A: Yes. The module communicates over standard EtherNet/IP and DeviceNet protocols, both of which are supported by major SCADA platforms including Ignition by Inductive Automation, Wonderware System Platform, and Siemens WinCC via OPC-UA bridging through Kepware KEPServerEX or equivalent OPC servers. No proprietary software is required for basic I/O state monitoring.

Q: How does the 1794-OB32P handle network interruptions or controller communication loss?A: The module supports configurable fault mode behavior through the adapter's electronic data sheet (EDS) parameters. Outputs can be configured to hold last state, transition to a defined safe state (all off), or maintain a user-defined output pattern upon communication loss — ensuring predictable machine behavior during network faults or controller restarts.

Q: What does the 12-month warranty cover, and how is pre-shipment testing performed?A: Every 1794-OB32P unit supplied by NANKMOS is functionally tested prior to shipment, including output channel switching verification, backplane communication integrity checks, and firmware version confirmation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Technical support for installation, network configuration, and system integration is available throughout the warranty period. Contact [email protected] or +86 18359268345 for RFQ and support inquiries.
