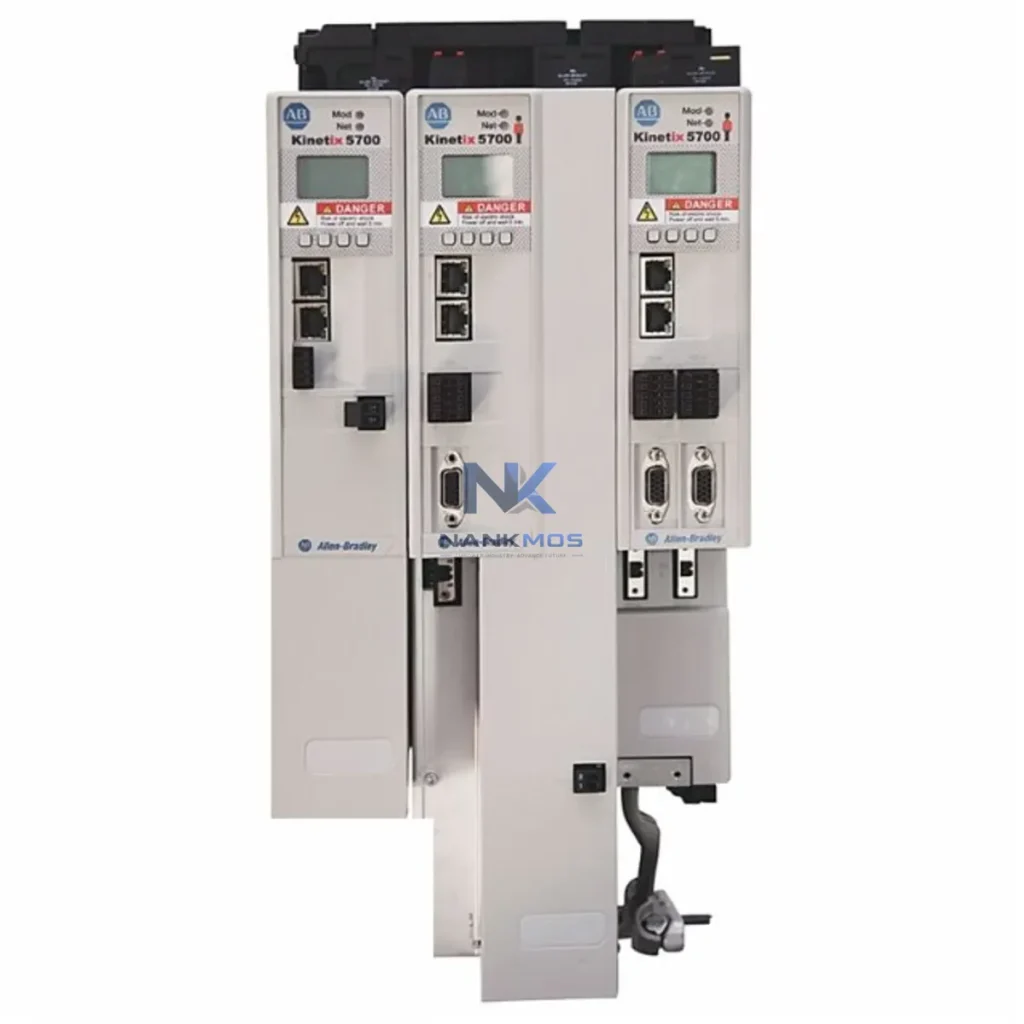

Allen-Bradley 2198-P208 DC Bus Power Supply

Product Details

2198-P208 Product Description

The Allen-Bradley 2198-P208 is a high-performance DC Bus Power Supply engineered for the Kinetix 5700 multi-axis servo drive platform. Designed to operate at the heart of precision motion control architectures, the 2198-P208 delivers stable, regulated DC bus power across multiple servo axes while maintaining seamless integration with EtherNet/IP-based control networks. In smart factory environments where data continuity, real-time diagnostics, and system-wide transparency are non-negotiable, the 2198-P208 serves as a critical power and communication node connecting field-level servo drives to upper-level PLC controllers, SCADA systems, and HMI visualization platforms.

From signal acquisition at the servo motor encoder level through protocol-layer communication on the EtherNet/IP backbone, the 2198-P208 participates in a complete industrial data chain. When paired with a Logix 5000-series controller such as the ControlLogix 5580 or CompactLogix 5380, the power supply's operational status, bus voltage levels, fault conditions, and thermal data are continuously surfaced to the control layer. This real-time telemetry feeds directly into Studio 5000 Logix Designer diagnostic dashboards and can be forwarded upstream to SCADA platforms via OPC-UA or EtherNet/IP Class 1 cyclic connections, enabling plant-wide visibility without manual intervention.

In a fully connected Kinetix 5700 servo system, the 2198-P208 DC Bus Power Supply anchors the power distribution rail shared across multiple Kinetix 5700 dual-axis inverter modules such as the 2198-D032-ERS3 and 2198-D006-ERS3. Each inverter module draws regulated DC bus voltage from the 2198-P208 while simultaneously exchanging CIP Motion data with the upstream ControlLogix 5580 controller over the EtherNet/IP network. This architecture eliminates the need for individual AC-to-DC conversion at each drive node, reducing panel footprint and simplifying the power distribution topology.

At the field level, servo motors equipped with high-resolution feedback encoders transmit position, velocity, and torque data back through the Kinetix 5700 inverter modules to the ControlLogix controller. The 2198-P208 supports Safe Torque-Off (STO) functionality, which integrates directly with safety relay modules and GuardLogix safety controllers to enforce machine safety states without interrupting the EtherNet/IP communication backbone. This means that even during an emergency stop event, diagnostic data continues to flow — fault codes, bus voltage readings, and thermal status remain visible to the SCADA layer and to FactoryTalk View SE HMI terminals on the plant floor.

For facilities deploying edge computing strategies, the EtherNet/IP data stream from the Kinetix 5700 system can be aggregated by an industrial edge gateway — such as a Stratix 5400 managed industrial Ethernet switch or a Cisco IE3400 series switch — before being forwarded to cloud-based analytics platforms or on-premise MES systems. Variable frequency drives (VFDs) on adjacent conveyor or pump circuits, connected via DeviceNet-to-EtherNet/IP gateway modules, can share the same network infrastructure, allowing a unified SCADA view of both servo motion axes and auxiliary drive systems. Remote I/O modules such as the POINT I/O 1734-AENT adapter extend digital and analog field signals into the same EtherNet/IP fabric, ensuring that sensor data from proximity switches, pressure transducers, and temperature transmitters is available alongside servo drive telemetry in a single integrated data model.

Data visualization is handled at multiple layers: at the machine level through PanelView Plus 7 HMI terminals running FactoryTalk View ME, at the area level through FactoryTalk View SE SCADA servers, and at the enterprise level through FactoryTalk Analytics or third-party OPC-UA clients. The 2198-P208's contribution to this data chain — stable, uninterrupted DC bus power — ensures that servo axes remain synchronized and that the motion data flowing through the network accurately reflects actual machine state, supporting both real-time control decisions and historical trend analysis for predictive maintenance programs.

Many industrial facilities operating legacy servo systems face a common set of challenges: protocol fragmentation between older analog drive systems and modern EtherNet/IP networks, data silos where servo drive health information is isolated from the plant SCADA layer, and limited remote diagnostic capability that forces maintenance teams to physically inspect drive cabinets to identify faults. The Allen-Bradley 2198-P208, as part of the Kinetix 5700 platform, directly addresses these gaps.

By standardizing on EtherNet/IP as the sole communication protocol for both motion control and diagnostic data, the Kinetix 5700 system eliminates the protocol translation overhead that burdens multi-protocol environments. There is no need for a separate SERCOS-to-EtherNet/IP gateway or a proprietary motion bus adapter — the 2198-P208 and its associated inverter modules communicate natively over standard Ethernet infrastructure. This simplification reduces configuration complexity, lowers the risk of communication latency introduced by protocol conversion layers, and makes it straightforward to integrate the servo system into existing plant-wide EtherNet/IP networks managed by Stratix series industrial switches.

For remote monitoring and diagnostics, the Kinetix 5700 system's EtherNet/IP connectivity enables FactoryTalk Remote Access or VPN-based connections to allow off-site engineers to review drive fault logs, bus voltage history, and axis performance data without traveling to the plant. Alarm and event data generated by the 2198-P208 — including overcurrent faults, bus undervoltage conditions, and thermal warnings — can be routed through the ControlLogix controller to FactoryTalk Alarms and Events servers, ensuring that maintenance teams receive timely notifications and that alarm histories are preserved for root-cause analysis. This capability transforms reactive maintenance workflows into proactive, data-driven maintenance strategies, reducing unplanned downtime and extending the operational life of servo drive assets.

All units supplied by NANKMOS are drawn from verified, pre-shipment tested inventory. Each 2198-P208 undergoes functional verification prior to dispatch, and is covered by a 12-Month Warranty, giving procurement and maintenance teams confidence in both product authenticity and post-sale support.

Q1: What communication protocol does the Allen-Bradley 2198-P208 use, and is it compatible with existing plant EtherNet/IP networks? The 2198-P208 operates within the Kinetix 5700 platform, which uses EtherNet/IP (CIP Motion) as its native communication protocol. It is fully compatible with standard plant EtherNet/IP infrastructure, including Stratix series managed switches and ControlLogix or CompactLogix controllers running Studio 5000 Logix Designer. No additional protocol gateway is required for integration into an existing Rockwell Automation control network.

Q2: How does the 2198-P208 support remote diagnostics and real-time monitoring in a smart factory environment? The Kinetix 5700 system surfaces bus voltage, thermal status, fault codes, and axis performance data over the EtherNet/IP network to the ControlLogix controller, which can forward this data to FactoryTalk View SE SCADA servers or OPC-UA clients. Remote access via FactoryTalk Remote Access or secure VPN connections allows off-site engineers to monitor and diagnose drive conditions without on-site presence, reducing response time and maintenance costs.

Q3: Can the 2198-P208 be integrated into a system that also includes variable frequency drives and remote I/O modules on the same network? Yes. The EtherNet/IP backbone shared by the Kinetix 5700 system can also carry I/O data from POINT I/O 1734-AENT adapters and status data from EtherNet/IP-enabled VFDs or gateway modules. A properly segmented network managed by Stratix industrial switches ensures that motion-critical CIP Motion traffic is prioritized using DSCP/QoS policies, maintaining deterministic communication latency for servo control while sharing infrastructure with other device types.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 2198-P208? Every Allen-Bradley 2198-P208 supplied by NANKMOS is covered by a 12-Month Warranty and has been functionally tested prior to shipment. Pre-shipment verification confirms power supply output integrity and communication interface functionality, ensuring that units arrive ready for installation. For procurement inquiries or technical support, contact [email protected] or call +86 18359268345.
