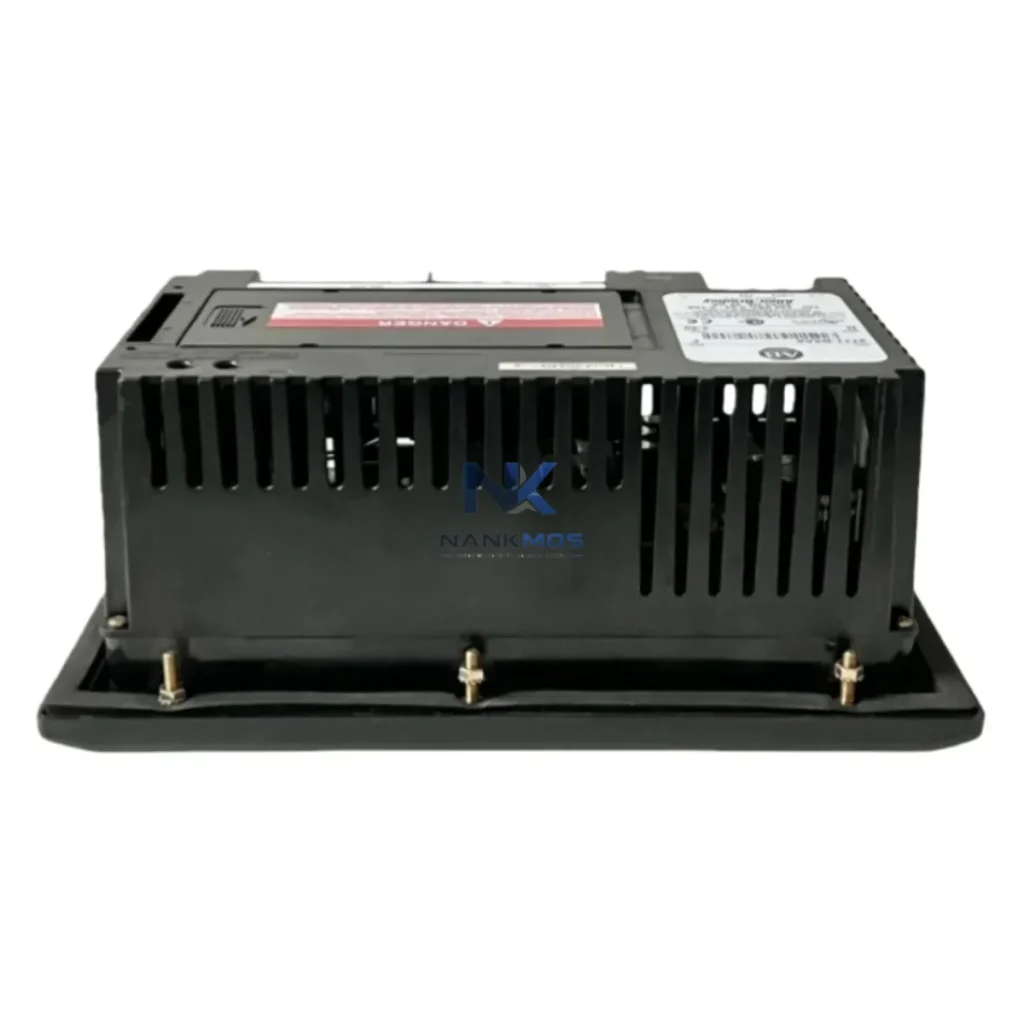

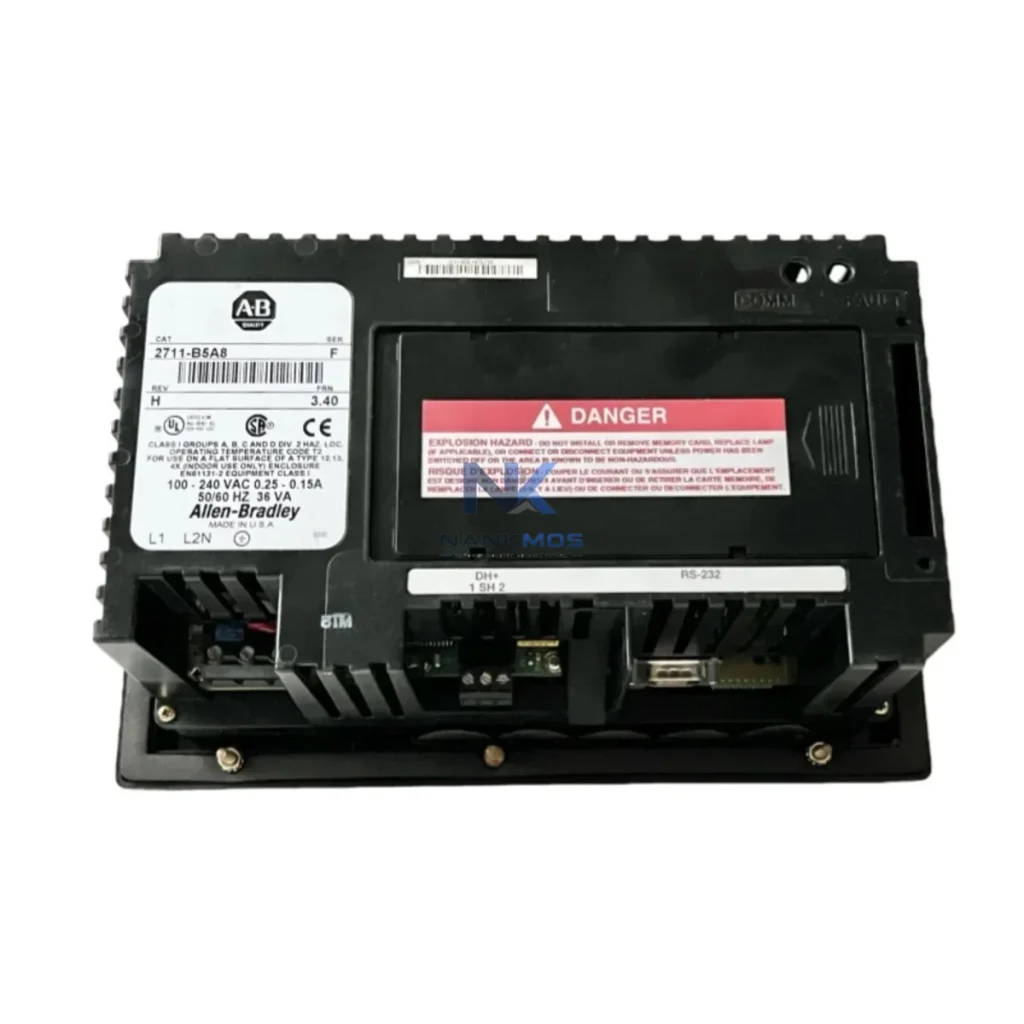

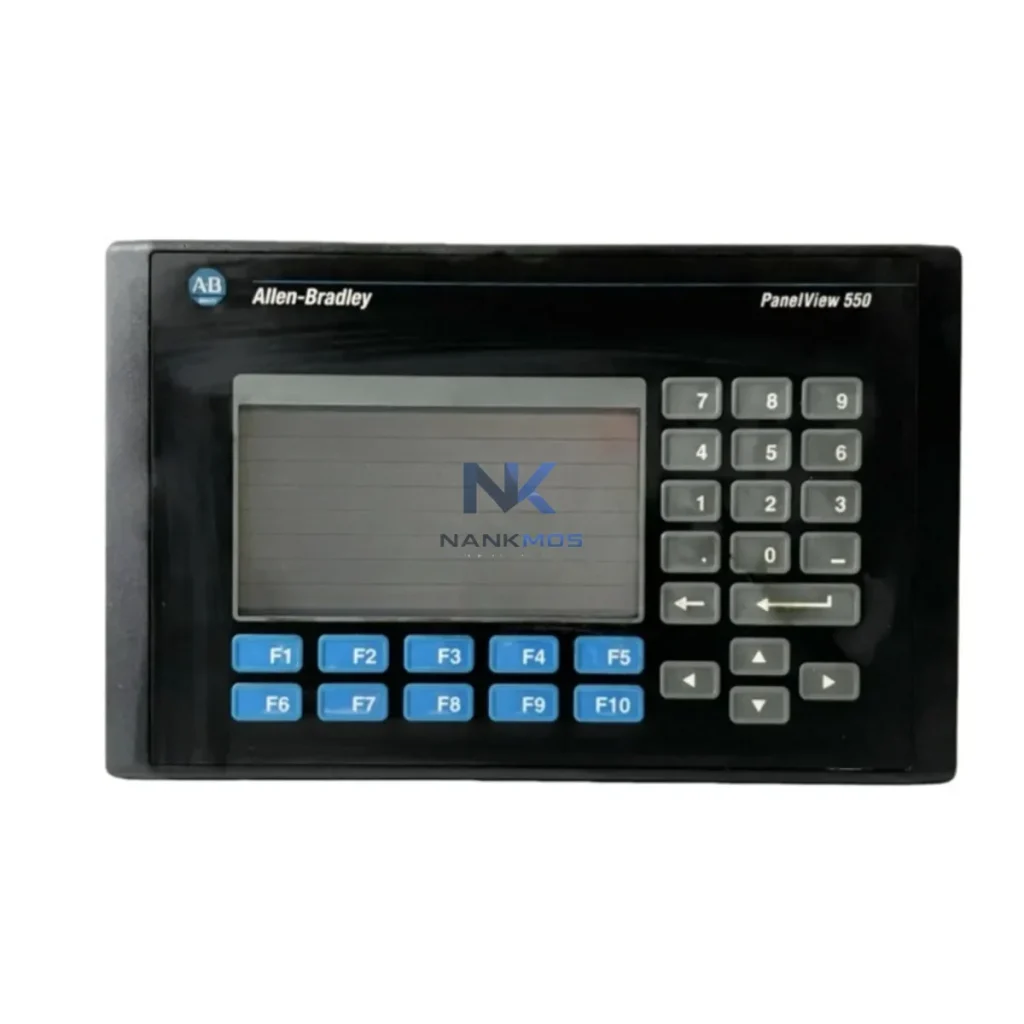

Allen-Bradley 2711-B5A8 HMI Terminal

Product Details

2711-B5A8 Product Description

The Allen-Bradley 2711-B5A8 is a PanelView 550 Human-Machine Interface terminal engineered for seamless integration within Rockwell Automation's layered control architecture. Designed to serve as the primary operator interface layer in distributed and centralized automation systems, the 2711-B5A8 delivers reliable real-time visualization, process monitoring, and operator command execution across a broad range of industrial environments. Its role extends beyond simple display functionality — it functions as a critical node in the system hierarchy, bridging the gap between the control layer and the human operator while maintaining signal integrity, communication stability, and long-term operational consistency.

In modern industrial automation, the HMI layer is not an isolated component. It is deeply embedded within a multi-tier architecture that includes programmable logic controllers, I/O subsystems, communication networks, power distribution modules, and field-level actuators. The 2711-B5A8 is purpose-built to operate within this ecosystem, supporting contextual integration with Allen-Bradley's broader control platform and enabling engineers to deploy, configure, and maintain operator interfaces with minimal disruption to the overall system architecture.

The 2711-B5A8 achieves its full operational potential when deployed as part of a cohesive Allen-Bradley automation platform. In a typical control cabinet configuration, the HMI terminal communicates directly with a MicroLogix 1100 or SLC 500 series programmable logic controller via DH-485 or RS-232 serial links, enabling real-time tag exchange and process visualization without the latency associated with Ethernet-based polling architectures. This direct serial communication path ensures deterministic data refresh rates, which is critical in time-sensitive process control applications.

At the power layer, the 2711-B5A8 operates on a 24V DC supply, making it fully compatible with Allen-Bradley 1606-XLP series power supplies commonly deployed in the same control enclosure. This voltage compatibility simplifies panel design, reduces the number of power conversion stages, and improves overall system reliability by minimizing potential failure points in the power distribution chain.

For I/O integration, the 2711-B5A8 works in conjunction with SLC 500 I/O modules — including 1746-IB16 digital input modules and 1746-OB16 digital output modules — to provide operators with accurate, real-time status information on field device states. When paired with 1746-NI4 analog input modules, the terminal can display process variables such as temperature, pressure, and flow rate, enabling operators to make informed control decisions directly from the HMI interface.

Communication stability is further enhanced when the 2711-B5A8 is integrated with a 1747-AIC Advanced Interface Converter, which provides electrical isolation and signal conditioning on the DH-485 network. This is particularly important in environments with high electromagnetic interference, such as those found in motor drive applications where Allen-Bradley PowerFlex 40 or PowerFlex 70 variable frequency drives are present in the same panel or adjacent enclosures.

For larger system architectures requiring network-level integration, the 2711-B5A8 can be deployed alongside a 1761-NET-AIC Network Interface Converter, extending its communication reach across multi-node DH-485 networks. This enables a single HMI terminal to serve as the operator interface for multiple PLCs within a distributed control topology, reducing hardware costs while maintaining centralized visualization capability.

In redundant control architectures, the 2711-B5A8 complements primary and secondary PLC configurations by providing a consistent operator interface that remains functional regardless of which controller is active. When used alongside Allen-Bradley 1747-L553 SLC 5/05 processors with Ethernet capability, the system can be configured for remote monitoring and diagnostics, allowing maintenance engineers to access process data and fault logs without physical presence at the control panel.

Manufacturing & Assembly Lines: In automotive and general manufacturing environments, the 2711-B5A8 serves as the primary operator touchpoint for conveyor control, assembly station sequencing, and quality checkpoint monitoring. Its keypad-based input method is well-suited for gloved operators in production environments where touchscreen interfaces may be impractical. The terminal's NEMA 4/4X front panel rating ensures reliable operation in wash-down and dust-prone areas.

Power Generation & Distribution: In power plant auxiliary systems and substation control panels, the 2711-B5A8 provides operators with real-time visibility into breaker status, load distribution, and alarm conditions. Its DH-485 communication interface integrates cleanly with existing Allen-Bradley PLC-based SCADA front-ends, enabling consistent data presentation across the control hierarchy without requiring protocol conversion hardware.

Water & Wastewater Treatment: Municipal water treatment facilities rely on the 2711-B5A8 for pump station monitoring, chemical dosing control, and filtration process visualization. The terminal's robust enclosure rating and wide operating temperature range make it suitable for outdoor pump house installations and underground wet well control panels where environmental conditions can be challenging.

Oil, Gas & Petrochemical: In upstream and midstream oil and gas applications, the 2711-B5A8 is deployed in wellhead control panels, pipeline monitoring stations, and compressor skid interfaces. Its compatibility with SLC 500 and MicroLogix controller families — both widely used in legacy oil field automation — ensures straightforward integration without requiring controller platform migration.

Mining & Metals Processing: Conveyor belt systems, crusher control panels, and ore processing lines in mining operations benefit from the 2711-B5A8's durability and straightforward operator interface. The terminal's ability to display discrete I/O status and analog process values in a single interface reduces operator cognitive load in high-noise, high-vibration environments.

Packaging & Material Handling: High-speed packaging lines and palletizing systems use the 2711-B5A8 to provide machine operators with production rate displays, fault annunciation, and recipe selection interfaces. Its fast screen update capability and reliable serial communication ensure that operator commands are executed with minimal delay, supporting high-throughput production targets.

Q1: Is the Allen-Bradley 2711-B5A8 compatible with both SLC 500 and MicroLogix controller families, and what communication cables are required? Yes, the 2711-B5A8 supports DH-485 and RS-232 communication protocols, making it compatible with the SLC 500 series (via 1747-AIC or direct DH-485 port) and MicroLogix 1000/1100/1400 controllers (via RS-232 or DH-485 with appropriate interface converter). For DH-485 connections, a 1747-C13 cable or equivalent shielded twisted-pair cable is recommended. For RS-232 direct connections to MicroLogix controllers, a 1761-CBL-PM02 programming cable is commonly used. Always verify the controller's communication port configuration in RSLogix 500 before commissioning the HMI terminal.

Q2: How does the 2711-B5A8 fit into a redundant control architecture, and what are the limitations of its integration in high-availability systems? The 2711-B5A8 is a single-port serial HMI terminal and does not natively support dual-port or Ethernet-based redundancy switching. In redundant PLC architectures, the terminal is typically connected to the primary controller's communication port, with manual or automated switchover handled at the PLC level. For applications requiring true HMI-level redundancy, engineers may consider deploying a secondary 2711-B5A8 unit connected to the backup controller, with both terminals mounted in the same panel for operator access. This approach provides hardware redundancy at the HMI layer without requiring a platform upgrade. NANKMOS maintains stock of multiple units to support rapid replacement in critical applications.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term maintenance and spare parts availability for the 2711-B5A8? NANKMOS provides a 12-Month Warranty on all 2711-B5A8 units, covering manufacturing defects, component failures, and functional non-conformance under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify communication port integrity, display operation, keypad response, and power supply compatibility before dispatch. For long-term maintenance planning, NANKMOS maintains a dedicated inventory of PanelView 550 series terminals and associated communication accessories, enabling rapid fulfillment for both planned maintenance replacements and emergency spare part requirements. Customers with multi-site installations or critical process applications are encouraged to contact [email protected] to discuss volume pricing and dedicated inventory reservation programs.
