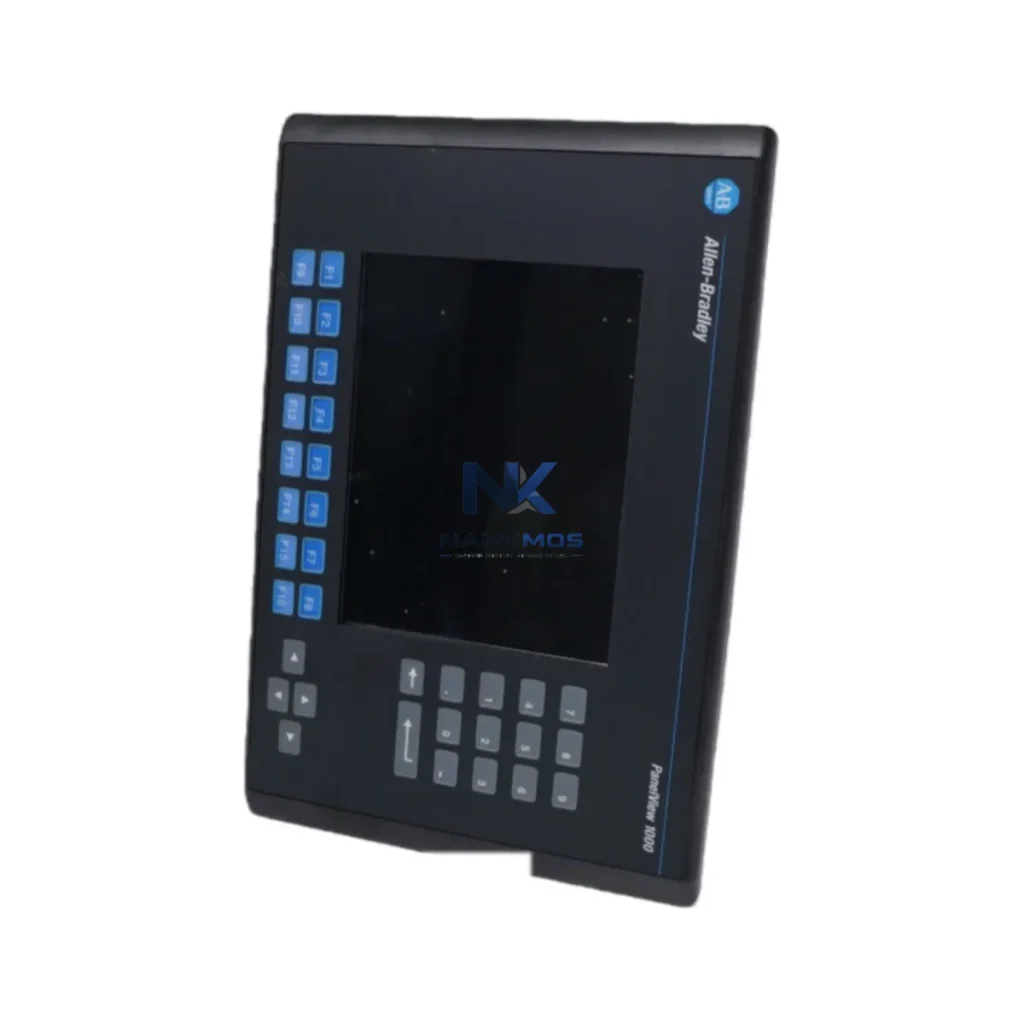

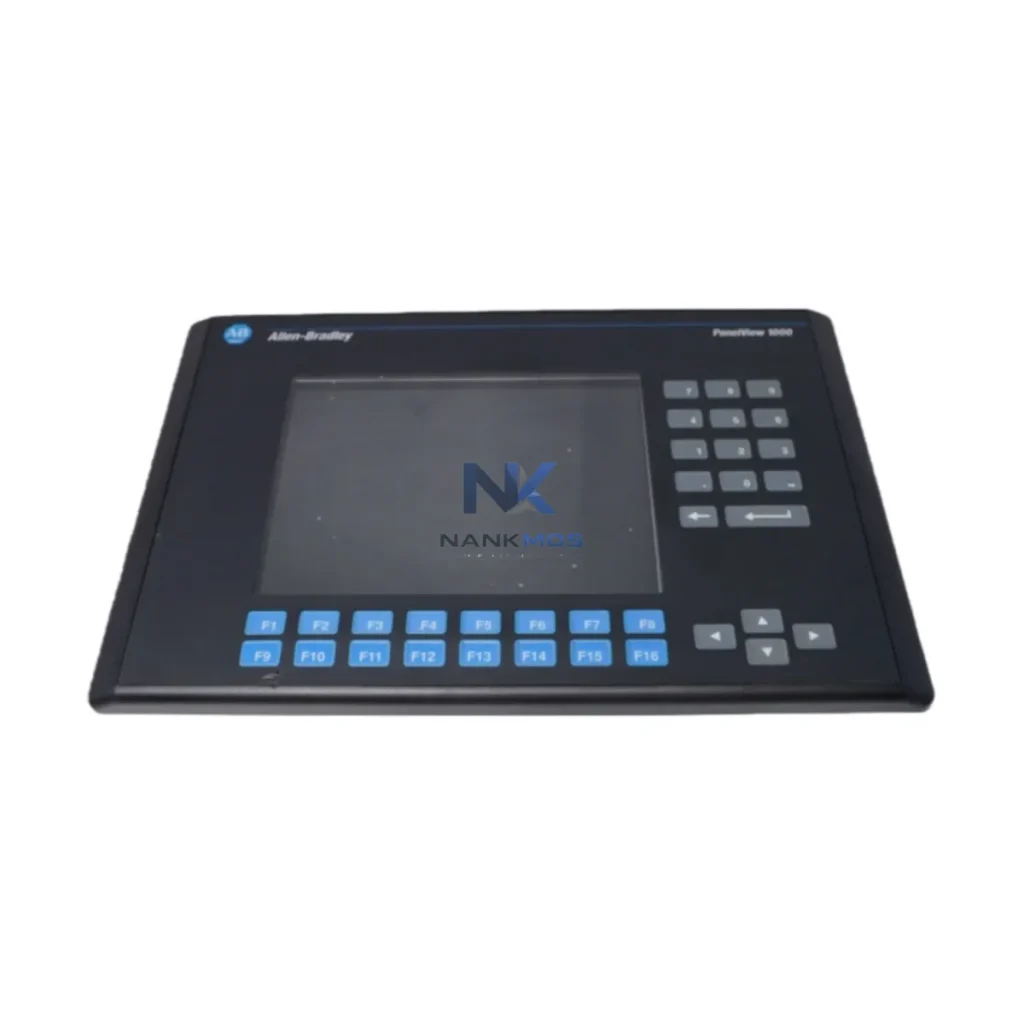

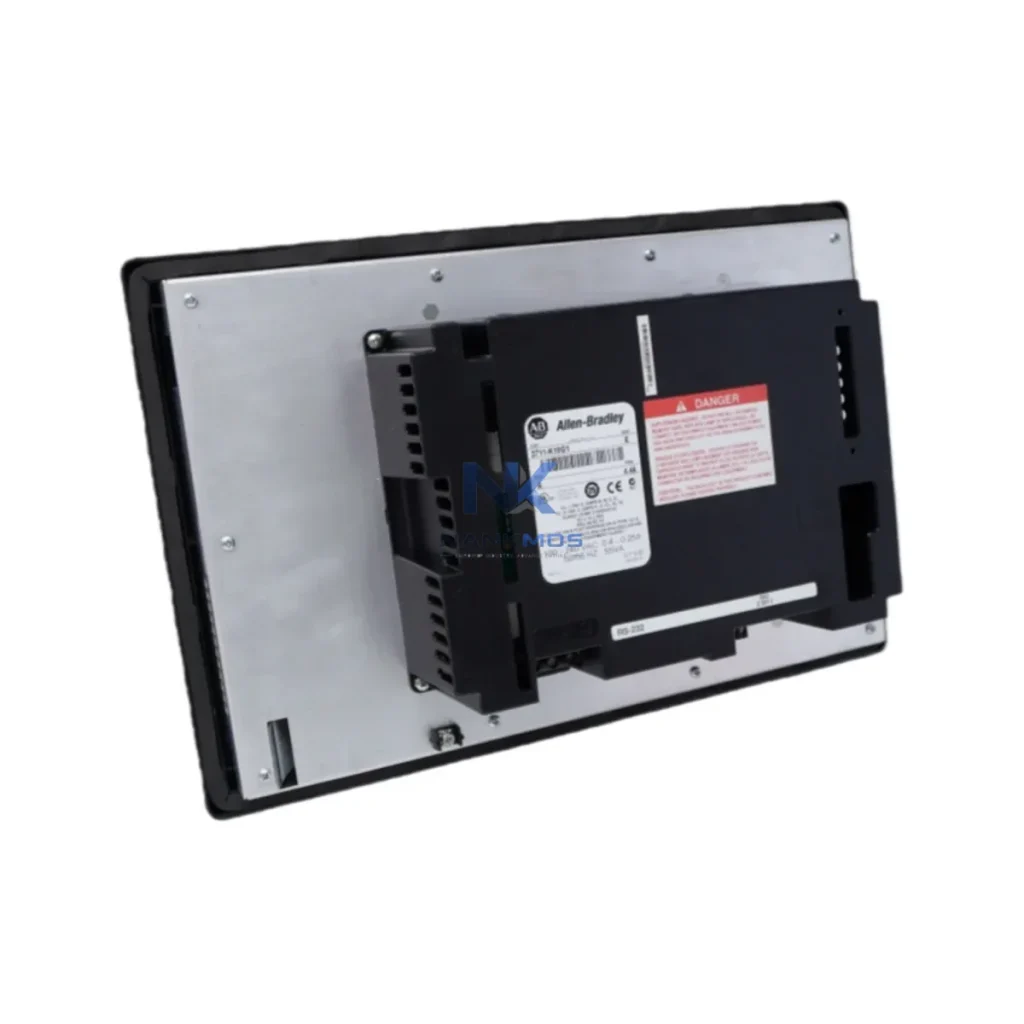

Allen-Bradley 2711-K10G9X HMI Operator Interface

Product Details

2711-K10G9X Product Description

The Allen-Bradley 2711-K10G9X is not simply a standalone display terminal — it is a purpose-built HMI node within a layered Rockwell Automation control architecture. Understanding its role requires examining how it interacts with every functional layer of a complete industrial control system.

At the control layer, the 2711-K10G9X communicates natively with Allen-Bradley MicroLogix 1000, MicroLogix 1100, MicroLogix 1200, and MicroLogix 1500 PLCs via DH-485 or RS-232/DF1 protocols. It also integrates seamlessly with SLC 500 series processors and legacy PLC-5 platforms, making it an ideal HMI solution for both new installations and system upgrades where controller continuity is required. In larger architectures, where a 1756-L71 ControlLogix processor or a 1769-L33ER CompactLogix controller governs the primary control logic, the 2711-K10G9X can serve as a localized operator station for a sub-system or auxiliary process loop, connected through a protocol gateway or a 1761-NET-AIC Advanced Interface Converter.

At the I/O layer, the 2711-K10G9X surfaces real-time data from field devices connected through 1734 POINT I/O modules or 1769 Compact I/O expansion racks. Operators can monitor discrete input states, analog signal values, and process variables directly on the PanelView 550 screen without requiring a separate SCADA workstation. This tight coupling between the HMI layer and the I/O layer reduces operator response time and improves situational awareness on the plant floor.

At the communication layer, the 2711-K10G9X supports DH-485 multi-drop networks, allowing multiple PanelView terminals to share a single communication trunk with a MicroLogix or SLC 500 controller. For installations requiring higher-bandwidth communication, a 1761-NET-DNI DeviceNet Interface or a 1747-SDN DeviceNet Scanner can bridge the HMI network to a broader EtherNet/IP backbone, enabling the 2711-K10G9X to participate in a unified plant-wide communication architecture alongside ControlLogix and CompactLogix systems.

At the power layer, the 2711-K10G9X operates on 24 VDC supplied by a 1606-XLP power supply or equivalent Allen-Bradley regulated DC power module. Stable, clean DC power is critical for HMI reliability, particularly in environments with variable loads from motor drives, solenoid valves, and relay coils. Proper power distribution design — including dedicated HMI power rails and surge suppression — ensures that the 2711-K10G9X maintains continuous operation even during load transients on the main control panel bus.

At the execution and protection layers, the 2711-K10G9X provides operators with direct access to drive reference setpoints, pump start/stop commands, and valve position controls, all configured through PanelBuilder32 application software. Alarm pages can be configured to display fault codes from connected 22-series PowerFlex drives or 100-series Allen-Bradley motor starters, enabling rapid fault diagnosis without requiring a laptop or programming terminal on the floor. This integration between the HMI layer and the execution layer shortens mean time to repair (MTTR) and reduces unplanned downtime.

For modular deployment, the 2711-K10G9X is designed for front-panel mounting in standard NEMA 4/4X enclosures, making it compatible with a wide range of control cabinet configurations. Its compact 5.5-inch form factor allows installation in space-constrained panels alongside 1492 terminal blocks, 700-series relay modules, and 1783-series industrial Ethernet switches, without requiring enclosure redesign.

From a long-term maintenance perspective, the 2711-K10G9X benefits from Rockwell Automation's extensive spare parts ecosystem. NANKMOS maintains verified stock of the 2711-K10G9X and related PanelView 550 series components, including the 2711-K5A8, 2711-K6C8, and 2711-K9A8 models, ensuring that replacement units are available for emergency maintenance without extended lead times. All units shipped by NANKMOS undergo pre-shipment functional testing and are covered by a 12-Month Warranty, providing engineering teams with confidence in long-term system reliability.

The 2711-K10G9X has been deployed across a broad spectrum of industrial environments where reliable, cost-effective HMI solutions are required within established Rockwell Automation control architectures.

In manufacturing and assembly lines, the PanelView 550 serves as the primary operator interface for conveyor control systems, robotic cell status monitoring, and production count displays. Its keypad-based input design is well-suited for environments where gloved operators require tactile feedback, and its NEMA 4X rating ensures reliable operation in washdown areas of food and beverage processing facilities.

In water and wastewater treatment applications, the 2711-K10G9X is commonly installed at pump station control panels, where it displays flow rates, tank levels, and pump runtime data sourced from MicroLogix 1200 or SLC 500 controllers. Its ability to display multi-page alarm summaries and trend data makes it a practical choice for remote unmanned pump stations where operator visits are infrequent.

In power distribution and electrical substations, the 2711-K10G9X provides local operator control for motor control centers (MCCs) and switchgear panels. Operators can acknowledge alarms, reset protective relays, and monitor bus voltage and current values without requiring access to a central SCADA system, improving response speed during fault conditions.

In oil, gas, and petrochemical facilities, the PanelView 550 is used in wellhead control panels, compressor skids, and chemical injection systems where a compact, rugged HMI is required to interface with MicroLogix or SLC 500 safety-related control systems. Its sealed front panel and wide operating temperature range make it suitable for outdoor and semi-outdoor installations in harsh environments.

In mining and metallurgical operations, the 2711-K10G9X is deployed on conveyor drive control panels, crusher control stations, and ore processing equipment, where it provides operators with real-time visibility into drive status, belt speed, and process interlocks managed by Allen-Bradley PLCs.

Q1: Is the Allen-Bradley 2711-K10G9X compatible with ControlLogix and CompactLogix systems? The 2711-K10G9X communicates natively via DH-485 and RS-232/DF1 protocols, which are standard on MicroLogix and SLC 500 controllers. For integration with ControlLogix (1756 series) or CompactLogix (1769 series) systems, a protocol gateway such as the 1761-NET-AIC or a third-party EtherNet/IP-to-DH-485 bridge is required. This configuration is widely used in hybrid architectures where legacy HMI terminals are retained alongside newer controller platforms, providing a cost-effective path to system modernization without full HMI replacement.

Q2: What programming software is required, and is it still supported for long-term maintenance? The 2711-K10G9X is programmed using PanelBuilder32 software, which remains available through Rockwell Automation's software distribution channels. Application files (.PBA format) created in PanelBuilder32 can be transferred to the terminal via a serial programming cable (1747-CP3 or equivalent). For long-term maintenance, NANKMOS recommends retaining a backup copy of the application file and the PanelBuilder32 installation package, ensuring that replacement terminals can be programmed rapidly in the event of hardware failure. All NANKMOS-supplied 2711-K10G9X units are tested for communication readiness prior to shipment.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? NANKMOS provides a 12-Month Warranty on all 2711-K10G9X units, covering hardware defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment inspection and functional verification before dispatch. In-stock units are typically available for same-day or next-business-day shipment, minimizing downtime for urgent maintenance requirements. For volume procurement or project-based orders, NANKMOS can provide dedicated inventory reservation and phased delivery scheduling to align with project commissioning timelines. Contact [email protected] or +86 18359268345 for availability confirmation and lead time quotation.
