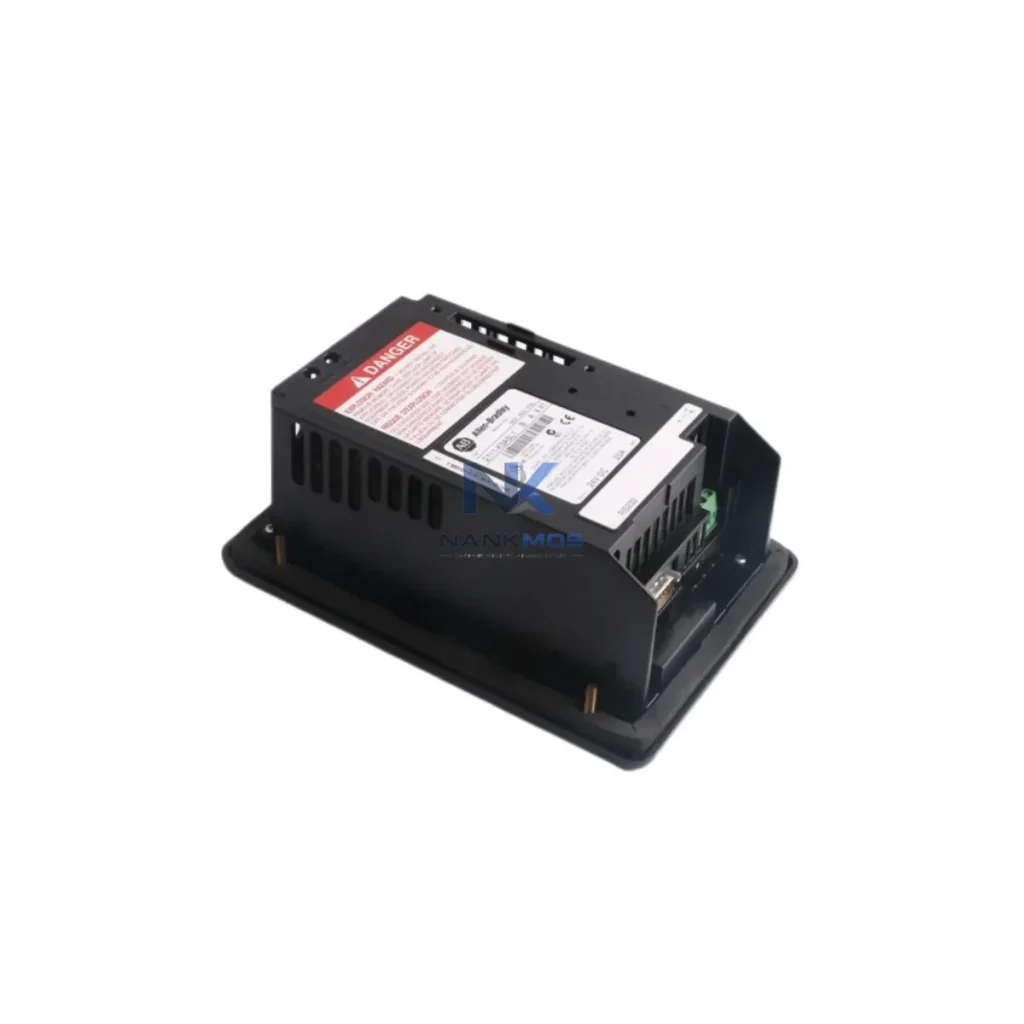

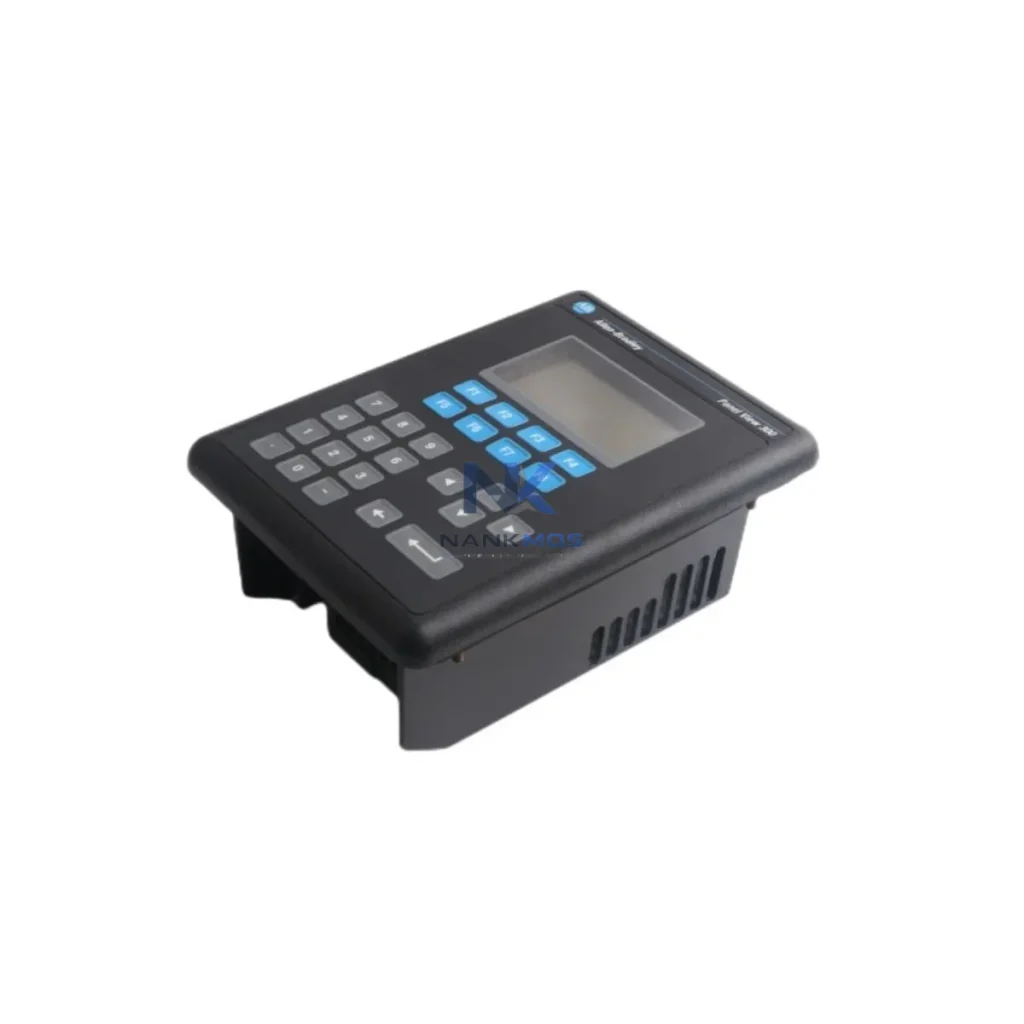

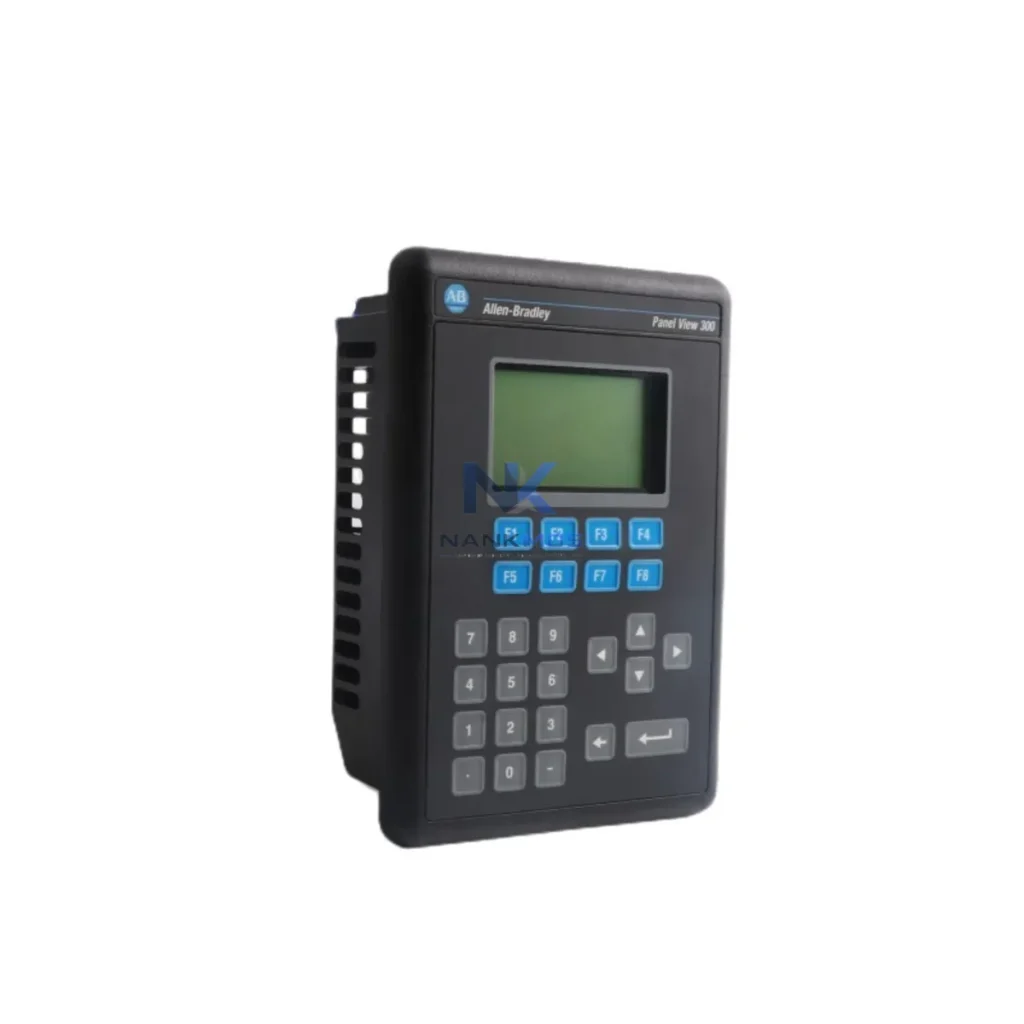

Allen-Bradley 2711-K3A5L1 HMI Terminal

Product Details

2711-K3A5L1 Product Description

The Allen-Bradley 2711-K3A5L1 is a compact, operator-interface terminal from the Rockwell Automation PanelView 300 series, engineered to deliver reliable human-machine interaction at the control layer of industrial automation architectures. Designed for integration with Allen-Bradley SLC 500, MicroLogix, and PLC-5 controller families via DH-485 and RS-232 communication links, the 2711-K3A5L1 provides a deterministic, low-latency interface between field operators and the underlying control logic. Its monochrome keypad-based display, compact panel-mount form factor, and robust operating temperature range make it a dependable choice for machine-level HMI deployment in environments where screen real estate is limited but operational clarity is non-negotiable.

In a layered industrial control architecture, the 2711-K3A5L1 occupies the HMI layer — the critical interface tier that translates PLC register states, alarm conditions, and process variables into actionable operator feedback. Unlike supervisory SCADA terminals that aggregate plant-wide data, the PanelView 300 is optimized for localized, machine-centric control: acknowledging alarms, initiating sequences, monitoring discrete I/O states, and confirming setpoint entries. This focused scope reduces operator cognitive load and minimizes the risk of inadvertent cross-system interference during commissioning and routine maintenance cycles.

Backed by a 12-Month Warranty and verified through pre-shipment functional testing, the 2711-K3A5L1 is available from stock for immediate dispatch to manufacturing facilities, OEM integrators, and MRO procurement teams worldwide.

The 2711-K3A5L1 achieves its full operational value when deployed as part of a cohesive, multi-layer automation platform rather than as a standalone display device. At the control layer, it interfaces directly with Allen-Bradley SLC 5/03 and SLC 5/04 processors via DH-485, enabling real-time register polling and alarm acknowledgment without burdening the CPU scan cycle. For installations using the MicroLogix 1400, the RS-232 DF1 port provides a straightforward point-to-point link that simplifies panel wiring and reduces commissioning time.

At the I/O layer, discrete and analog signals from 1746-IB16 digital input modules and 1746-NI4 analog input modules feed process variable data into the SLC 500 data table, which the 2711-K3A5L1 then renders as operator-readable values on its display screens. This tight coupling between the I/O layer and the HMI layer ensures that operators receive accurate, low-latency feedback on field device states — critical in applications such as conveyor sequencing, pump control, and valve positioning.

For communication layer integration, the 2711-K3A5L1 coexists on DH-485 networks alongside 1761-NET-AIC Advanced Interface Converters, which bridge RS-232 devices into the DH-485 topology and extend network reach across larger panel configurations. In installations where Ethernet connectivity is required at the supervisory layer, a 1761-NET-ENI Ethernet Interface module can be added to the SLC 500 rack, allowing the PanelView 300 to continue operating on its native DH-485 segment while SCADA systems access controller data via EtherNet/IP.

Power layer stability is ensured by pairing the 2711-K3A5L1 with a dedicated 1606-XLP60E QUINT-class 24V DC power supply, which provides regulated, low-ripple DC power to both the HMI terminal and the SLC 500 I/O chassis. Redundant power input configurations using 1606-XLS240E units are recommended for high-availability applications in water treatment and continuous process industries.

For installations requiring expanded operator functionality, the PanelView 300 series can be complemented by 2711-K5A8 or 2711-K9A10 PanelView 550/900 terminals at supervisory workstations, maintaining a consistent Rockwell Automation HMI ecosystem across all operator tiers. This architectural consistency reduces training overhead, simplifies spare-parts management, and ensures uniform alarm handling behavior across the plant floor.

Discrete Manufacturing: In automotive body-shop and assembly-line applications, the 2711-K3A5L1 provides machine operators with direct access to cycle counts, fault codes, and E-stop status for individual work cells. Its keypad interface is well-suited to gloved-hand operation in environments where touchscreen reliability may be compromised by coolant, oil, or metal particulate contamination.

Power Distribution & Energy Facilities: Substations and motor control centers (MCCs) deploying SLC 500-based protection relay coordination benefit from the 2711-K3A5L1 as a local operator panel for breaker status monitoring, load shedding confirmation, and manual override initiation. The NEMA 4X-rated panel cutout installation ensures ingress protection in outdoor or wash-down enclosures.

Water & Wastewater Treatment: Pump station control panels using MicroLogix 1200 or SLC 5/03 controllers integrate the 2711-K3A5L1 for local level display, pump run-hour tracking, and alarm acknowledgment. The terminal's non-volatile memory retains application programming through power cycles, eliminating re-commissioning requirements after utility outages.

Petrochemical & Refinery Process Control: In hazardous-area-adjacent control rooms, the 2711-K3A5L1 serves as a local operator station for batch sequence initiation, valve position confirmation, and interlock bypass authorization. Its deterministic DH-485 communication ensures that operator commands are executed within defined scan-cycle windows, supporting process safety requirements.

Packaging & Material Handling: High-speed packaging lines using SLC 500 motion control configurations deploy the 2711-K3A5L1 for format changeover parameter entry, reject counter display, and line speed adjustment — tasks that require rapid, repeatable operator input without navigating complex SCADA screen hierarchies.

Mining & Metals Processing: Conveyor drive control panels in underground mining operations benefit from the 2711-K3A5L1's wide operating temperature range and robust enclosure rating, providing operators with belt speed, load, and fault status at the drive panel without requiring network connectivity to a central SCADA server.

Q1: Is the 2711-K3A5L1 compatible with ControlLogix and CompactLogix platforms? The 2711-K3A5L1 communicates natively via DH-485 and RS-232 DF1, which are legacy Rockwell protocols associated with the SLC 500 and MicroLogix families. Direct communication with ControlLogix (1756) or CompactLogix (1769) processors requires a protocol bridge such as the 1761-NET-AIC or a DF1-to-EtherNet/IP gateway. For new ControlLogix installations, Rockwell's PanelView Plus 6 or PanelView Plus 7 terminals using EtherNet/IP are the recommended HMI platform; however, the 2711-K3A5L1 remains the correct drop-in replacement for existing PanelView 300 installations on legacy DH-485 networks.

Q2: What programming software is required, and is it still available? The 2711-K3A5L1 is programmed using PanelBuilder 1400e or PanelBuilder32 software. PanelBuilder32 (version 3.83 and later) runs on Windows XP through Windows 10 with compatibility mode enabled, and application files (.pba) can be transferred to the terminal via the RS-232 programming port using a 2711-NC13 or 2711-NC14 cable. NANKMOS can supply the terminal pre-loaded with customer-provided application files upon request, reducing on-site commissioning time. The 12-Month Warranty covers hardware functionality; software licensing is the responsibility of the end user.

Q3: What does the 12-Month Warranty cover, and what is the lead time for replacement units? NANKMOS's 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance identified under normal operating conditions. Each unit undergoes pre-shipment power-on testing and communication port verification before dispatch. In the event of a warranty claim, NANKMOS provides advance replacement from stock to minimize control system downtime. Standard lead time for in-stock units is 3–7 business days for international shipments; expedited dispatch is available for critical MRO requirements. Contact [email protected] or +86 18359268345 to confirm current stock availability and initiate a warranty claim.
