Allen-Bradley 2711-K6C10 HMI Terminal

Product Details

2711-K6C10 Product Description

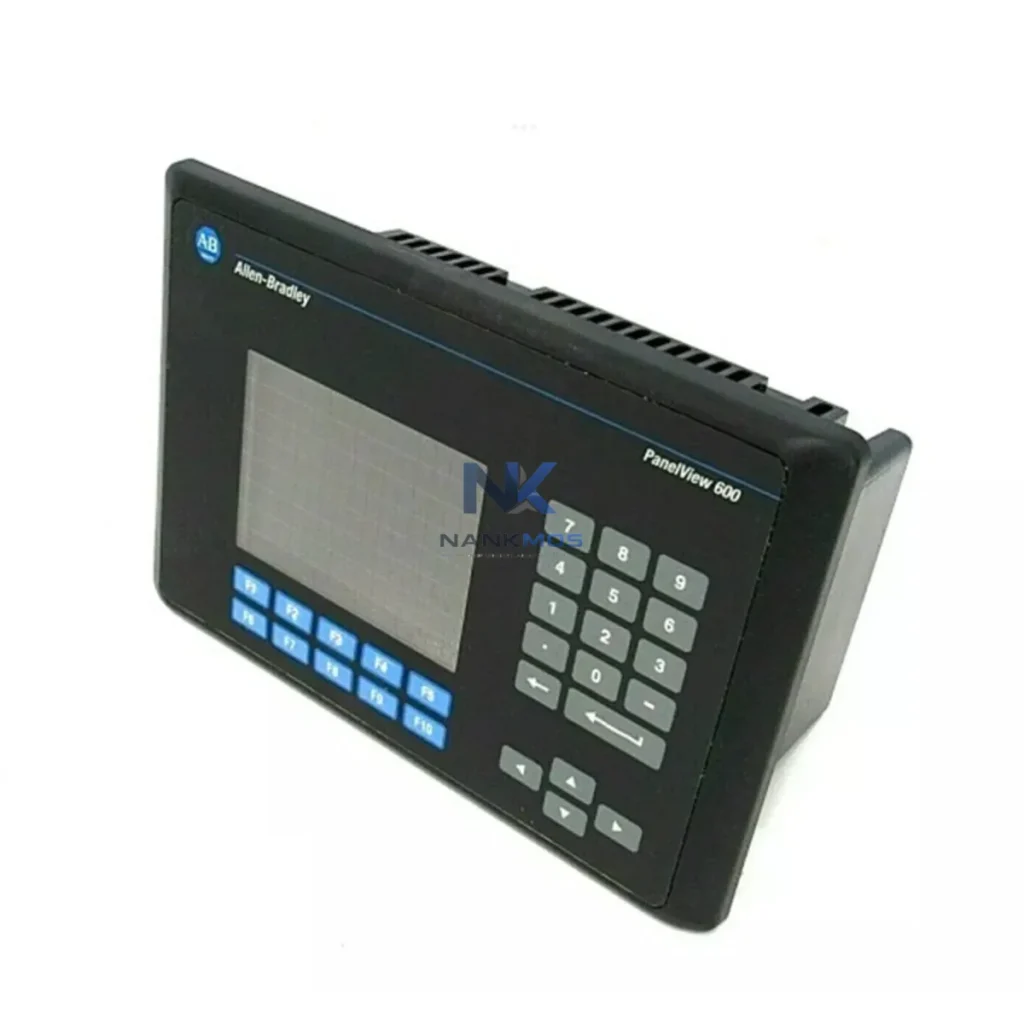

The Allen-Bradley 2711-K6C10 is a PanelView 600 series operator interface terminal engineered for energy-conscious industrial environments. Designed to integrate seamlessly into smart production lines, this HMI delivers real-time process visibility, operator-driven load management, and precision control feedback that collectively reduce unnecessary energy consumption across manufacturing cells. With a compact 6-inch display and robust industrial-grade construction, the 2711-K6C10 serves as the human-machine interface layer in energy optimization architectures spanning discrete manufacturing, process industries, water treatment, and energy distribution facilities.

In modern smart factories, the HMI is no longer a passive display — it is an active node in the energy management chain. The 2711-K6C10 connects directly to Allen-Bradley SLC 500 and MicroLogix PLCs via DH-485 and RS-232 communication links, enabling operators to monitor real-time energy states, adjust setpoints, and respond to load alerts without leaving the production floor. When paired with a PowerFlex 40 variable frequency drive, operators can view motor speed, torque demand, and energy draw directly on the PanelView 600 screen, allowing immediate intervention when drives operate outside their efficiency envelope. This closed-loop visibility between the HMI and the drive system is fundamental to reducing peak demand charges and minimizing thermal stress on motor windings.

The 2711-K6C10 supports integration with Allen-Bradley 1734 POINT I/O modules, enabling distributed I/O architectures where sensor data — including temperature, pressure, flow rate, and current draw — is aggregated and displayed in real time. Operators can configure alarm thresholds directly on the PanelView 600 interface, triggering automatic load-shedding routines when energy consumption exceeds predefined limits. This capability is particularly valuable in facilities running multiple production lines simultaneously, where uncoordinated load spikes can destabilize power quality and increase reactive power penalties.

For facilities deploying Allen-Bradley 1756 ControlLogix or 1769 CompactLogix platforms, the 2711-K6C10 can serve as a local operator station within a broader SCADA architecture. When connected through a 1761-NET-AIC Advanced Interface Converter, the HMI bridges legacy DH-485 networks with modern Ethernet-based supervisory systems, preserving existing infrastructure investments while enabling centralized energy monitoring. SCADA platforms can pull production throughput and energy consumption data from the PanelView 600 node, correlating output rates with energy intensity metrics to identify inefficient production windows and optimize shift scheduling accordingly.

Thermal load management is a critical consideration in enclosed control panels and machine cabinets. The 2711-K6C10's efficient backlight design and low-power standby mode reduce panel heat generation compared to older CRT-based operator terminals. When integrated with Allen-Bradley 1492 terminal block assemblies and properly routed wiring, the overall panel thermal profile improves, reducing the duty cycle of panel cooling systems and lowering auxiliary energy consumption. In high-ambient-temperature environments such as foundries, cement plants, and chemical processing facilities, this thermal efficiency advantage translates directly into reduced HVAC operating costs.

Production line rhythm — or takt time optimization — benefits significantly from responsive HMI interfaces. The 2711-K6C10's fast screen refresh and reliable communication with upstream PLCs ensure that operators receive accurate, low-latency feedback on machine states, cycle counts, and fault conditions. When a downstream bottleneck develops, operators can immediately adjust upstream feed rates or pause non-critical equipment via the PanelView 600 interface, preventing energy waste from machines running idle or in unloaded states. This real-time responsiveness supports lean manufacturing principles and contributes to measurable reductions in energy intensity per unit produced.

Predictive maintenance workflows also benefit from the 2711-K6C10's integration capabilities. By displaying trend data from Allen-Bradley 1769-IQ16 digital input modules and analog input cards monitoring vibration sensors, bearing temperature probes, and motor current signatures, maintenance teams can identify developing faults before they cause unplanned downtime. Early intervention reduces the energy penalty associated with degraded equipment — motors with worn bearings, for example, draw significantly more current than healthy units — and extends the service life of capital equipment. The PanelView 600 thus becomes a frontline tool in condition-based maintenance programs that reduce both energy waste and maintenance costs.

Deploying the 2711-K6C10 within a power-aware automation architecture requires careful consideration of the communication backbone and the energy data sources feeding the HMI. In a typical Allen-Bradley SLC 500 system, the PanelView 600 connects via DH-485 to the processor, receiving real-time register data that reflects motor run states, drive output frequencies, and I/O status from 1746-IB16 digital input modules. Operators can configure the HMI to display calculated energy consumption values derived from current transducer inputs wired through 1746-NI4 analog input cards, giving the production floor a live energy dashboard without requiring a separate power monitoring device.

For more sophisticated energy monitoring, the 2711-K6C10 can be deployed alongside a PowerMonitor 500 or PowerMonitor 1000 energy metering device, with the PLC acting as a data concentrator that feeds both the HMI and the upstream SCADA system. This architecture allows the PanelView 600 to display kilowatt-hour consumption, power factor, and demand readings at the machine level, enabling operators to correlate production output with energy cost in real time. When power factor drops below acceptable thresholds — often indicating motor loading issues or capacitor bank degradation — the HMI alarm system alerts operators immediately, preventing prolonged inefficient operation.

In servo-driven assembly lines, the 2711-K6C10 provides operator oversight of Kinetix 300 or Kinetix 6000 servo drive systems through the PLC communication layer. While the HMI does not communicate directly with servo drives, it displays PLC-aggregated data on axis positions, torque limits, and fault states, allowing operators to identify servo systems operating at elevated torque — a common indicator of mechanical binding or tooling wear that increases energy consumption. Prompt operator response to these HMI alerts reduces energy waste and prevents servo drive thermal shutdowns that disrupt production rhythm.

The 2711-K6C10 also supports integration with Allen-Bradley 1761-NET-ENI Ethernet interface modules, enabling remote monitoring of the PanelView 600 display from engineering workstations running RSView32 or FactoryTalk View software. This remote visibility capability allows energy managers to review production-floor energy states without physical presence, supporting centralized energy management strategies across multi-line or multi-facility operations.

The Allen-Bradley 2711-K6C10 contributes to production line energy optimization through three primary mechanisms: real-time operator awareness, alarm-driven load management, and integration with drive and PLC systems that execute energy-saving control strategies. By placing accurate, low-latency energy and process data directly in front of operators, the PanelView 600 eliminates the information gap that often leads to energy waste — machines left running during breaks, drives operating at full speed during partial-load conditions, and equipment faults going undetected until they cause significant energy penalties.

In facilities implementing ISO 50001 energy management systems, the 2711-K6C10 serves as the operator-layer interface that connects energy policy to production-floor action. Energy performance indicators configured in the PLC — such as energy per unit produced, peak demand thresholds, and shift-level consumption targets — can be displayed on the PanelView 600 screen, making energy performance visible and actionable for every operator on every shift. This visibility drives behavioral changes that complement the technical energy savings delivered by variable frequency drives, soft starters, and power factor correction systems.

Downtime reduction is another significant energy optimization lever enabled by the 2711-K6C10. Unplanned stoppages force production lines into energy-inefficient restart cycles, where motors draw high inrush currents and thermal systems require extended warm-up periods. By providing clear fault diagnostics and guided recovery procedures on the HMI screen, the PanelView 600 reduces mean time to repair, shortens restart cycles, and minimizes the energy penalty associated with unplanned downtime. Maintenance teams equipped with accurate fault data from the HMI can resolve issues faster and with greater precision, reducing the frequency of repeat failures.

All units are tested prior to shipment, verified for communication integrity, display function, and input/output response. Stock is maintained for prompt dispatch, supporting production schedules that cannot tolerate extended lead times. The 2711-K6C10 is covered by a 12-Month Warranty against manufacturing defects, with technical support available throughout the warranty period.

Q: What energy savings can I expect from deploying the 2711-K6C10 on my production line? A: The 2711-K6C10 itself consumes approximately 18–25 W, making it an energy-efficient operator terminal. Its primary energy optimization value comes from enabling operators to monitor and respond to energy states in real time — reducing idle running, enabling load shedding, and supporting faster fault recovery. Actual energy savings depend on the specific application, existing control architecture, and operator engagement with the HMI data.

Q: Is the 2711-K6C10 compatible with my existing Allen-Bradley PLC and drive systems? A: The 2711-K6C10 is compatible with Allen-Bradley SLC 500, MicroLogix, and PLC-5 processors via DH-485 and RS-232 communication. It can display data from PowerFlex drives and other devices connected through the PLC data table. For ControlLogix or CompactLogix systems, a communication bridge such as the 1761-NET-AIC may be required. Confirm your existing communication network before deployment.

Q: Can the 2711-K6C10 replace an older PanelView 550 or PanelView 600 unit directly? A: In most cases, yes. The 2711-K6C10 is a PanelView 600 series terminal and is generally panel-cutout compatible with other PanelView 600 units. Application programs developed in PanelBuilder 32 software can be transferred with minor revision. Verify communication port configuration and power supply requirements before replacement to ensure a smooth transition.

Q: What does the 12-Month Warranty cover, and what is the stock availability? A: The 12-Month Warranty covers manufacturing defects in the 2711-K6C10 unit, including display, communication ports, and input/output functions. Units are in stock and available for prompt shipment following order confirmation and payment. Pre-shipment testing is performed on all units to verify operational integrity before dispatch. Contact [email protected] or +86 18359268345 for availability confirmation and lead time details.
