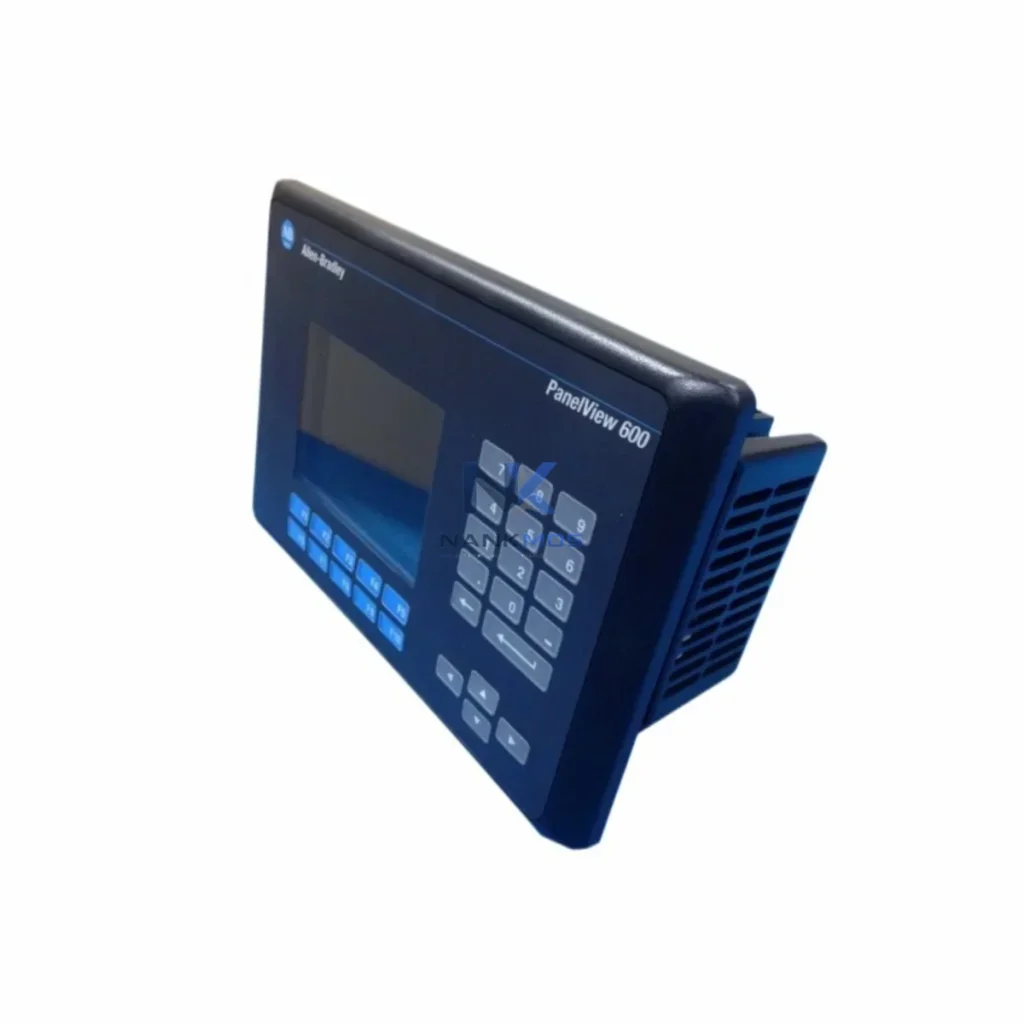

Allen-Bradley 2711-K6C9L1 HMI Terminal

Product Details

2711-K6C9L1 Product Description

The Allen-Bradley 2711-K6C9L1 is a PanelView 600 operator interface terminal engineered for seamless integration within layered industrial control architectures. Designed to serve as the primary human-machine interface node in Rockwell Automation control platforms, this unit bridges the operator layer with the underlying control, I/O, and communication infrastructure. Its compact 6-inch monochrome display, combined with robust keypad input and RS-232/DH-485 communication capability, makes it a reliable HMI solution for demanding manufacturing, process, and utility environments where system consistency, long-term maintainability, and deterministic operator response are non-negotiable requirements.

In a complete automation architecture, the 2711-K6C9L1 occupies the HMI layer — the critical interface between human operators and the control system. It communicates directly with Allen-Bradley SLC 500 series controllers such as the SLC 5/03, SLC 5/04, and SLC 5/05, as well as MicroLogix 1000 and MicroLogix 1100 platforms via DH-485 or DF1 serial protocols. This tight protocol alignment ensures that tag-based data exchange, alarm acknowledgment, and real-time status visualization are executed with minimal latency and maximum reliability, supporting the signal integrity demands of high-cycle production lines and continuous process systems alike.

From a system architecture perspective, the 2711-K6C9L1 contributes to multi-layer coherence by providing a standardized operator interface that reduces training overhead and configuration complexity across distributed control cabinets. When deployed alongside Allen-Bradley 1746 SLC I/O modules — including digital input cards such as the 1746-IB16 and analog input modules like the 1746-NI4 — the terminal enables operators to monitor field-level signals, acknowledge process alarms, and initiate control sequences without requiring dedicated SCADA workstations. This architecture reduces hardware footprint while maintaining full operational visibility at the machine level.

Power architecture compatibility is a key consideration in panel design. The 2711-K6C9L1 operates on 24VDC, aligning with standard Allen-Bradley 1606-XLP series power supplies commonly used in SLC 500 and MicroLogix control cabinets. This voltage compatibility simplifies panel wiring, eliminates the need for dedicated HMI power rails, and supports a unified power distribution strategy that reduces component count and improves mean time between failures. In redundant power configurations, the terminal can be fed from dual-rail 24VDC bus systems, ensuring continuous operator interface availability during primary supply interruptions.

Communication layer integration is handled through the terminal's built-in RS-232 and DH-485 ports. In multi-node DH-485 networks, the 2711-K6C9L1 can coexist with other PanelView terminals, Allen-Bradley 1747-AIC link couplers, and 1747-KE DH-485/RS-232C interface modules, enabling a distributed HMI topology across large control panels or multi-station assembly lines. For applications requiring gateway connectivity to higher-level Ethernet networks, the terminal can be paired with Allen-Bradley 1761-NET-AIC or similar serial-to-Ethernet bridge modules, extending its data visibility to supervisory systems without requiring hardware replacement.

Modular expandability is a defining characteristic of the PanelView 600 platform. The 2711-K6C9L1 supports application development through RSView Machine Edition software, enabling engineers to build structured screen hierarchies, configure alarm pages, and define data link mappings that mirror the tag architecture of the connected SLC or MicroLogix controller. This software-hardware alignment accelerates commissioning timelines and simplifies future modifications, as screen logic changes can be deployed without physical panel rewiring. In multi-phase project rollouts, this modularity allows engineering teams to standardize HMI configurations across multiple machine cells, reducing per-unit engineering hours and improving cross-site maintenance consistency.

Diagnostic capability is another architectural strength of the 2711-K6C9L1. The terminal supports fault display pages, communication status indicators, and controller fault code visualization, enabling maintenance technicians to identify and resolve system faults at the machine level without requiring laptop-based diagnostic tools. In conjunction with Allen-Bradley 1747-L553 or 1747-L552 SLC 5/05 processors, the terminal can display Ethernet communication diagnostics, I/O module fault states, and program scan time data, providing a comprehensive on-panel diagnostic interface that reduces mean time to repair in high-availability production environments.

For long-term maintenance planning, the 2711-K6C9L1 offers a stable, well-documented hardware platform with broad spare parts availability. Its compatibility with the established SLC 500 and MicroLogix ecosystems means that replacement units, communication cables, and programming software remain accessible through authorized distribution channels. NANKMOS maintains verified inventory of the 2711-K6C9L1 with pre-shipment functional testing, ensuring that replacement units arrive ready for installation without requiring additional bench validation. Every unit supplied by NANKMOS is covered by a 12-Month Warranty, providing documented assurance of hardware integrity for maintenance budgeting and procurement planning purposes.

The 2711-K6C9L1 achieves its full architectural value when deployed as part of a coordinated Rockwell Automation control platform. In a typical SLC 500-based control cabinet, the terminal interfaces directly with the Allen-Bradley 1747-L553 SLC 5/05 CPU via DH-485, providing real-time program status, I/O fault visualization, and operator control initiation. The CPU communicates with field devices through 1746-IB16 digital input modules and 1746-OB16 digital output modules mounted on the SLC 500 chassis, while analog process variables are acquired through 1746-NI4 analog input modules — all of which can be monitored and acknowledged through the 2711-K6C9L1 operator interface.

Power distribution for the control cabinet is typically managed by an Allen-Bradley 1606-XLP60E power supply, which provides regulated 24VDC to both the SLC I/O chassis and the PanelView terminal on a shared bus. For communication network expansion, a 1747-AIC Advanced Interface Converter enables multi-drop DH-485 topologies, allowing the 2711-K6C9L1 to coexist with additional PanelView 550 or PanelView 600 terminals on the same network segment. In applications requiring Ethernet supervisory connectivity, an Allen-Bradley 1761-NET-AIC serial-to-Ethernet bridge extends the DH-485 network to plant-level SCADA systems without disrupting the existing HMI-controller communication path.

For I/O signal conditioning and isolation, Phoenix Contact MINI MCR signal isolators are commonly integrated between field transmitters and the 1746-NI4 analog input modules, ensuring signal integrity across long cable runs and electrically noisy industrial environments. Terminal block assemblies using Allen-Bradley 1492-W3 wiring systems provide organized, labeled interconnection between the SLC I/O modules and field wiring, supporting systematic troubleshooting and panel audit compliance. In motor control applications, Allen-Bradley PowerFlex 40 variable frequency drives receive start/stop and speed reference commands from the SLC 500 CPU, with operational status fed back to the 2711-K6C9L1 display for operator monitoring.

The 2711-K6C9L1 is deployed across a broad range of industrial sectors where SLC 500 and MicroLogix control platforms remain the established standard. In discrete manufacturing environments — including automotive assembly, metal fabrication, and plastics processing — the terminal provides machine-level operator control for conveyor systems, press cycles, and robotic cell interfaces, enabling operators to initiate production sequences, acknowledge fault conditions, and monitor cycle counts without leaving the machine station.

In water and wastewater treatment facilities, the 2711-K6C9L1 serves as the local operator interface for pump station control panels, chemical dosing systems, and filtration process controllers. Its NEMA 4/4X panel-front rating ensures reliable operation in wash-down environments, while its DH-485 communication capability supports integration with plant-wide SCADA systems via serial gateway modules. For power distribution and utility applications, the terminal is used in motor control center (MCC) panels and switchgear control systems, providing operators with real-time breaker status, motor run/fault indication, and manual override capability.

In food and beverage packaging lines, the 2711-K6C9L1 supports filling machine control, labeling system interfaces, and end-of-line palletizing cell HMI functions, where its keypad-based input method provides reliable operator interaction in environments where touchscreen surfaces may be impractical due to glove use or contamination risk. For mining and materials handling applications, the terminal is integrated into conveyor drive control panels, crusher control systems, and bulk material transfer stations, where its robust construction and wide operating temperature range support reliable performance in dusty, high-vibration environments.

Q1: Is the 2711-K6C9L1 compatible with both SLC 500 and MicroLogix controllers on the same DH-485 network? Yes. The 2711-K6C9L1 supports DH-485 multi-drop network topologies, allowing it to communicate with SLC 500 series processors (5/03, 5/04, 5/05) and MicroLogix 1000/1100 controllers on the same physical network segment. Each node requires a unique DH-485 address (1–31), and the network supports up to 32 nodes including the terminal. A 1747-AIC link coupler is recommended at each node for reliable signal coupling and network termination.

Q2: What are the key considerations for integrating the 2711-K6C9L1 into an existing SLC 500 control cabinet during a panel upgrade? The primary integration requirements are: (1) verify 24VDC power supply capacity to accommodate the terminal's current draw alongside existing I/O modules; (2) confirm DH-485 network address assignments to avoid node conflicts with existing devices; (3) ensure the panel cutout dimensions match the 2711-K6C9L1 mounting specifications; and (4) validate that the RSView Machine Edition application file is compatible with the firmware version of the replacement unit. NANKMOS provides pre-shipment functional testing to confirm communication readiness before delivery.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for the 2711-K6C9L1? The 12-Month Warranty covers hardware defects and functional failures under normal operating conditions from the date of shipment. NANKMOS maintains verified stock of the 2711-K6C9L1 to support both immediate replacement needs and planned maintenance procurement. Each unit undergoes pre-shipment functional testing including communication port verification and display integrity checks. For long-term maintenance planning, NANKMOS can provide multi-unit procurement agreements to ensure spare parts availability aligned with your planned maintenance schedules. Contact [email protected] for inventory confirmation and lead time details.
