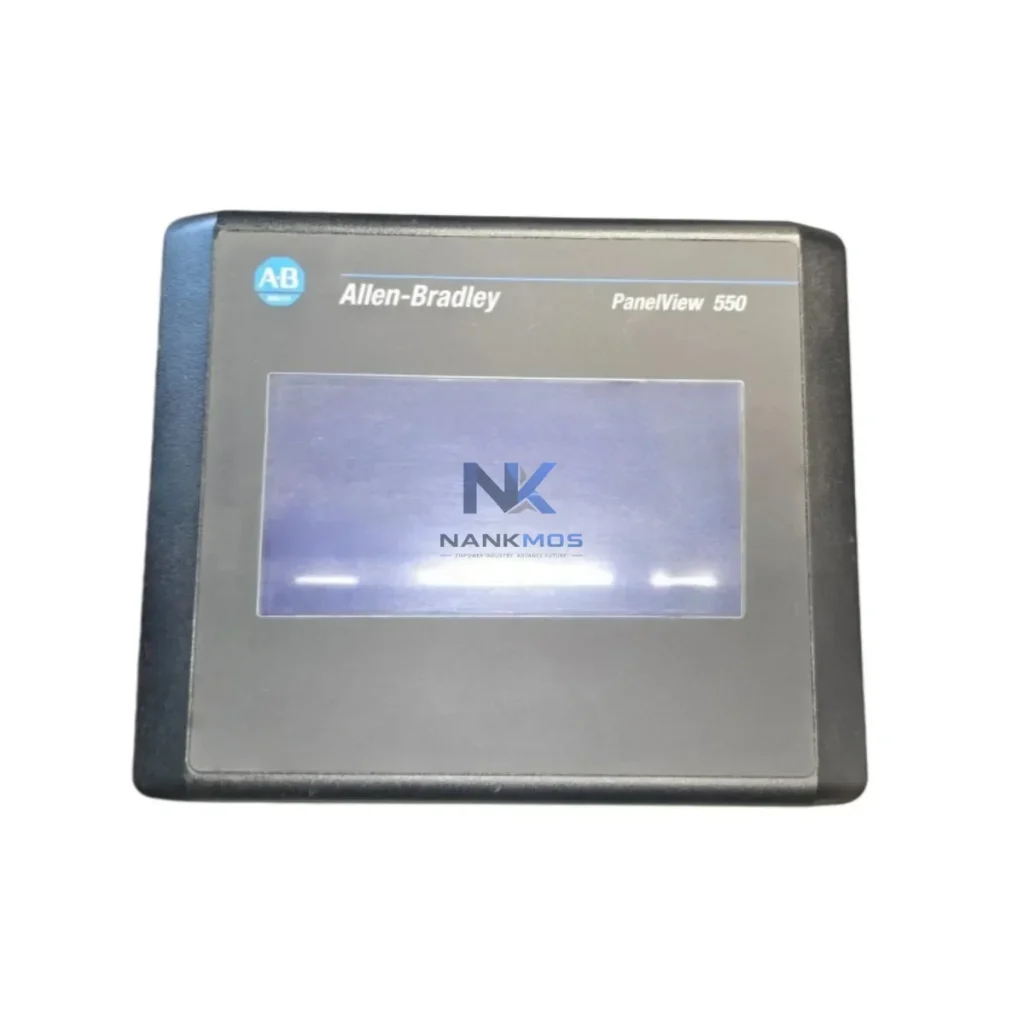

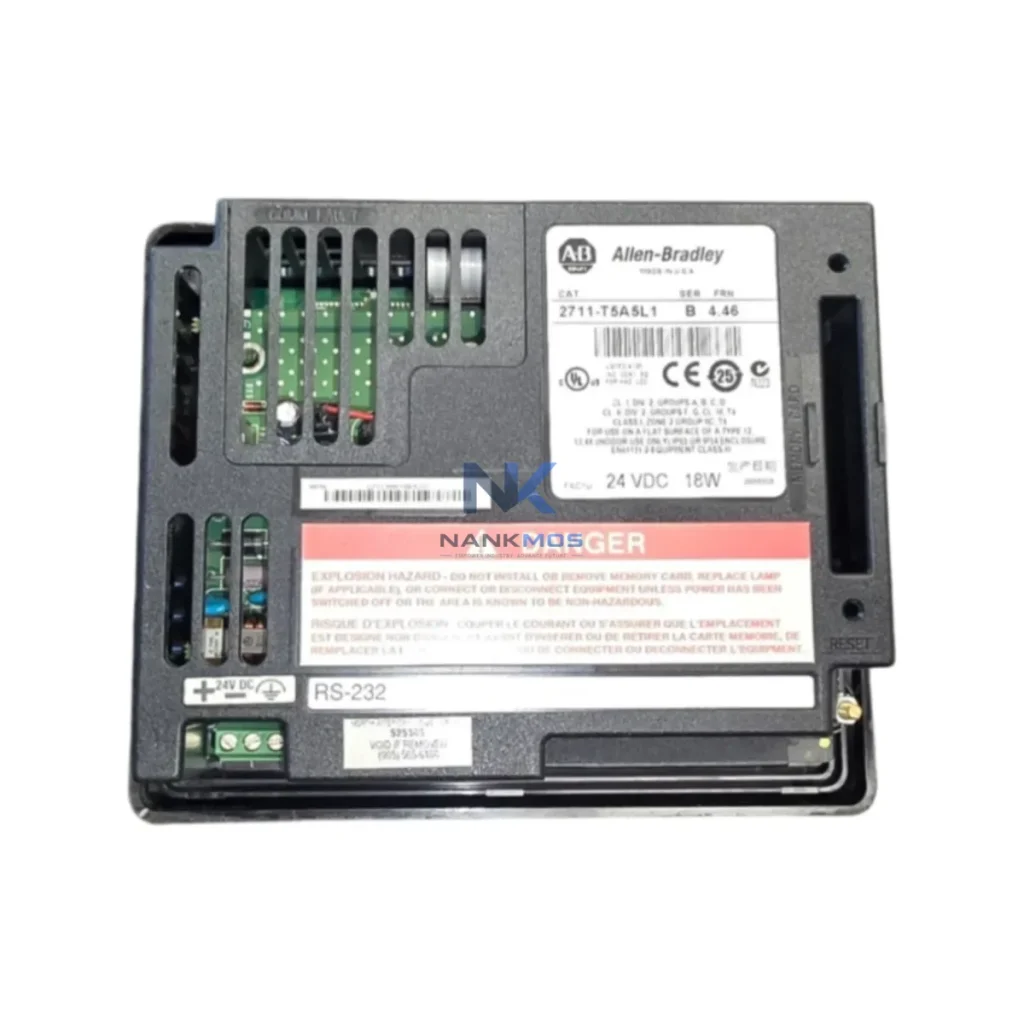

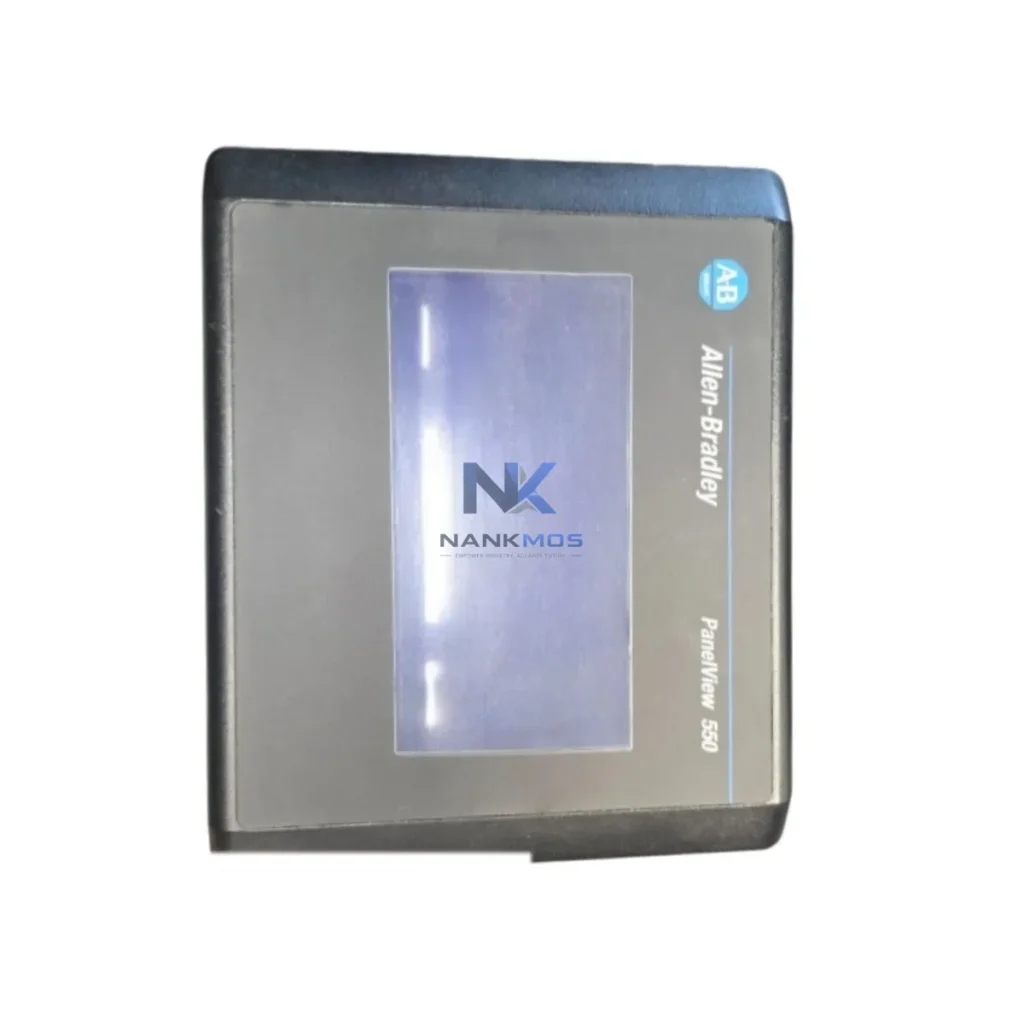

Allen-Bradley 2711-T5A5L1 HMI Operator Terminal

Product Details

2711-T5A5L1 Product Description

The Allen-Bradley 2711-T5A5L1 is a compact, panel-mount HMI operator terminal engineered for seamless integration within Rockwell Automation's PanelView control architecture. Designed to serve as the primary human-machine interface layer in distributed and centralized automation systems, this terminal delivers reliable operator interaction, real-time process visualization, and contextual integration across multi-layer industrial control platforms. Whether deployed in standalone machine control or as part of a broader ControlLogix or CompactLogix-based architecture, the 2711-T5A5L1 provides the display and input capabilities required for efficient process management, alarm acknowledgment, and system diagnostics.

The 2711-T5A5L1 is not an isolated display unit — it is a functional node within a layered automation architecture. In a typical Rockwell Automation deployment, this HMI terminal operates in close coordination with the control layer, I/O subsystems, communication backbone, and power infrastructure to deliver a coherent, maintainable, and scalable system.

At the control layer, the 2711-T5A5L1 communicates directly with Allen-Bradley SLC 5/03, SLC 5/04, or SLC 5/05 processors via DH-485 or DH+ networks, enabling real-time data exchange for process variable display, setpoint entry, and alarm management. In modernized architectures, a 1761-NET-AIC Advanced Interface Converter or a 1747-KE DH-485/RS-232C Interface Module bridges legacy SLC platforms with newer communication topologies, ensuring the HMI remains fully integrated without requiring controller replacement.

For I/O layer coordination, the terminal works alongside 1746-series I/O modules — including analog input modules such as the 1746-NI4 and digital output modules such as the 1746-OB16 — to reflect live field signal states on operator screens. This direct mapping between physical I/O and HMI display elements reduces diagnostic time and improves operator response during process deviations.

At the communication layer, the 2711-T5A5L1 integrates into DH-485 multi-drop networks alongside other PanelView terminals, enabling multi-station operator access to a shared controller. Where Ethernet connectivity is required for supervisory SCADA integration, a 1761-NET-ENI Ethernet Interface module provides the necessary protocol bridge, extending the HMI's reach into plant-wide data acquisition systems without disrupting the existing DH-485 topology.

Power layer stability is ensured through Allen-Bradley 1606-series power supplies, which deliver regulated 24V DC to both the HMI terminal and associated I/O racks. Clean, stable power is critical for maintaining display integrity and preventing communication timeouts in electrically noisy industrial environments such as motor control centers and variable frequency drive (VFD) panels.

For applications requiring redundancy or expanded visualization, the 2711-T5A5L1 can be deployed alongside larger PanelView 600 or PanelView 900 terminals — such as the 2711-K6C5 or 2711-B9C10 — at supervisory stations, while the 2711-T5A5L1 serves as a local operator panel at the machine level. This hierarchical HMI architecture supports both local control and centralized monitoring without duplicating controller resources.

In cabinet-level integration, the terminal is typically mounted alongside 700-series Allen-Bradley control relays, 1492-series terminal blocks, and 1492-CABLE pre-wired I/O cable assemblies, all within a structured control panel that supports modular expansion and simplified field wiring. This approach reduces installation time, minimizes wiring errors, and supports long-term maintainability across the system lifecycle.

Manufacturing & Assembly Lines: The 2711-T5A5L1 is widely deployed on discrete manufacturing lines where operators require real-time feedback on machine states, cycle counts, fault codes, and production targets. Its compact form factor and NEMA 4-rated front panel make it suitable for integration into machine-mounted control enclosures on automotive assembly, packaging, and material handling lines.

Water & Wastewater Treatment: In water treatment facilities, the terminal provides operators with process visualization for pump control, valve positioning, flow rate monitoring, and alarm acknowledgment. Its compatibility with SLC 500 controllers — commonly used in legacy water infrastructure — ensures continued operational value without requiring full system replacement.

Power Generation & Distribution: Substations and power generation facilities use the 2711-T5A5L1 for local HMI access to protection relay status, breaker control sequences, and generator load monitoring. The terminal's robust enclosure rating supports installation in environments with elevated electrical noise and temperature variation.

Oil, Gas & Petrochemical: In upstream and midstream applications, the 2711-T5A5L1 serves as the operator interface for compressor control panels, separator skids, and pipeline monitoring stations. Its ability to display real-time analog values and accept operator inputs for setpoint adjustment makes it a reliable choice for process-critical applications.

Mining & Metals: Conveyor control systems, crusher monitoring panels, and ore processing lines benefit from the terminal's durability and straightforward PanelBuilder programming environment. Maintenance teams can quickly update screen configurations without specialized HMI programming expertise, reducing downtime during system modifications.

Packaging & Food Processing: The IP65-rated front panel supports washdown-compatible installations in food and beverage processing environments. Operators use the terminal to manage recipe selection, batch counts, line speed adjustments, and sanitation cycle initiation directly from the machine panel.

Q1: Is the 2711-T5A5L1 compatible with ControlLogix and CompactLogix controllers? The 2711-T5A5L1 is natively designed for SLC 500, MicroLogix, and PLC-5 platforms via DH-485 and DH+ communication. Direct connection to ControlLogix or CompactLogix controllers requires a protocol bridge such as the 1761-NET-AIC or a DF1/DH-485 gateway. For new ControlLogix-based architectures, Rockwell Automation recommends upgrading to PanelView Plus terminals (e.g., 2711P series) for native EtherNet/IP connectivity. However, the 2711-T5A5L1 remains fully functional in mixed-generation architectures where legacy SLC controllers are retained.

Q2: What programming software is required, and is it still supported? The 2711-T5A5L1 is programmed using Rockwell Automation's PanelBuilder 32 software. While PanelBuilder 32 is a legacy tool and no longer actively developed, it remains available for download and is compatible with modern Windows operating systems when run in compatibility mode. Application files (.pba) can be transferred to the terminal via serial cable using the PanelBuilder 32 transfer utility. NANKMOS provides pre-tested units with verified communication functionality, and our technical team can assist with application transfer and commissioning support within the 12-Month Warranty period.

Q3: What does the 12-Month Warranty cover, and what is the stock availability? All 2711-T5A5L1 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing, including display verification, keypad/touch input validation, and communication port integrity checks. Units are sourced from verified supply channels and held in climate-controlled storage to preserve component integrity. Stock availability is maintained for rapid global dispatch, with typical lead times of 3–7 business days for in-stock units. For large-quantity orders or project-based procurement, contact our team at [email protected] for dedicated inventory reservation and project scheduling support.
