Allen-Bradley 2711-T6C8L1 HMI Terminal

Product Details

2711-T6C8L1 Product Description

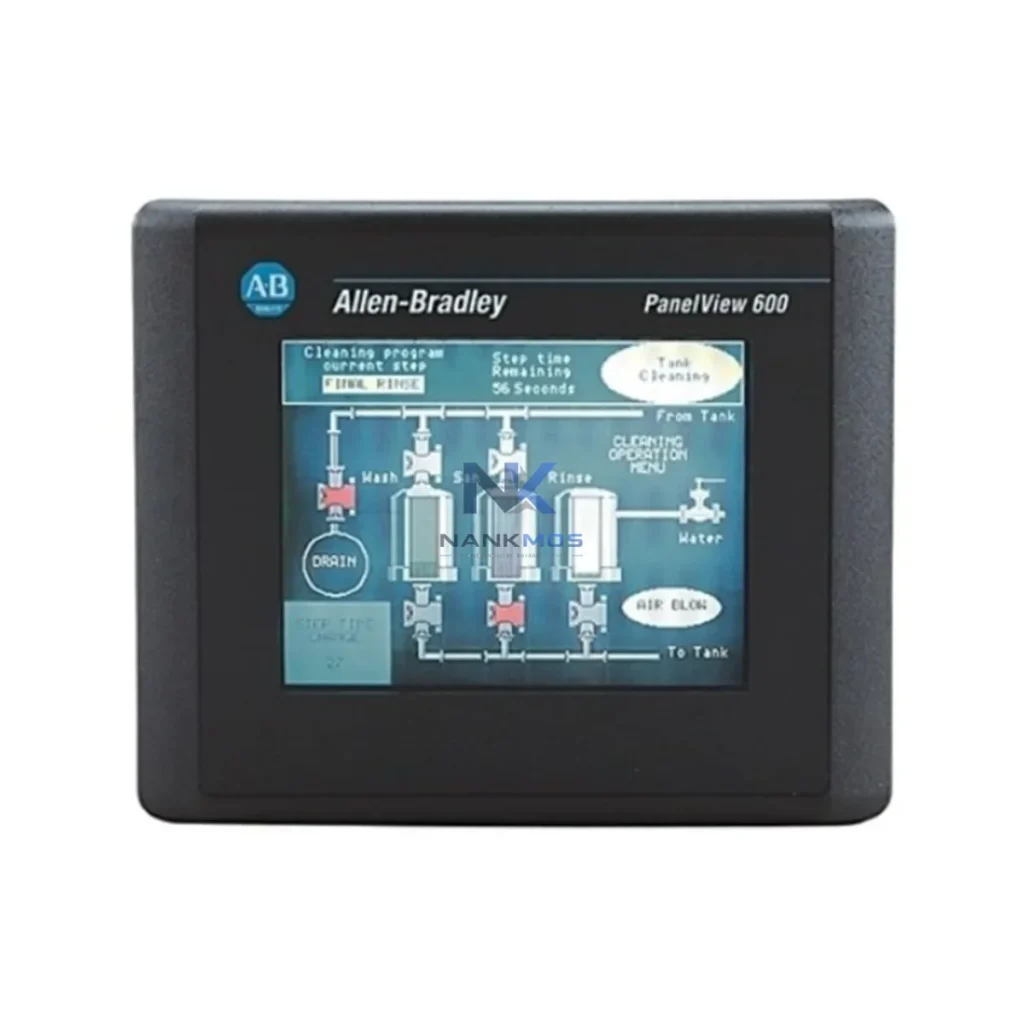

The Allen-Bradley 2711-T6C8L1 is a PanelView 600 series HMI terminal engineered for seamless integration within Rockwell Automation's layered control architecture. Designed to serve as the primary operator interface layer in distributed and centralized control systems, this unit delivers reliable real-time visualization, alarm management, and process interaction across demanding industrial environments. Whether deployed in standalone machine control or as part of a multi-node ControlLogix or CompactLogix platform, the 2711-T6C8L1 provides the HMI layer consistency required for scalable, maintainable automation systems.

The 2711-T6C8L1 is most effective when deployed as part of a fully coordinated Rockwell Automation control platform. In a typical SLC 500-based architecture, the HMI communicates over DH-485 with the Allen-Bradley SLC 5/05 processor, enabling real-time data exchange for process visualization and operator command execution. For systems requiring expanded I/O, the 1746-IB16 digital input module and 1746-OB16 digital output module extend the control reach of the SLC rack, while the 1746-NI4 analog input module handles continuous process signals such as temperature, pressure, and flow.

Power integrity across the control cabinet is maintained by the 1606-XLP72E power supply, which provides stable 24V DC to both the HMI terminal and field I/O devices. For applications requiring network-level connectivity, the 1761-NET-AIC Advanced Interface Converter bridges DH-485 segments to RS-232 or DF1 full-duplex communication, enabling the 2711-T6C8L1 to interface with upstream SCADA systems or data historians. In multi-node environments, the 1747-SDN DeviceNet Scanner module allows the SLC 500 platform to manage distributed field devices including drives, sensors, and valve actuators from a single control node.

For motion-integrated applications, the PowerFlex 40 AC drive can be monitored and commanded directly through the HMI screen, with drive status, fault codes, and speed references displayed in real time. Terminal block assemblies such as the 1492-W4 wiring duct and 1492-J4 terminal blocks ensure clean signal routing within the control enclosure, reducing wiring errors and simplifying commissioning. In redundancy-sensitive installations, the 1747-ASB remote I/O adapter extends the SLC 500 rack to remote chassis, maintaining system availability even when local I/O is physically separated from the CPU rack.

Manufacturing & Assembly Lines: The 2711-T6C8L1 serves as the primary operator touchpoint on automated assembly lines, providing machine status, cycle counts, fault alerts, and recipe selection. Its NEMA 4/4X-rated front panel withstands wash-down environments common in food processing and automotive body shops.

Power & Energy Distribution: In substation automation and power distribution panels, the HMI terminal displays real-time electrical parameters, breaker status, and load balancing data. Integrated with SLC 500 or MicroLogix controllers, it supports demand management and fault isolation workflows without requiring a dedicated SCADA workstation at every panel.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the 2711-T6C8L1 for pump station monitoring, chemical dosing control, and tank level visualization. Its compact 6-inch form factor fits standard NEMA enclosures, and its DH-485 communication supports multi-drop configurations across distributed pump stations.

Petrochemical & Process Industries: In continuous process environments such as refineries and chemical plants, the terminal provides operators with real-time PID loop status, valve positions, and alarm acknowledgment. Its compatibility with SLC 500 analog I/O modules enables direct integration with temperature and pressure transmitters across the process train.

Mining & Metallurgy: Conveyor control systems, crusher monitoring, and ore processing lines benefit from the rugged panel-mount design of the 2711-T6C8L1. The terminal's function key layout allows operators to execute predefined control sequences without navigating complex menu structures, reducing response time during process upsets.

Packaging & Material Handling: High-speed packaging lines use the HMI for format changeover management, reject counter tracking, and line speed adjustment. Integration with PowerFlex drives via the SLC 500 platform enables coordinated speed control across multiple conveyor zones from a single operator screen.

Q1: Is the 2711-T6C8L1 compatible with ControlLogix and CompactLogix platforms? The 2711-T6C8L1 natively communicates over DH-485 and RS-232/DF1 protocols, which are standard for SLC 500 and MicroLogix controllers. For ControlLogix or CompactLogix integration, a protocol gateway such as the 1761-NET-AIC or a third-party EtherNet/IP-to-DH-485 bridge is required. This configuration is widely deployed in hybrid architectures where legacy HMI panels are retained alongside newer Logix-based controllers, preserving capital investment while extending system life.

Q2: What are the installation and commissioning requirements for panel integration? The 2711-T6C8L1 requires a standard panel cutout per Rockwell Automation dimensional specifications, with 24V DC power wired to the rear terminal block. Communication cables must be shielded and grounded at one end to prevent DH-485 bus noise. PanelBuilder 32 or PanelBuilder 1400e software is used for application development and download. Commissioning typically involves network node address assignment, controller tag mapping, and screen navigation testing — all achievable within a standard engineering shift.

Q3: What does the 12-Month Warranty cover, and what is the supply lead time? All 2711-T6C8L1 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects, display integrity, communication port functionality, and keypad response. Each unit undergoes pre-shipment functional testing including power-on verification, communication port check, and display calibration. Stock units are available for immediate dispatch, with standard lead times of 3–7 business days for international shipments. Expedited logistics options are available for urgent maintenance and breakdown replacement scenarios.
