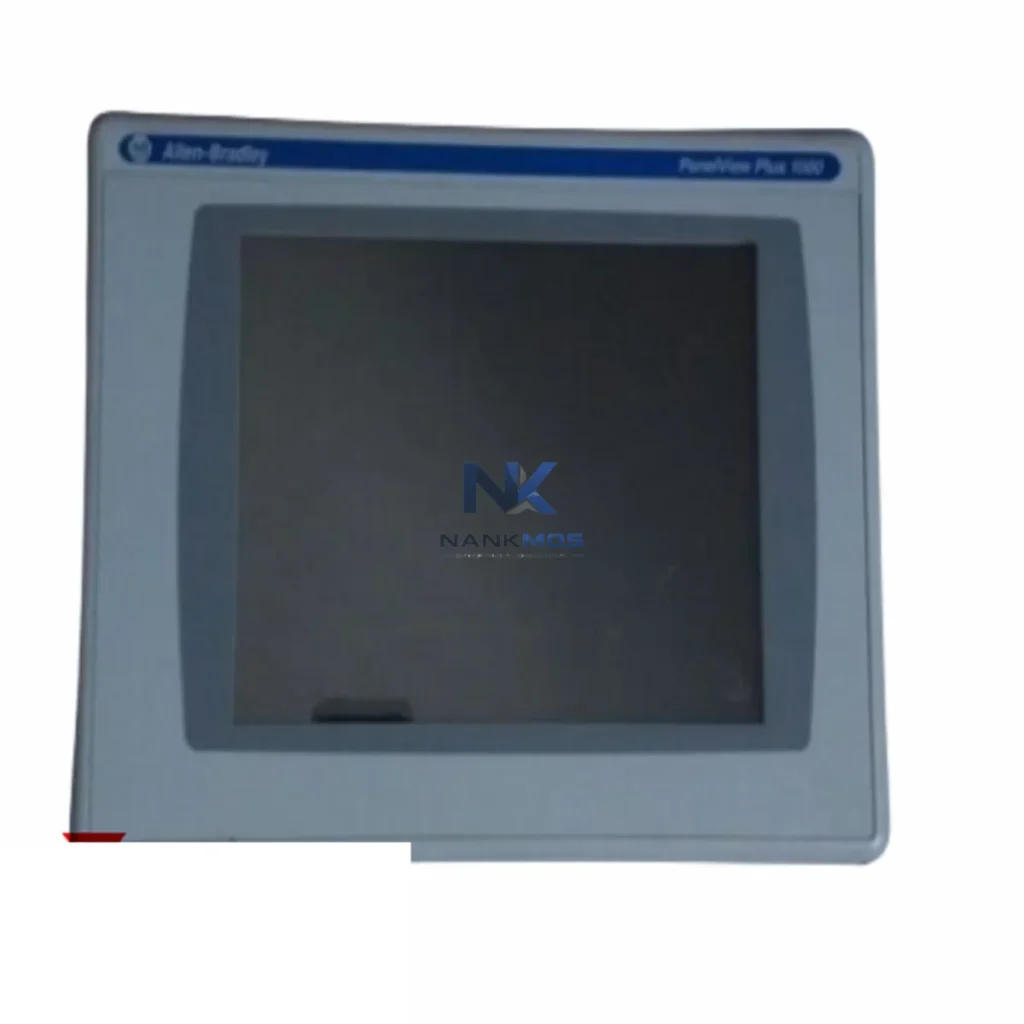

Allen-Bradley 2711P-T10C4D8 HMI Operator Terminal

Product Details

2711P-T10C4D8 Product Description

The Allen-Bradley 2711P-T10C4D8 is a 10.4-inch color touch-screen operator terminal from the PanelView Plus 7 Standard series, engineered for seamless integration within Rockwell Automation's unified control architecture. Designed to serve as the primary human-machine interface layer in complex industrial automation systems, this terminal bridges operator visibility with real-time controller data across multi-tier control hierarchies. Its robust hardware platform, combined with FactoryTalk View ME runtime software, enables consistent visualization, alarm management, and process diagnostics across manufacturing, energy, water treatment, and process industries.

In a fully integrated automation architecture, the 2711P-T10C4D8 does not operate in isolation. It functions as the HMI layer within a coordinated system that typically includes a ControlLogix L7x or CompactLogix L3x series CPU, a 1756-EN2T or 1756-EN3TR EtherNet/IP communication module, a 1756-PA75 or 1756-PB75 power supply module, and a 1756-A10 or 1756-A17 backplane chassis. The terminal communicates natively over EtherNet/IP, enabling high-speed tag-based data exchange with the controller without requiring intermediate protocol conversion or gateway overhead. This direct integration reduces latency, simplifies commissioning, and ensures that operator actions are reflected in the control layer with deterministic response times.

Signal integrity and system consistency are further reinforced when the 2711P-T10C4D8 is deployed alongside 1756-IB16 or 1756-OB16E digital I/O modules, 1756-IF16 analog input modules, and 1756-OF8 analog output modules. These field I/O components feed real-time process data into the ControlLogix controller, which in turn populates the HMI tag database with live values for display, trending, and alarming. The result is a closed-loop visualization environment where the operator terminal reflects actual field conditions with minimal engineering overhead.

For applications requiring drive integration and motion visibility, the 2711P-T10C4D8 supports display of PowerFlex 755 or PowerFlex 525 variable frequency drive parameters via EtherNet/IP, enabling operators to monitor speed references, output frequency, fault codes, and energy consumption directly from the HMI screen. This eliminates the need for separate drive keypads or dedicated monitoring panels, consolidating the operator interface into a single, unified display surface.

Communication architecture flexibility is a defining characteristic of the PanelView Plus 7 platform. The 2711P-T10C4D8 supports dual EtherNet/IP ports for device-level ring (DLR) topology, enabling network redundancy at the HMI layer without requiring a managed switch. In high-availability applications, this DLR capability complements the redundancy features of a 1756-RM2 ControlLogix redundancy module, ensuring that controller failover events do not interrupt operator visibility or alarm acknowledgment workflows. The terminal continues to display live data and accept operator inputs throughout a controller switchover, maintaining process continuity in critical applications.

Panel integration is straightforward. The 2711P-T10C4D8 is designed for NEMA 4/4X and IP66 front-face sealing, making it suitable for installation in control cabinets exposed to washdown, dust, or high-humidity environments. Its 24 VDC power input is compatible with standard 1606-XLP or 1606-XLS series power supplies, and its compact bezel dimensions allow installation in standard 19-inch rack enclosures or custom fabricated panels. The terminal's aluminum die-cast front bezel provides mechanical rigidity and EMC shielding, reducing susceptibility to conducted and radiated interference in electrically noisy industrial environments.

From a maintenance and lifecycle perspective, the 2711P-T10C4D8 supports application backup and restore via USB or SD card, enabling rapid replacement without requiring a connected engineering workstation. FactoryTalk View ME projects can be transferred directly to a replacement terminal in the field, minimizing mean time to repair (MTTR) and reducing dependency on specialized commissioning personnel. This maintainability characteristic is particularly valuable in remote installations, offshore platforms, or multi-site manufacturing operations where engineering support resources are limited.

Every 2711P-T10C4D8 unit supplied by NANKMOS undergoes pre-shipment functional verification, including power-on testing, display calibration check, communication port validation, and firmware version confirmation. Units are shipped with original packaging and documentation where available. A 12-Month Warranty covers hardware defects and operational failures under normal industrial service conditions, providing procurement teams and maintenance engineers with a reliable supply chain assurance for both new installations and spare parts inventory.

The 2711P-T10C4D8 achieves its full operational value when deployed as part of a coherent Rockwell Automation control platform. A typical system architecture begins with a 1756-L74 ControlLogix CPU mounted in a 1756-A10 backplane, supported by a 1756-PA75 AC power supply. EtherNet/IP network connectivity is provided by a 1756-EN2T communication module, which links the controller to the HMI terminal, field devices, and upstream SCADA or MES systems over a common Ethernet infrastructure. This unified network topology eliminates the need for separate serial communication networks and simplifies network management and diagnostics.

Field I/O integration is handled by 1756-IB16 digital input modules and 1756-OB16E digital output modules for discrete signal processing, while 1756-IF16 analog input modules and 1756-OF8 analog output modules manage continuous process variables such as temperature, pressure, flow, and level. These I/O modules communicate with the ControlLogix CPU over the backplane at deterministic scan rates, ensuring that the tag values displayed on the 2711P-T10C4D8 accurately reflect current field conditions without polling delays.

For motion and drive applications, PowerFlex 755 AC drives are integrated via EtherNet/IP, with drive status, speed feedback, and fault diagnostics accessible directly from the HMI display. In safety-critical zones, 1791DS-IB12 GuardLogix safety I/O modules provide SIL 2 / PLd safety function integration within the same control platform, with safety status visible on the operator terminal without requiring a separate safety HMI panel.

Network resilience is enhanced through DLR topology using the terminal's dual EtherNet/IP ports, complemented by 1783-BMS10CGN Stratix managed switches for larger network segments. In redundant controller configurations, the 1756-RM2 redundancy module ensures seamless controller failover, with the 2711P-T10C4D8 maintaining continuous display updates throughout the switchover event. This architecture supports the high-availability requirements of continuous process industries including petrochemical, power generation, and water treatment.

Manufacturing & Assembly Lines: In automotive and discrete manufacturing environments, the 2711P-T10C4D8 serves as the primary operator interface for production line control, providing real-time visibility of conveyor speeds, robot cell status, part counters, and quality inspection results. Its integration with ControlLogix CPUs and PowerFlex drives enables operators to adjust production parameters, acknowledge alarms, and initiate recipe changes without leaving the line.

Power Generation & Electrical Distribution: In power plant auxiliary systems and electrical switchgear panels, the terminal provides operators with real-time monitoring of generator output, bus voltage, breaker status, and protection relay states. Its NEMA 4X front-face sealing makes it suitable for installation in outdoor switchgear enclosures and substation control rooms.

Petrochemical & Refinery Process Control: In hazardous area control rooms and safe-area operator stations, the 2711P-T10C4D8 displays process variables from pressure transmitters, flow meters, and temperature sensors connected through 1756-IF16 analog input modules. Alarm management and process trending capabilities support operator decision-making during abnormal operating conditions.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the terminal for pump station monitoring, chemical dosing control, and filtration process visualization. Its low power consumption and wide operating temperature range make it suitable for remote pump stations and outdoor equipment enclosures.

Mining & Minerals Processing: In conveyor drive control, crusher monitoring, and flotation cell management applications, the terminal provides operators with a centralized interface for multi-drive systems coordinated by ControlLogix CPUs. Its robust construction withstands the vibration, dust, and temperature extremes typical of mining environments.

Q1: Is the 2711P-T10C4D8 compatible with both ControlLogix and CompactLogix controllers over EtherNet/IP? Yes. The 2711P-T10C4D8 communicates natively with ControlLogix L7x, L8x, and CompactLogix L3x series controllers via EtherNet/IP using tag-based addressing. No protocol conversion or gateway is required. The FactoryTalk View ME project references controller tags directly, and the communication path is configured using RSLinx Enterprise within the ME application. Both single-controller and multi-controller architectures are supported, enabling a single HMI terminal to display data from multiple controllers simultaneously.

Q2: Can the 2711P-T10C4D8 maintain display continuity during a ControlLogix redundancy switchover? Yes. When deployed with a 1756-RM2 redundancy module and a redundant ControlLogix chassis pair, the 2711P-T10C4D8 continues to display live data during a controller switchover event. The EtherNet/IP communication path automatically reconnects to the new primary controller within the redundancy switchover window, typically under 300 milliseconds for standard configurations. Alarm states and trend data are preserved across the switchover, ensuring operator continuity in high-availability process applications.

Q3: What is the warranty coverage and supply chain assurance for the 2711P-T10C4D8 sourced from NANKMOS? All 2711P-T10C4D8 units supplied by NANKMOS are covered by a 12-Month Warranty against hardware defects and operational failures under normal industrial service conditions. Each unit undergoes pre-shipment functional testing including power-on verification, display calibration, and communication port validation before dispatch. NANKMOS maintains tested stock inventory to support both planned procurement and urgent spare parts requirements, with global shipping capability to support multi-site and international project deployments. For procurement inquiries, contact [email protected] or +86 18359268345.
