Allen-Bradley 2711PC-T10C4D8 HMI Terminal

Product Details

2711PC-T10C4D8 Product Description

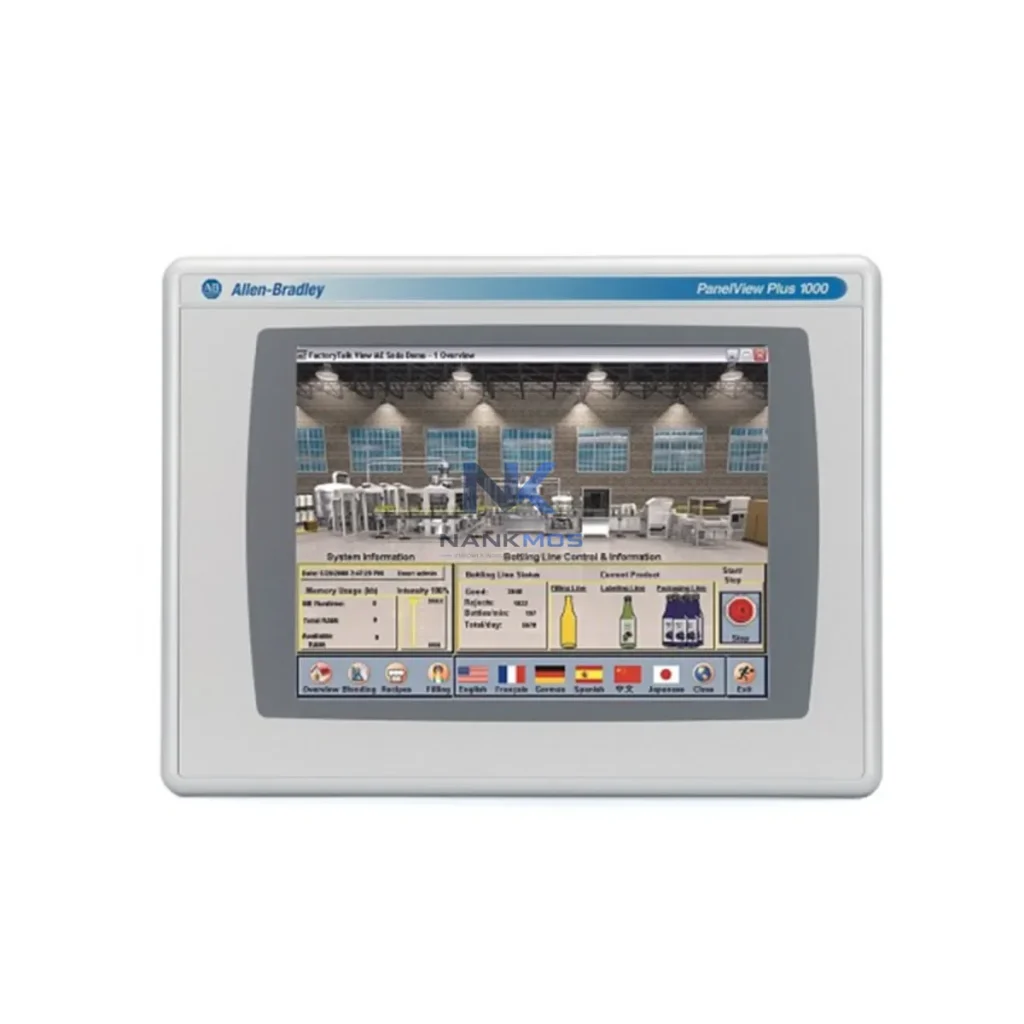

The Allen-Bradley 2711PC-T10C4D8 is a 10.4-inch color touch-screen HMI terminal from the PanelView Plus Compact series, engineered for seamless integration into Rockwell Automation control architectures. Designed to operate within ControlLogix, CompactLogix, and MicroLogix platforms, this unit delivers real-time visualization, operator control, and diagnostic feedback across the full automation stack. Its native EtherNet/IP communication capability ensures deterministic data exchange with PLCs, I/O modules, and network infrastructure, making it a cornerstone component in modern industrial control panel design.

In distributed control environments, the 2711PC-T10C4D8 functions as the HMI layer within a layered architecture that spans the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer. Its role is not limited to display — it actively participates in system diagnostics, alarm management, and operator-driven process adjustments, reducing mean time to repair and improving overall system uptime. The unit supports RSView ME and FactoryTalk View ME software environments, enabling standardized screen development and version-controlled deployment across multi-panel installations.

The 2711PC-T10C4D8 is architected to operate as the operator-facing node within a fully integrated Rockwell Automation platform. In a typical ControlLogix-based system, the HMI communicates over EtherNet/IP with the 1756-L71 ControlLogix CPU, retrieving tag data in real time to render process values, setpoints, and alarm states. The backplane infrastructure — typically a 1756-A7 or 1756-A13 chassis — houses the CPU alongside 1756-EN2T EtherNet/IP communication modules that bridge the HMI network to the control network with managed bandwidth allocation.

On the I/O layer, the 2711PC-T10C4D8 visualizes data sourced from 1756-IB16 digital input modules and 1756-OF8 analog output modules, providing operators with live signal status and the ability to issue output commands through configured faceplates. For installations requiring distributed I/O, 1734 POINT I/O modules connected via EtherNet/IP adapters feed data upstream to the ControlLogix CPU, which the HMI then renders without additional configuration overhead.

Power integrity is maintained through 1756-PA72 or 1756-PB72 power supply modules within the chassis, while the HMI panel itself is powered by a dedicated 24 VDC rail — often sourced from an Allen-Bradley 1606-XLP power supply — ensuring electrical isolation between the control backplane and the operator interface. In redundant architectures, a secondary 1756-RM2 redundancy module manages CPU switchover, and the HMI seamlessly reconnects to the active controller via EtherNet/IP without operator intervention.

For communication-layer integrity, Stratix 5700 managed Ethernet switches provide VLAN segmentation between the HMI network and the controller network, supporting ring topology for fault tolerance. Where legacy serial protocols are required, a 1761-NET-AIC Advanced Interface Converter bridges DH-485 devices to the EtherNet/IP backbone, extending the HMI's reach to older MicroLogix controllers without hardware replacement. Safety-layer integration is supported through 1791DS GuardLink safety I/O modules, whose status can be surfaced on the 2711PC-T10C4D8 display for operator awareness without compromising the safety network's integrity.

The Allen-Bradley 2711PC-T10C4D8 is deployed across a broad spectrum of industrial sectors where operator visibility and control responsiveness are critical to process continuity.

In manufacturing and assembly lines, the HMI serves as the primary operator station for conveyor control, robotic cell monitoring, and production count tracking. Its NEMA 4/4X-rated front panel withstands wash-down environments common in food and beverage processing, while its EtherNet/IP connectivity supports integration with barcode scanners and vision systems on the same network segment.

In power generation and electrical distribution facilities, the 2711PC-T10C4D8 provides real-time visualization of generator load, switchgear status, and protection relay outputs. Its ability to display analog trends from 1756-OF8 modules allows operators to monitor voltage and current profiles without dedicated SCADA workstations at every panel location.

In petrochemical and refinery applications, the HMI is panel-mounted within explosion-proof enclosures (with appropriate purge and pressurization systems) to provide local operator control of pump stations, valve actuators, and heat exchanger loops. The unit's FactoryTalk View ME environment supports alarm prioritization per ISA-18.2 standards, ensuring critical process deviations are immediately visible to field operators.

In water and wastewater treatment plants, the 2711PC-T10C4D8 manages pump sequencing, chemical dosing, and filtration cycle control. Its compact form factor allows installation in space-constrained MCC panels, and its DH-485 port provides backward compatibility with legacy SLC 500 controllers still common in municipal infrastructure.

In mining and metals processing, the HMI withstands high-vibration and high-dust environments when properly enclosed, providing crusher control, conveyor speed monitoring, and ore grade visualization. Its 55°C operating temperature ceiling accommodates the elevated ambient temperatures typical of underground and surface mining control rooms.

Q1: Is the 2711PC-T10C4D8 compatible with both ControlLogix and CompactLogix platforms? Yes. The 2711PC-T10C4D8 communicates natively over EtherNet/IP with both the 1756 ControlLogix and 1769 CompactLogix families using FactoryTalk View ME. Tag-based communication is configured through RSLinx Classic or RSLinx Enterprise, and the HMI supports direct tag browsing from the controller's tag database. For legacy platforms such as MicroLogix 1100 or SLC 500, DH-485 or DF1 serial connections are available, ensuring broad architectural compatibility without gateway hardware in most cases.

Q2: What are the installation and commissioning requirements for panel integration? The 2711PC-T10C4D8 requires a standard panel cut-out of approximately 280 mm × 216 mm and is secured with the supplied mounting clamps. A dedicated 24 VDC supply rated at minimum 2 A is recommended to ensure stable operation during backlight startup. EtherNet/IP commissioning involves assigning a static IP address via the HMI's built-in configuration menu and verifying controller path settings in FactoryTalk View ME. Startup testing should include alarm acknowledgment verification, tag write confirmation, and communication timeout behavior validation. Full commissioning documentation is available upon request with each unit supplied under our 12-Month Warranty program.

Q3: What does the 12-Month Warranty cover, and what is the stock and lead time status? Every 2711PC-T10C4D8 supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Units undergo pre-shipment functional testing including display verification, touch calibration, communication port validation, and power-on self-test. Stock is maintained for immediate dispatch, with standard lead times of 3–7 business days for international shipments. Expedited shipping options are available for urgent project requirements. For current stock levels, pricing, and technical support, contact [email protected] or call +86 18359268345.
