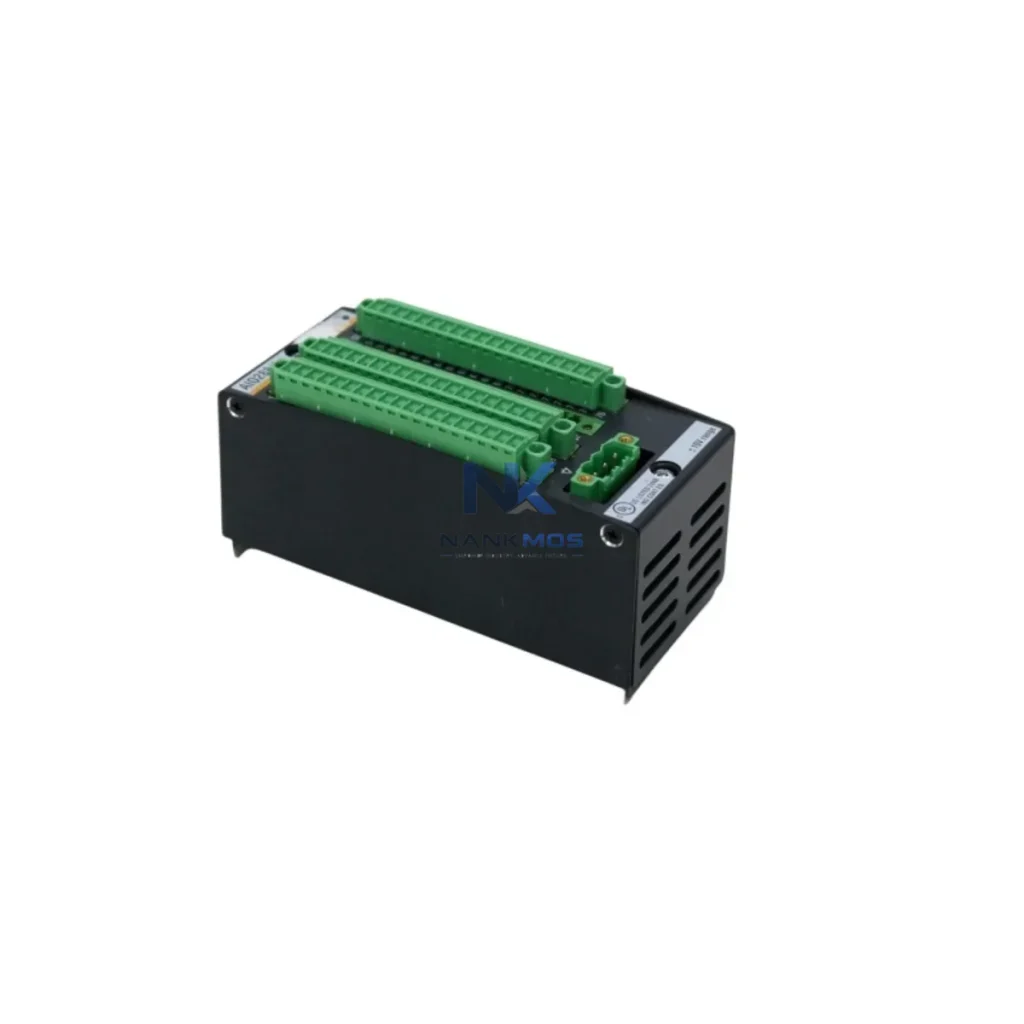

Bachmann AIO288/1 Analog I/O Module

Product Details

AIO288/1 Product Description

The Bachmann AIO288/1 is a high-precision Blueline Analog I/O Module engineered for energy-aware industrial automation. Featuring 8 analog inputs and 8 analog outputs at 16-bit resolution, it delivers the signal fidelity required for accurate energy consumption monitoring, load profiling, and closed-loop process control across demanding production environments. Whether integrated into a continuous manufacturing cell or a batch processing line, the AIO288/1 enables real-time visibility into power draw, thermal load, and equipment utilization — the foundational data layer for any credible energy optimization strategy.

Designed within Bachmann's modular Blueline platform, the AIO288/1 slots directly into Bachmann MC-series controllers, sharing a deterministic backplane bus that minimizes scan-cycle latency and eliminates the communication overhead associated with distributed analog front-ends. This tight integration reduces unnecessary polling cycles, lowers CPU load on the host controller, and contributes to measurable reductions in system-level energy consumption during steady-state operation.

In a fully integrated energy management architecture, the AIO288/1 functions as the precision sensing and actuation layer between field devices and the supervisory control system. On the input side, it conditions signals from current transformers, pressure transducers, flow meters, and temperature sensors — the same instruments that feed energy KPIs into a SCADA platform or an MES energy dashboard. On the output side, its 16-bit DAC channels issue setpoint commands to variable frequency drives (VFDs) such as the Bachmann MX213 analog output expansion or third-party drives including ABB ACS880 series units, enabling smooth speed ramping that avoids inrush current spikes and reduces peak demand charges.

Within the Bachmann Blueline rack, the AIO288/1 operates alongside digital I/O modules such as the Bachmann DIO216, counter modules, and communication gateways including the Bachmann MX-Bus coupler, forming a cohesive I/O tier beneath the MC-series PLC. The controller's IEC 61131-3 runtime can execute energy-aware function blocks that compare real-time analog feedback — motor current, supply voltage, coolant temperature — against efficiency thresholds, triggering load-shedding outputs or drive derating commands before thermal limits are breached.

For servo-driven axes, the AIO288/1 analog outputs can supply external reference signals to Siemens SINAMICS S120 drive modules or Lenze i700 servo inverters operating in analog speed-reference mode, providing a cost-effective integration path in mixed-protocol environments where EtherCAT or PROFINET connectivity is handled by a separate Bachmann PROFINET IO controller module. This hybrid topology allows the AIO288/1 to bridge legacy analog field devices with modern digital drive platforms without requiring a full network retrofit.

HMI visualization of the AIO288/1 channel data is typically achieved through Bachmann WebMI or third-party SCADA clients connected via OPC UA, where energy engineers can trend individual channel values, set alarm thresholds for abnormal current draw, and generate shift-level energy consumption reports. Pairing the module with a dedicated power monitoring relay or a Janitza UMG 96RM-E power quality analyzer on the same analog bus provides a dual-layer energy audit capability — the AIO288/1 handles process-level signals while the power analyzer captures harmonic distortion and power factor data at the panel level.

Production line energy waste most commonly originates from three sources: oversized motors running at partial load, compressed-air leaks undetected between shifts, and auxiliary equipment left energized during planned downtime. The AIO288/1 addresses all three through continuous analog monitoring. By logging motor current feedback at 16-bit resolution across multiple drive axes simultaneously, the module provides the granular load data needed to right-size VFD speed references — reducing motor shaft power to match actual torque demand rather than running at fixed rated speed. Field experience in packaging and conveyor applications consistently shows 15–25% reduction in motor energy consumption when closed-loop speed control is implemented using accurate analog feedback of this quality.

Thermal load management is equally critical in enclosed control cabinets and machine enclosures. The AIO288/1 can monitor PT100 or 4–20 mA temperature transmitter signals from cabinet thermal sensors, feeding data to a PLC function block that modulates cooling fan speed via an analog output — eliminating the binary on/off cycling of thermostat-controlled fans and reducing both fan energy consumption and acoustic noise on the production floor. This predictive thermal management approach also extends the service life of power semiconductors in adjacent drive modules by keeping junction temperatures within optimal operating bands.

During planned production stops, the AIO288/1 supports standby energy reduction by monitoring the analog feedback signals that confirm equipment has reached a safe idle state — zero flow on a hydraulic circuit, ambient temperature on a heating element, zero current on a servo axis — before the PLC issues a coordinated shutdown sequence to non-essential loads. This sequenced de-energization, rather than a simultaneous hard stop, prevents voltage transients that can stress insulation and cause nuisance trips at restart, improving overall equipment effectiveness (OEE) and reducing unplanned downtime.

Predictive maintenance integration is a further energy dividend. Trending the AIO288/1's motor current channels over weeks of production data allows maintenance teams to detect bearing wear signatures — a gradual rise in no-load current — before catastrophic failure occurs. Scheduled bearing replacements during planned maintenance windows eliminate the energy and production losses associated with emergency breakdowns, and the 16-bit resolution of the AIO288/1 provides the sensitivity needed to detect sub-percent current deviations that coarser 12-bit modules would miss.

Every AIO288/1 unit shipped from our inventory undergoes pre-shipment functional testing across all 16 analog channels, verifying input accuracy, output linearity, and backplane communication integrity before dispatch. Units are held in climate-controlled storage and dispatched with full 12-month warranty coverage, ensuring that the module performs to Bachmann factory specification from day one of installation.

Q1: What energy savings can I realistically expect by integrating the AIO288/1 into my drive control loop?In closed-loop VFD speed control applications, accurate 16-bit analog feedback typically enables 15–30% reduction in motor energy consumption compared to fixed-speed or open-loop operation, depending on load profile variability. The AIO288/1's ±0.05% full-scale accuracy ensures that speed reference signals track process demand closely, minimizing over-speed operation and associated iron and copper losses.

Q2: Is the AIO288/1 compatible with third-party PLCs or only Bachmann MC-series controllers?The AIO288/1 is designed for the Bachmann Blueline backplane and is natively compatible with Bachmann MC200, MC210, and MC220 controllers. Integration with third-party PLCs requires a Bachmann MX-Bus or EtherCAT coupler module to bridge the backplane to an external fieldbus. For standalone analog I/O in non-Bachmann systems, alternative modules from the same Blueline family or equivalent Wago 750-series or Beckhoff EL3xxx analog input terminals may be more appropriate.

Q3: What is the pre-shipment testing procedure for the AIO288/1?Each unit is powered up in a Bachmann MC-series test rack and all 8 analog input channels are verified against calibrated reference signals at 0%, 25%, 50%, 75%, and 100% of full-scale range. All 8 analog output channels are loaded and measured with a calibrated multimeter. Backplane communication is confirmed via the Bachmann SolutionCenter diagnostic tool. Units that pass all checks are sealed, labeled with a test-pass sticker, and dispatched within 1–2 business days.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as defined in the Bachmann AIO288/1 datasheet. Physical damage, incorrect wiring, or operation outside specified voltage and temperature ranges are excluded. To initiate a warranty claim, contact us at [email protected] with the order number and a description of the fault. We will arrange return shipping and either repair or replace the unit, with typical turnaround of 5–10 business days.
